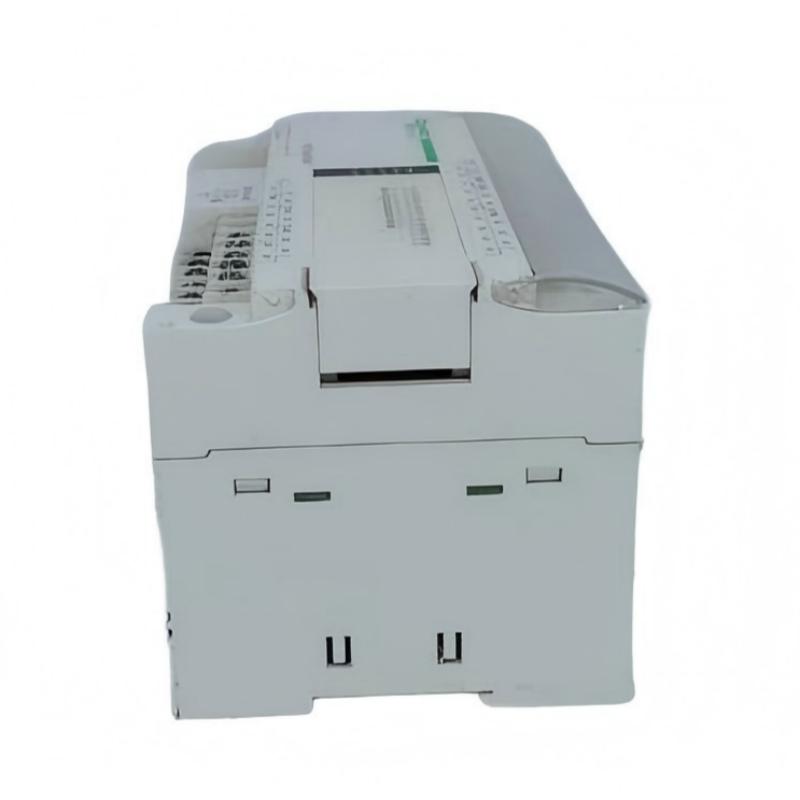

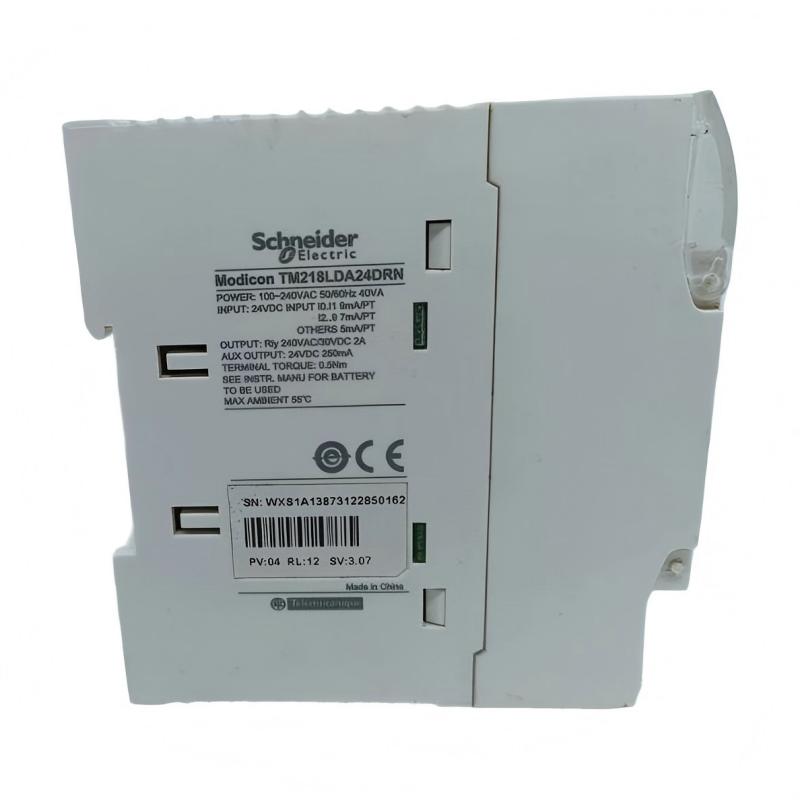

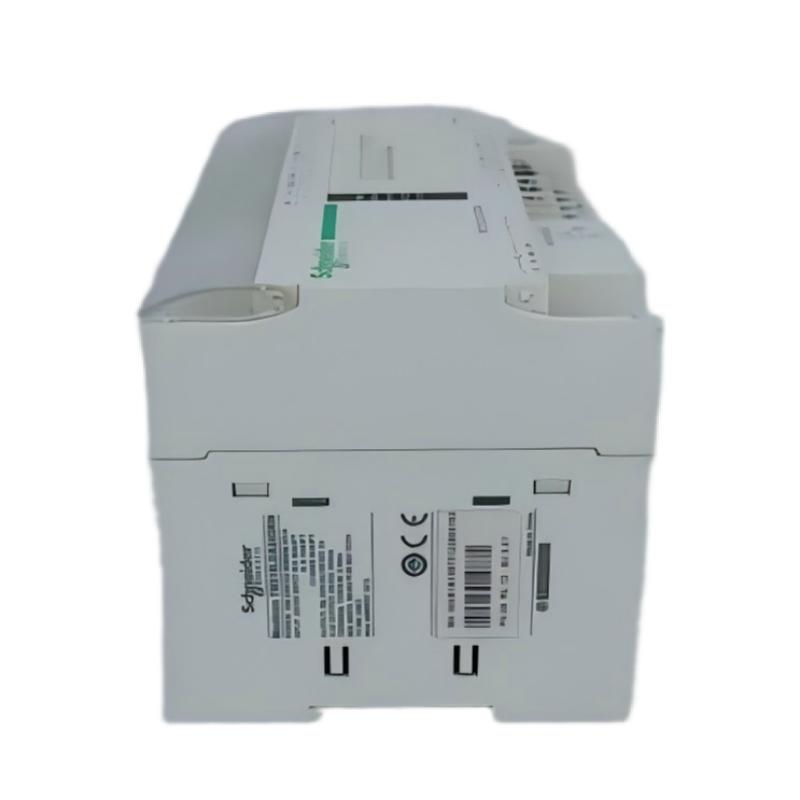

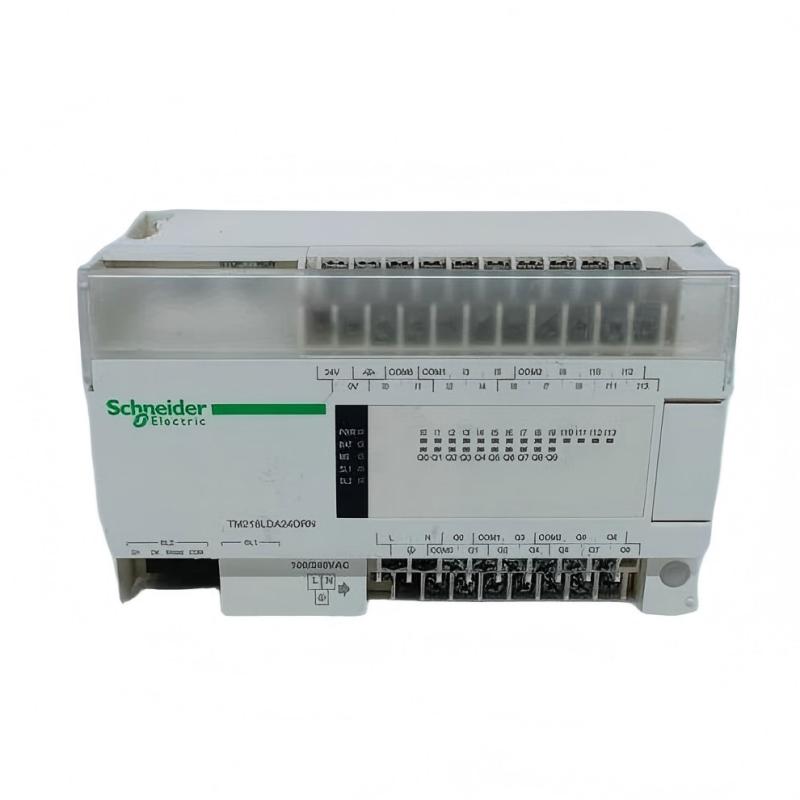

Schneider TM218LDA24DRN Modicon M218 Logic Controller

Industrial Applications and Flexible Machine Automation

The Schneider TM218LDA24DRN Modicon M218 Logic Controller is a compact programmable controller designed for industrial automation applications requiring dependable processing, efficient I/O management, and flexible machine control. It provides integrated PLC logic execution, digital signal processing, relay output control, and expansion capability within a space-saving industrial housing.

The TM218LDA24DRN is suitable for applications that require stable operation and accurate control performance, including:

• Packaging and assembly machines
• Conveyor and material handling systems
• Automated production equipment
• Industrial testing systems
• OEM machine applications
• Small manufacturing lines
• Process monitoring equipment

With integrated digital I/O resources, high-speed input processing capability, reliable relay outputs, and modular expansion support, the TM218LDA24DRN helps engineers build efficient automation systems with simplified configuration and dependable long-term operation.

Engineering Advantages and Performance Benefits

The Schneider TM218LDA24DRN Modicon M218 Logic Controller combines compact hardware design with powerful PLC functionality to support modern industrial control requirements.

Compact PLC Control Architecture
The TM218LDA24DRN integrates processor functions, digital I/O control, memory resources, and communication capability into a single controller, reducing hardware complexity and optimizing control cabinet space.

Reliable Relay Output Performance
The relay output design provides flexible switching capability for different industrial loads, including contactors, valves, indicators, and other automation devices.

High-Speed Input Processing
Integrated high-speed input functions allow the controller to process pulse signals from sensors and encoders, supporting applications involving counting, speed monitoring, and position detection.

Efficient Digital Signal Management
The controller provides multiple digital input and output channels, enabling connection with various field devices while maintaining accurate and responsive machine control.

Flexible Expansion Capability
The TM218LDA24DRN supports compatible expansion modules, allowing users to extend I/O capacity and adapt the control system as automation requirements increase.

Easy Programming and Maintenance
The controller supports structured PLC programming methods, helping engineers create organized applications with simplified troubleshooting and maintenance.

Technical FAQs and Troubleshooting Guide

Q1: What is the primary function of the Schneider TM218LDA24DRN?
A: The TM218LDA24DRN is a PLC controller used to execute automation programs, process field signals, and control industrial machinery.

Q2: What type of output does the TM218LDA24DRN use?
A: The controller uses relay outputs, providing flexible switching control for various industrial devices.

Q3: Why does the controller not start after power is connected?
A: Possible causes include incorrect wiring, unstable power supply, loose terminals, or internal controller faults.

Q4: Why are relay outputs not operating correctly?
A: Possible causes include incorrect program logic, output configuration errors, wiring problems, or external device failures.

Q5: How can high-speed input faults be diagnosed?
A: Check sensor wiring, pulse signal quality, input configuration, grounding conditions, and PLC parameter settings.

Q6: Why does the PLC fail to communicate with programming software?
A: Check communication cables, interface settings, software configuration, and controller status.

Q7: What causes inaccurate counting from high-speed inputs?
A: Possible causes include electrical interference, incorrect sensor installation, poor shielding, or improper signal configuration.

Q8: Can the TM218LDA24DRN be expanded for larger automation systems?
A: Yes, compatible expansion modules can be added to increase system capacity and support additional functions.

Q9: Why does the PLC program run slower than expected?
A: Possible causes include complex logic operations, excessive communication tasks, or inefficient programming structures.

Q10: How can the operating reliability of the TM218LDA24DRN be improved?
A: Proper installation, stable power conditions, regular maintenance, environmental protection, and software backups help ensure reliable operation.
