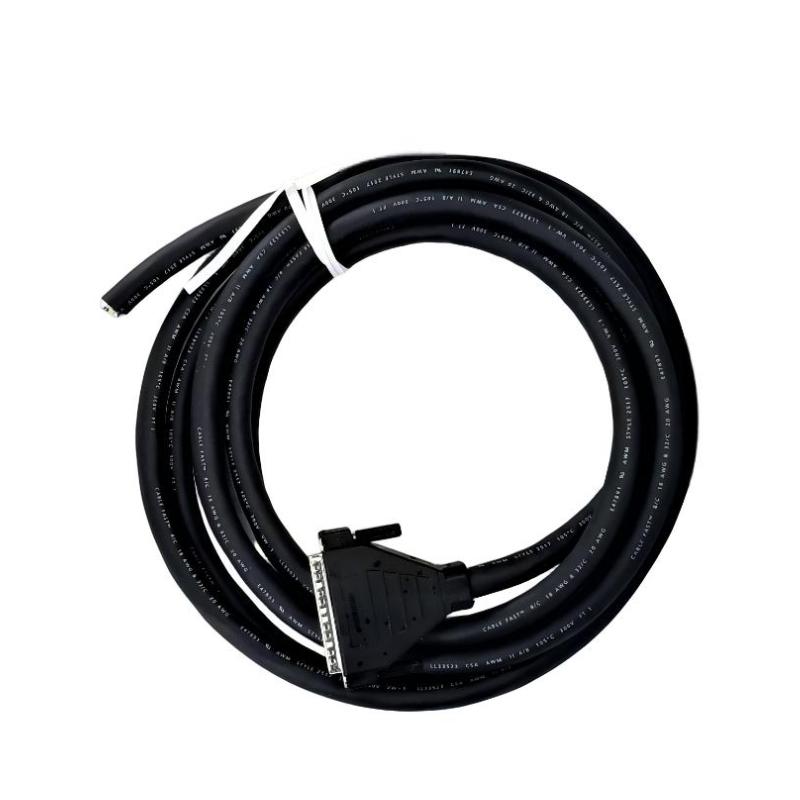

Schneider VW3M8A11R10 Encoder Cable Module

Where It Excels in Industrial Use

• Lexium 16D servo motion systems
• BCH16 servo motor feedback applications
• Automated packaging and assembly machinery
• Compact robotic positioning equipment
• Precision indexing and handling systems
• Electronics manufacturing equipment
• Small CNC and processing machines
• OEM automation platforms requiring extended encoder connection distance

Key Strengths at a Glance

• Designed for Schneider Electric Lexium 16D servo systems
• Compatible with BCH16 servo motors and LXM16D servo drives
• 10-meter shielded encoder cable design for flexible installation
• Provides stable feedback communication for precise motion control
• Supports reliable position and speed monitoring
• Dedicated Schneider servo accessory for improved compatibility
• Shielded structure helps minimize electromagnetic interference
• Suitable for industrial environments requiring dependable servo performance

Technical FAQs

1. What is the primary function of the Schneider VW3M8A11R10?

The VW3M8A11R10 is an encoder cable designed to connect BCH16 servo motors with LXM16D servo drives, transmitting feedback signals required for accurate servo control.

2. Which Schneider Electric products are compatible with the VW3M8A11R10?

The cable is designed for the Lexium series and is compatible with BCH16 servo motors and LXM16D servo drives.

3. Is the VW3M8A11R10 a motor power cable?

No. The VW3M8A11R10 is an encoder feedback cable used for signal transmission and does not provide motor power.

4. What type of signals does this cable transmit?

The cable transmits encoder feedback signals used for motor position detection, speed regulation, and servo motion control.

5. Why does the VW3M8A11R10 use a shielded cable structure?

Shielding helps reduce electromagnetic interference from servo motors, drives, and industrial electrical equipment, improving feedback signal stability.

6. Does the VW3M8A11R10 require software configuration?

No. The cable is a passive hardware accessory and does not require programming, parameter settings, or firmware updates.

7. What advantage does a 10-meter encoder cable provide?

The 10-meter length allows greater flexibility when the servo motor and control cabinet are installed farther apart within a machine.

8. Can the VW3M8A11R10 be used in OEM automation equipment?

Yes. It is suitable for OEM manufacturers and automation integrators developing servo-driven machinery based on Lexium 16D technology.

9. How does encoder cable quality affect servo performance?

A reliable encoder connection helps maintain accurate feedback signals, supporting smooth operation, stable positioning, and improved machine performance.

10. Why choose a dedicated Schneider encoder cable instead of a general cable?

A dedicated Schneider encoder cable ensures proper compatibility with the servo system, reliable signal transmission, and easier machine integration.
