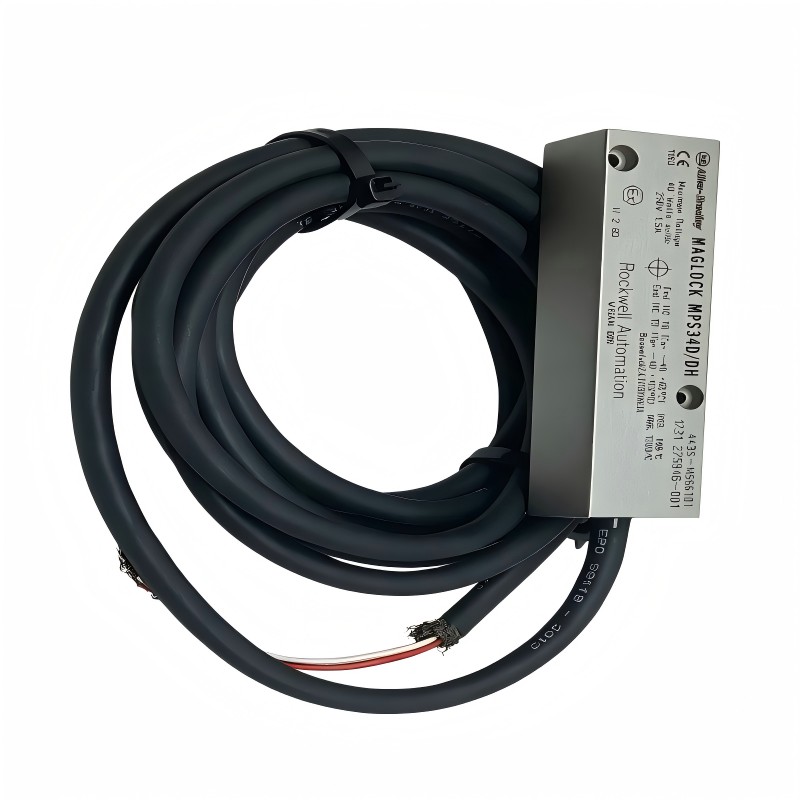

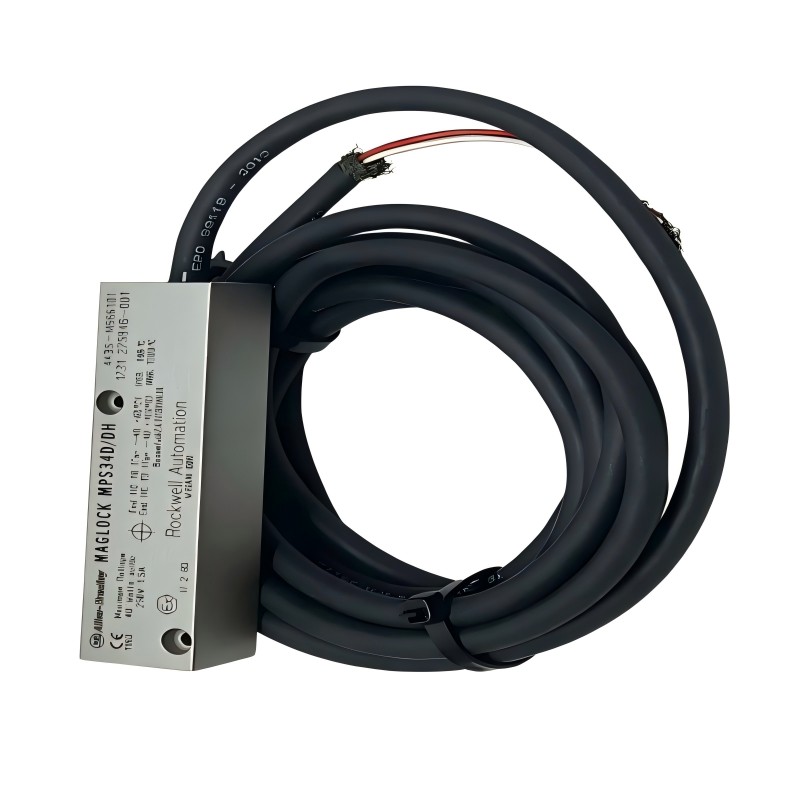

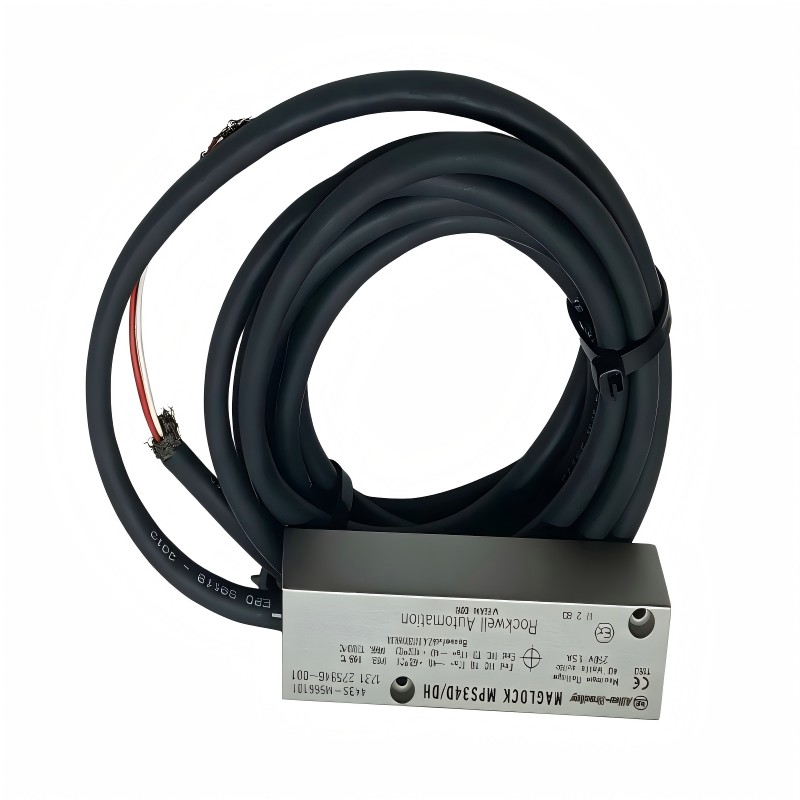

Allen Bradley 443S-M566101 MPS34D EX Proximity Switch

Applications in Industrial Safety Detection Systems

The Allen Bradley 443S-M566101 MPS34D EX Proximity Switch is a non-contact safety switch designed for industrial machine protection and hazardous area monitoring applications. As part of the Sigma Maglock MPS34D series, this proximity switch provides reliable position detection for safety doors, protective guards, and access points where secure machine isolation is required.

This switch is widely used in automated manufacturing equipment, packaging machinery, robotic cells, production lines, and process systems where safety interlocking is essential. Its magnetic sensing technology enables reliable monitoring without mechanical contact between the switch and actuator, helping reduce wear and improve operational stability.

With stainless steel construction and a robust industrial design, the 443S-M566101 is suitable for demanding environments requiring protection against dust, water, oil, and harsh operating conditions.

Key Product Benefits and Safety Advantages

Non-Contact Safety Monitoring
The MPS34D proximity switch uses magnetic detection technology to monitor guard positions without physical contact, improving durability and reducing mechanical failure risks.

Designed for Harsh Industrial Environments
The stainless steel housing and high protection design make the switch suitable for applications exposed to moisture, contamination, and demanding industrial conditions.

Reliable Machine Guard Interlocking
The device provides dependable status monitoring for safety doors and protective covers, helping prevent unsafe machine operation.

Long Mechanical Service Life
The non-contact switching principle minimizes component wear and supports extended operating life in industrial safety applications.

Flexible Integration Into Safety Circuits
The switch can be connected with safety relays and machine safety control systems to create reliable protective solutions.

Technical FAQs About Allen Bradley 443S-M566101 MPS34D EX Proximity Switch

1. What is the main function of the Allen Bradley 443S-M566101?
The 443S-M566101 is a magnetic safety proximity switch used for monitoring machine guard positions and protective access points.

2. How does the MPS34D proximity switch detect an actuator?
The switch detects the presence and position of a compatible magnetic actuator without requiring direct mechanical contact.

3. What type of applications are suitable for this safety switch?
Typical applications include safety doors, machine guards, robotic work cells, and automated production equipment.

4. Does the 443S-M566101 require a separate actuator?
Yes. The switch operates with a compatible magnetic actuator selected according to the required installation distance.

5. What type of contact arrangement does this proximity switch provide?
The MPS34D model uses a change-over contact configuration suitable for industrial safety monitoring applications.

6. What should be checked if the safety circuit does not activate?
Technicians should inspect actuator alignment, wiring connections, power supply conditions, and safety relay status.

7. Can this switch be used in hazardous environments?
Yes. The EX-rated design supports applications requiring certified protection in specific industrial environments.

8. How is the switch connected to a safety control system?
The switch is connected through its integrated cable to a suitable safety relay, controller, or monitoring circuit.

9. What maintenance is required for the MPS34D proximity switch?
Maintenance mainly involves checking cable condition, actuator alignment, mounting security, and correct switching operation.

10. Can the 443S-M566101 replace a mechanical safety interlock switch?
In suitable applications, it can replace mechanical solutions where non-contact safety monitoring is preferred.
