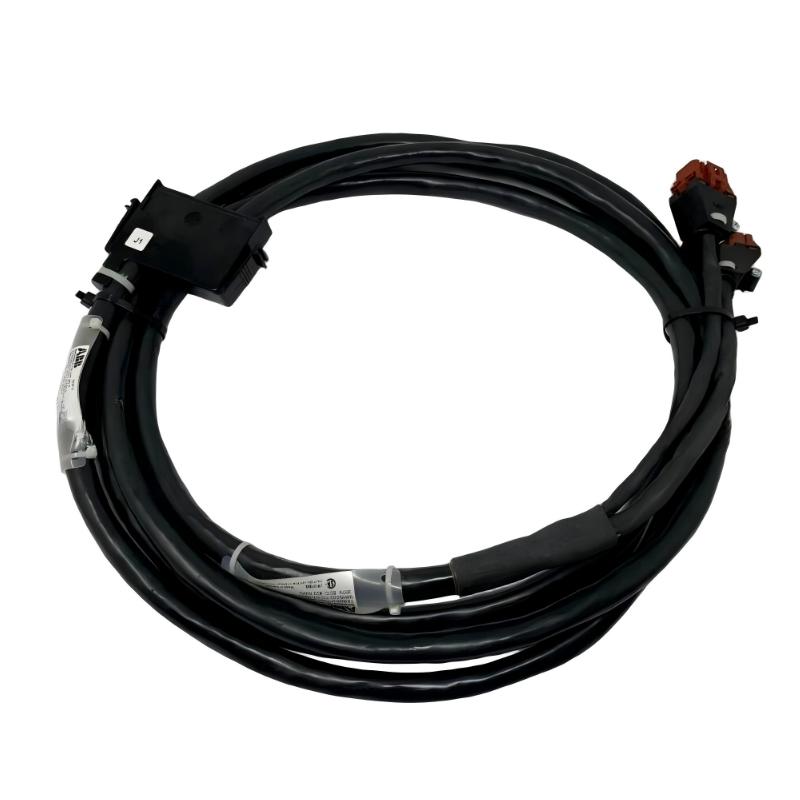

ABB Bailey NKSD01-30 SOE Digital Input Module Cable

Applications and Sequence Event Monitoring System Connections

The ABB Bailey NKSD01-30 SOE Digital Input Module Cable is a dedicated industrial cable designed for connecting ABB Bailey SOE (Sequence of Events) digital input modules with corresponding termination units in Infi 90 distributed control systems. This cable provides a dependable signal transmission path for time-critical digital input monitoring applications where accurate event capture and system reliability are essential.

The NKSD01-30 is commonly installed in power generation facilities, chemical plants, oil and gas installations, and other process automation environments using ABB Bailey control platforms. It connects the SPSED SOE module to the NTDI01 termination unit, supporting reliable transfer of digital field signals used for alarms, equipment status monitoring, and operational event recording.

With a 30-foot cable length, this model provides additional routing flexibility for larger control cabinets, distributed I/O arrangements, and applications where termination equipment is located away from the processor or I/O rack.

Product Strengths and Industrial Connectivity Advantages

Reliable SOE Signal Transmission
The NKSD01-30 ensures stable signal communication between SOE digital input modules and termination units, helping maintain accurate event recording and operational analysis.

Designed for ABB Bailey Infi 90 Architecture
This cable is developed specifically for ABB Bailey control environments, making it a suitable component for maintaining existing DCS installations and extending system service life.

Supports High-Accuracy Event Monitoring
SOE applications require precise detection of digital signal changes, and a reliable connection cable helps preserve event timing accuracy throughout the control system.

Extended Installation Flexibility
The 30-foot length allows easier cable routing between separate cabinet sections, improving installation convenience in larger industrial control rooms.

Improves Maintenance Efficiency
Using a dedicated ABB Bailey replacement cable helps reduce troubleshooting time and supports faster restoration of communication paths during maintenance activities.

Technical FAQs About ABB Bailey NKSD01-30 SOE Digital Input Module Cable

1. What is the main purpose of the ABB Bailey NKSD01-30 cable?
The NKSD01-30 is used to connect an ABB Bailey SOE digital input module with its related termination unit for digital signal transmission.

2. What does SOE mean in ABB Bailey control systems?
SOE means Sequence of Events, a function used to record digital signal transitions with accurate timing information for event analysis.

3. Which ABB Bailey modules are connected using NKSD01-30?
The cable is designed for connection between the SPSED SOE module and the NTDI01 termination unit.

4. What type of signals are transmitted through this cable?
The cable transmits digital input signals used for equipment status, alarms, trips, and event monitoring applications.

5. What should be checked if SOE event records are missing?
Engineers should inspect cable connections, module diagnostics, termination wiring, and SOE configuration settings.

6. Can the NKSD01-30 be used with standard digital input modules?
The cable is intended specifically for compatible ABB Bailey SOE digital input module applications rather than general-purpose digital inputs.

7. What are common causes of NKSD01-30 communication faults?
Typical causes include loose connectors, cable damage, incorrect installation, signal interference, or faulty connected modules.

8. How does the cable support industrial reliability?
Its dedicated design and compatibility with ABB Bailey systems help maintain stable signal paths in continuous process automation environments.

9. Is the cable suitable for upgrading existing ABB Bailey systems?
Yes. It can support maintenance and replacement requirements when the existing system configuration matches the cable application.

10. What maintenance practices are recommended for this cable?
Regular inspection of connectors, cable routing, insulation condition, and module connections helps maintain reliable operation.
