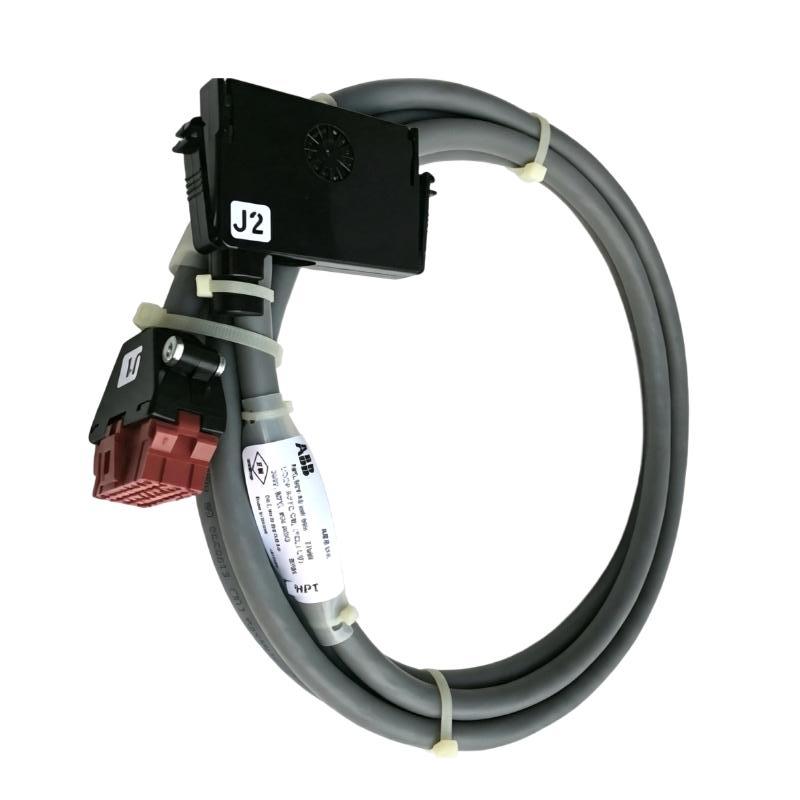

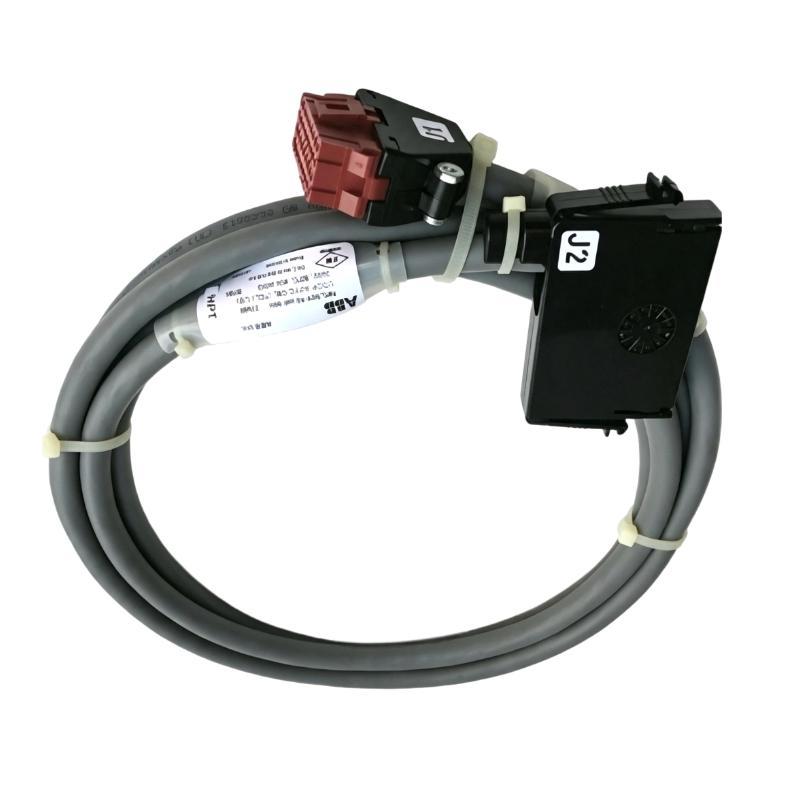

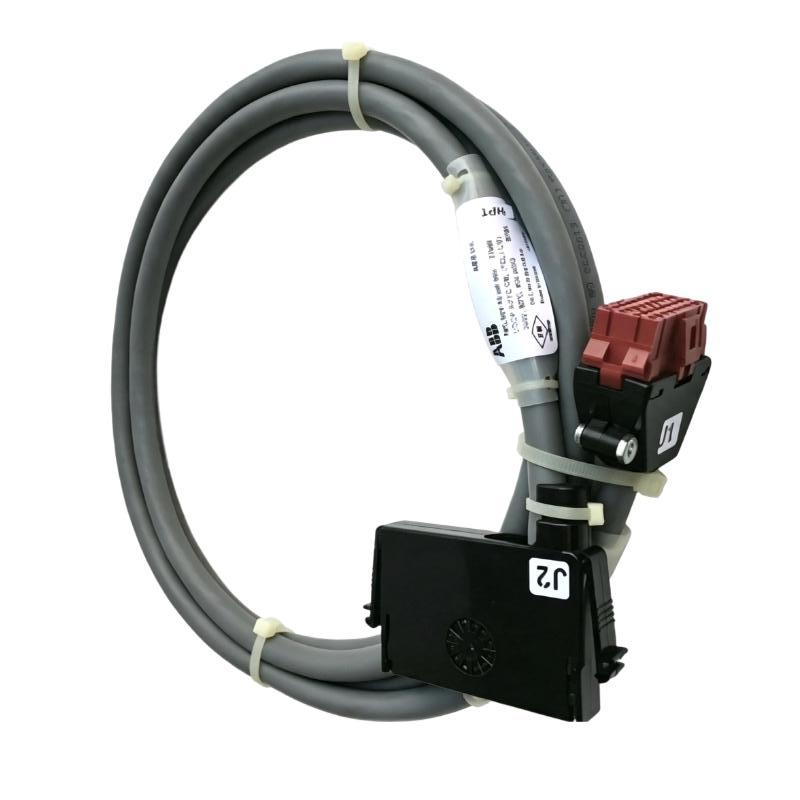

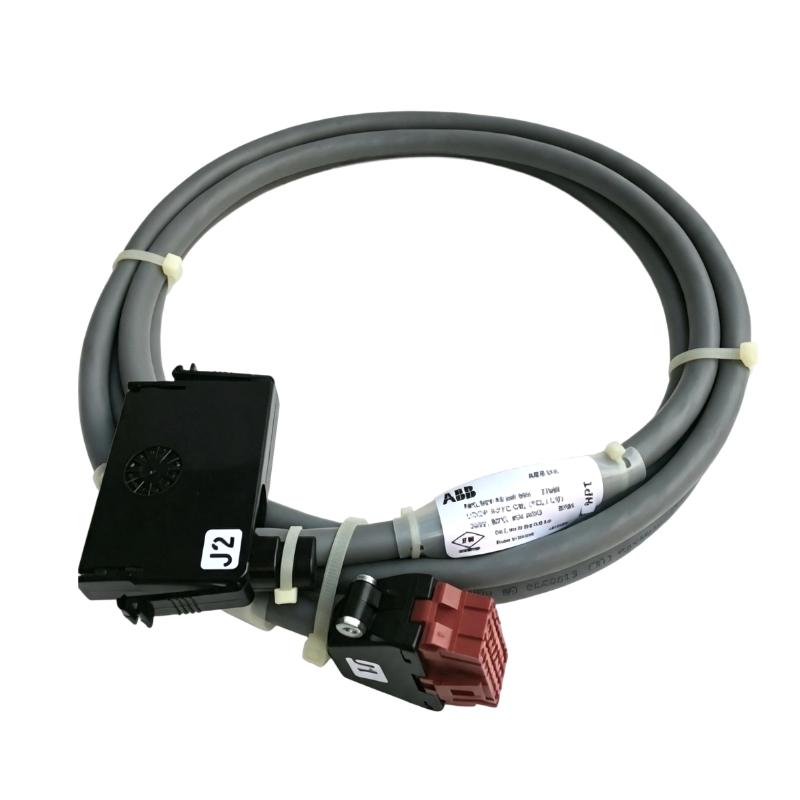

ABB Bailey NKST01-10 Cable Assembly

Applications and SOE Signal Connection Applications

The ABB Bailey NKST01-10 Cable Assembly is a dedicated industrial connection cable designed for ABB Bailey Infi 90 distributed control system applications. This cable assembly provides a reliable interface between the SPSET Sequence of Events (SOE) module and the NTST01 termination unit, ensuring stable digital signal transmission for event monitoring and process control systems.

The NKST01-10 is widely used in power generation, petrochemical, oil and gas, and industrial manufacturing facilities where ABB Bailey control systems manage critical automation processes. SOE monitoring requires accurate capture of equipment status changes, alarms, and operational events, making dependable cable connections essential for maintaining system performance.

With a 10-foot cable length, the NKST01-10 provides additional installation flexibility for control cabinets, I/O racks, and distributed termination layouts. It is an ideal replacement component for maintenance engineers working with existing ABB Bailey Infi 90 platforms and looking to restore reliable module-to-termination connectivity.

Industrial Connectivity Advantages and System Benefits

Dedicated ABB Bailey SOE Interface
The NKST01-10 is specifically designed for SOE module applications, providing a direct and dependable connection between compatible ABB Bailey hardware components.

Reliable Event Monitoring Signal Path
In sequence-of-events applications, signal accuracy is critical. This cable assembly helps maintain stable communication between the SOE module and termination unit, supporting precise event recording and fault analysis.

Extended 10-Foot Installation Flexibility
The longer cable configuration allows easier routing between separated cabinet sections, improving installation convenience in larger automation systems.

Optimized for Legacy DCS Maintenance
The NKST01-10 supports existing ABB Bailey Infi 90 installations, allowing users to replace damaged or aging cables without replacing complete control architectures.

Improved System Reliability
Using a dedicated ABB Bailey cable assembly reduces connection-related failures and helps maintain long-term availability of critical process control systems.

Technical FAQs About ABB Bailey NKST01-10 Cable Assembly

1. What is the main purpose of the ABB Bailey NKST01-10?
The NKST01-10 is used to connect the ABB Bailey SPSET SOE module with the NTST01 termination unit for sequence-of-events monitoring applications.

2. What type of system uses the NKST01-10 cable assembly?
It is primarily used in ABB Bailey Infi 90 distributed control system installations.

3. What does SOE mean in ABB Bailey systems?
SOE stands for Sequence of Events, a function that records digital input changes with precise timing information for troubleshooting and operational analysis.

4. Which modules are connected by the NKST01-10?
The cable connects the SPSET SOE module and the NTST01 termination unit within compatible ABB Bailey configurations.

5. What should technicians check if SOE signals are missing?
Engineers should inspect cable connections, module diagnostics, termination wiring, and SOE configuration parameters.

6. Can the NKST01-10 be used for standard digital input applications?
No. It is designed specifically for ABB Bailey SOE module connection applications.

7. What are common causes of NKST01-10 communication faults?
Typical causes include loose connectors, damaged cable insulation, incorrect installation, or faults in connected modules.

8. How should this cable be installed in an automation cabinet?
The cable should be routed securely, avoiding excessive bending, mechanical stress, and strong electromagnetic interference sources.

9. Is the NKST01-10 suitable for system replacement projects?
Yes. It is commonly used as a replacement cable assembly when maintaining compatible ABB Bailey control systems.

10. How can the service life of the cable assembly be improved?
Regular inspection of connectors, cable routing, and physical condition helps maintain reliable long-term performance.
