Brand:ABB Bailey Item No.:NKST11 Product Origin:Sweden (SE) Product Dimensions:Cable Length: Optional Product Weight:Shipping Weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

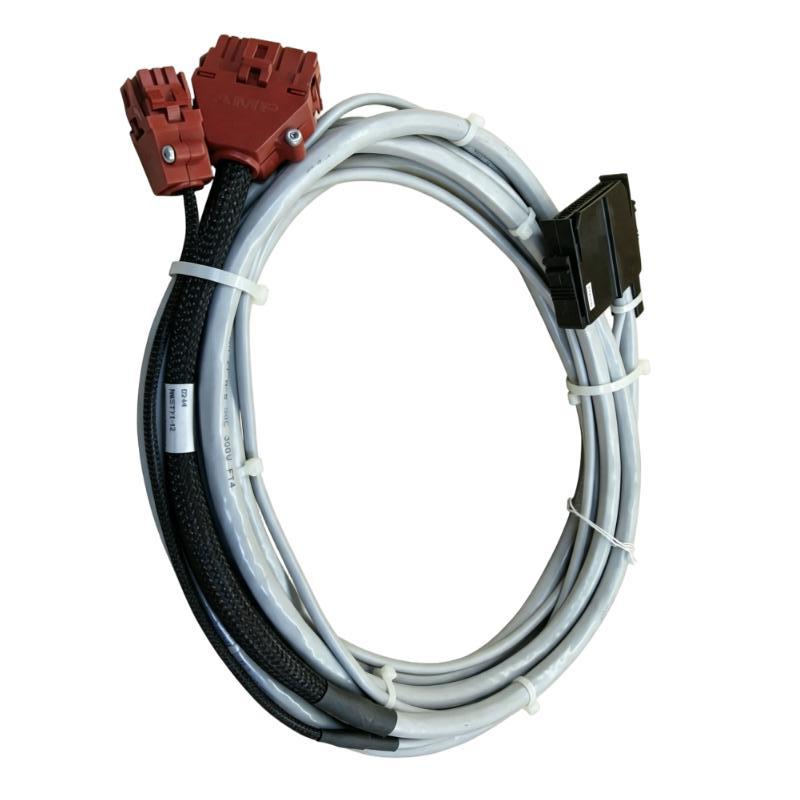

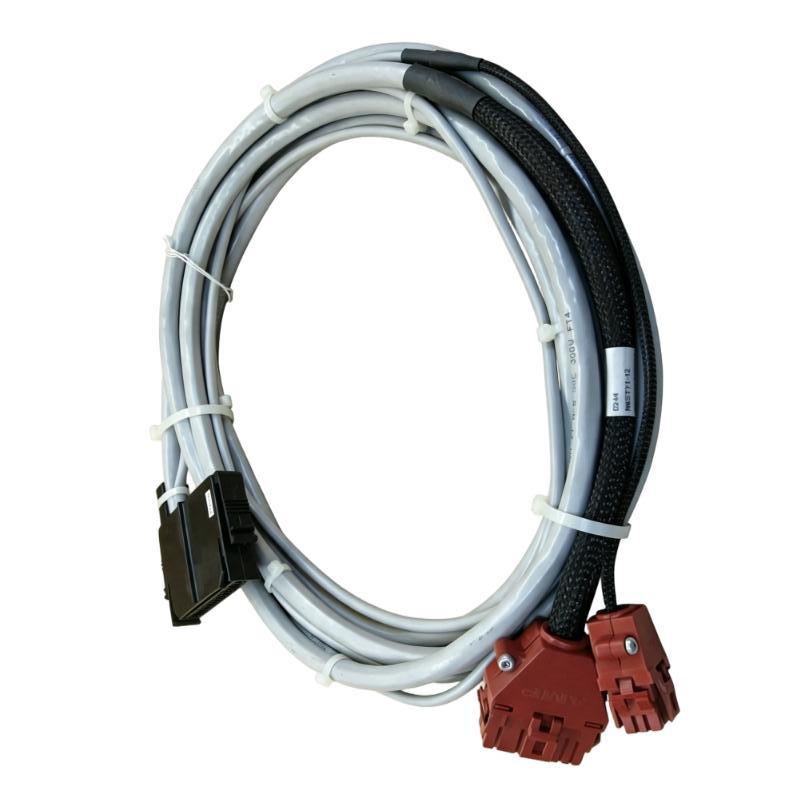

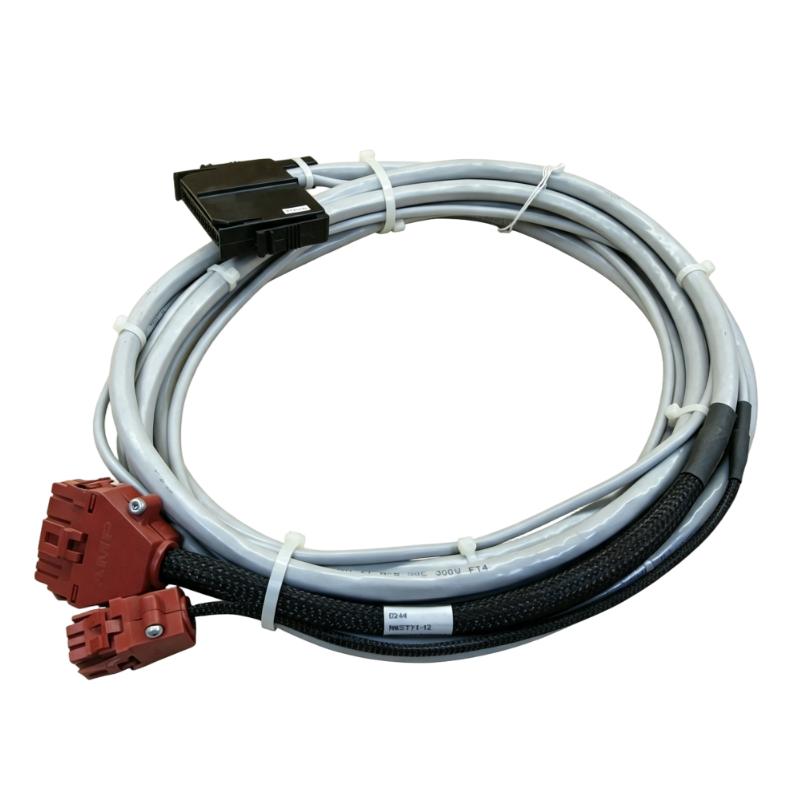

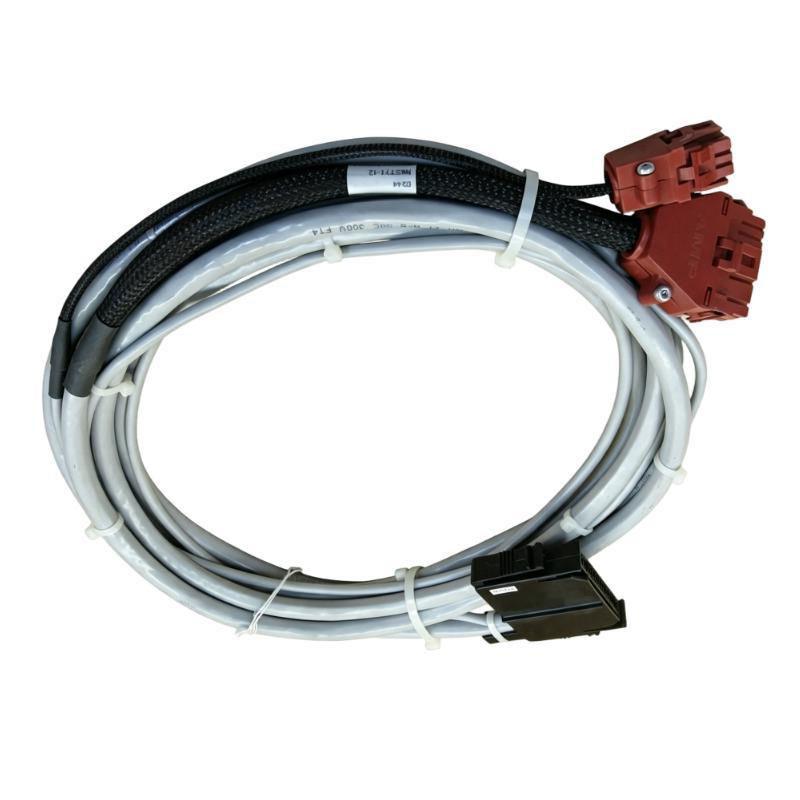

Introduction to ABB Bailey NKST11 SOE Time Synchronization Cable
The ABB Bailey NKST11 SOE Time Synchronization Cable is a critical connection component for industrial automation systems requiring accurate sequence-of-events monitoring. Developed for ABB Bailey control platforms, this cable provides a stable link between SOE timing equipment and termination hardware, helping maintain precise event synchronization throughout the control system.
In large-scale industrial facilities, even small timing differences between controllers and I/O modules can affect the accuracy of event analysis. The NKST11 supports reliable synchronization communication, allowing operators to better understand equipment behavior during alarms, trips, and abnormal operating conditions.
Its non-PVC construction, ABB Bailey compatibility, and flexible length options make the NKST11 a practical choice for system maintenance, replacement projects, and long-term support of existing DCS installations.
Technical Specifications
Parameter
Specification
Manufacturer
ABB Bailey
Model Number
NKST11
Product Type
SOE Time Synchronization Cable
Application System
ABB Bailey Infi 90 / Symphony Control System
Cable Function
SOE Time Synchronization Connection
Connected Components
SPSET SOE Module to NTST01 Termination Unit
Cable Type
Non-PVC Insulated Industrial Cable
Signal Application
Sequence of Events Time Synchronization
Cable Length
Optional
Installation Application
Control Cabinet / DCS Rack Connection
Insulation Material
Non-PVC
Shipping Weight
3.00 kg (6.61 lb)
Recommended Related Models
Model
Product Type
ABB Bailey NKST01
SOE Cable Assembly
ABB Bailey NKST01-10
SOE Cable Assembly
ABB Bailey NKSD01-20
SOE Digital Input Module Cable
ABB Bailey NKTK01
SOE Time Keeper Module Cable
ABB Bailey NKTST01
SOE I/O Connection Cable
Popular Related Models
Model
Application Category
ABB Bailey SPSET01
SOE Digital Input and Time Synchronization Module
ABB Bailey NTST01
Time Synchronization Termination Unit
ABB Bailey SPTKM01
SOE Time Keeper Master Module
ABB Bailey IMMFP01
Multi-Function Processor Module
ABB Bailey INNIS01
Network Interface Module
Applications and Precision Time Synchronization Solutions
The ABB Bailey NKST11 SOE Time Synchronization Cable is a specialized industrial communication cable designed for ABB Bailey Sequence of Events (SOE) systems. This cable provides a reliable connection between the SPSET SOE module and the NTST01 Time Synchronization Termination Unit, supporting accurate time distribution and event timestamp synchronization within ABB Bailey Infi 90 and Symphony control architectures.
The NKST11 is commonly used in power plants, energy facilities, chemical processing plants, and other process automation environments where precise event recording is required. SOE systems depend on accurate time synchronization to ensure that digital events from different I/O modules are recorded in the correct sequence, allowing operators and engineers to perform detailed event analysis and fault investigation.
Featuring non-PVC insulation and flexible length options, the NKST11 provides a durable connection solution for industrial installations where long-term reliability, signal integrity, and compatibility with existing ABB Bailey systems are important considerations.
Industrial Performance Advantages and System Integration Benefits
Dedicated SOE Time Synchronization Connection
The NKST11 is specifically designed for ABB Bailey SOE time synchronization applications, providing a dependable communication path between timing modules and termination equipment.
High-Accuracy Event Timing Support
Accurate time synchronization is essential for sequence-of-events applications. This cable helps maintain stable transmission of synchronization signals, supporting precise event recording and troubleshooting.
Non-PVC Industrial Cable Construction
The NKST11 uses non-PVC insulation, making it suitable for industrial environments where halogen-free cable characteristics and improved material performance are required.
Optimized for ABB Bailey Legacy Systems
Designed for existing ABB Bailey Infi 90 and related control platforms, this cable helps maintenance teams preserve system functionality without replacing complete automation infrastructures.
Flexible Installation Configuration
With optional cable length selections, the NKST11 can be adapted to different cabinet layouts, control room arrangements, and system wiring requirements.
Technical FAQs About ABB Bailey NKST11 SOE Time Synchronization Cable
1. What is the main function of the ABB Bailey NKST11 cable?
The NKST11 is used to connect ABB Bailey SOE time synchronization components, allowing synchronization signals to be distributed within the SOE system.
2. Which ABB Bailey modules work with the NKST11 cable?
The cable is designed for connection between the SPSET SOE module and the NTST01 termination unit.
3. Why is time synchronization important in SOE systems?
Time synchronization allows multiple digital events from different locations to be recorded with consistent timestamps for accurate sequence analysis.
4. What type of signals are transmitted through the NKST11?
The cable transmits dedicated SOE synchronization signals used for event timing coordination.
5. What should engineers check when SOE timestamps are incorrect?
Technicians should inspect cable connections, time synchronization modules, termination units, and system clock configuration.
6. Can the NKST11 be used as a general communication cable?
No. It is designed specifically for ABB Bailey SOE time synchronization applications.
7. What are common causes of synchronization communication faults?
Typical causes include loose connectors, damaged cable sections, incorrect installation, or faults in connected SOE hardware.
8. How does the NKST11 support industrial reliability?
Its dedicated construction and ABB Bailey compatibility help maintain stable synchronization links in continuous process control applications.
9. Can the NKST11 replace standard SOE module cables?
No. Different SOE cables have different functions and connection purposes, so replacement depends on the exact ABB Bailey system configuration.
10. What maintenance is recommended for this cable assembly?
Regular inspection of connectors, cable routing, insulation condition, and synchronization performance is recommended.
