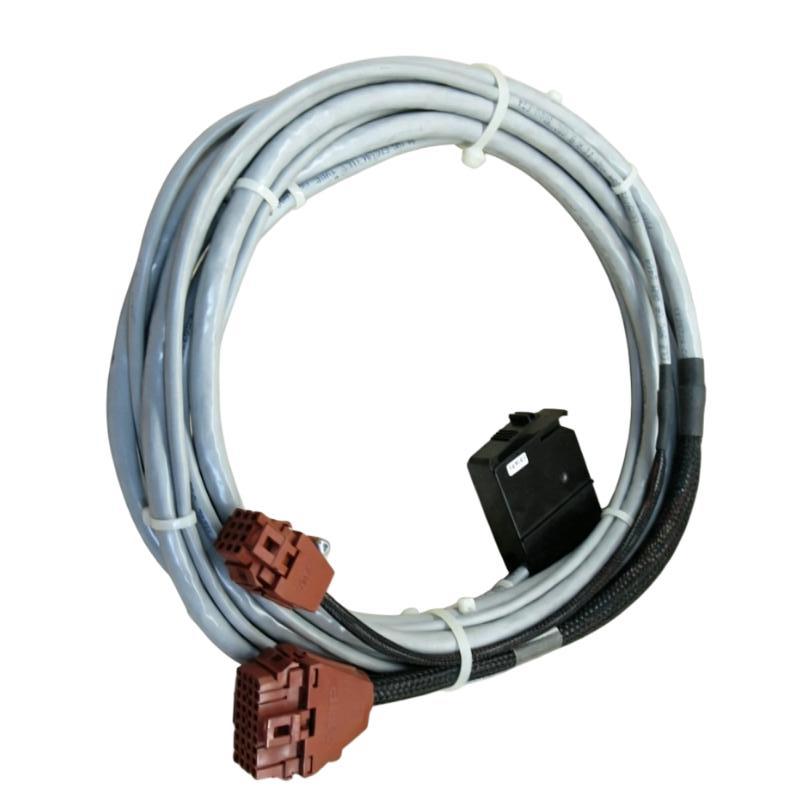

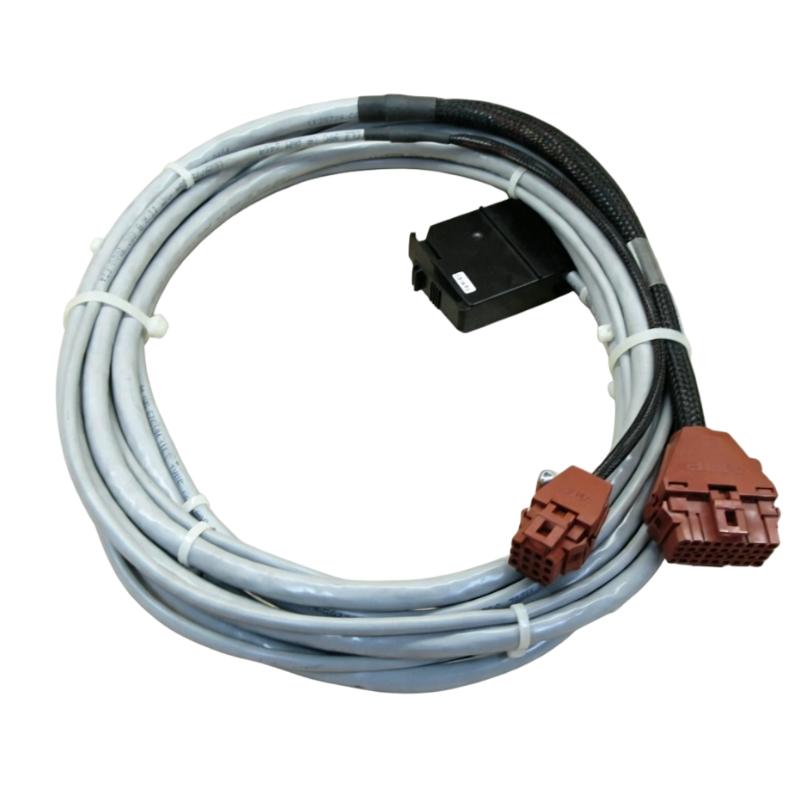

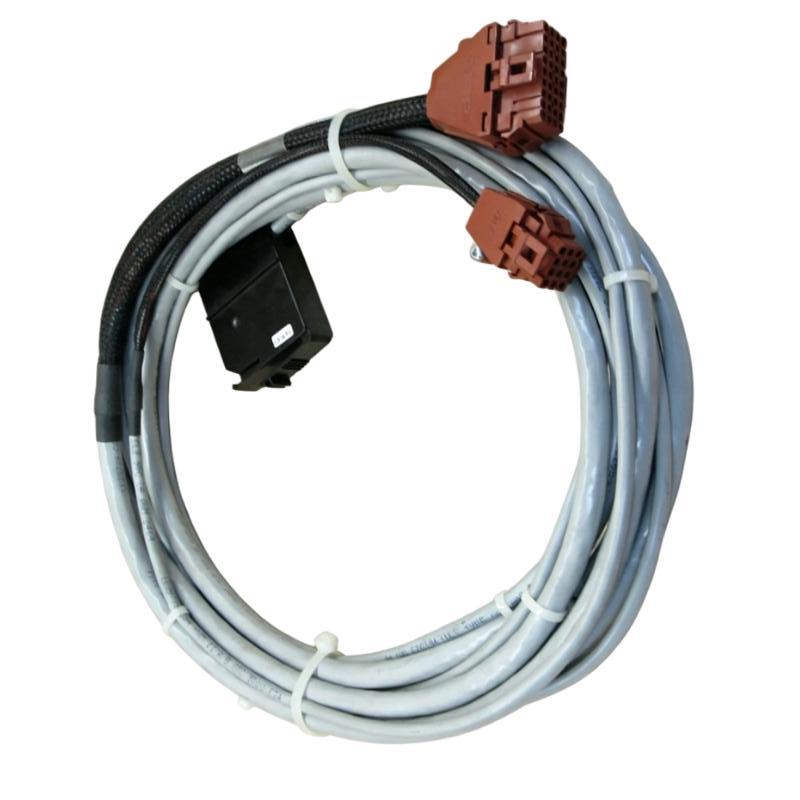

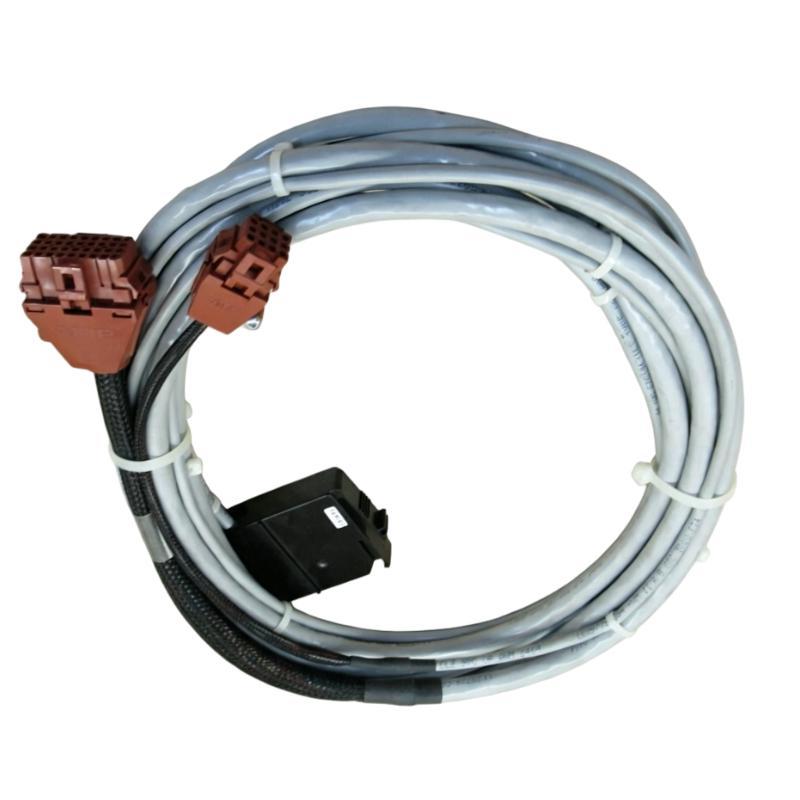

ABB Bailey NKST11-10 SOE Time Synchronization Cable

Applications and High-Precision SOE Timing Communication

The ABB Bailey NKST11-10 SOE Time Synchronization Cable is a specialized industrial cable assembly developed for ABB Bailey Infi 90 distributed control systems. It is designed to connect the SPSET Sequence of Events (SOE) module with the NTST01 termination unit, providing a stable communication path for time synchronization signals used in high-accuracy event recording applications.

In process automation environments, accurate event timestamps are essential for analyzing equipment trips, alarms, protection actions, and abnormal operating conditions. The NKST11-10 supports reliable synchronization between SOE components, helping operators and engineers maintain precise event sequence information across large industrial control systems.

With a 10-foot cable length, this model provides additional flexibility for cabinet layouts where SOE modules and termination units are installed at different positions. It is widely suitable for power plants, chemical facilities, oil and gas plants, and manufacturing systems using ABB Bailey legacy automation platforms.

System Integration Benefits and Industrial Performance

Dedicated SOE Time Synchronization Connection
The NKST11-10 is specifically designed for ABB Bailey SOE synchronization applications, providing a direct and reliable connection between timing-related control components.

Accurate Event Timestamp Support
Sequence of Events systems depend on precise timing information to determine the order of equipment actions. This cable helps maintain a dependable synchronization signal path for accurate event analysis.

Non-PVC Industrial Cable Design
The NKST11 series uses non-PVC insulation, providing a robust cable solution suitable for industrial environments where long-term durability and reliable signal performance are required.

Extended Installation Flexibility
The 10-foot configuration allows easier routing between control racks, termination panels, and cabinet sections, improving installation efficiency in larger automation systems.

Ideal for ABB Bailey Maintenance Projects
For facilities operating existing Infi 90 systems, the NKST11-10 provides a practical replacement option that helps restore system communication without major hardware modifications.

Technical FAQs About ABB Bailey NKST11-10 SOE Time Synchronization Cable

1. What is the main purpose of the ABB Bailey NKST11-10 cable?
The NKST11-10 is used to connect SOE time synchronization components within ABB Bailey control systems, supporting accurate event timing communication.

2. Which ABB Bailey modules are connected by the NKST11-10?
The cable is designed to connect the SPSET SOE module with the NTST01 termination unit.

3. Why is time synchronization important in SOE applications?
Time synchronization ensures that digital events from different system locations are recorded with consistent timestamps for accurate sequence analysis.

4. What type of signal does the NKST11-10 transmit?
The cable transmits dedicated synchronization signals used by ABB Bailey SOE timing systems.

5. What problems can occur if the SOE synchronization cable fails?
A failed cable may cause incorrect event timing, missing synchronization data, or inaccurate sequence records.

6. Can the NKST11-10 be used as a general communication cable?
No. It is designed specifically for ABB Bailey SOE time synchronization applications.

7. What should be checked during troubleshooting?
Technicians should inspect connectors, cable continuity, module status indicators, termination connections, and SOE configuration settings.

8. Is the NKST11-10 compatible with ABB Bailey Infi 90 systems?
Yes. It is designed for ABB Bailey Infi 90 and related SOE system architectures.

9. What are common causes of synchronization communication faults?
Common causes include loose connections, cable damage, incorrect installation, or failure of connected SOE hardware.

10. How can engineers maintain reliable cable operation?
Regular inspection of cable routing, connectors, insulation condition, and system diagnostics helps maintain stable performance.
