Brand:Schneider PLC Item No.:BCH1002O12A1C Product Origin:France Product Dimensions:Length: 199 mm Product Weight:6.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

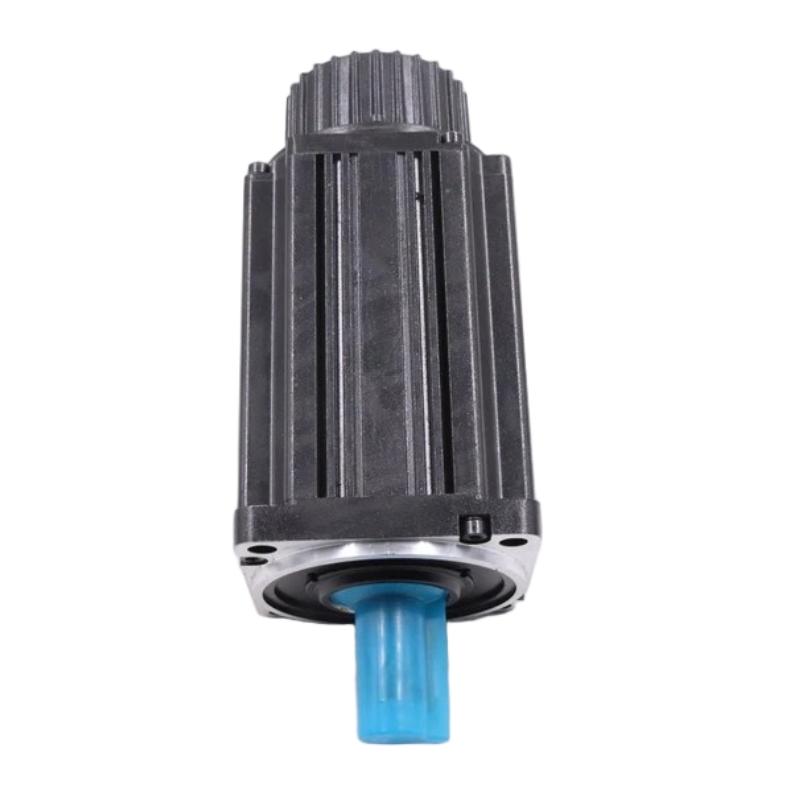

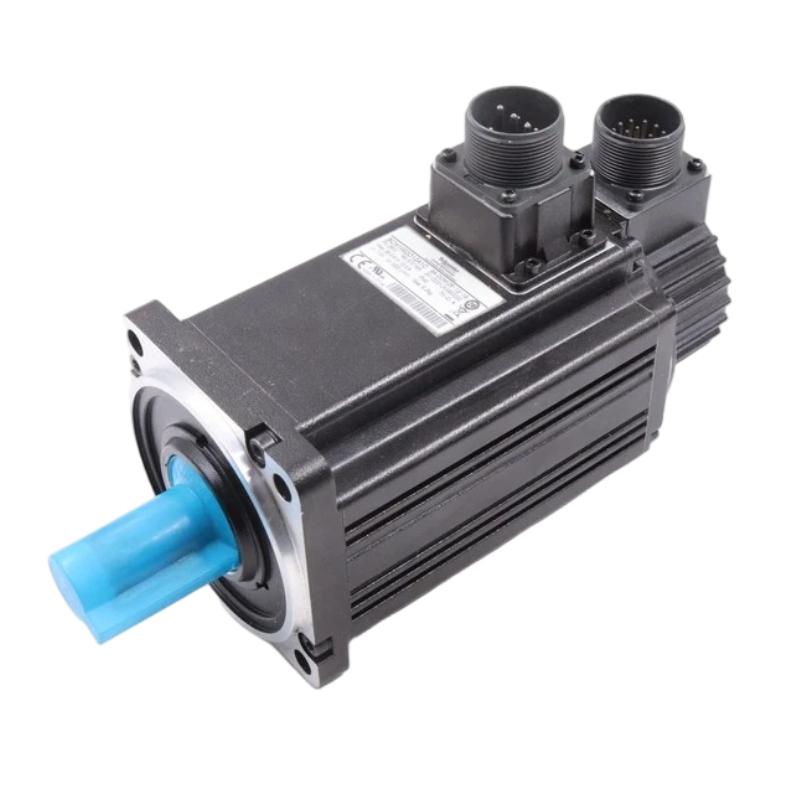

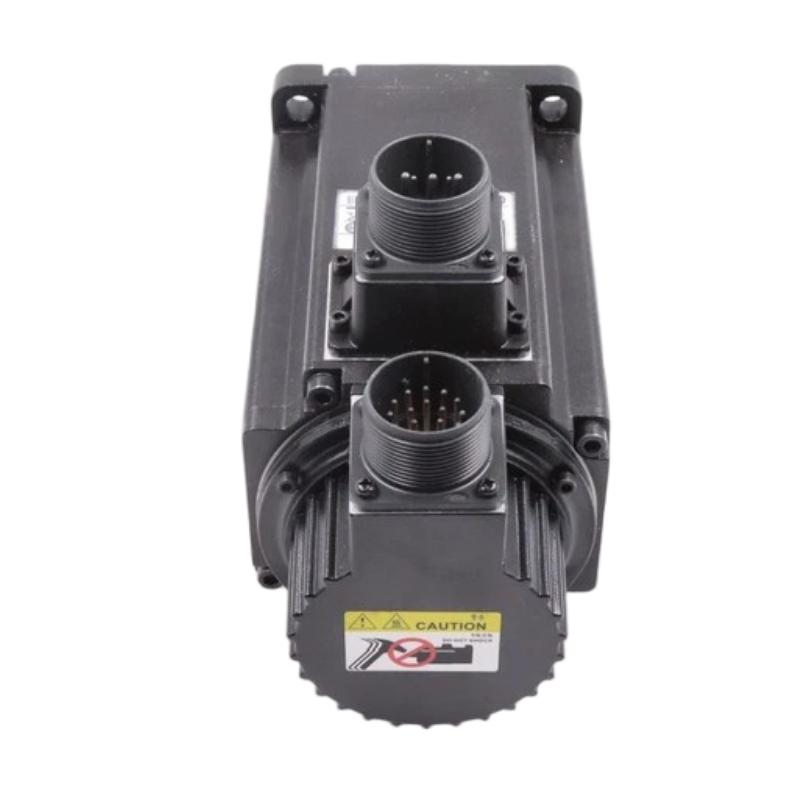

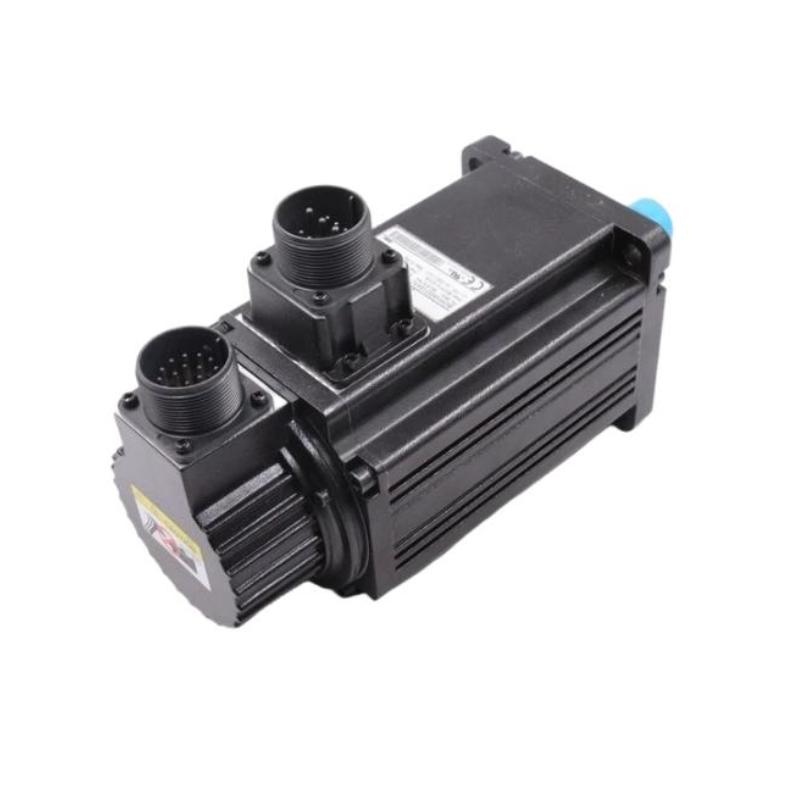

Introduction to Schneider BCH1002O12A1C Servo Motor
The Schneider BCH1002O12A1C Servo Motor is part of Schneider Electric’s BCH servo motor family developed for demanding industrial automation and motion control applications. Built for precise positioning and dynamic response, this motor provides a reliable drive solution for machines that require consistent accuracy and high operational efficiency.
Featuring a 2 kW power rating, 100 mm flange design, keyed shaft output, and encoder-based feedback control, the BCH1002O12A1C delivers the performance required for modern automated equipment. Its compact construction allows easier mechanical integration while maintaining strong torque performance for industrial applications.
For manufacturers and system integrators seeking stable motion control solutions, this Schneider servo motor offers dependable operation, efficient commissioning, and long-term compatibility with Schneider Electric automation platforms.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BCH1002O12A1C
Product Type
Servo Motor
Series
Lexium 23 Plus BCH Series
Rated Power
2 kW
Rated Supply Voltage
220 V AC
Power Supply Phase
Three Phase
Maximum Mechanical Speed
5000 rpm
Feedback Type
20-bit Incremental Encoder
Continuous Stall Current
12.05 A
Shaft Type
Keyed Shaft
Shaft Diameter
22 mm
Shaft Length
37 mm
Motor Flange Size
100 mm
Cooling Method
Natural Convection
Length
199 mm
Weight
6.20 kg (13.67 lb)
Recommended Related Models
Model
Product Type
Schneider BCH1002O12A1C
2 kW Servo Motor
Schneider BCH1002O12F1C
Servo Motor with Different Feedback Configuration
Schneider BCH1003O12A1C
BCH Series Servo Motor
Schneider BCH1302O12A1C
High Torque Servo Motor
Schneider Lexium 23 Plus Servo Drive
Servo Drive System
Popular Related Models
Model
Application Category
Schneider BCH0801O12A1C
Compact Servo Motor
Schneider BCH1304N12A1C
High Performance Servo Motor
Schneider LXM23DU15M3X
Lexium Servo Drive
Schneider LXM23DU30M3X
Lexium Motion Controller Drive
Schneider BSH1002T12A1C
High Precision Servo Motor
Applications and Motion Control System Integration
The Schneider BCH1002O12A1C Servo Motor is a high-performance AC servo motor designed for precision motion control applications within Schneider Electric Lexium 23 Plus automation systems. With a 2 kW continuous power rating, 220 V three-phase supply compatibility, and high-resolution encoder feedback, this servo motor delivers accurate positioning, smooth speed regulation, and reliable torque control for demanding industrial machinery.
The BCH1002O12A1C is widely used in CNC equipment, packaging machinery, material handling systems, textile machinery, robotics, and automated production lines where fast response and precise motion performance are essential. Its combination of compact mechanical design and advanced feedback capability makes it suitable for applications requiring stable operation under continuous industrial workloads.
Designed for integration with Schneider Electric motion control platforms, this servo motor provides engineers with a dependable solution for upgrading machine automation performance, improving productivity, and maintaining accurate axis control in complex manufacturing environments.
Performance Advantages and Industrial Motion Benefits
High-Precision Motion Control
The BCH1002O12A1C uses a 20-bit incremental encoder feedback system to provide accurate position monitoring and responsive motion adjustment, supporting applications that require precise synchronization and repeatable movement.
Powerful 2 kW Servo Performance
With a continuous power output of 2 kW, this servo motor provides sufficient torque capability for medium-load industrial machinery while maintaining smooth acceleration and deceleration characteristics.
Optimized Lexium 23 Plus Compatibility
The motor is designed for Schneider Electric Lexium 23 Plus servo drive systems, enabling efficient integration into existing motion control architectures and simplifying commissioning procedures.
Reliable Mechanical Construction
The keyed shaft design, 100 mm flange size, and natural convection cooling structure provide a durable mechanical solution for industrial environments requiring long operating cycles.
Flexible Industrial Applications
The BCH1002O12A1C supports various automation applications including machine tools, packaging systems, production lines, and robotic mechanisms where accurate motion control is critical.
Technical FAQs About Schneider BCH1002O12A1C Servo Motor
1. What type of motor is the Schneider BCH1002O12A1C?
The BCH1002O12A1C is an AC servo motor designed for industrial motion control applications.
2. Which Schneider drive systems are compatible with this servo motor?
The motor is designed for use with Schneider Electric Lexium 23 Plus servo drive systems.
3. What feedback device is used in the BCH1002O12A1C?
This model uses a 20-bit incremental encoder for precise position and speed feedback.
4. What is the rated operating voltage of this servo motor?
The motor operates with a rated supply voltage of 220 V three-phase power.
5. Does the BCH1002O12A1C include an integrated holding brake?
No. This model is supplied without a holding brake configuration.
6. What are common applications for this servo motor?
Typical applications include CNC machinery, packaging equipment, robotics, material handling systems, and automated production lines.
7. How can servo motor position accuracy problems be diagnosed?
Technicians should check encoder feedback signals, drive parameters, mechanical alignment, coupling conditions, and motion controller settings.
8. What causes servo motor overheating during operation?
Common causes include excessive load, incorrect drive tuning, insufficient cooling, mechanical resistance, or improper acceleration settings.
9. Can the BCH1002O12A1C support high-speed operation?
Yes. The motor is capable of high-speed motion performance with a maximum mechanical speed of up to 5000 rpm.
10. What maintenance practices improve servo motor reliability?
Regular inspection of connectors, encoder feedback, mechanical mounting, load conditions, and operating parameters helps maintain long-term performance.
