Brand:Schneider PLC Item No.:BCH1802M12A1C Product Origin:France Product Dimensions:Length: 202.1 mm Product Weight:18.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

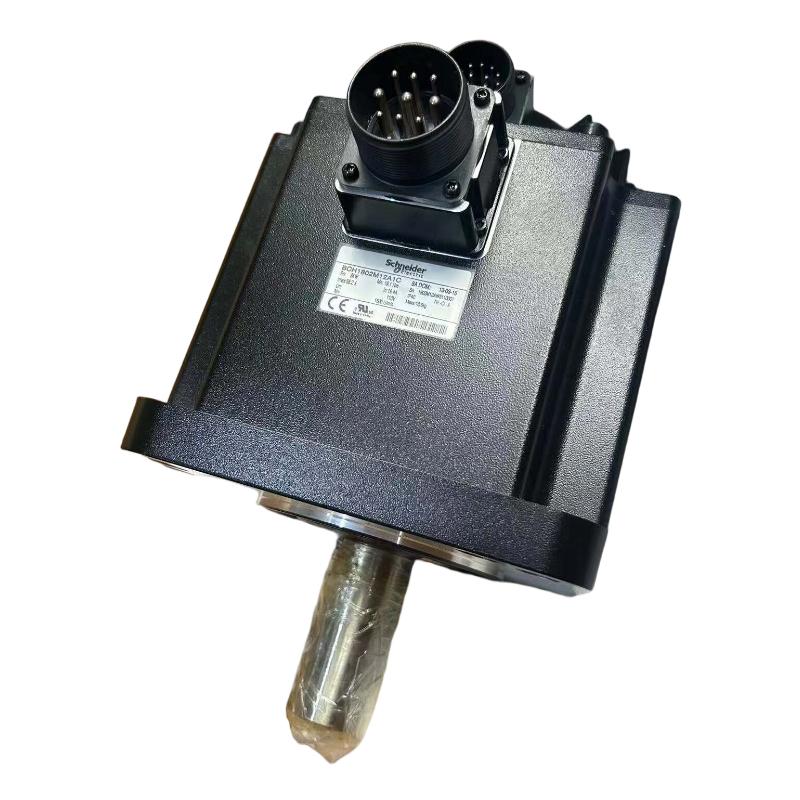

Introduction to Schneider BCH1802M12A1C Servo Motor
The Schneider BCH1802M12A1C Servo Motor is a robust motion control solution developed for industrial applications where precision, power, and reliability are critical. As part of Schneider Electric’s BCH servo motor range, it combines advanced feedback technology with a durable mechanical structure to support high-performance automation systems.
Featuring a 180 mm frame size, keyed shaft output, 20-bit encoder feedback, and a 3 kW class motor design, the BCH1802M12A1C provides the torque and responsiveness required for larger automation equipment.
For factories and system integrators maintaining Schneider Electric motion platforms, this servo motor offers a reliable choice for machine upgrades, replacement installations, and precision industrial applications where continuous operation and accurate movement are essential.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BCH1802M12A1C
Product Type
Servo Motor
Series
Lexium BCH Series
Continuous Power
3 kW
Rated Supply Voltage
220 V AC
Power Supply Phase
Single Phase
Frame Size
180 mm
Feedback Type
20-bit Encoder
Holding Brake
Without Brake
Oil Seal
Without Oil Seal
Shaft Type
Keyed Shaft
Cooling Method
Natural Convection
Connector Type
Straight Connector
Application
Industrial Motion Control
Length
202.1 mm
Weight
18.50 kg (40.79 lb)
Recommended Related Models
Model
Product Type
Schneider BCH1801M12A1C
Servo Motor
Schneider BCH1802N12A1C
Servo Motor
Schneider BCH1803M12A1C
High Torque Servo Motor
Schneider BCH1303N12A1C
Servo Motor
Schneider LXM23 Servo Drive Series
Servo Drive System
Popular Related Models
Model
Application Category
Schneider BCH1002M12A1C
Medium Power Servo Motor
Schneider BCH1302M12A1C
Industrial Servo Motor
Schneider BCH1803N12A1C
Heavy-Duty Servo Motor
Schneider Lexium 23 Plus Servo Drive
Motion Control Drive
Schneider Lexium Motion Controller
Industrial Motion Controller
Applications and Heavy-Duty Precision Motion Control
The Schneider BCH1802M12A1C Servo Motor is a high-performance AC servo motor designed for industrial automation systems requiring higher torque output, precise positioning, and stable dynamic response. As part of the Schneider Electric Lexium BCH servo motor family, this model is engineered to provide reliable motion control for demanding manufacturing equipment and automated machinery.
The BCH1802M12A1C is widely applied in CNC equipment, industrial robots, packaging machinery, material handling systems, printing machines, and automated production lines where accurate movement and consistent torque performance are essential. With its 180 mm frame size, keyed shaft design, and 20-bit encoder feedback system, the motor delivers the control accuracy required for complex motion applications.
Designed for integration with Schneider Electric motion platforms, this servo motor provides machine builders and maintenance teams with a dependable solution for upgrading existing automation systems, replacing aging motion components, and improving overall equipment performance.
Industrial Motion Advantages and Reliable Performance Features
High Torque Motion Capability
The BCH1802M12A1C is designed for applications requiring stronger torque output than compact servo motors, making it suitable for larger mechanical loads and industrial machines that demand stable acceleration and deceleration performance.
20-Bit Encoder Feedback Accuracy
The integrated 20-bit encoder provides high-resolution position feedback, allowing servo drives to achieve accurate positioning, smooth operation, and improved repeatability in precision automation tasks.
Optimized Schneider Motion System Compatibility
The motor is designed for Schneider Electric Lexium servo drive systems, enabling efficient commissioning, parameter configuration, and integration into existing automation architectures.
180 mm Flange Mechanical Structure
The larger 180 mm frame design provides improved mechanical strength and higher load capability, making the motor suitable for industrial equipment requiring robust motion performance.
Reliable Long-Term Operation
The brushless servo construction, keyed shaft connection, and industrial-grade design help maintain stable performance during continuous production cycles and demanding operating conditions.
