Brand:Schneider PLC Item No.:BCH1802N12A1C Product Origin:France Product Dimensions:Length: 202.1 mm Product Weight:18.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

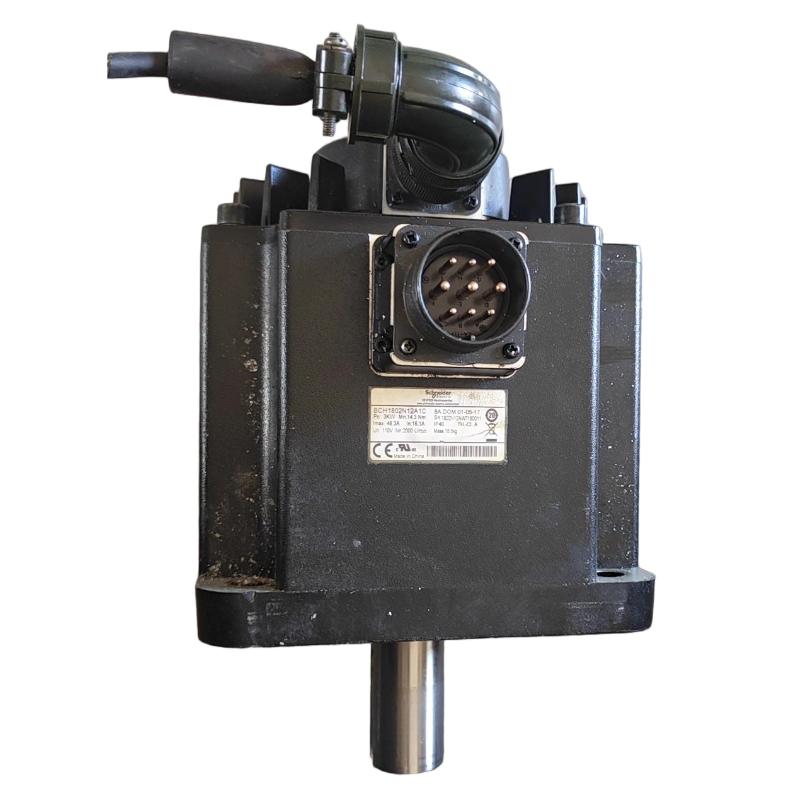

Introduction to Schneider BCH1802N12A1C Servo Motor
The Schneider BCH1802N12A1C Servo Motor is engineered for industrial applications where higher power, precise motion control, and dependable operation are required. It belongs to Schneider Electric’s BCH servo motor family and combines advanced feedback technology with a durable mechanical structure to support demanding automation systems.
Featuring a 3 kW continuous output, 220 V three-phase operation, 20-bit incremental encoder feedback, and a 180 mm mounting flange, this servo motor provides the performance required for large automation equipment and high-load motion axes.
The BCH1802N12A1C offers machine manufacturers and industrial users a practical motion control solution for improving equipment efficiency, replacing existing servo motors, and maintaining Schneider Electric automation platforms with reliable performance.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BCH1802N12A1C
Product Type
Servo Motor
Series
BCH Series
Continuous Power
3 kW
Rated Supply Voltage
220 V AC
Power Supply Phase
Three Phase
Maximum Mechanical Speed
3000 rpm
Continuous Stall Current
16.10 A
Feedback Type
20-bit Incremental Encoder
Holding Brake
Without Brake
Oil Seal
Without Oil Seal
Shaft Type
Keyed Shaft
Shaft Diameter
35 mm
Shaft Length
73 mm
Flange Size
180 mm
Cooling Method
Natural Convection
Protection Rating
IP40
Connector Type
Straight Connector
Length
202.1 mm
Weight
18.50 kg (40.79 lb)
Recommended Related Models
Model
Product Type
Schneider BCH1802M12A1C
Servo Motor
Schneider BCH1803N12A1C
High Torque Servo Motor
Schneider BCH1801N12A1C
Industrial Servo Motor
Schneider BCH1303N12A1C
Servo Motor
Schneider Lexium 23 Plus Servo Drive
Motion Control Drive
Popular Related Models
Model
Application Category
Schneider BCH1002N12A1C
Medium Power Servo Motor
Schneider BCH1302N12A1C
Precision Servo Motor
Schneider BCH1803M12A1C
Heavy-Duty Servo Motor
Schneider Lexium Servo Drive Series
Industrial Motion Drive
Schneider Lexium Motion Controller
Automation Motion Controller
Applications and High-Torque Motion Control Solutions
The Schneider BCH1802N12A1C Servo Motor is a high-performance AC servo motor designed for industrial automation applications that require strong torque output, precise positioning, and stable motion response. As part of the Schneider Electric BCH series, this servo motor provides a reliable solution for large mechanical systems, high-load axes, and advanced motion control applications.
The BCH1802N12A1C is widely used in CNC machinery, robotic systems, packaging equipment, printing machines, material handling platforms, and automated manufacturing lines. With a 3 kW continuous power rating, 20-bit incremental encoder feedback, and a robust 180 mm flange structure, this motor delivers accurate control performance while maintaining excellent mechanical strength for industrial operation.
Designed for Schneider Electric Lexium motion control environments, this servo motor is an ideal choice for machine builders and maintenance engineers looking for dependable replacement components, system upgrades, and long-term automation support. Its high-power configuration makes it suitable for applications where both precision and load-handling capability are critical.
Industrial Advantages and Motion Performance Features
High-Power Servo Operation
The BCH1802N12A1C provides a 3 kW continuous power output, offering enhanced torque capability for medium and heavy-duty industrial machinery that requires reliable acceleration and controlled movement.
Advanced Encoder Feedback Accuracy
Equipped with a 20-bit incremental encoder, this servo motor delivers precise position feedback and improved control resolution, helping servo systems achieve smooth operation and accurate positioning.
Designed for Demanding Automation Environments
The larger 180 mm flange design and keyed shaft structure provide strong mechanical stability, making the BCH1802N12A1C suitable for applications with higher inertia loads and continuous operating cycles.
Efficient Lexium System Integration
The motor is designed for compatibility with Schneider Electric Lexium servo drive platforms, allowing simplified commissioning and reliable communication between motion components.
Stable Industrial Reliability
The brushless AC servo design, natural convection cooling method, and IP40 protection structure help ensure consistent performance in protected industrial environments.
