Introduction
The Honeywell MC-PC1X02 Digital Input Module is a reliable industrial automation component developed for monitoring discrete field signals in process control environments. It enables efficient communication between field devices and Honeywell control systems, helping operators maintain accurate equipment status information and improve operational control.
Designed for demanding industrial applications, the MC-PC1X02 provides dependable digital signal handling, flexible system integration, and stable performance for long-term automation projects. It is a practical choice for facilities requiring efficient monitoring, reliable control feedback, and enhanced system availability.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model | MC-PC1X02 |
| Module Type | Digital Input Module |
| Product Function | Discrete Signal Acquisition |
| Signal Type | Digital Input |
| Application | Industrial Process Control and Monitoring |
| Compatible Platform | Honeywell Control System Architecture |
| Input Function | Equipment Status and Alarm Monitoring |
| Installation Type | Control Cabinet / System Rack Installation |
| Communication Interface | Honeywell System Backplane Interface |
| Operating Application | Continuous Industrial Automation |
| Dimensions | Approx. 120 × 40 × 150 mm |
| Weight | Approx. 0.43 kg |
Recommended Companion Models
| Model | Product Name |
|---|
| MC-PAIH03 | Honeywell Process Analog Input Module |
| MC-PC1X01 | Honeywell Digital Output Module |
| MC-GAIH84 | Honeywell High-Level Analog Input/STI Module |
| MC-GAIH92 | Honeywell GIIS High-Level Analog Input FTA Module |
Frequently Selected Alternatives
| Model | Product Name |
|---|

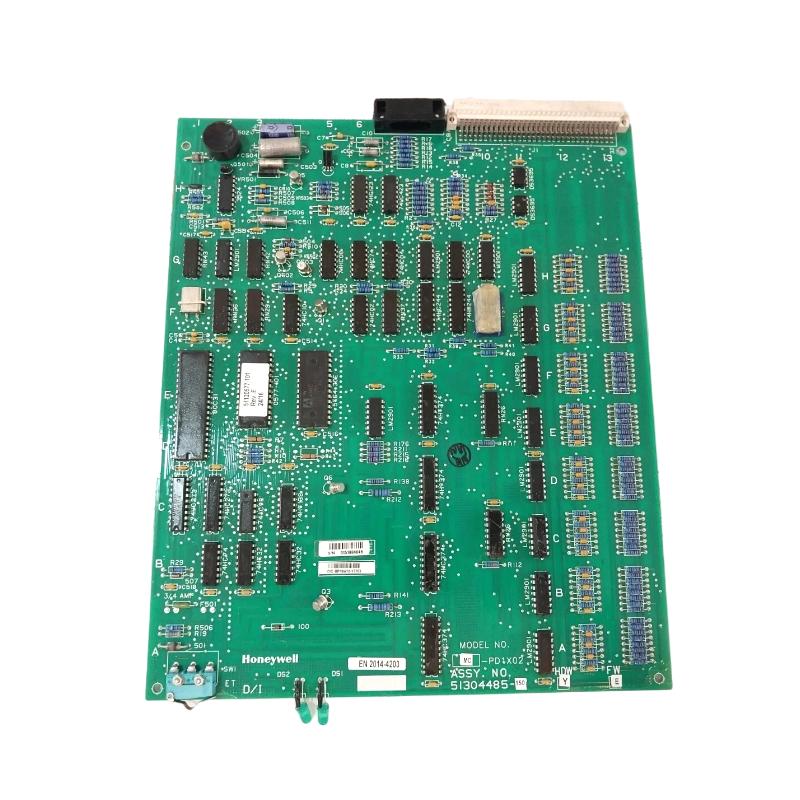

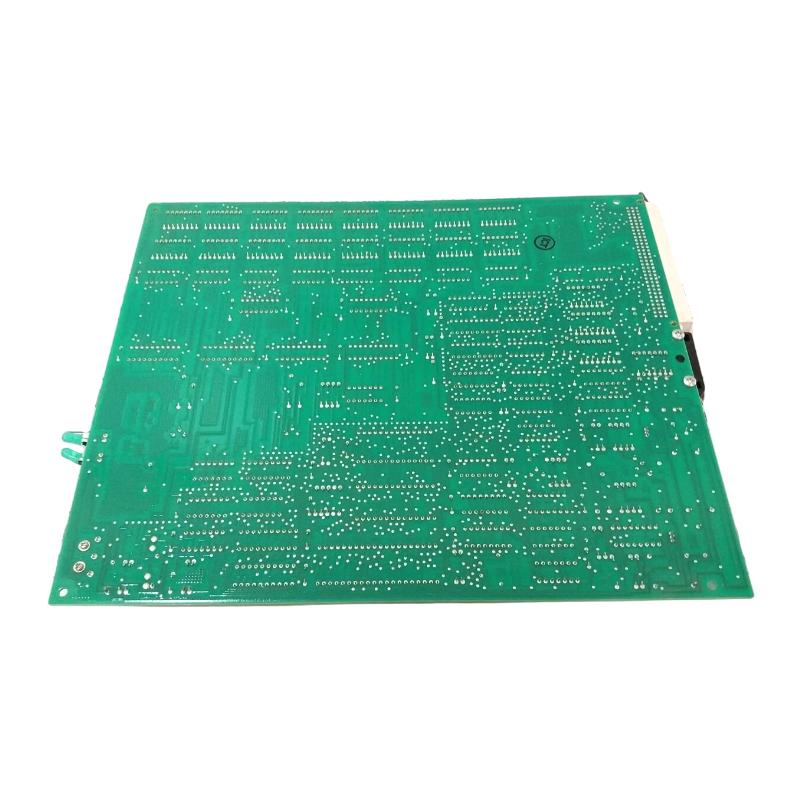

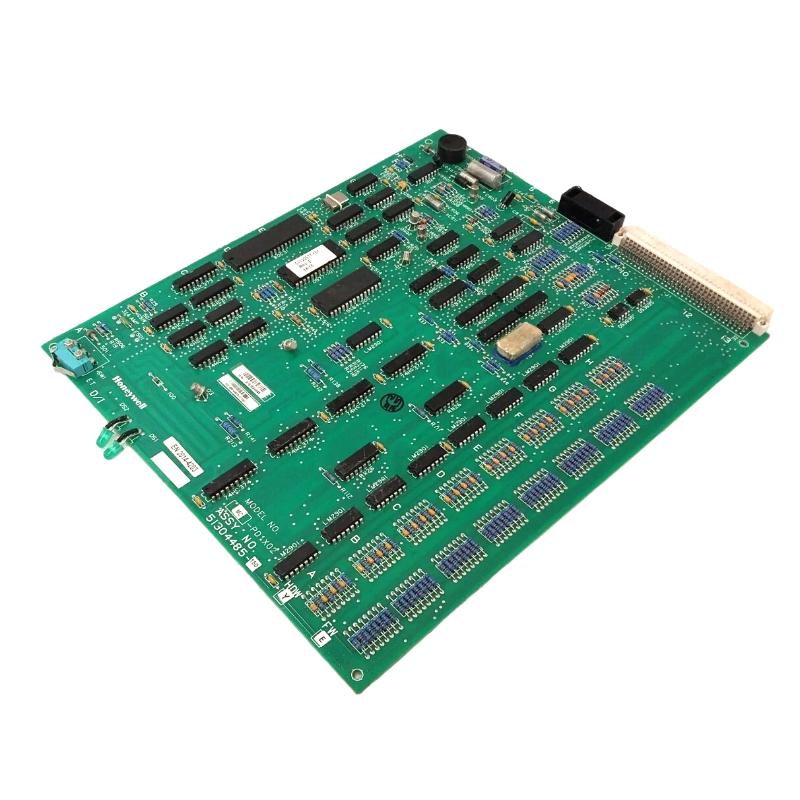

| 51304485-150 | Honeywell MC-PD1X02 Digital Input Module |
| MC-PD1X01 | Honeywell Digital Input Interface Module |
| MC-TDID12 | Honeywell Universal Control Network Digital Input Module |
| 51304485-100 | Honeywell Digital Input Processing Module |
Technical FAQs
1. What is the primary function of the Honeywell MC-PC1X02?
The Honeywell MC-PC1X02 is a Digital Input Module designed to collect discrete signals from field devices and transfer status information to Honeywell control systems.
2. What type of signals can the MC-PC1X02 process?
The module is designed to process digital on/off signals from industrial devices such as switches, sensors, alarms, and equipment monitoring points.
3. How does the MC-PC1X02 improve automation system performance?
The module improves system performance by providing reliable digital signal acquisition and accurate equipment status feedback for control applications.
4. Which applications commonly use this digital input module?
It is commonly used for equipment monitoring, alarm detection, sequence control, interlocking applications, and process automation systems.
5. Can the MC-PC1X02 be integrated into existing Honeywell systems?
Yes, the module is designed for integration with compatible Honeywell automation architectures and distributed control environments.
6. How does the module support system diagnostics?
The module supports efficient troubleshooting by providing dependable digital signal monitoring between field devices and the control system.
7. Is the MC-PC1X02 suitable for continuous industrial operation?
Yes, it is designed for industrial environments where stable operation and continuous signal monitoring are required.
8. What advantages does a dedicated digital input module provide?
A dedicated digital input module improves signal organization, simplifies system configuration, and enhances overall control reliability.
9. What types of field devices can connect to this module?
The module can interface with compatible discrete field devices including limit switches, contact outputs, and industrial status indicators.
10. How does the MC-PC1X02 differ from analog input modules?
The MC-PC1X02 processes discrete binary signals, while analog input modules are designed for continuously variable measurements such as temperature, pressure, and flow.
