Introduction

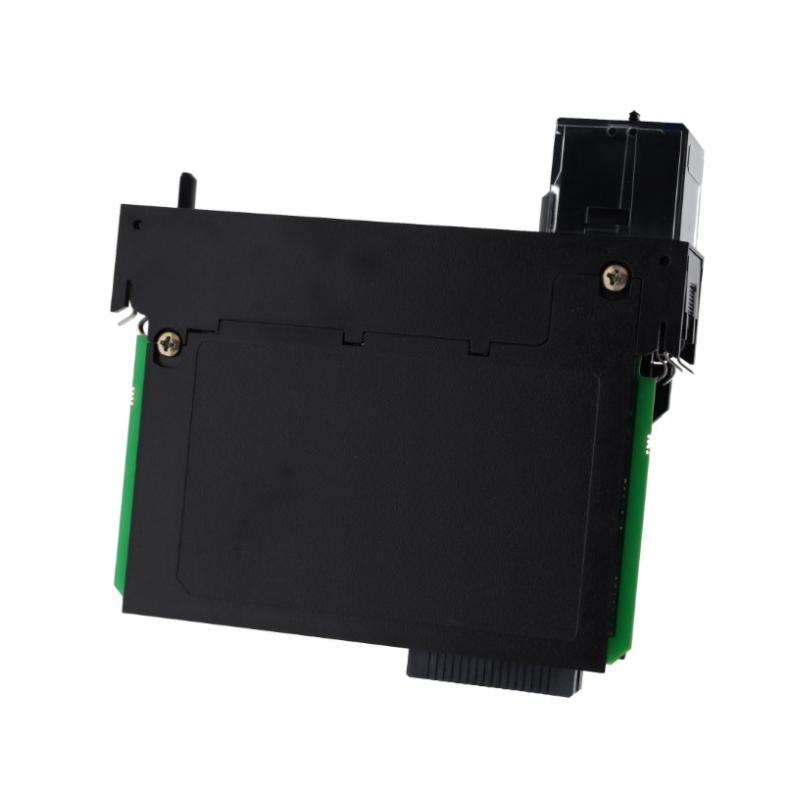

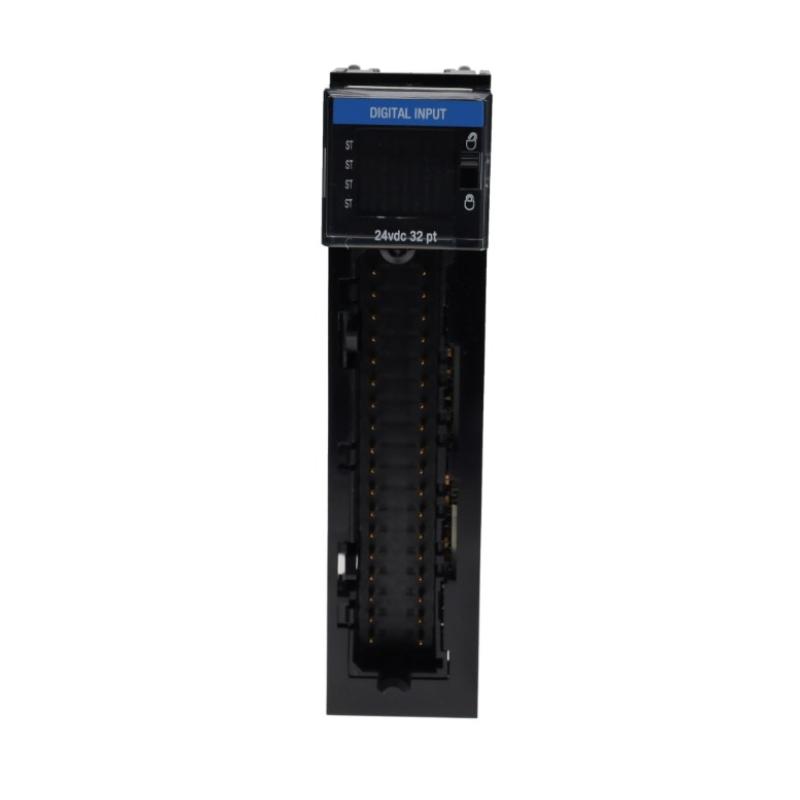

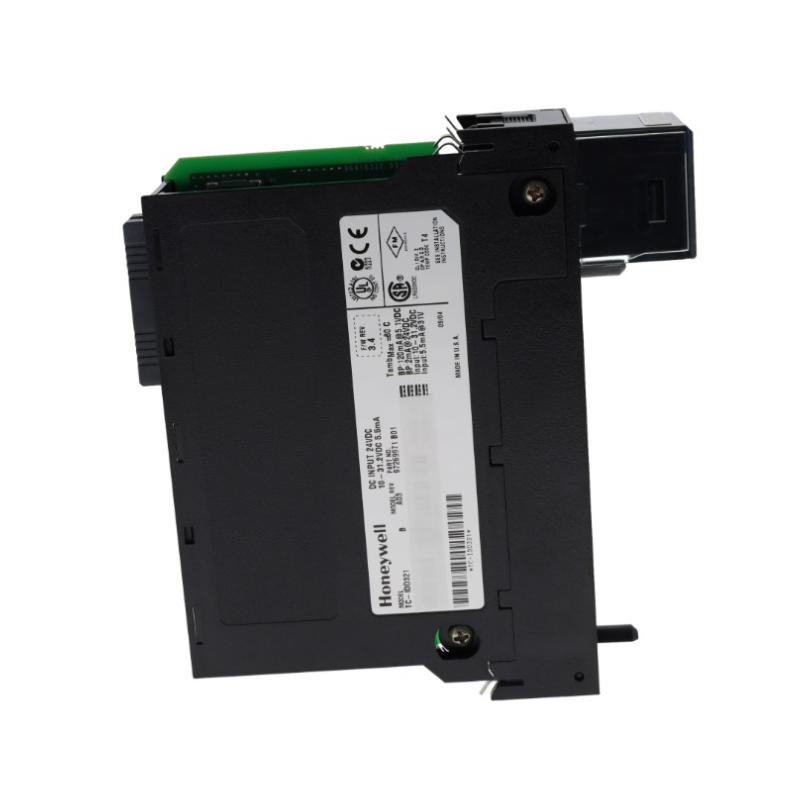

The Honeywell TC-IDD32 Digital Input Module is a high-density industrial I/O component developed for reliable discrete signal monitoring in Honeywell process automation systems. It enables efficient communication between field devices and control platforms, supporting accurate equipment status detection and dependable operational control.
Designed for demanding industrial environments, the TC-IDD32 combines flexible integration, stable signal processing, and efficient channel utilization. Its 32-point digital input capability makes it a practical choice for large automation installations requiring optimized cabinet organization and reliable long-term performance.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model | TC-IDD32 |
| Module Type | Digital Input Module |
| Input Type | Digital Input |
| Number of Channels | 32 Points |
| Input Voltage | 24 VDC |
| Application | Industrial Process Control and Monitoring |
| Compatible Platform | Honeywell Experion PKS |
| Signal Function | Discrete Status Acquisition |
| Field Device Interface | Switches, Sensors, Contact Signals |
| Installation Type | Control Chassis / I/O Rack Installation |
| Dimensions | Approx. 120 × 40 × 150 mm |
| Weight | Approx. 0.45 kg |
Recommended Companion Models
| Model | Product Name |
|---|
| TC-ODD321 | Honeywell 32-Point Digital Output Module |
| TC-IAH061 | Honeywell 6-Point Analog Input Module |
| TC-OAH061 | Honeywell 6-Point Analog Output Module |
| TC-IXL061 | Honeywell 6-Point Thermocouple Input Module |
Frequently Selected Alternatives
| Model | Product Name |
|---|
| TC-IDD161 | Honeywell 16-Point 24 VDC Digital Input Module |
| TK-IDD321 | Honeywell Coated 32-Point Digital Input Module |
| TC-IDB321 | Honeywell 120 VAC 32-Point Digital Input Module |
| TC-IDJ161 | Honeywell Isolated 16-Point Digital Input Module |
Technical FAQs
1. What is the primary function of the Honeywell TC-IDD32?
The Honeywell TC-IDD32 is a Digital Input Module designed to collect 24 VDC discrete signals from field devices and transfer status information to Honeywell control systems.
2. How many digital input channels does the TC-IDD32 provide?
The module provides 32 digital input channels for monitoring multiple discrete field signals within industrial automation systems.
3. What type of signals can the TC-IDD32 process?
The module processes digital on/off signals from industrial devices such as switches, alarms, sensors, and equipment status contacts.
4. Which Honeywell systems are compatible with the TC-IDD32?
The module is designed for use with Honeywell Experion PKS and related industrial control system architectures.
5. How does the TC-IDD32 improve automation system monitoring?
The module improves monitoring by providing reliable acquisition of equipment status information and accurate transmission of field signals to the control system.
6. Can the TC-IDD32 be used in continuous process applications?
Yes, the module is designed for industrial environments requiring stable operation and continuous digital signal monitoring.
7. What types of field devices can connect to the TC-IDD32?
The module can interface with compatible digital devices including switches, relays, alarms, and equipment feedback contacts.
8. What advantages does a 32-channel digital input module provide?
A 32-channel design allows more field signals to be integrated into a single module, reducing installation complexity and improving system efficiency.
9. How does the TC-IDD32 support system maintenance?
The module simplifies troubleshooting by providing organized digital signal acquisition and structured integration within the control system.
10. What is the difference between the TC-IDD32 and analog input modules?
The TC-IDD32 processes discrete binary signals, while analog input modules measure continuously variable signals such as temperature, pressure, and flow.
