Product Introduction and Technical Overview

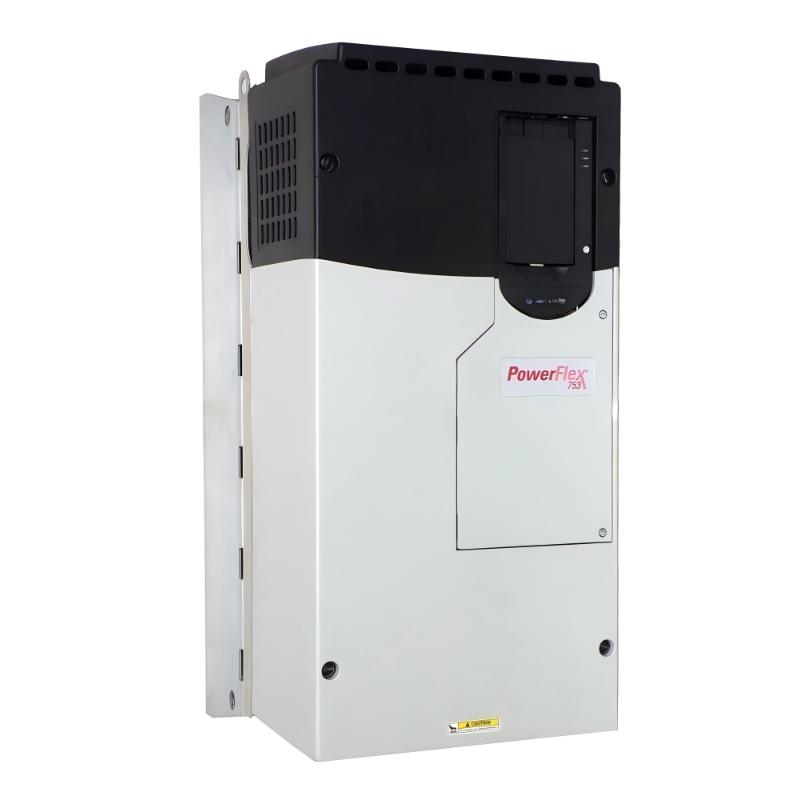

The Allen Bradley 20F1ANC205JN0NNNNN PowerFlex 753 AC Drive is a powerful industrial variable frequency drive developed for applications requiring reliable motor control and flexible automation performance. This model features embedded I/O, standard protection, forced-air cooling, 400 VAC three-phase operation, and a 205 A output current rating.

Built on the PowerFlex 750-Series platform, this AC drive combines advanced motor control technology with a modular design concept. It enables engineers to create scalable automation systems while simplifying installation, commissioning, and maintenance processes.

The 20F1ANC205JN0NNNNN is particularly suitable for industrial users who need dependable operation, efficient motor management, and long-term performance in demanding production environments.

Technical Specifications and Engineering Data

Parameter	Specification
Brand	Allen Bradley
Model	20F1ANC205JN0NNNNN
Product Type	PowerFlex 753 AC Drive
Drive Family	PowerFlex 750-Series
Input Voltage	400 VAC
Phase	Three Phase
Output Current	205 A
Normal Duty Rating	110 kW
Heavy Duty Rating	90 kW
Frame Size	Frame 6
Cooling Method	Forced Air Cooling
Protection Type	IP20 / IP00 Open Type
Embedded I/O	Integrated
Dynamic Braking	No Internal Braking Transistor
Communication Expansion	Supported
Filtering	Integrated EMC Filtering
Mounting Type	Panel Mount
Dimensions	665.5 × 308 × 346.4 mm
Weight	38.60 kg (85.10 lb)

Recommended Related Models

Model	Product Type
20F1ANC170JN0NNNNN	PowerFlex 753 AC Drive
20F1ANC205JA0NNNNN	PowerFlex 753 AC Drive
20F1ANC156JN0NNNNN	PowerFlex 753 AC Drive
20F1ANC260JN0NNNNN	PowerFlex 753 AC Drive
20G1ANC205JN0NNNNN	PowerFlex 755 AC Drive

Popular Related Models

Model	Product Type
20F14NC205JA0NNNNN	PowerFlex 753 AC Drive
20F11NC104JA0NNNNN	PowerFlex 753 AC Drive
20F11ND034AA0NNNNN	PowerFlex 753 AC Drive
25B-D043N114	PowerFlex 525 AC Drive
1756-L83E	ControlLogix Controller

Industrial Applications and Automation Integration

The Allen Bradley 20F1ANC205JN0NNNNN PowerFlex 753 AC Drive is designed for industrial automation systems that require powerful motor control, stable operation, and flexible integration capabilities. This high-performance AC drive provides reliable speed and torque management for medium and large industrial motor applications.

The drive is widely used in manufacturing equipment, conveyor systems, material handling machinery, pumps, fans, compressors, and process automation systems. Its integrated I/O structure and modular configuration allow engineers to develop efficient motor control solutions while maintaining flexibility for future expansion.

With its strong output capability and industrial-grade design, the 20F1ANC205JN0NNNNN is an ideal choice for OEM machine builders, automation integrators, and industrial facilities looking to improve equipment efficiency and operational reliability.

Engineering Advantages and Product Performance Features

High-Capacity Motor Control Performance
The PowerFlex 753 AC Drive delivers precise speed and torque control for demanding industrial applications. Its advanced control technology helps maintain smooth motor operation even when load conditions change.

Flexible Automation System Integration
The modular architecture allows the drive to adapt to different industrial automation environments, providing convenient integration with control systems and communication networks.

Reliable Continuous Operation
Designed for industrial duty applications, the 20F1ANC205JN0NNNNN provides stable performance for production systems where uptime and reliability are critical.

Integrated I/O Functionality
Built-in I/O reduces the need for additional control components and simplifies wiring between field devices and automation controllers.

Efficient Energy Management
Variable speed operation allows motors to match actual process requirements, helping reduce unnecessary energy consumption and improve system efficiency.

Simplified Commissioning and Maintenance
The PowerFlex 753 platform provides practical configuration and diagnostic functions, helping engineers reduce setup time and improve troubleshooting efficiency.

Technical FAQs

Q1: What applications are suitable for the Allen Bradley 20F1ANC205JN0NNNNN PowerFlex 753 AC Drive?
A: This drive is suitable for industrial applications including conveyors, pumps, fans, compressors, processing machinery, and automated production equipment.

Q2: What motor control functions does this PowerFlex 753 drive provide?
A: It provides adjustable frequency control, speed regulation, torque management, and flexible configuration options for industrial AC motors.

Q3: Can the 20F1ANC205JN0NNNNN communicate with PLC systems?
A: Yes. The drive can be integrated with PLC-based automation systems through compatible communication and control interfaces.

Q4: What is the benefit of using variable frequency control?
A: Variable frequency control allows motors to operate according to process requirements, improving efficiency and reducing mechanical stress.

Q5: Does this model support industrial network expansion?
A: Yes. The PowerFlex 753 platform supports optional communication modules for different industrial network applications.

Q6: How are drive parameters configured during commissioning?
A: Parameters can be configured through compatible programming tools, operator interfaces, or automation software.

Q7: What diagnostic functions are available for troubleshooting?
A: The drive provides operating status information, fault monitoring, and diagnostic data to help technicians identify system issues.

Q8: Can this drive handle applications with changing loads?
A: Yes. The drive provides dynamic motor control performance for applications with varying operating conditions.

Q9: What maintenance procedures are recommended for long-term operation?
A: Regular inspection of cooling conditions, electrical connections, parameter settings, and fault records is recommended.

Q10: Is the 20F1ANC205JN0NNNNN suitable for equipment upgrade projects?
A: Yes. It can replace older drive systems where improved control performance, diagnostics, and automation compatibility are required.
