Brand:Bently Nevada PLC Item No.:3500/33 Product Origin:USA Product Dimensions:241 x 24.4 x 242 mm Product Weight:0.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

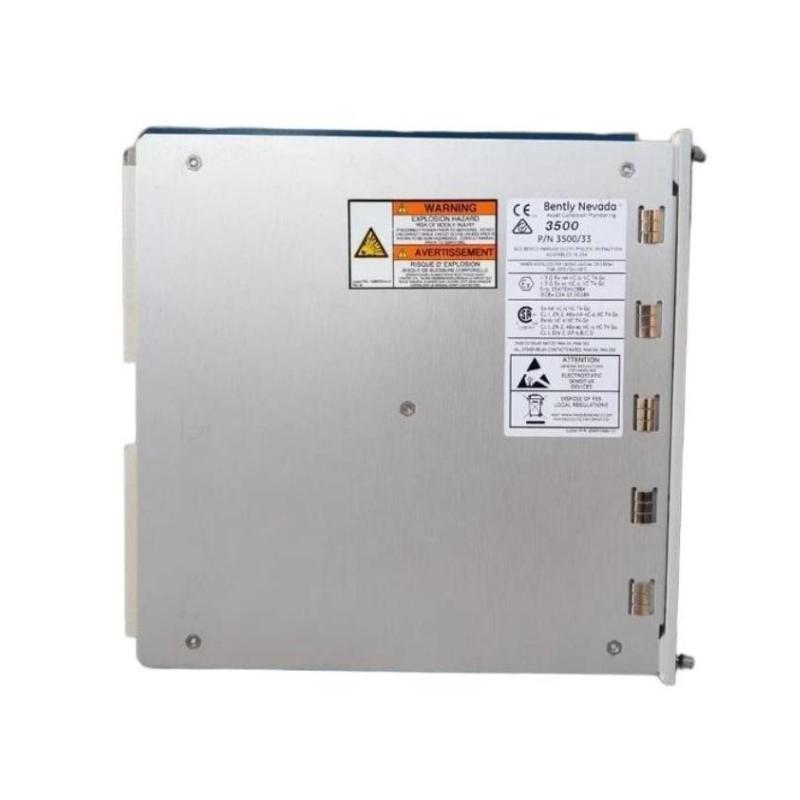

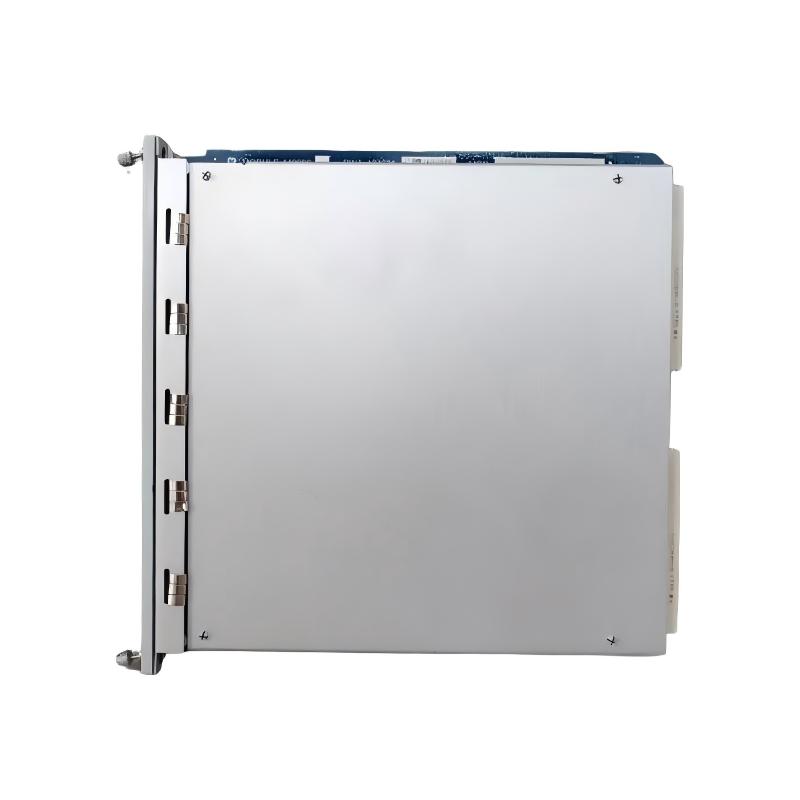

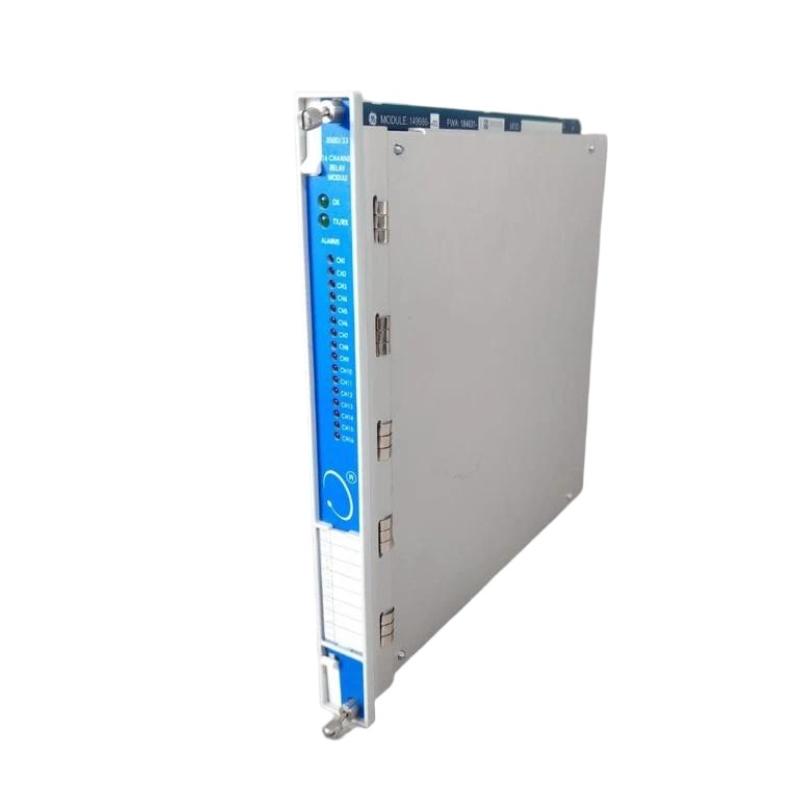

The Bently Nevada 3500/33 184631‑01 + 149986‑01 16‑Channel Relay Output Module is a high‑capacity discrete output solution for sophisticated machinery protection systems. By integrating two relay boards into one module, it delivers expanded channel count without expanding the rack footprint — a key advantage in systems with extensive control logic.
Technical Specifications
Parameter
Description
Model
3500/33 184631‑01 + 149986‑01
Module Type
16‑Channel Relay Output Module
Dimensions
241 × 24.4 × 242 mm
Weight
Approx. 0.7 kg
Mounting Method
Rack‑mounted in 3500 Series systems
Application Environment
Machinery protection and industrial automation
Recommended Related Models
These modules are frequently paired with the 16‑Channel relay module for complete monitoring and control solutions.
The Bently Nevada 3500/33 16-Channel Relay Output Module (combined 184631‑01 and 149986‑01 boards) delivers extensive discrete output control within high‑availability machinery protection systems. With a dense array of relay channels, it provides robust alarm, shutdown, interlock, and auxiliary signalling capabilities for critical asset monitoring.
Multi‑point alarm and shutdown control for Bently Nevada 3500 Series protection systems
Distributed interlock and auxiliary control in rotating machinery environments
Protection of turbines, compressors, pumps, and motors in power generation, oil & gas, and industrial facilities
Complex logic output requirements in condition monitoring and safety interlocks
Retrofit and expansion scenarios where high relay channel density is needed
Applications
The Bently Nevada 3500/33 16-Channel Relay Output Module (combined 184631‑01 and 149986‑01 boards) delivers extensive discrete output control within high‑availability machinery protection systems. With a dense array of relay channels, it provides robust alarm, shutdown, interlock, and auxiliary signalling capabilities for critical asset monitoring.
Multi‑point alarm and shutdown control for Bently Nevada 3500 Series protection systems
Distributed interlock and auxiliary control in rotating machinery environments
Protection of turbines, compressors, pumps, and motors in power generation, oil & gas, and industrial facilities
Complex logic output requirements in condition monitoring and safety interlocks
Retrofit and expansion scenarios where high relay channel density is needed
Technical FAQs
What is the core function of this module?
It provides sixteen discrete relay outputs for alarms, shutdowns, and auxiliary signals.
Why choose a combined 16‑channel module?
To support complex control logic with many output points while minimizing rack usage.
Is the module suitable for continuous industrial operation?
Yes, it is designed for uninterrupted 24/7 use in demanding environments.
What devices can be driven by the relay outputs?
Alarms, trip circuits, shutdown valves, interlock relays, and auxiliary controls.
How is it installed?
It mounts into a Bently Nevada 3500 Series rack.
Does the module support keyed installation?
Yes, the design supports correct insertion and orientation in the rack.
What are the physical dimensions?
241 × 24.4 × 242 mm.
How much does it weigh?
Approximately 0.7 kg.
Does it require configuration software?
Standard Bently Nevada 3500 Series configuration and monitoring tools are used.
Can it handle harsh industrial conditions?
Yes, it is engineered to withstand vibration, temperature variation, and electrical noise.
