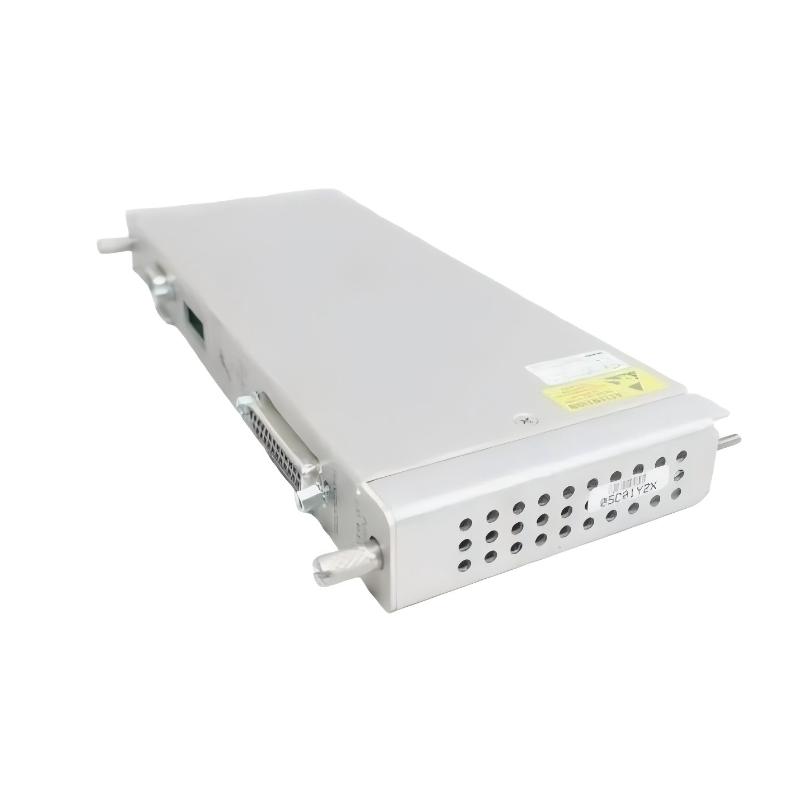

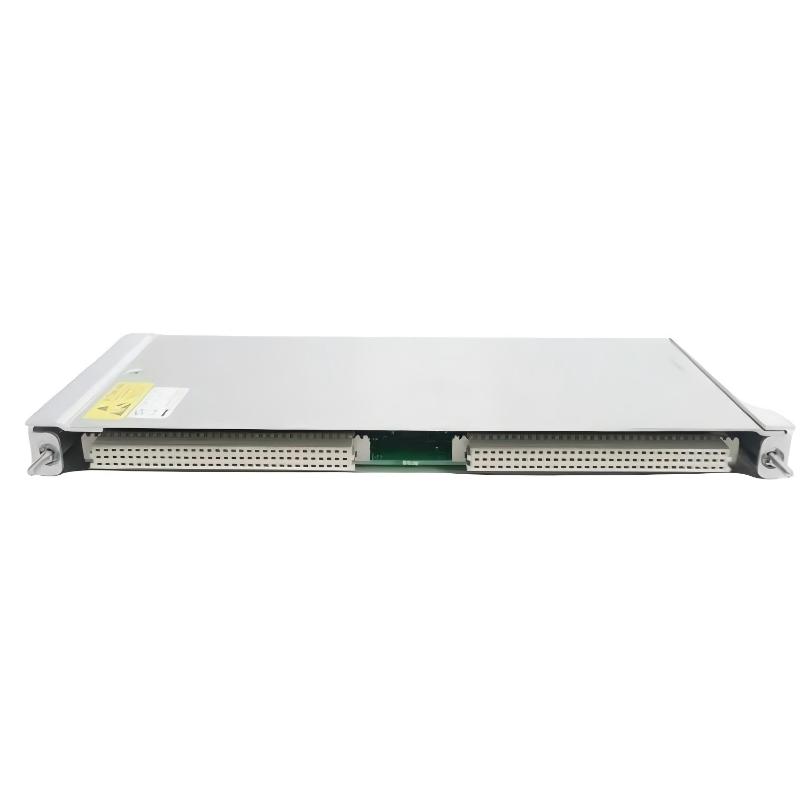

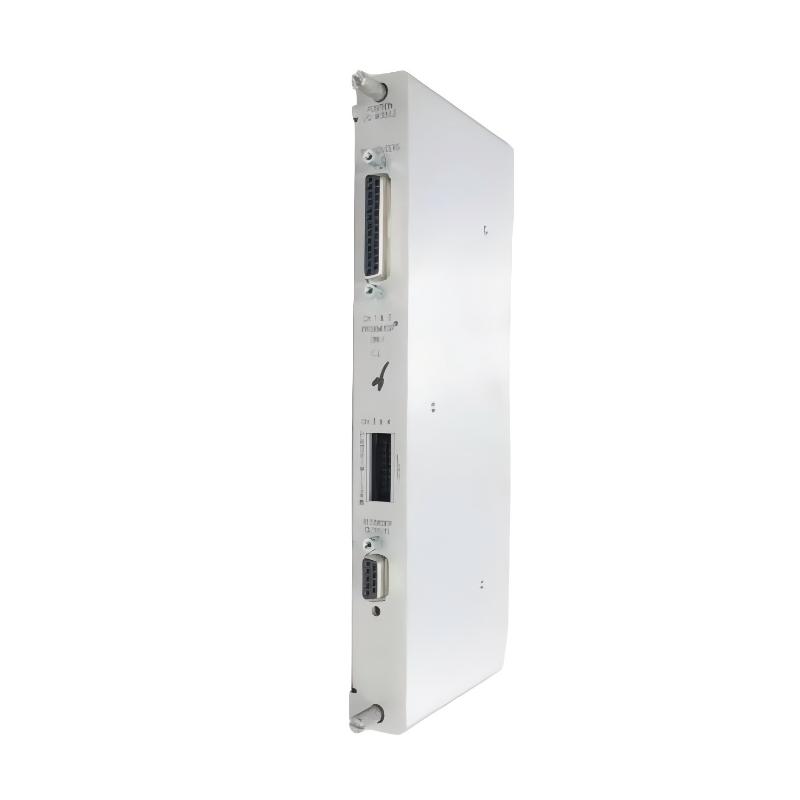

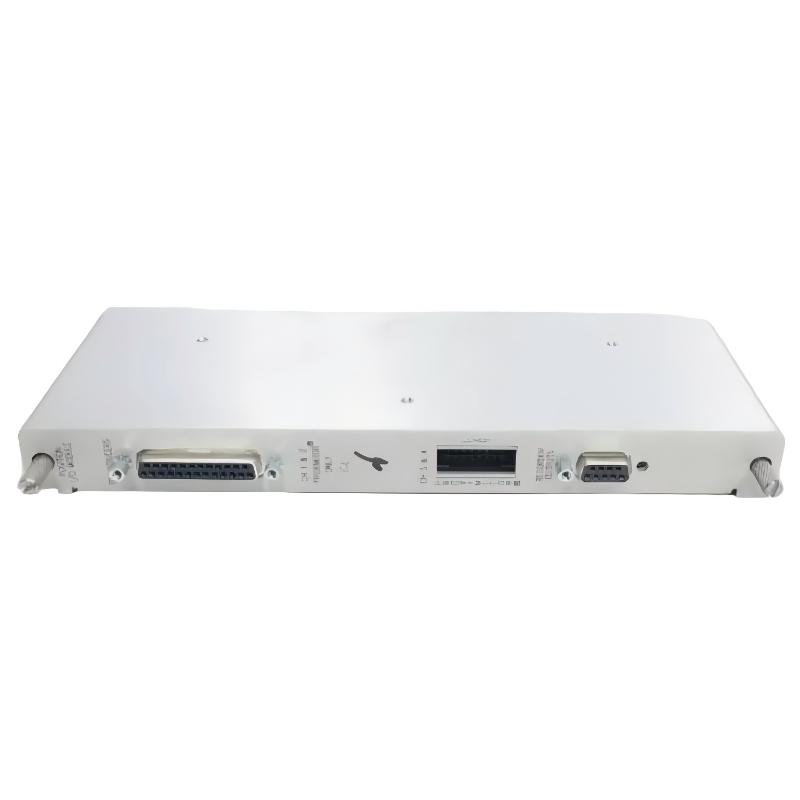

Bently Nevada 3500/40 126615-01 Proximitor I/O Module With External Terminals

Applications

The Bently Nevada 3500/40 126615‑01 Proximitor I/O Module With External Terminals is engineered to interface proximity and other high‑speed sensors with the 3500 Series machinery protection platform. Its external terminal design simplifies field wiring and allows flexible, accessible connections for vibration and position monitoring applications.

• Proximity probe signal acquisition for rotating machinery health monitoring

• Shaft speed, position, and vibration monitoring in turbines, compressors, and motors

• Integration with 3500 Series vibration and protection systems

• Industrial environments including power generation, oil & gas, and petrochemical plants

• Control cabinets where flexible external wiring access is required

Advantages

This module combines proven Bently Nevada precision with practical external wiring capabilities, improving installation flexibility and maintenance access.

• Designed for easy, accessible external terminal connections

• Accurate signal input and conditioning for proximitor and vibration sensors

• Compact and lightweight for efficient rack space utilization

• Rugged build for reliable, continuous industrial operation

• Seamless integration with 3500 Series monitoring and protection systems

Technical FAQs

1. What is the main function of this module?
   It serves as an interface for proximitor and high‑speed sensor signals into the 3500 Series system.

2. What does “external terminals” mean?
   Field wiring is terminated at accessible external points for easier installation and servicing.

3. Which sensors are compatible?
   Proximity probes, vibration sensors, and other high‑speed transducers used in machinery monitoring.

4. Is it suitable for continuous operation?
   Yes, it is designed for reliable 24/7 industrial use.

5. Can it be retrofitted into existing systems?
   Yes, it works with existing 3500 Series racks and systems.

6. What are the module’s dimensions?
   241.3 × 24.4 × 99.1 mm.

7. What is its weight?
   Approximately 0.2 kg.

8. Does it support standard configuration tools?
   Yes, standard 3500 Series configuration and diagnostics tools are used.

9. How does it improve wiring access?
   External terminals provide accessible connection points for easier maintenance and changes.

10. Is it built for harsh environments?
    Yes, it is engineered to tolerate vibration, temperature changes, and electrical noise.
