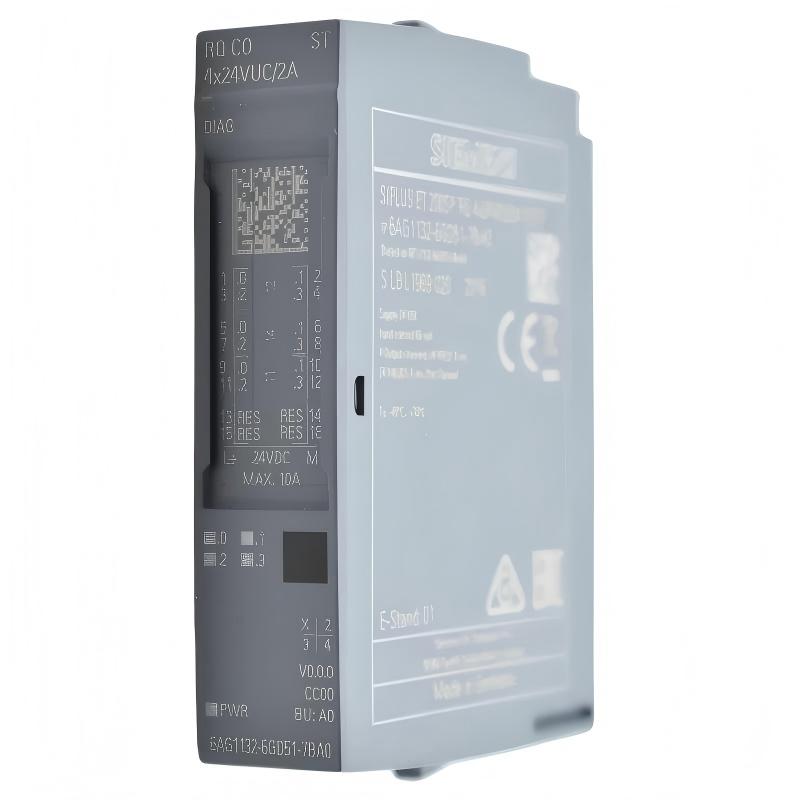

Siemens 6AG1132-6GD51-7BA0 digital output module faults are commonly caused by incorrect actuator wiring, output overload, missing field power, configuration errors, or external device problems rather than internal module damage. Proper troubleshooting requires analyzing the complete output control path from PLC program to the final actuator.

This article describes a field case where a Siemens digital output module showed intermittent actuator control failures on an automated production line.

Siemens 6AG1132-6GD51-7BA0 Digital Output Module Fault Symptoms

Typical fault symptoms include:

• Output channel does not activate
• Actuator responds intermittently
• Module shows diagnostic warning
• PLC command is correct but device does not move
• Machine sequence stops unexpectedly

Field case:

A production machine experienced random failures of pneumatic valves controlled through a Siemens 6AG1132-6GD51-7BA0 digital output module.

Initial observations:

• PLC program running normally
• Network communication stable
• Valve operation inconsistent

The maintenance team suspected:

• Output module damage
• PLC logic problem
• Valve coil failure

Engineers started troubleshooting from the output circuit.

Siemens 6AG1132-6GD51-7BA0 Fault Diagnosis Process and Signal Analysis

Diagnostic path:

PLC Program
     |
     |
Output Module Channel
     |
     |
Field Wiring
     |
     |
Actuator Coil

Engineers checked:

• PLC output command
• Module diagnostic information
• Channel voltage
• Actuator resistance

Diagnostic results:

• PLC command: Correct
• Module status: Normal
• Output voltage: Intermittent

The fault was located between the output terminal and the field device.

Siemens 6AG1132-6GD51-7BA0 Output Channel Failure Investigation

Field measurements:

Before repair:

• Output command: ON
• Module LED: Active
• Actuator voltage: 18–24 VDC fluctuation

Engineers inspected:

• Terminal connections
• Field cables
• Valve coil condition

The investigation found:

• A terminal connection had increased resistance due to insufficient tightening

Technical impact:

The unstable connection caused:

• Voltage drop
• Actuator failure
• Intermittent machine stops

The digital output module was operating correctly.

Siemens 6AG1132-6GD51-7BA0 Root Cause Analysis and Recovery

The final root cause was poor field connection quality.

Original condition:

• Output circuit operated normally
• Machine sequence stable

Failure condition:

• Terminal resistance increased
• Actuator received unstable voltage
• Output action became unreliable

Engineering conclusion:

The problem was caused by external wiring, not module hardware failure.

Siemens 6AG1132-6GD51-7BA0 Troubleshooting Repair and System Recovery

Corrective actions:

Field Wiring Repair

Performed:

• Retightened terminals
• Checked cable condition
• Verified actuator connections

Output Function Verification

Tested:

• PLC commands
• Channel switching
• Field device response

Final results:

Before repair:

• Random actuator failures
• Production interruptions

After repair:

• Stable output switching
• Reliable valve operation
• Normal machine production restored

Siemens 6AG1132-6GD51-7BA0 Common Fault Patterns and Diagnostic Methods

Output Channel Not Switching

Symptoms:

• PLC command active
• Device does not respond

Diagnosis:

• Check field voltage
• Verify wiring
• Inspect actuator load

Output Overload Fault

Symptoms:

• Channel protection activated

Diagnosis:

• Measure load current
• Check actuator condition
• Verify output specifications

Intermittent Output Fault

Symptoms:

• Device works after reset

Diagnosis:

• Inspect terminals
• Check power stability
• Review environmental conditions

Siemens 6AG1132-6GD51-7BA0 Long-Term Maintenance Strategy

For reliable digital output operation:

• Inspect terminal tightening regularly
• Monitor module diagnostics
• Maintain updated wiring drawings
• Check actuator current consumption
• Record recurring fault patterns

A practical engineering rule:

“When troubleshooting a Siemens 6AG1132-6GD51-7BA0 digital output module fault, verify the complete output circuit before replacing the module.”

Recommended troubleshooting sequence:

PLC command check → Module diagnostics → Output voltage measurement → Wiring inspection → Actuator test → Final system verification.
