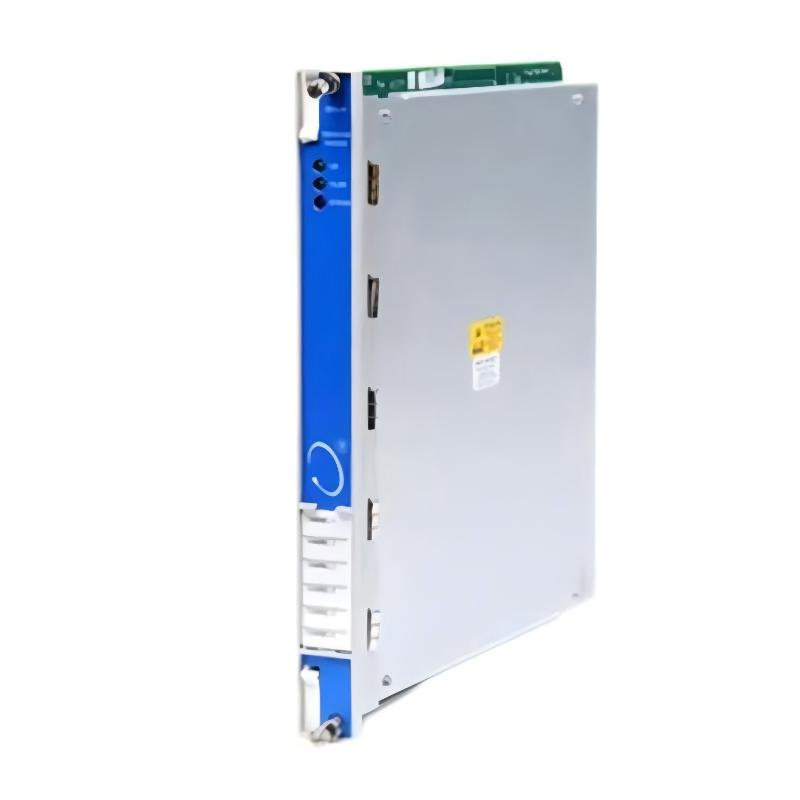

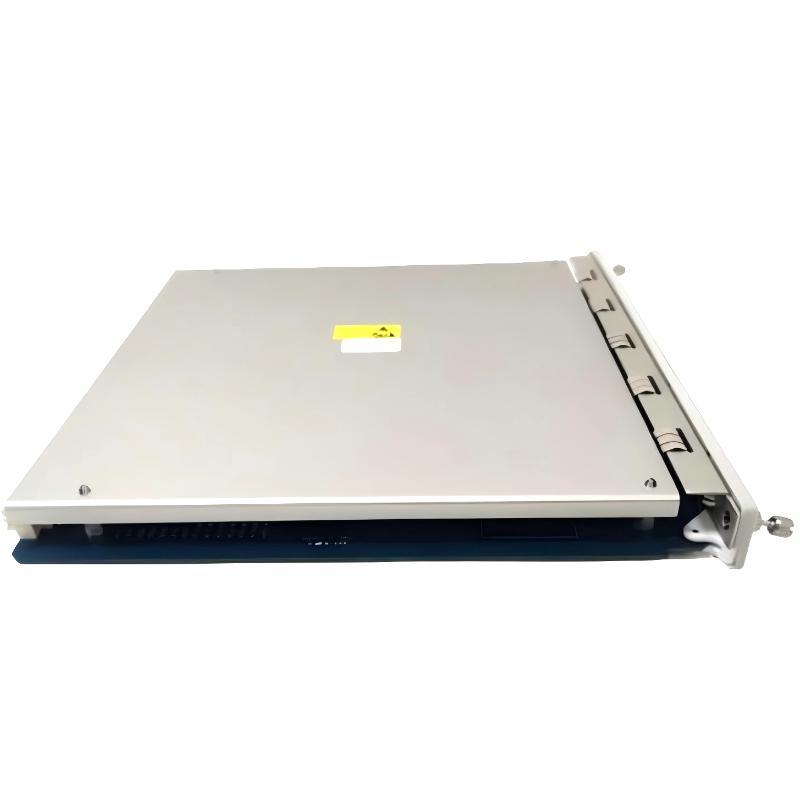

Bently Nevada 3500/22M 288055-02 Transient Data Interface Module

Applications for High-Speed Transient Monitoring

• Transient event capture for rotating machinery

• Turbine, compressor, and generator startup and shutdown analysis

• Machinery protection and condition monitoring systems

• Power generation and critical industrial assets

• Diagnostic systems requiring high-resolution event data

Key Advantages

• High-Speed Data Acquisition: Accurately captures short-duration transient events

• Advanced Diagnostic Capability: Reveals faults not visible in steady-state monitoring

• Seamless 3500 System Integration: Fully compatible with Bently Nevada 3500 racks

• Industrial-Grade Reliability: Designed for continuous 24/7 operation

• Compact Module Design: Fits standard 3500 rack slots without modification

Technical FAQs

1. What is the main function of the 3500/22M module?
   It captures and processes high-speed transient data from rotating machinery.

2. Is the 288055-02 compatible with all 3500 systems?
   Yes, it is fully compatible with standard Bently Nevada 3500 rack configurations.

3. What types of events can it capture?
   Startup, shutdown, trips, impacts, and other short-duration dynamic events.

4. Is this module suitable for turbine monitoring?
   Yes, it is widely used in steam, gas, and hydro turbine applications.

5. Does it support continuous monitoring?
   Yes, it is designed for uninterrupted industrial operation.

6. How is the module installed?
   It is installed directly into a designated slot in a 3500 rack.

7. Can it be used in harsh environments?
   Yes, it is engineered to withstand vibration, temperature variation, and electrical noise.

8. Does it improve predictive maintenance?
   Yes, by capturing transient data that indicates early-stage faults.

9. What systems typically use this module?
   Machinery protection and condition monitoring systems.

10. Is configuration software required?
    Yes, standard Bently Nevada 3500 configuration tools are used.
