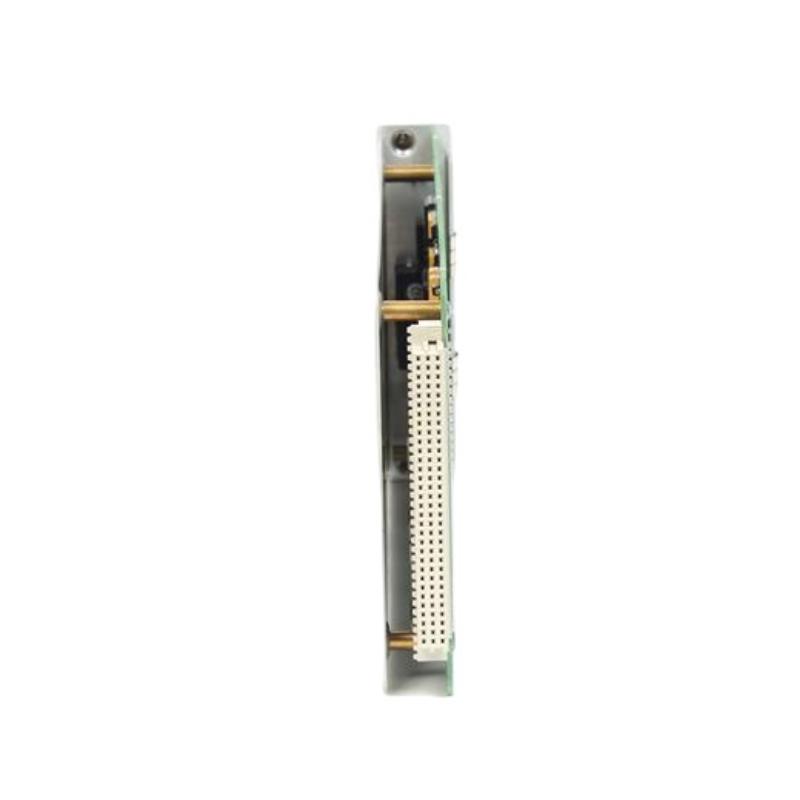

Bently Nevada 3500/25 125792-01 Enhanced Bond Phase Module

Precision Phase & Speed Reference Monitoring

• Accurate phase reference for rotating machinery

• Speed and phase measurement using Keyphasor® signals

• Shaft position and angular reference monitoring

• Turbine, compressor, pump, and generator applications

• Machinery protection and condition monitoring systems

Key Advantages

• Enhanced Phase Accuracy: Improves phase measurement stability and resolution

• Reliable Speed Reference: Provides precise rotational speed data to the 3500 system

• Seamless 3500 Integration: Fully compatible with Bently Nevada 3500 racks

• Industrial-Grade Design: Built for continuous operation in harsh environments

• Compact Module Form Factor: Efficient use of rack slot space

Technical FAQs

1. What is the function of the 3500/25 Enhanced Bond Phase Module?
   It processes Keyphasor® signals to provide accurate speed and phase reference data.

2. How does it differ from standard Keyphasor modules?
   The enhanced version offers improved signal processing and phase accuracy.

3. Is the 125792-01 compatible with all 3500 systems?
   Yes, it is designed for standard Bently Nevada 3500 rack installations.

4. What machinery types use this module?
   Turbines, compressors, pumps, motors, and generators.

5. Does it support redundancy?
   Yes, it supports redundant phase reference configurations when used in pairs.

6. Can it operate continuously?
   Yes, it is designed for 24/7 industrial operation.

7. What input signals does it accept?
   Keyphasor® probe signals from rotating machinery.

8. Is special software required for setup?
   Configuration is done using standard Bently Nevada 3500 configuration tools.

9. Does it improve diagnostic accuracy?
   Yes, accurate phase reference is critical for vibration and transient analysis.

10. Where is the module installed?
    It installs directly into a dedicated slot in a 3500 rack.
