Introduction

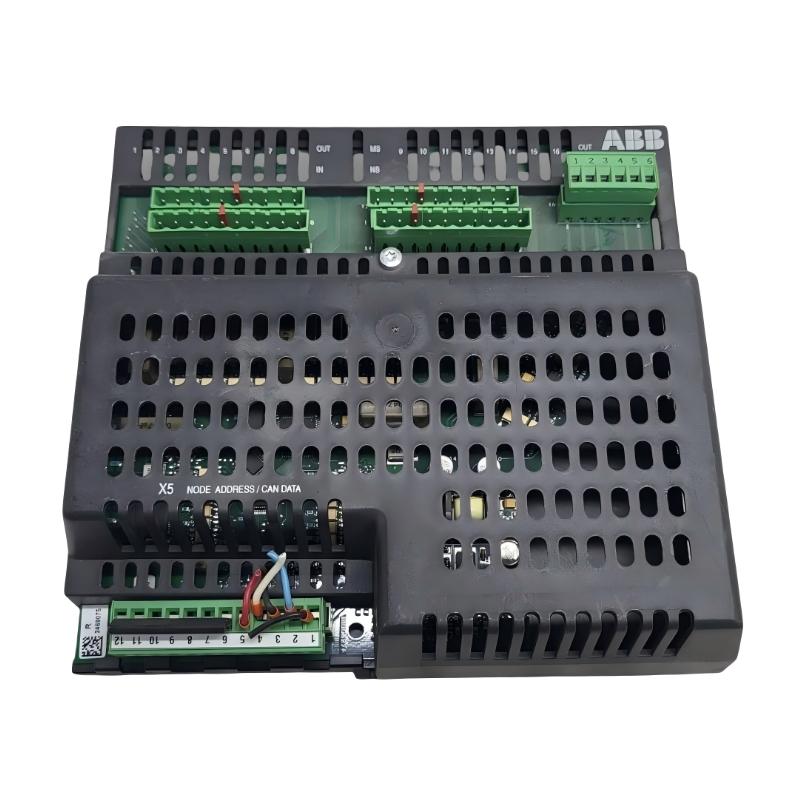

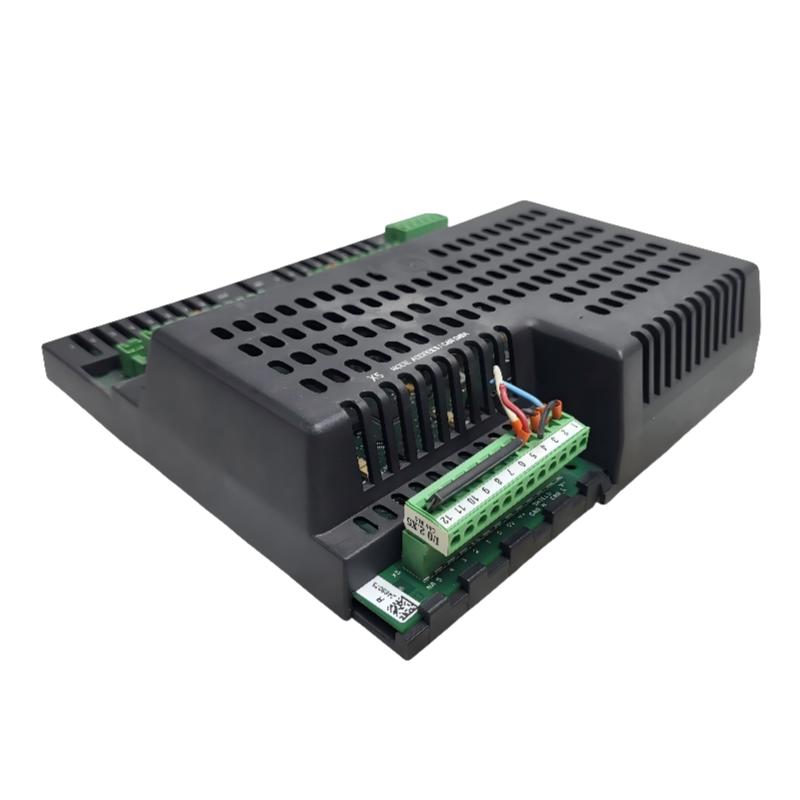

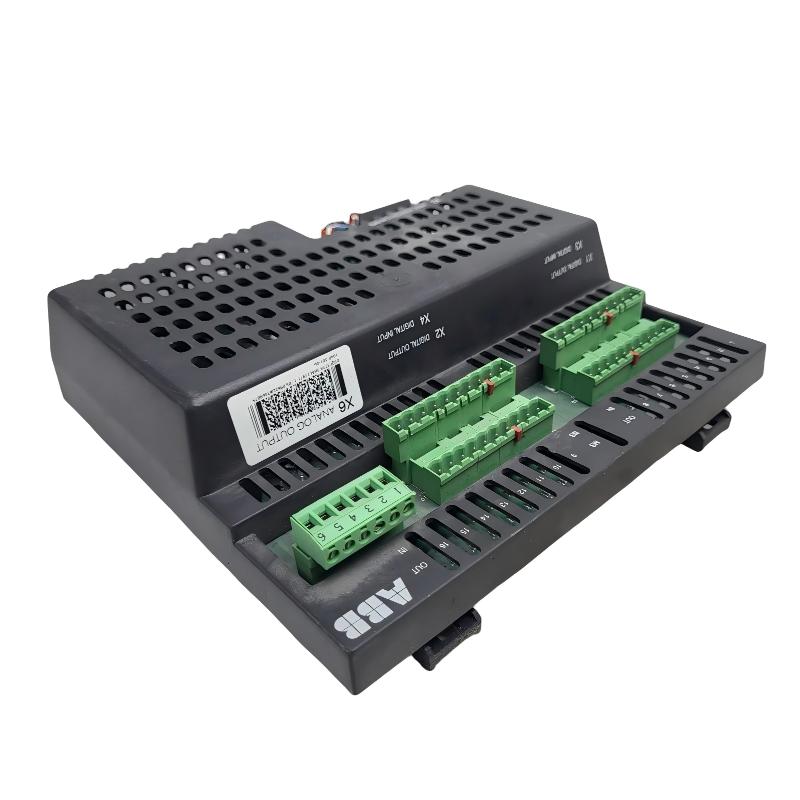

The ABB DSQC 327A 3HAC17971-1 Combination I/O Module provides a practical field-interface solution for ABB robotic automation systems. Rather than separating digital and analog signal handling across multiple devices, the module combines several I/O functions into one compact unit.

Its 16 digital inputs and 16 digital outputs cover a broad range of conventional machine-control requirements. Sensors can provide status information to the robot controller, while outputs can be used to control external equipment associated with the robotic cell. The additional two 0–10 V analog outputs extend the module's capabilities to applications that require variable control signals.

DeviceNet communication is another important part of the DSQC 327A architecture. In a distributed automation environment, the module can provide an efficient connection between field-level equipment and the ABB control system, reducing the need to bring every individual signal back to a central cabinet.

For maintenance departments and automation engineers, the DSQC 327A 3HAC17971-1 can be an especially practical replacement component when working with established ABB robot installations. Maintaining the original I/O concept can reduce engineering changes, simplify troubleshooting, and help return production equipment to service more efficiently.

Its combination of digital and analog functionality makes the DSQC 327A suitable for applications where a conventional digital I/O module alone would not provide enough flexibility.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	DSQC 327A
Product Number	3HAC17971-1
Product Type	Combination I/O Module
I/O Category	AD Combi I/O
Communication Interface	DeviceNet
Digital Inputs	16
Digital Outputs	16
Analog Outputs	2
Analog Output Range	0–10 V
Analog Output Resolution	12-bit
Digital Input Supply	24 VDC
Digital I/O Isolation	Galvanically isolated groups
Application	ABB Robot and Industrial Automation Systems
Installation	Controller or compatible external I/O arrangement
Dimensions	185 × 43 × 160 mm
Weight	0.66 kg (1.46 lb)

Recommended Related Models

Model	Product Type	Recommended For
ABB DSQC 328A 3HAC17970-1	Digital I/O Module	Applications requiring distributed digital I/O
ABB DSQC 332A 3HAC17973-1	Digital I/O Module	Systems requiring additional digital switching capability
ABB DSQC 355A 3HNE00554-1	Analog I/O Module	Automation systems with greater analog I/O requirements
ABB DSQC 350A 3HNE00025-1	DeviceNet / Allen-Bradley Remote I/O Gateway	Integration with Allen-Bradley remote I/O equipment
ABB DSQC 352A 3HNE00009-1	DeviceNet / PROFIBUS-DP Gateway	PROFIBUS-DP network integration

Popular Related Models

Model	Product Type	Typical Application
ABB DSQC 328A 3HAC17970-1	Digital I/O Module	Robot-cell digital signal control
ABB DSQC 332A 3HAC17973-1	Digital I/O Module	Industrial switching and machine interfaces
ABB DSQC 355A 3HNE00554-1	Analog I/O Module	Analog field signal applications
ABB DSQC 350A 3HNE00025-1	DeviceNet / Allen-Bradley Gateway	Remote I/O integration
ABB DSQC 351A 3HNE00006-1	DeviceNet / INTERBUS Gateway	INTERBUS network applications
ABB DSQC 352A 3HNE00009-1	DeviceNet / PROFIBUS-DP Gateway	PROFIBUS-DP communication
ABB DSQC 378A	DeviceNet / CC-Link Gateway	CC-Link network integration

The ABB DSQC 327A 3HAC17971-1 Combination I/O Module remains a practical choice for compatible ABB robotic and industrial automation systems that require both discrete and analog field interfacing. Its integrated I/O architecture, DeviceNet communication, and flexible signal handling make it suitable for equipment maintenance, replacement projects, and established production environments.

Applications

The ABB DSQC 327A 3HAC17971-1 Combination I/O Module is designed for industrial robotic and automation systems that require multiple field signal types to be handled through a single I/O solution. By combining digital inputs, digital outputs, and analog outputs, the module provides a practical interface between ABB robot controllers and external machine equipment.

The module is well suited to ABB robotic cells where sensors, actuators, valves, switches, and proportional control devices need to exchange signals with the robot control system. Its DeviceNet communication capability also makes it suitable for distributed I/O architectures in which field devices are located throughout a production line rather than directly beside the main controller.

Typical applications include:

ABB industrial robot cells
Automated assembly lines
Material handling systems
Machine tending applications
Conveyor control systems
Welding and fabrication cells
Packaging automation
Production equipment interlocking
Sensor and actuator interfaces
Distributed DeviceNet I/O systems
Analog process signal control
Robot peripheral equipment

The DSQC 327A is particularly useful for maintenance and replacement projects involving established ABB automation installations. Keeping the existing I/O architecture can help reduce unnecessary system modifications and shorten commissioning work when replacing an aging or defective module.

Advantages

Integrated multi-function I/O

One of the main advantages of the DSQC 327A is its combination of different signal types. The module provides 16 digital inputs, 16 digital outputs, and 2 analog outputs, allowing a wide range of field devices to be connected through a single I/O platform.

Convenient DeviceNet integration

The built-in DeviceNet interface allows the module to communicate with compatible ABB control systems through a distributed network. This is useful for robotic production cells where I/O devices need to be positioned close to the machinery they control.

Flexible signal handling

Digital inputs can be used for monitoring switches, sensors, machine states, and safety-related auxiliary signals, while digital outputs can operate compatible external devices. The analog outputs provide 0–10 V signals for applications requiring proportional control.

12-bit analog resolution

The two analog outputs provide 12-bit resolution, giving the module considerably more control granularity than a simple digital ON/OFF interface. This makes it suitable for proportional devices and analog-controlled process equipment.

Galvanically isolated I/O groups

The digital I/O channels are arranged in isolated groups. This separation can help improve signal management and reduce the risk of unwanted electrical interaction between different field circuits when the installation is correctly engineered.

Useful for established ABB installations

For plants with existing ABB robotic equipment, using a compatible DSQC-series I/O module can simplify maintenance. Engineers can maintain the existing control concept instead of redesigning the entire field-interface architecture.

Compact industrial design

With its relatively compact form factor, the DSQC 327A can be integrated into control cabinets and robot-control installations where panel space is limited. Clearly separated connectors also make field wiring and service work more manageable.

Technical FAQs

1. What is the primary function of the ABB DSQC 327A?

The DSQC 327A is a combination I/O module used to interface external field devices with compatible ABB robotic and automation control systems. It combines digital input, digital output, and analog output functions in one unit.

2. How many digital inputs are available on the DSQC 327A?

The module provides 16 digital inputs. These inputs can be used for monitoring external sensors, switches, machine status signals, and other compatible 24 VDC field signals.

3. How many digital outputs does the module provide?

The DSQC 327A provides 16 digital outputs. These outputs can be used to control compatible external devices such as solenoids, relays, indicators, and other machine-control components.

4. What type of analog output is provided?

The module has two analog outputs with a 0–10 V signal range. The analog channels use 12-bit unsigned resolution, allowing more precise proportional control than a conventional discrete output.

5. What communication network does the DSQC 327A use?

The DSQC 327A communicates through DeviceNet. The DeviceNet interface allows the module to operate as part of a compatible distributed I/O network.

6. Can the DSQC 327A be used with external I/O installations?

Yes. The module can be integrated into suitable external I/O arrangements as well as compatible controller configurations. The actual installation method depends on the ABB control architecture and cabinet design.

7. What power supply is required for the I/O circuits?

The I/O circuitry is designed around a 24 VDC industrial control supply. The field power arrangement should be designed according to the connected devices and the specific ABB system configuration.

8. What should be checked if an input signal is not detected?

First check the 24 VDC supply, field wiring, common connections, sensor output, connector seating, and the corresponding I/O configuration. The DeviceNet connection and module status should also be checked if the controller is not communicating correctly with the module.

9. What can cause a DeviceNet communication problem?

Possible causes include incorrect node configuration, communication wiring problems, missing network power, connector faults, configuration mismatches, or problems elsewhere on the DeviceNet network. Checking the physical network and controller configuration systematically is recommended.

10. Can the DSQC 327A replace another ABB I/O module directly?

Not necessarily. Physical compatibility alone does not guarantee functional compatibility. Before replacement, the complete ABB part number, I/O configuration, communication setup, controller generation, software configuration, and application requirements should be verified.
