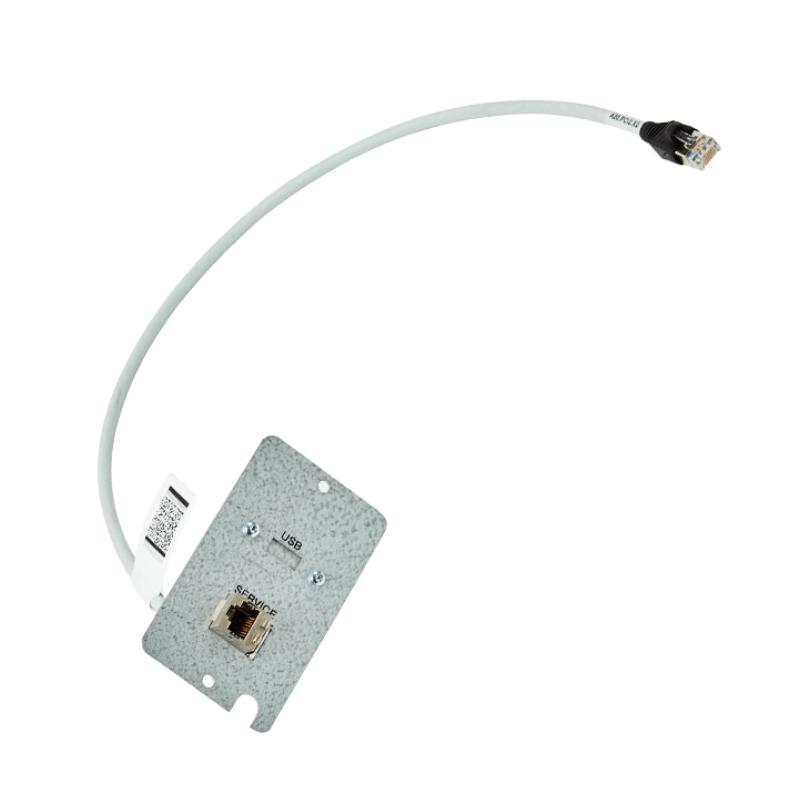

ABB 3HAC022296-001 Pre-Installed Computer USB Port Socket

Applications

The ABB 3HAC022296-001 Pre-Installed Computer USB Port Socket is a dedicated computer outlet component prepared for USB connectivity in compatible ABB robotics controller installations. It is intended for use as part of the controller's computer interface arrangement, providing a practical connection point for USB-related service and computer functions.

This component is particularly relevant to ABB robotic systems where the controller requires a properly installed computer outlet rather than an improvised external connection. Its original configuration makes it suitable for maintenance, controller refurbishment, and replacement work where preserving the intended cabinet and computer interface arrangement is important.

Typical applications include:

• ABB robot controller maintenance
• S4C+ robotic controller installations
• Industrial robot computer interfaces
• Controller refurbishment projects
• USB connectivity preparation
• ABB robot service and diagnostic work
• Replacement of damaged computer outlets
• Factory automation equipment maintenance

The 3HAC022296-001 is best considered a controller accessory/component rather than a standalone USB communication module. It provides the physical computer outlet preparation required for the applicable ABB robotic controller configuration.

Advantages

Designed for ABB robotic controllers

The 3HAC022296-001 is specifically identified as a computer outlet prepared for USB and intended for robotics controller applications. This makes it a more suitable replacement choice than attempting to adapt a generic computer connector to an ABB controller.

Supports an organized USB interface

A properly installed computer outlet provides a cleaner and more serviceable connection arrangement. This can be particularly valuable in industrial cabinets where exposed or improvised cabling can make maintenance more difficult.

Useful for controller refurbishment

When an ABB controller is being refurbished, replacing damaged or missing interface components can help restore the original equipment configuration. The 3HAC022296-001 is well suited to this type of maintenance work.

Practical replacement component

Its relatively simple function makes the part useful as a maintenance-stock item. Keeping the correct outlet available can reduce delays when a controller interface needs to be restored.

Suitable for established robot systems

For older ABB robotic installations, maintaining the original controller architecture is often preferable to making unnecessary modifications. A matching ABB component helps preserve the intended physical interface arrangement.

Compact and lightweight

With a supplied weight of only 0.14 kg, the component adds little mechanical load to the controller assembly while providing a dedicated interface solution.

Technical FAQs

1. What is the ABB 3HAC022296-001 used for?

The 3HAC022296-001 is a computer outlet component prepared for USB use in compatible ABB robotics controllers. Its primary purpose is to provide the appropriate physical computer interface within the controller assembly.

2. Is the 3HAC022296-001 a USB communication module?

No. It should not be treated as an independent USB communication module. It is a computer outlet/interface component prepared for USB connectivity within an ABB robotics controller.

3. Which type of ABB equipment is associated with this component?

The part is associated with ABB robotics controller equipment, with product information identifying it as a computer outlet prepared for USB and used for robotics controllers.

4. Can a generic USB socket be used as a replacement?

A generic USB socket should not automatically be considered a direct replacement. Mechanical mounting, connector arrangement, cable routing, electrical connections, and controller compatibility should all be checked before substitution.

5. Is the cable included with the 3HAC022296-001?

Cable configuration can depend on the particular supply or installation arrangement. The cable length should therefore be verified against the required controller configuration before ordering.

6. What should be checked before installing the component?

The controller should be powered down according to the applicable maintenance procedure. Technicians should verify the part number, mounting arrangement, connector condition, cable routing, and compatibility with the specific controller assembly.

7. What could cause a USB connection to fail after installation?

Possible causes include an incorrectly connected cable, damaged connector contacts, a defective USB device, controller-side interface problems, or an unsuitable cable configuration. Physical connection and controller diagnostics should be checked systematically.

8. Is this component suitable for upgrading every ABB robot controller with USB?

No. The presence of a USB-prepared computer outlet does not mean that every ABB controller supports the same USB functions. Controller generation, hardware configuration, and software capabilities must be considered.

9. Why is the correct ABB part number important when replacing the outlet?

ABB robotic controller assemblies can use different mechanical and electrical arrangements. Matching the complete part number helps reduce the risk of installing an incompatible connector or cable assembly.

10. What is the recommended approach when replacing a damaged USB outlet?

First identify the exact controller model and existing hardware configuration. Then compare the failed component with the replacement part, inspect the associated cable and connector, and test the USB interface after installation before returning the controller to normal operation.
