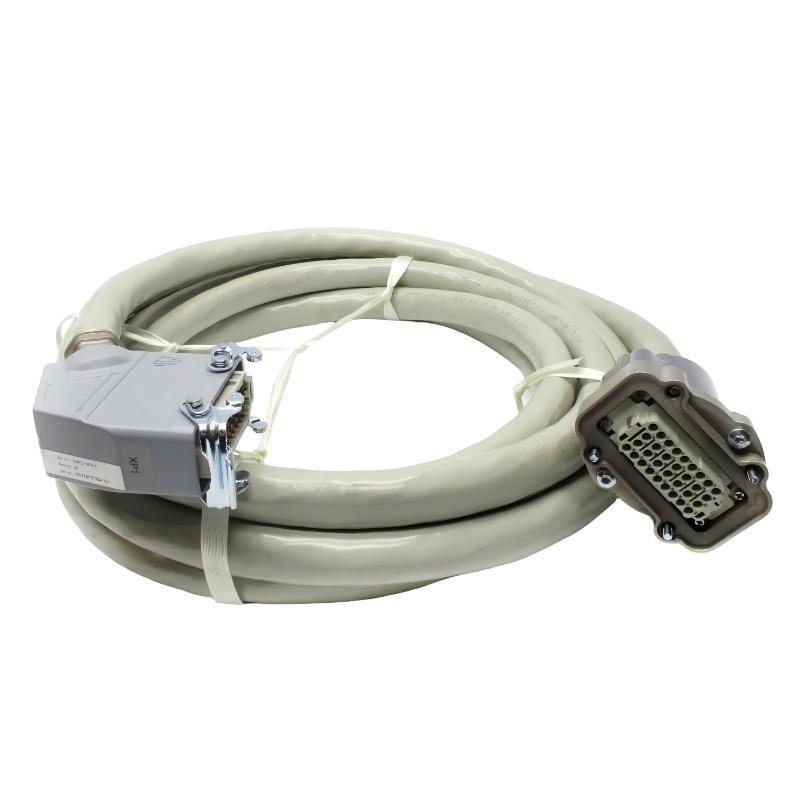

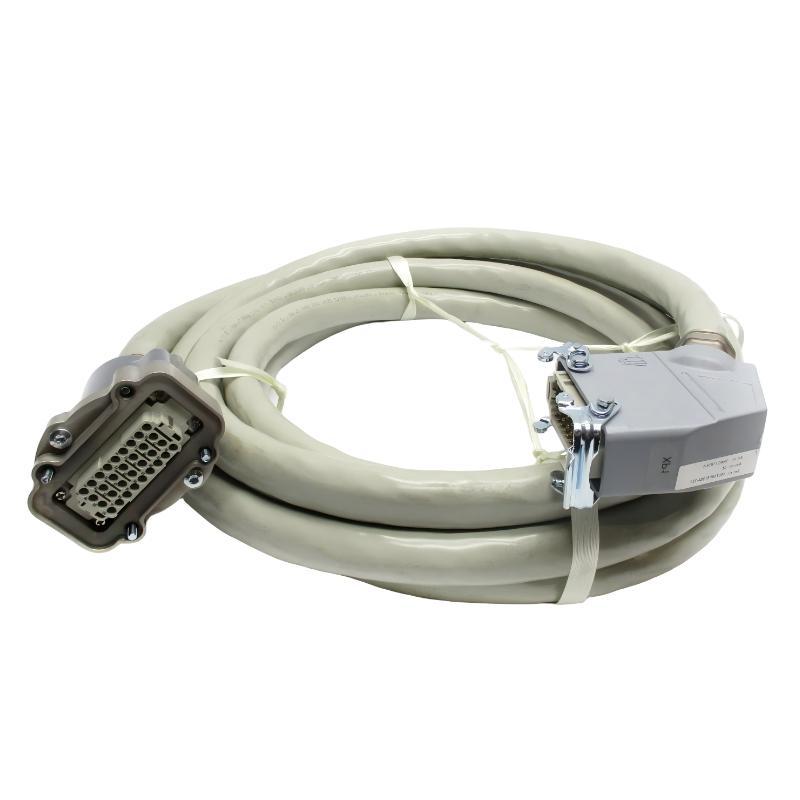

ABB 3HAC11818-1 Control Cable

Applications

The ABB 3HAC11818-1 Control Cable is a dedicated cable assembly intended for use within compatible ABB industrial automation and robotic control systems. With a 7-meter cable length, it is particularly useful where control equipment, robot assemblies, or related components are positioned at a greater physical distance from one another.

In industrial environments, cable assemblies are more than simple wiring components. The correct cable must provide reliable electrical continuity while also accommodating the mechanical requirements of a production cell. The 3HAC11818-1 is therefore a practical replacement and maintenance component for ABB equipment where the original cable assembly needs to be restored.

Typical applications include:

• ABB industrial robot systems
• Robot controller installations
• Industrial automation equipment
• Control-system interconnections
• Robot cell maintenance
• Factory automation machinery
• Controller refurbishment projects
• Replacement of damaged control cables
• Industrial equipment servicing
• Long-distance internal or system-level control connections

The 7-meter configuration can be advantageous when equipment is distributed across a larger cabinet or robotic cell. It provides additional routing flexibility while avoiding the need to improvise an extension using an unverified cable.

For maintenance teams, keeping the correct ABB control cable in stock can also help reduce troubleshooting time when cable damage or connection faults are responsible for intermittent system problems.

Advantages

Purpose-built ABB replacement

The 3HAC11818-1 is identified by a specific ABB part number, making it a practical choice when replacing an existing cable assembly in a compatible ABB system. Using the correct assembly helps maintain the original connection arrangement.

7-meter reach

With a length of 7 meters, the cable provides useful routing distance for installations where connected equipment is not positioned immediately next to each other.

Improved installation flexibility

The additional cable length allows technicians to route the connection around cabinets and equipment without placing unnecessary tension on the connectors.

Useful for maintenance and refurbishment

Cable assemblies can experience mechanical wear, repeated bending, abrasion, or accidental damage during the service life of industrial machinery. A replacement 3HAC11818-1 can help restore the original control-system connection without redesigning the installation.

Suitable for industrial environments

The cable is intended for industrial automation equipment, where reliable connections are essential for stable system operation. Proper routing and protection remain important to achieve dependable long-term service.

Reduced replacement uncertainty

Replacing a failed cable with an appropriately identified ABB component can be more straightforward than attempting to determine an equivalent generic cable based only on connector appearance.

Practical spare-part value

For facilities operating ABB robotic equipment, the 3HAC11818-1 can be maintained as a spare component so that cable-related failures do not unnecessarily extend equipment downtime.

Technical FAQs

1. What is the ABB 3HAC11818-1 used for?

The 3HAC11818-1 is an ABB control cable designed to provide an electrical connection between compatible components within an ABB industrial automation or robotic system.

2. What is the specified cable length?

The specified cable length is 7 meters. This provides additional routing distance for installations where connected equipment is separated by a relatively large physical distance.

3. Is the 3HAC11818-1 a standard Ethernet cable?

It should not be assumed to be an Ethernet cable. The part is identified as an ABB Control Cable, and its exact electrical function should be matched against the equipment documentation and the cable being replaced.

4. Can the cable be replaced with a generic cable of the same length?

Cable length alone is not sufficient to determine compatibility. Connector type, pin assignment, conductor arrangement, shielding, electrical characteristics, and the connected ABB equipment all need to match.

5. What should be checked before installing a replacement control cable?

Verify the complete ABB part number, connector condition, cable routing, mating interfaces, and the equipment configuration. The replacement should also be compared with the removed cable before energizing the system.

6. What are common symptoms of a damaged control cable?

Intermittent communication, unexpected signal loss, unstable equipment operation, controller alarms, or complete loss of a connected function can occur when a cable or its connectors are damaged. Electrical testing should be performed before replacing other system components.

7. Can excessive bending damage the cable?

Yes. Excessive bending, twisting, crushing, or repeated mechanical stress can damage conductors, shielding, or connector terminations. The cable should be routed according to appropriate industrial cable-management practices.

8. How should the 3HAC11818-1 be routed inside an automation system?

Avoid sharp edges, excessive tension, high-temperature areas, moving mechanical parts, and locations where the cable can be crushed. Adequate slack should be provided near connectors so that mechanical loads are not transferred directly to the terminals.

9. What should be done if the system does not operate after cable replacement?

Recheck both ends of the cable, connector seating, pin alignment, cable routing, and the exact replacement part number. If the physical connection is correct, inspect controller diagnostics and the connected equipment for additional faults.

10. Is the 3HAC11818-1 suitable as a general-purpose automation cable?

It should be treated as an ABB-specific replacement component rather than a universal control cable. Its suitability depends on the equipment and connection for which the original 3HAC11818-1 was specified.
