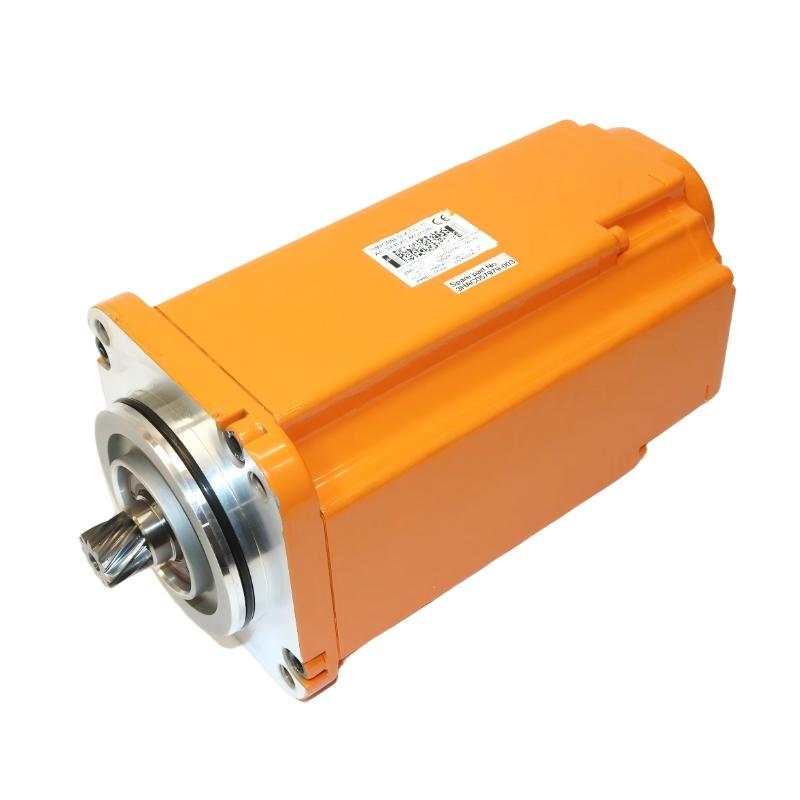

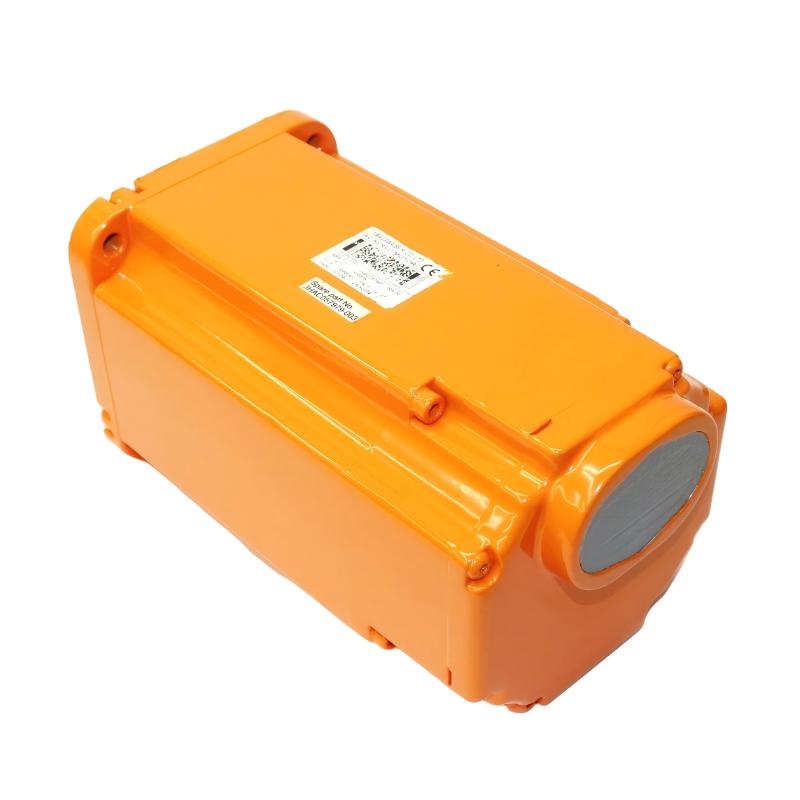

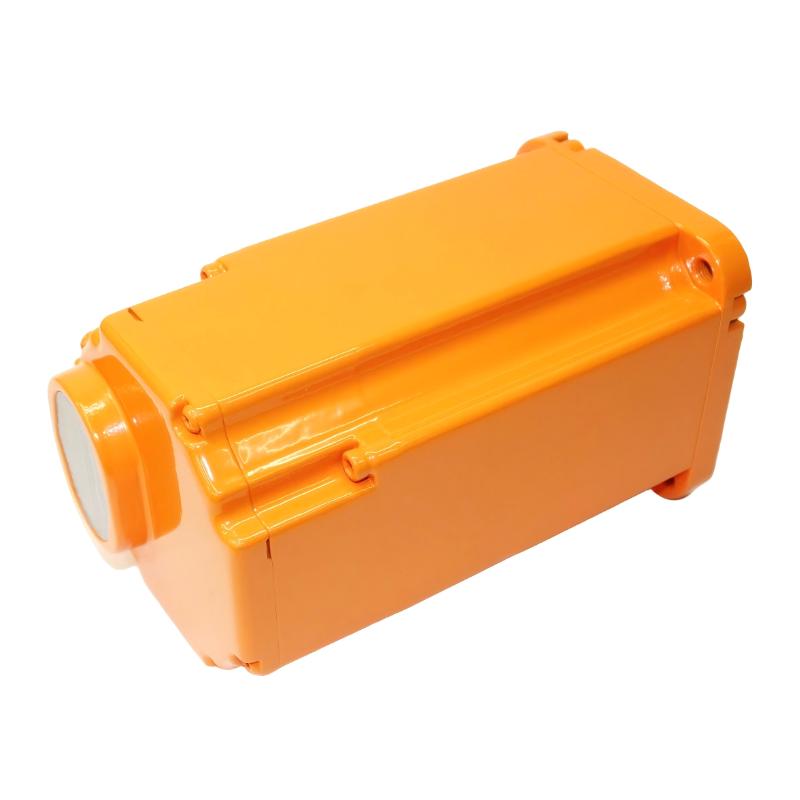

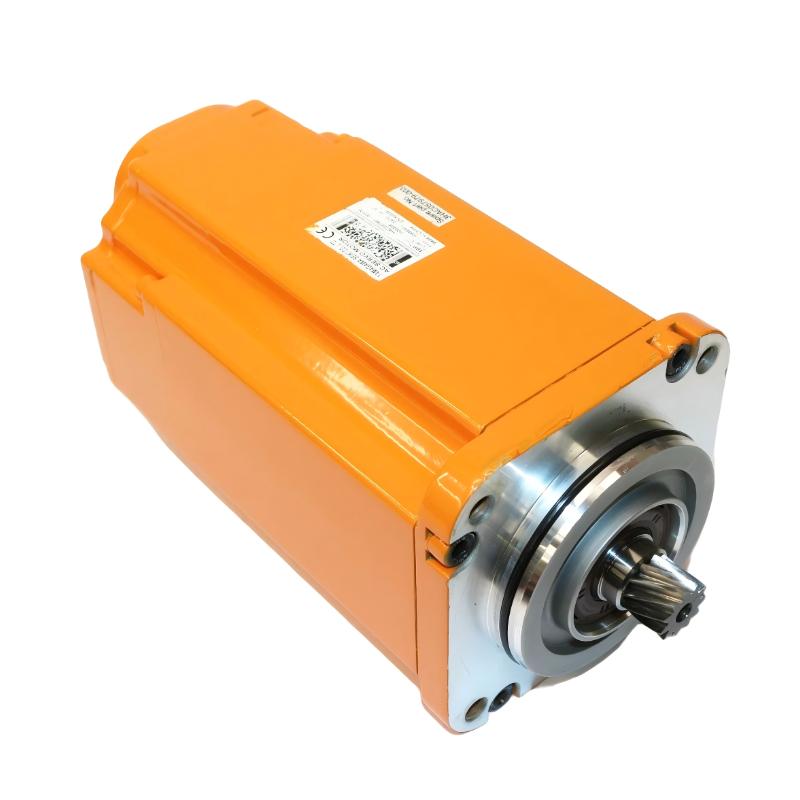

ABB 3HAC14673-7 M7 Rotary AC Motor

Applications

The ABB 3HAC14673-7 M7 Rotary AC Motor is an industrial motor component intended for use in compatible ABB robotic and automation equipment. As part of a robotic drive system, the motor converts electrical power into controlled mechanical rotation, supporting the precise movement required by industrial robots.

The M7 motor is particularly relevant to ABB robot maintenance and replacement applications where a reliable rotary drive is required for an existing robotic axis or mechanical assembly. Its role is not limited to simple continuous rotation; in a robot, the motor works together with the drive electronics, feedback system, gearbox, and controller to produce controlled axis movement.

Typical applications include:

• ABB industrial robot systems
• Robotic axis drive assemblies
• Automated material handling
• Machine tending systems
• Automated assembly equipment
• Welding and fabrication robots
• Pick-and-place machinery
• Robot refurbishment projects
• Industrial automation maintenance
• Replacement of worn or failed rotary motors

In maintenance environments, the 3HAC14673-7 is especially useful when an existing ABB robot requires motor replacement while the rest of the mechanical and control architecture remains in service.

Advantages

Reliable rotary motion

The M7 Rotary AC Motor is designed to provide the mechanical drive required for controlled robot-axis movement. In a properly configured ABB system, the motor works with the associated drive and feedback components to achieve repeatable motion.

Designed for robotic applications

Unlike a general-purpose industrial AC motor, a robot-axis motor is part of a coordinated motion-control system. Matching the motor to the intended ABB robotic assembly helps preserve the original drive characteristics and mechanical configuration.

Suitable for replacement projects

When a motor develops winding problems, bearing wear, insulation deterioration, overheating, or abnormal operating behavior, replacing the correct motor assembly can be more efficient than modifying the complete robotic axis.

Supports precision automation

Robot motion depends on coordinated control between the motor, drive, feedback device, and mechanical transmission. A suitable replacement motor helps maintain the predictable motion characteristics required for industrial production.

Useful for equipment refurbishment

The 3HAC14673-7 can be considered when restoring an established ABB robotic installation. Replacing the affected motor while retaining compatible control hardware can reduce unnecessary changes to the overall system.

Industrial-duty construction

The motor is intended for demanding automation environments where repeated acceleration, deceleration, and positioning cycles are common. Correct installation, cooling, lubrication of associated mechanical components, and drive configuration are essential for reliable service.

Practical spare-part choice

For factories operating ABB robotic equipment, maintaining a suitable replacement motor can significantly reduce downtime when a critical robot axis experiences a motor-related failure.

Technical FAQs

1. What is the ABB 3HAC14673-7?

The ABB 3HAC14673-7 is an M7 Rotary AC Motor used in compatible ABB robotic and industrial automation equipment. It provides mechanical rotary motion for the associated robotic drive system.

2. What role does the motor perform in an ABB robot?

The motor converts electrical energy from the drive system into mechanical rotation. The resulting motion is transmitted through the robot's mechanical axis and associated gearing to move the relevant robot mechanism.

3. Is the motor controlled directly from the robot controller?

Typically, the robot controller sends motion commands to the associated drive system rather than directly switching the motor as a conventional standalone motor. The drive regulates motor operation according to the controller's commands and feedback information.

4. What should be checked before replacing the M7 motor?

Verify the complete ABB part number, robot model, axis designation, mechanical mounting, shaft/interface arrangement, electrical connections, and associated drive configuration. The replacement should match the original motor specification.

5. What are common symptoms of a failing robot motor?

Typical symptoms can include excessive temperature, unusual mechanical noise, abnormal vibration, axis errors, loss of motion, intermittent operation, or drive alarms. These symptoms can also originate from the drive, feedback system, gearbox, or mechanical assembly, so proper diagnosis is important.

6. Can a motor fault cause a robot drive alarm?

Yes. Electrical faults, excessive motor current, winding problems, feedback abnormalities, or mechanical overload can cause the drive system to generate an alarm. The exact alarm code should be analyzed together with motor and axis diagnostics.

7. How should the motor be checked when overheating occurs?

Check the motor load, duty cycle, cooling conditions, ambient temperature, mechanical resistance, drive parameters, and electrical connections. A motor operating above its intended load for extended periods can generate excessive heat.

8. Is motor alignment important during installation?

Yes. Correct mechanical alignment is important for robot-axis motors. Incorrect alignment can introduce additional bearing loads, vibration, coupling stress, or gearbox problems and may shorten the service life of the motor and related mechanical components.

9. Can the 3HAC14673-7 be substituted with another ABB M7 motor?

A different motor should not be assumed to be a direct substitute simply because it carries the same M7 designation. Electrical characteristics, mechanical interfaces, feedback configuration, drive compatibility, and robot-axis requirements must all be verified.

10. What should be done after installing a replacement motor?

Inspect all mechanical and electrical connections, verify the motor and feedback connections, check the associated drive configuration, and perform the appropriate ABB robot calibration and commissioning procedures. The axis should then be tested at controlled speeds before returning the robot to normal production.
