Brand:ABB PLC Item No.:3HAC052287-002 Product Origin:Sweden (SE) Product Dimensions:115 x 55 x 60 mm Product Weight:0.19 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

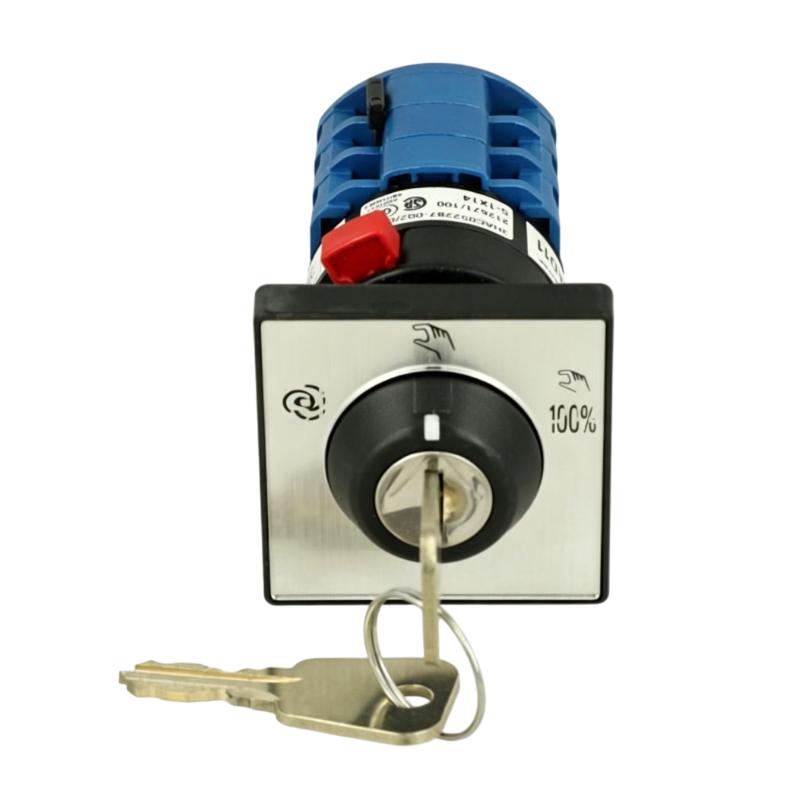

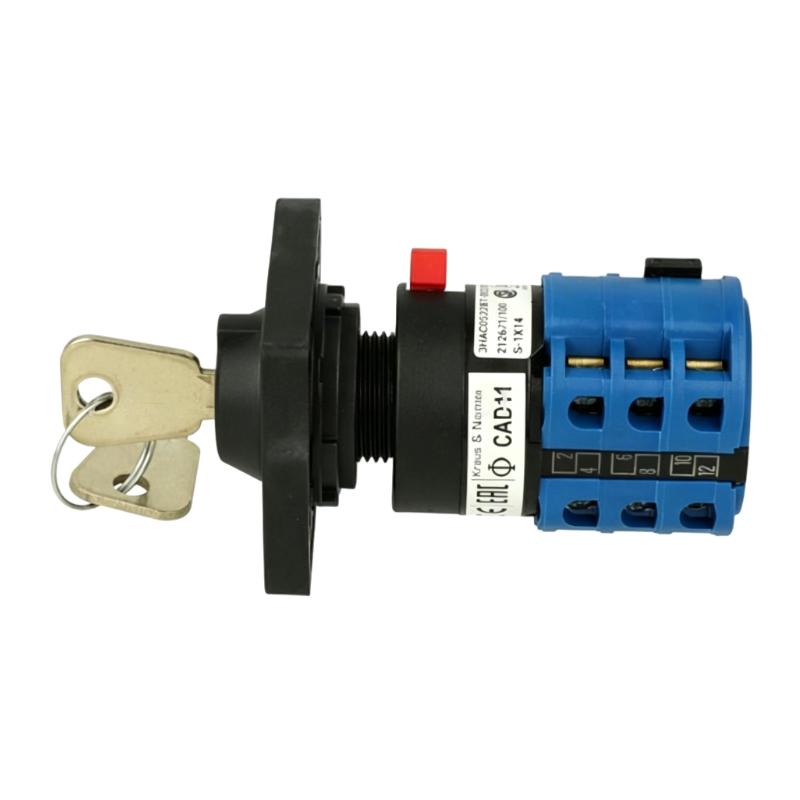

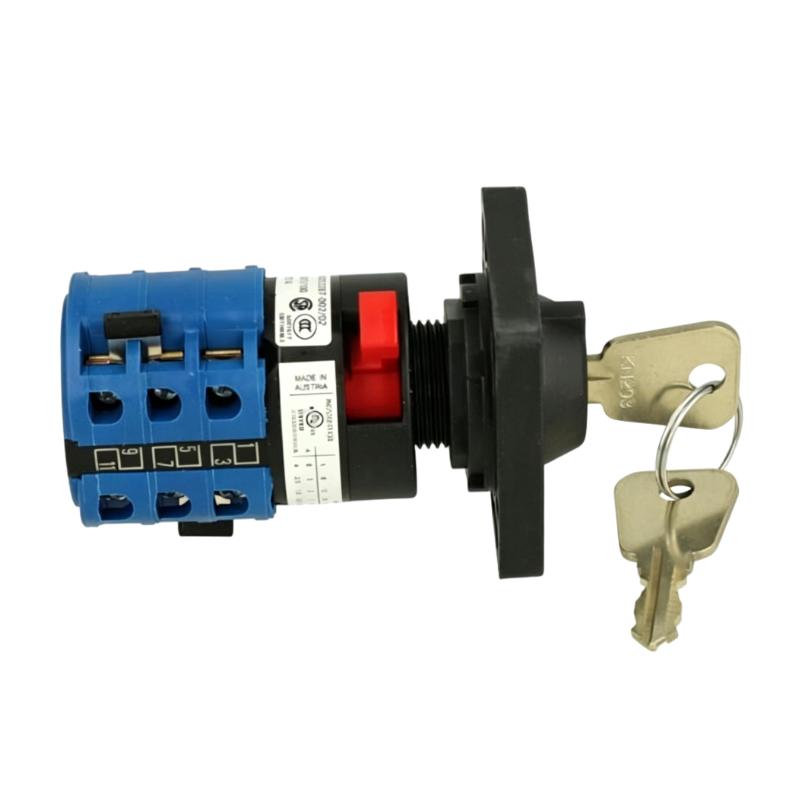

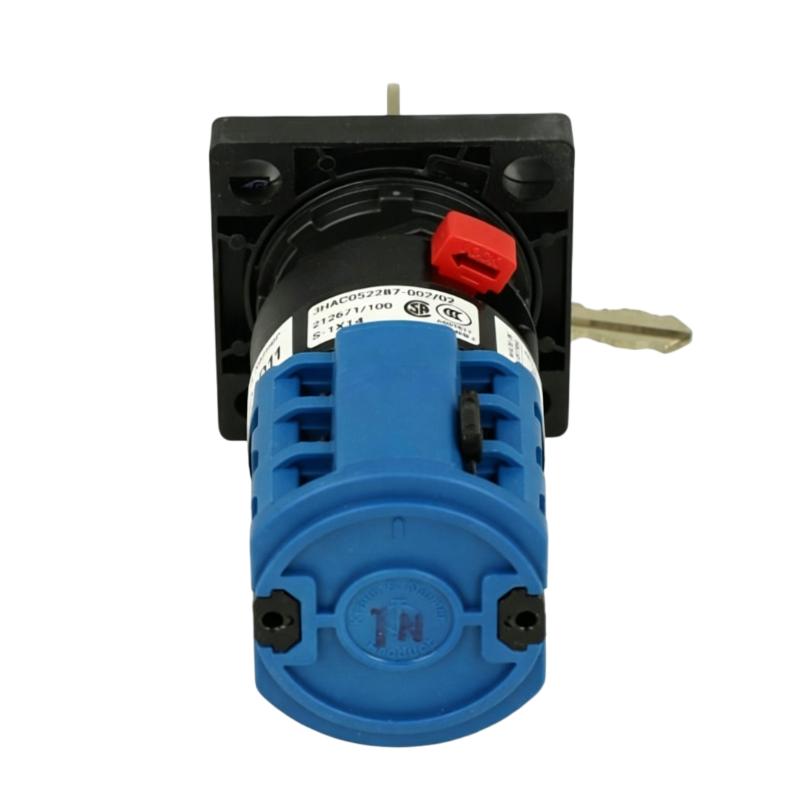

The ABB 3HAC052287-002 Mode Selector is a compact control component intended for industrial robot applications where operating-mode selection needs to be handled through a dedicated physical interface.
Although small compared with major robot components such as motors, gearboxes, or controllers, a mode selector performs an important operator-interface function. The selected operating mode can determine how the robot responds to commands and how personnel interact with the automation system during different stages of operation.
This makes the condition of the selector particularly relevant to production reliability. Mechanical wear, electrical contact problems, or damage caused by repeated operation can eventually affect the operator's ability to select the required mode. Replacing the component with a correctly identified ABB spare part can be an efficient way to restore the original control arrangement.
For industrial automation maintenance teams, the 3HAC052287-002 is therefore a useful spare part to consider when servicing compatible ABB robotic control equipment. Its compact construction and dedicated function make it a practical component for maintaining established ABB automation installations.
Technical Specifications
Parameter
Specification
Brand
ABB
Part Number
3HAC052287-002
Product Type
Mode Selector
Component Category
Robot Operator Control Component
Application
ABB Industrial Robot Systems
Function
Operating Mode Selection
Installation Type
Control Panel / Operator Interface
Dimensions
115 × 55 × 60 mm
Weight
0.19 kg (0.42 lb)
Component Type
Electromechanical Operator Device
Application Environment
Industrial Automation
Maintenance Use
Replacement / Service
The compact dimensions make the 3HAC052287-002 suitable for applications where control-panel space is limited. When ordering a replacement, the complete part number should be checked against the existing robot configuration rather than relying solely on physical appearance.
Recommended Related ABB Models
For customers maintaining ABB robot control and operator-interface equipment, the following components may be relevant depending on the specific robot generation and control configuration:
Model
Product Type
Maintenance Relevance
ABB 3HAC052287-001
Mode Selector
Closely related mode-selection component
ABB 3HAC025917-001
FlexPendant
ABB robot operator interface
ABB 3HAC044168-001
FlexPendant
Robot programming and operator interface
ABB 3HAC025097-001
Teach Pendant Component
Related robot operator-control hardware
ABB 3HAC046297-001
Operator Interface Component
Related control-panel equipment
Compatibility should always be verified against the robot model, controller generation, and installed operator interface before selecting a related component as a replacement.
Popular Related Models for ABB Robot Control
Model
Product Description
Typical Application
ABB 3HAC052287-002
Mode Selector
Robot operating-mode selection
ABB 3HAC025917-001
FlexPendant
Robot programming and operation
ABB 3HAC044168-001
FlexPendant
Robot control and programming
ABB 3HAC025097-001
Teach Pendant Component
Robot setup and maintenance
ABB 3HAC046297-001
Operator Interface Component
Industrial robot operator control
The ABB 3HAC052287-002 is best specified by its complete part number when preparing a quotation or replacement order. For older robotic systems, accurate part-number identification is particularly important because visually similar operator-interface components may have different electrical or mechanical configurations.
Applications in ABB Robot Control Systems
The ABB 3HAC052287-002 Mode Selector is a dedicated operator-interface component used within ABB industrial robot control equipment. A mode selector provides a direct means of choosing the appropriate operating mode for a robotic system, supporting controlled transitions between different operating states during production, setup, inspection, and maintenance.
In an industrial robot cell, operating-mode selection is an important part of the control architecture. Production personnel may require normal automatic operation, while commissioning and maintenance engineers may need a controlled manual or service-oriented operating condition. A dedicated ABB mode selector helps integrate this operator interaction into the robot control environment.
The 3HAC052287-002 is well suited to applications where dependable operator controls and correct mode selection are essential, including:
ABB industrial robot cells
Automated assembly lines
Material handling systems
Robotic welding applications
Machine tending
Production-line commissioning
Robot maintenance stations
Industrial automation control panels
Replacement of worn or defective operator-control components
For maintenance departments, using the correct ABB spare part is especially valuable on established robot installations. The correct mode-selector component can help maintain the intended operator interface without introducing unnecessary modifications to the control system.
Operational Benefits and Maintenance Value
Purpose-built for ABB automation equipment
The 3HAC052287-002 is an ABB-specific mode selector component, making it suitable for maintenance applications where correct mechanical and electrical integration is required.
Clear operating-mode control
A dedicated mode selector gives operators and maintenance personnel a straightforward physical control for selecting the required robot operating state.
Compact industrial design
With a compact form factor, the component can be integrated into the relevant operator-control assembly without requiring a large installation footprint.
Useful for replacement maintenance
When an existing selector becomes damaged, unreliable, or mechanically worn, replacing the original component can restore normal operator interaction with the robot control system.
Supports controlled robot operation
Correct mode selection is an important part of safe and orderly robot operation. The selector works as part of the larger control and safety architecture rather than functioning as an independent safety device.
Practical spare-part choice
The complete part number 3HAC052287-002 provides a precise identification reference for procurement, stock management, and maintenance planning.
Technical FAQs: Mode Selector Engineering Guide
1. What is the ABB 3HAC052287-002 used for?
The 3HAC052287-002 is a Mode Selector designed for use within ABB industrial robot control equipment. Its function is to provide operator control over the applicable robot operating mode.
2. Is the 3HAC052287-002 a PLC or robot controller?
No. It is an operator-control component rather than a PLC CPU, robot controller, I/O module, or drive unit.
3. Why is a mode selector important in a robotic system?
Different operating conditions may be required during automatic production, programming, setup, testing, and maintenance. A mode selector allows the operator to choose the applicable operating state through the robot's control interface.
4. Can a defective mode selector affect robot operation?
Yes. A damaged or malfunctioning selector can prevent the desired operating mode from being selected correctly or may cause inconsistent operator-control behavior. The associated wiring, contacts, and control-system diagnostics should also be checked during troubleshooting.
5. What should be checked before replacing the 3HAC052287-002?
Verify the complete part number, robot/controller configuration, connector arrangement, mounting requirements, electrical interface, and the applicable ABB installation documentation for the specific system.
6. Does replacing the mode selector require robot software configuration?
A straightforward hardware replacement normally does not mean that application software must be rewritten. However, the complete control system should be tested after replacement to confirm that mode selection is correctly detected and that all relevant control and safety functions behave as intended.
7. What are common symptoms of a faulty mode selector?
Typical symptoms can include failure to change operating mode, intermittent mode recognition, unexpected control-panel indications, or a selector that feels mechanically damaged or does not maintain its intended position.
8. Should the selector be inspected together with its wiring?
Yes. A mode-selection fault is not necessarily caused by the selector itself. Loose connections, damaged wiring, connector problems, or faults elsewhere in the control circuit can produce similar symptoms.
9. Can the 3HAC052287-002 be substituted with another ABB selector?
It should not be assumed to be interchangeable with another selector solely because the component has the same general function. Compatibility must be confirmed using the complete ABB part number and the specific robot/control-panel configuration.
10. What is the recommended approach after installing a replacement selector?
After installation, verify mechanical operation, electrical connections, mode indication, controller response, and the applicable safety-related functions. The robot should then be tested under controlled maintenance procedures before being returned to normal production.
