Product Introduction and Connectivity Role

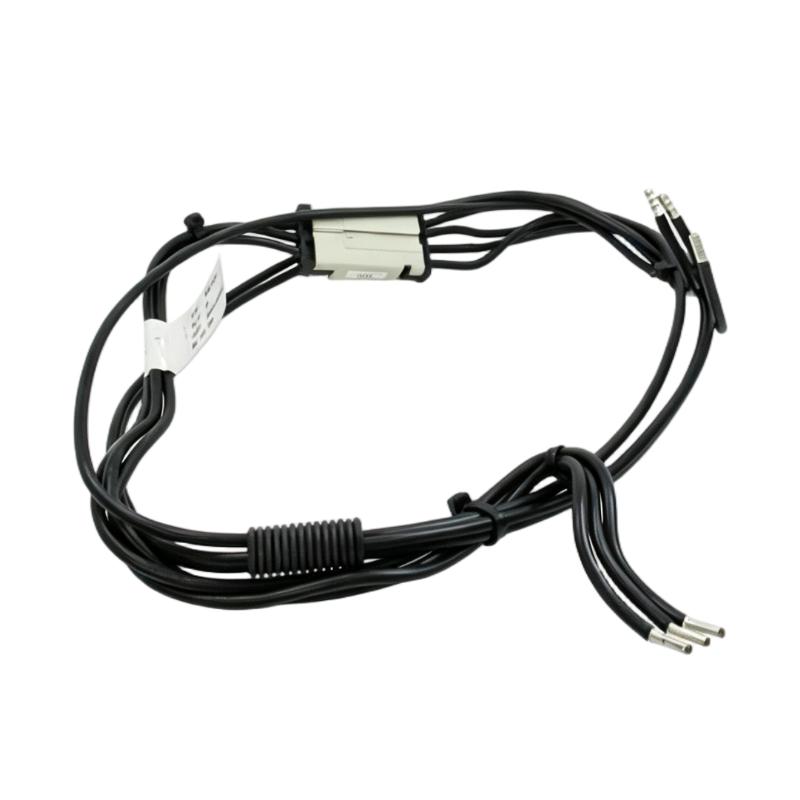

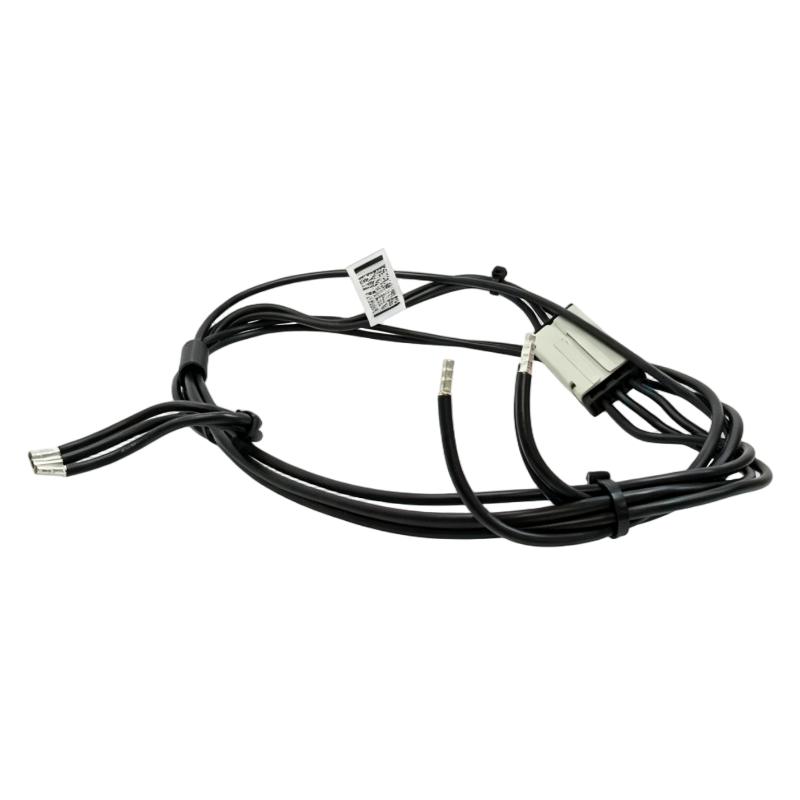

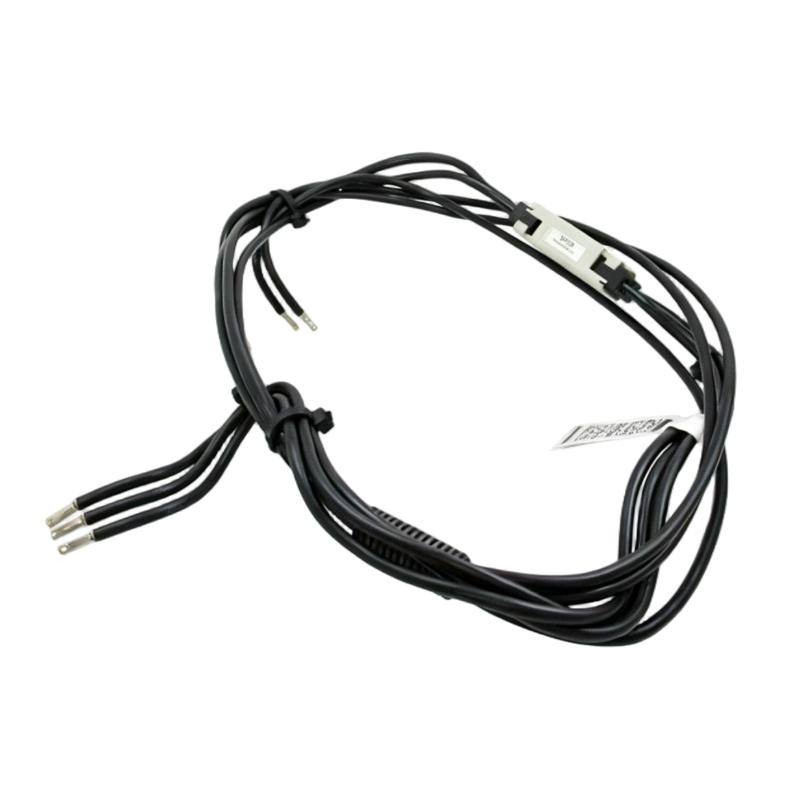

The ABB 3HAB7429-1 Connecting Cable is a replacement-oriented component designed for use within ABB industrial automation equipment. While a cable does not contain the processing capability of a controller or the power electronics of a drive, its reliability is essential to the overall system because it forms the physical connection between functional components.

Industrial cables can experience significant mechanical and environmental stress over their service life. Repeated movement, bending, vibration, cabinet work, connector insertion and removal, and accidental mechanical damage can eventually affect cable integrity. A problem that appears to be a controller or communication fault can sometimes originate from a degraded cable or connector.

This is why the correct connecting cable is an important item for professional maintenance inventories. The 3HAB7429-1 provides a specific ABB part-number reference that can help maintenance teams identify and replace the appropriate cable assembly instead of relying on an improvised substitute.

The optional cable-length configuration is also useful when planning installations or replacement work. Rather than forcing an unnecessarily long or short cable into an existing system, the appropriate length can be selected for the actual equipment arrangement.

For industrial automation buyers, the combination of precise part-number identification and application-specific cable configuration makes the 3HAB7429-1 a practical spare part for ABB equipment maintenance.

Technical Specifications and Product Data

Parameter	Specification
Brand	ABB

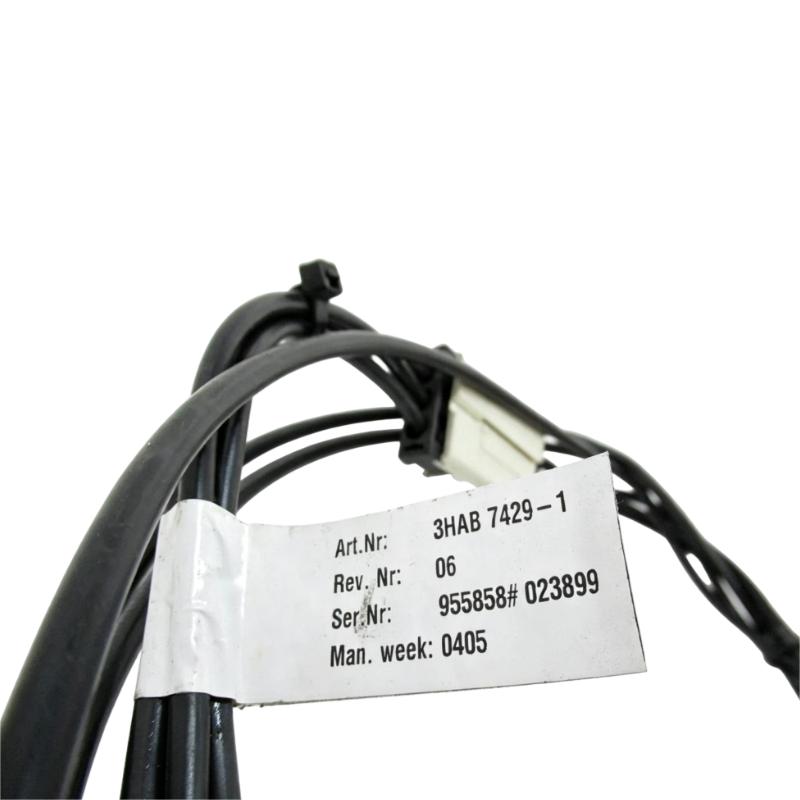

Part Number	3HAB7429-1
Product Type	Connecting Cable
Component Category	Industrial Automation Cable
Cable Length	Optional
Application	ABB Automation Equipment
Primary Function	Equipment Interconnection
Installation	Industrial Control / Automation System
Dimensions	Cable dimensions depend on the selected cable configuration
Shipping Weight	3.00 kg (6.61 lb)
Cable Configuration	Application-dependent
Maintenance Use	Replacement / Service

Note: A fixed overall dimension is not specified for this cable because the cable length is optional. It would be inappropriate to invent a fixed length or cable dimensions without the corresponding configuration information. The stated 3.00 kg (6.61 lb) is the provided shipping weight, not necessarily the net weight of the cable itself.

Recommended Related ABB Models

For maintenance teams working with ABB automation and robotic equipment, the following types of components may be considered alongside the 3HAB7429-1 when planning a repair or replacement project:

Model	Product Type	Relationship
ABB 3HAC021697-001	Connecting Cable	Related ABB cable component
ABB 3HAC021697-002	Connecting Cable	Related cable configuration
ABB 3HAC025917-001	FlexPendant	Related robot operator interface
ABB 3HAC044168-001	FlexPendant	Related robot control interface
ABB 3HAC046297-001	Operator Interface Component	Related control-system hardware

Compatibility should be verified against the actual ABB controller, robot model, interface, and cable configuration before ordering.

Popular Related Models for ABB Automation Maintenance

Model	Product Description	Typical Application
ABB 3HAB7429-1	Connecting Cable	ABB equipment interconnection
ABB 3HAC021697-001	Connecting Cable	Industrial robot/control connections
ABB 3HAC021697-002	Connecting Cable	ABB automation equipment
ABB 3HAC025917-001	FlexPendant	Robot programming and operation
ABB 3HAC044168-001	FlexPendant	Robot programming and operator control
ABB 3HAC046297-001	Operator Interface Component	ABB robot control applications

When purchasing the ABB 3HAB7429-1, the complete part number should be retained in the quotation and inventory record. For cable replacements, confirming the connector configuration and required length is just as important as matching the part number, particularly when servicing established ABB robotic or automation systems.

Applications and System Connectivity

The ABB 3HAB7429-1 Connecting Cable is a dedicated connection component for ABB industrial automation and robotic equipment. In an industrial control system, cabling is more than a simple accessory: the correct cable provides the physical and electrical connection required for dependable communication, control, feedback, or power-related interfaces between compatible system components.

The 3HAB7429-1 is particularly relevant to maintenance and replacement work on ABB automation installations where the original cable assembly needs to be restored. Using a correctly identified ABB cable helps maintenance engineers avoid unnecessary field modifications and reduces the risk of compatibility problems associated with incorrectly configured replacement wiring.

Typical applications can include:

ABB industrial robot systems
Robot controller connections
Industrial automation equipment
Control cabinet wiring
Interconnection between ABB system components
Maintenance and refurbishment projects
Replacement of damaged or aging cables
Factory automation service operations

Because cable requirements can vary according to the equipment configuration, the 3HAB7429-1 should be matched against the target ABB system and its original cable arrangement before installation.

Why the ABB 3HAB7429-1 Is Valuable for Maintenance

Purpose-specific ABB connection component
The 3HAB7429-1 is identified as an ABB Connecting Cable, making it a practical choice when maintaining compatible ABB equipment and preserving the original system configuration.

Reliable component-level replacement
When an existing cable becomes damaged, worn, or electrically unreliable, replacing the complete cable assembly can be more efficient than attempting to repair individual conductors or connectors.

Supports clean cabinet and equipment wiring
Using the appropriate factory-specified cable helps maintain an organized installation and minimizes improvised wiring changes inside industrial equipment.

Useful for long-term equipment support
Many ABB automation systems remain in service for years. Having the correct connecting cable available can simplify maintenance and help keep older installations operational.

Flexible cable-length selection
The cable length is specified as optional, allowing the appropriate configuration to be selected according to the installation requirement rather than assuming one fixed cable length.

Straightforward procurement identification
The complete part number 3HAB7429-1 gives purchasing and maintenance teams a precise reference when sourcing a replacement cable.

Technical FAQs: Connection and Maintenance

1. What is the ABB 3HAB7429-1 used for?
The 3HAB7429-1 is an ABB Connecting Cable intended to provide the required connection between compatible ABB automation system components.

2. Is the 3HAB7429-1 a PLC communication module?
No. It is a physical cable assembly rather than an active electronic communication module. Its exact electrical function depends on the ABB equipment with which it is designed to operate.

3. Is the cable length fixed?
The available specification identifies the cable length as optional. The required length should therefore be confirmed according to the target equipment and installation arrangement.

4. Can any cable with the same number of conductors replace the 3HAB7429-1?
Not necessarily. Cable compatibility depends on conductor arrangement, connector type, electrical characteristics, shielding, pin assignment, and the requirements of the connected ABB equipment. A visually similar cable should not automatically be treated as an equivalent.

5. What should be checked when troubleshooting a suspected cable fault?
Inspect the cable jacket, connectors, strain-relief areas, terminal contacts, and routing path. Electrical continuity and insulation should also be checked with appropriate test equipment when the equipment has been safely isolated.

6. What are common symptoms of a damaged connecting cable?
Depending on its application, symptoms may include intermittent communication, loss of a connected device, controller alarms, unstable signals, unexpected equipment behavior, or complete loss of the associated connection.

7. Can cable damage cause intermittent robot faults?
Yes. A conductor that is partially broken or a connector with poor contact can produce intermittent faults that are difficult to reproduce. Cable movement, vibration, and repeated flexing can make such problems more noticeable during operation.

8. Why is correct connector identification important?
A connector can appear mechanically similar to another connector while having a different pin assignment or electrical purpose. Incorrect connections can cause communication failures or potentially damage connected equipment.

9. Should the cable be routed away from power cables?
Where applicable, signal or communication cables should be routed according to the installation requirements of the connected ABB equipment. Appropriate separation from high-current or high-noise wiring can help reduce electromagnetic interference.

10. What is the recommended approach when replacing the 3HAB7429-1?
Confirm the complete part number and target equipment first, then verify the required cable length, connector arrangement, routing, and connection points. After installation, perform the appropriate continuity and system-function checks before returning the equipment to production.
