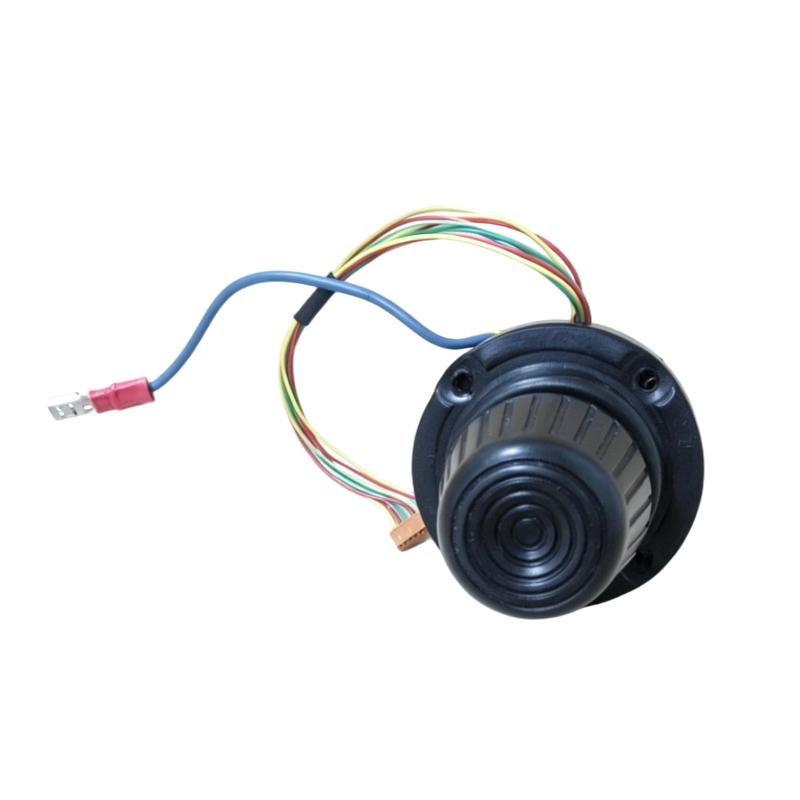

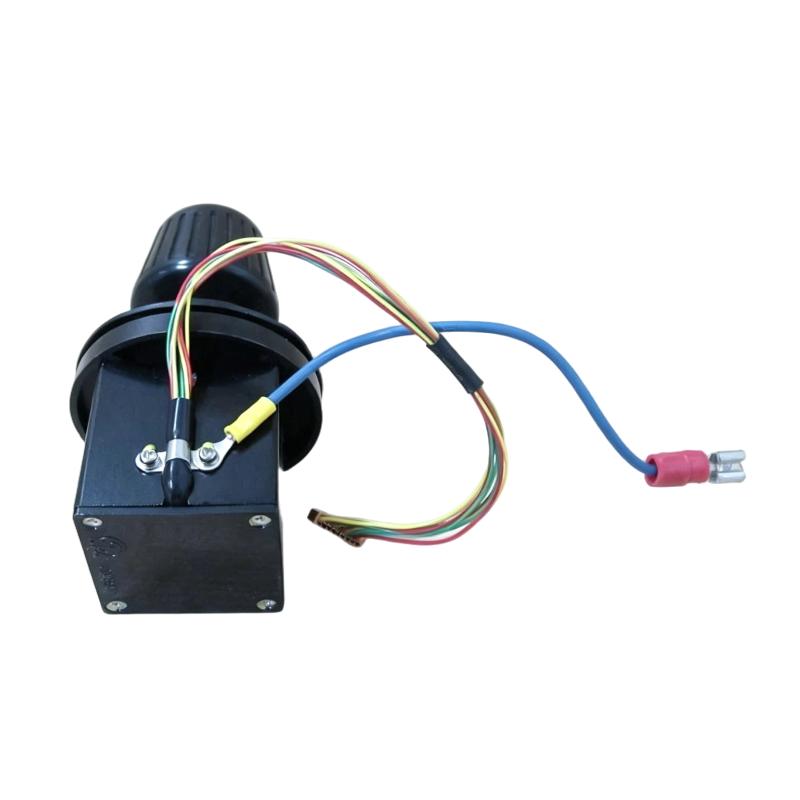

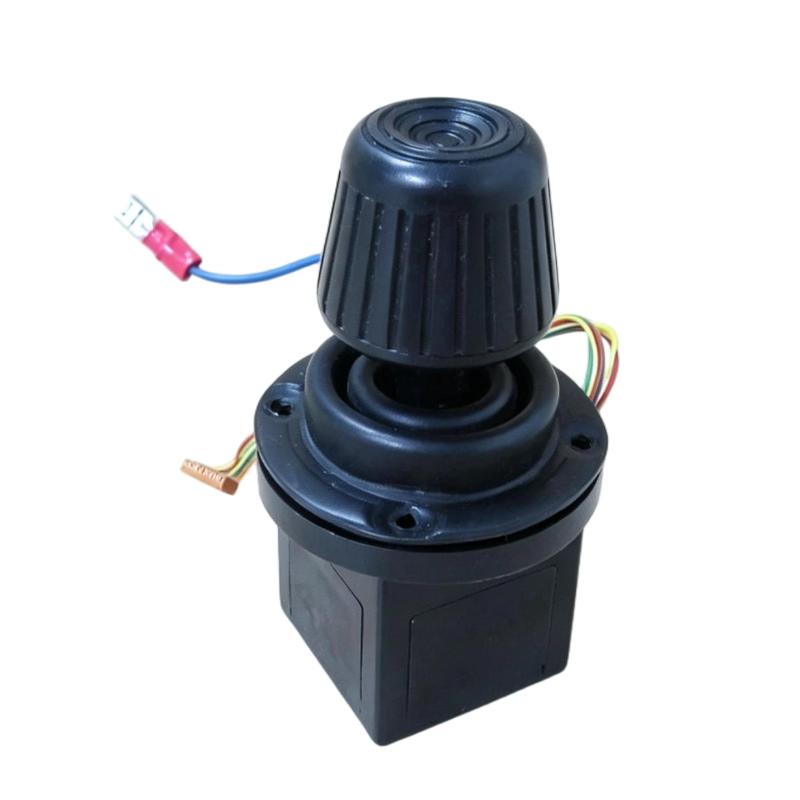

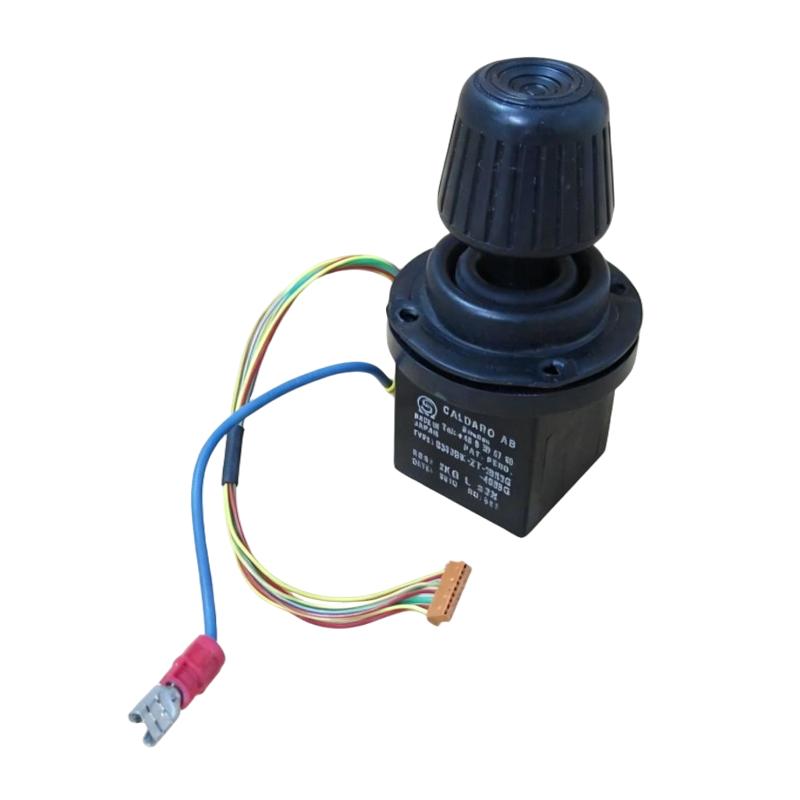

ABB S30JBK-ZT-30R3G-4889G Joystick Controller

Applications and Industrial Use

The ABB S30JBK-ZT-30R3G-4889G Joystick Controller is a compact operator-control component designed for industrial robotic applications. It provides a direct physical interface for manual control, making it particularly useful in robot teach pendant systems where operators and engineers need accurate, responsive control during setup, programming, positioning, and maintenance.

A joystick offers a more natural control method than individual push buttons when an operator needs to make repeated directional adjustments. In robotic applications, this can be especially valuable when positioning the robot near a workpiece, checking programmed locations, adjusting tooling positions, or carrying out commissioning work.

The S30JBK-ZT-30R3G-4889G is associated with ABB robot teach pendant applications and is particularly relevant to equipment using earlier ABB S4 and S4C control platforms.

Typical applications include:

• ABB industrial robot teach pendants
• Manual robot jogging
• Robot programming and setup
• Production-line commissioning
• Robot maintenance and servicing
• Workpiece positioning
• Tool and fixture adjustment
• Industrial operator interfaces
• Replacement of worn joystick components

For companies maintaining legacy ABB robotic equipment, this type of replacement component can be particularly valuable. A failed joystick does not necessarily justify replacing an entire teach pendant, and a correctly matched replacement can provide a more economical route to restoring manual operation.

Key Advantages and Maintenance Benefits

Purpose-built joystick configuration
The S30JBK-ZT-30R3G-4889G is a dedicated joystick controller configuration intended for industrial control applications. Its compact design makes it suitable for integration into space-limited operator interfaces.

Responsive manual control
Joystick-based control provides operators with an intuitive way to make directional adjustments. This is useful when precise robot positioning is required during programming or service work.

Compact construction
Measuring only 85 × 30 × 50 mm, the component can fit into compact control assemblies while leaving room for other operator-interface functions.

Potentiometric control design
The S30JBK series uses integrated potentiometric sensing. This allows joystick movement to be translated into corresponding electrical signals for the connected control system.

Center-return operation
The joystick design incorporates an automatic return-to-center function. This characteristic is useful for applications where the control input needs to return to its neutral position when the operator releases the lever.

Practical replacement solution
The joystick is a frequently handled operator component. Repeated use can eventually result in mechanical wear or deterioration of the sensing elements. Replacing the individual joystick can be considerably more practical than replacing a complete operator pendant.

Useful for legacy robot maintenance
Older ABB robot systems can remain productive for many years. Maintaining critical operator-interface components such as joysticks helps plants extend the useful operating life of established automation equipment.

Technical FAQs: Joystick Controller

1. What is the ABB S30JBK-ZT-30R3G-4889G used for?
The S30JBK-ZT-30R3G-4889G is a joystick controller used as a manual operator input device in compatible ABB robotic control and teach pendant applications. It allows the operator to generate directional control signals through physical joystick movement.

2. Is the S30JBK-ZT-30R3G-4889G suitable for robot programming?
Yes. A joystick of this type can be used during manual robot positioning, setup, programming, commissioning, and maintenance when installed in a compatible operator interface.

3. What type of sensing technology does this joystick use?
The S30JBK series is based on an integrated potentiometric design. Joystick movement changes the electrical resistance of the corresponding potentiometer, allowing the connected control system to interpret the operator's input.

4. What is the resistance specification of this model?
The S30JBK-ZT-30R3G-4889G is commonly specified with a 2 kOhm resistance and 2% tolerance. The actual circuit should always be checked before replacement because the complete interface configuration determines how the joystick signals are used.

5. Does the joystick automatically return to the center position?
Yes. The design incorporates an automatic center-return function. This allows the control lever to return to its neutral position when the operator releases it.

6. What are typical symptoms of a failing joystick?
Possible symptoms include inconsistent movement commands, unstable input signals, failure in one direction, excessive dead-zone behavior, intermittent response, or a joystick that no longer returns correctly to its neutral position.

7. Can a wiring problem look like a joystick failure?
Yes. Loose connections, damaged conductors, connector problems, or poor contacts can produce symptoms similar to a defective joystick. Troubleshooting should therefore include both the joystick and its associated wiring.

8. How can the joystick be electrically tested?
After the equipment has been safely isolated, suitable test equipment can be used to check the resistance characteristics of the joystick circuits. The measured value should change predictably as the joystick is moved through its operating range.

9. Can another 2 kOhm joystick be used as a replacement?
Not necessarily. Resistance alone does not establish compatibility. Mechanical mounting, number of axes, travel characteristics, connector configuration, wiring, center-return behavior, and control-system requirements must also correspond.

10. Does joystick replacement require robot calibration?
Replacing the operator input device does not normally change the robot's mechanical geometry. However, the complete operator interface should be tested after replacement to verify that every joystick direction produces the correct control response.
