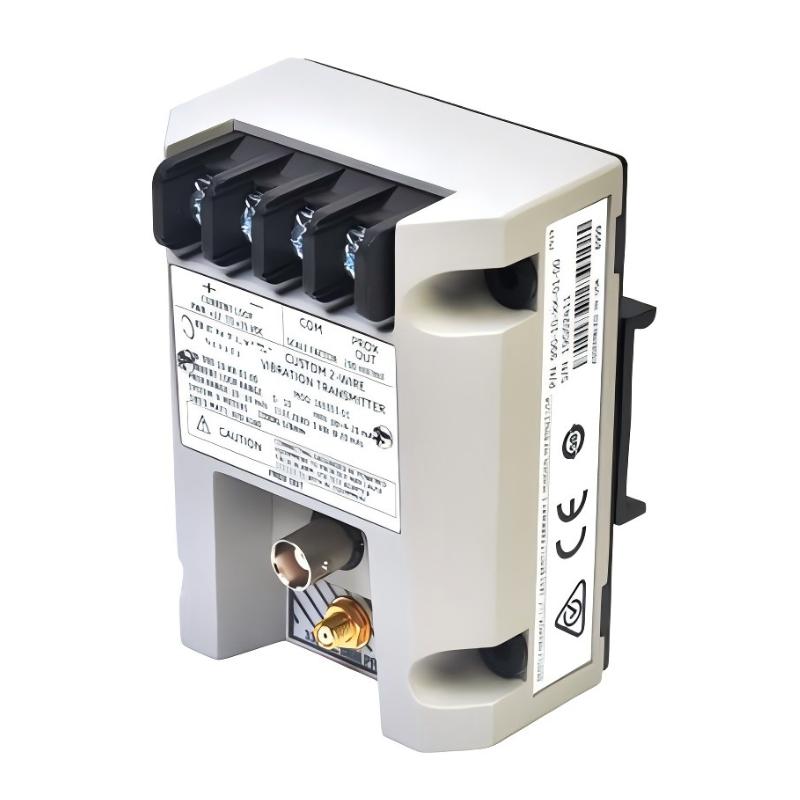

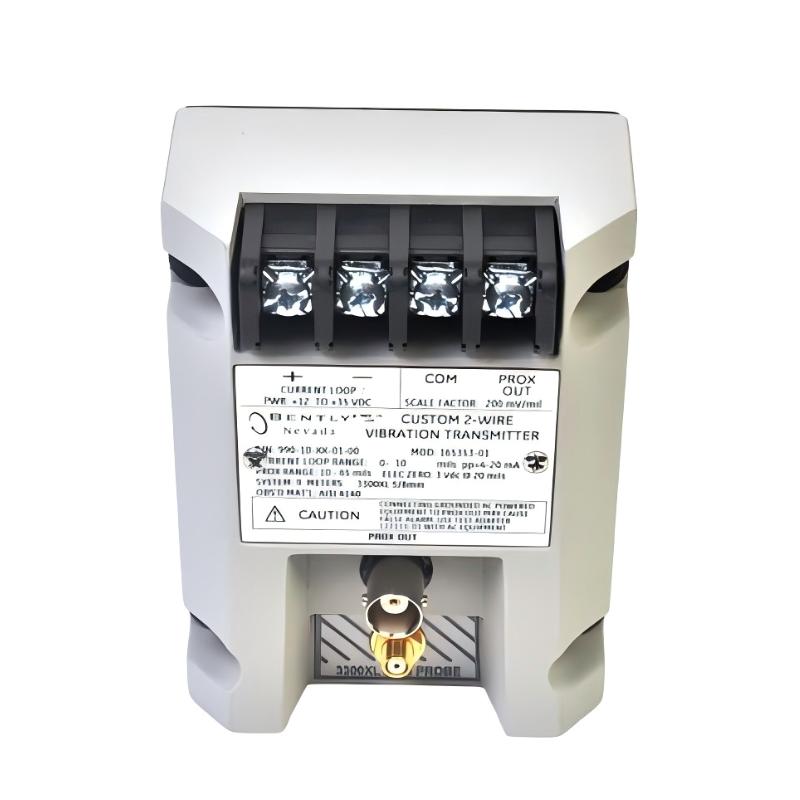

Bently Nevada 990-10-50-03-00 990 Vibration Transmitter

Applications

The Bently Nevada 990-10-50-03-00 990 Vibration Transmitter is designed for industrial rotating machinery applications where reliable vibration measurement needs to be integrated into a PLC, DCS, or machinery control system. It provides a practical way to convert vibration information from a compatible proximity probe system into a standard 4–20 mA signal for continuous monitoring and control.

With its 0–10 mils peak-to-peak measurement range and 5-meter system configuration, this transmitter is well suited to equipment where vibration amplitude needs to be monitored without installing a large rack-based monitoring system. It can be used in machinery packages, auxiliary equipment, and compact monitoring installations where cabinet space, wiring simplicity, and straightforward maintenance are important.

Typical applications include:

• Centrifugal compressor vibration monitoring
• Pump vibration monitoring
• Motor condition monitoring
• Industrial fan monitoring
• Rotating equipment protection
• OEM machinery packages
• Compressor skid monitoring
• PLC-based vibration monitoring
• DCS analog vibration monitoring
• Machinery retrofit projects
• Condition monitoring systems
• Auxiliary rotating equipment

The 990-10-50-03-00 is particularly useful when the plant control architecture already relies on conventional analog inputs. The transmitter can provide a vibration signal that is easily incorporated into existing alarm, trending, and maintenance strategies.

Advantages

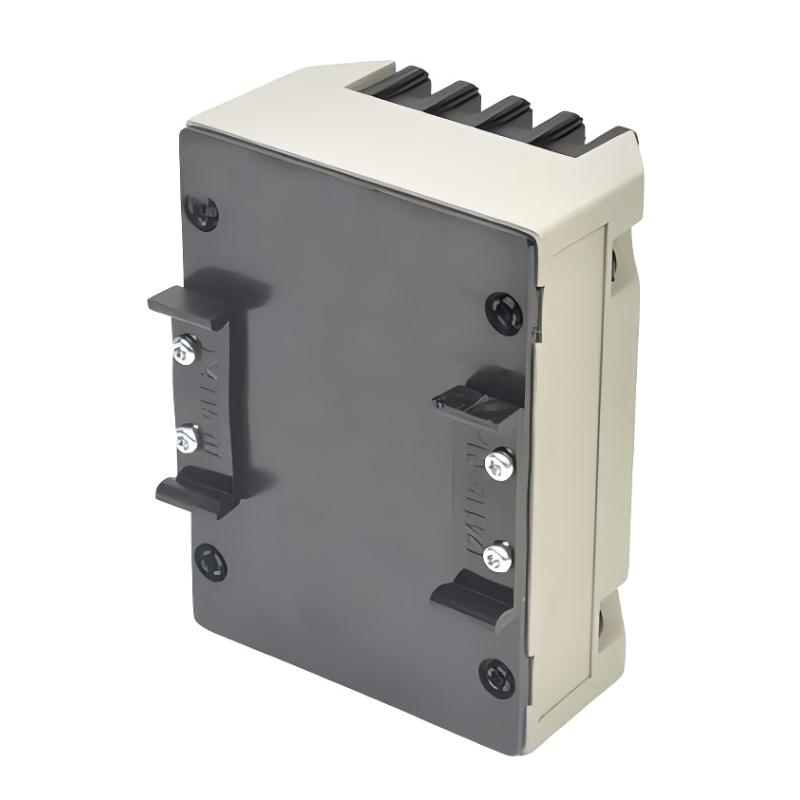

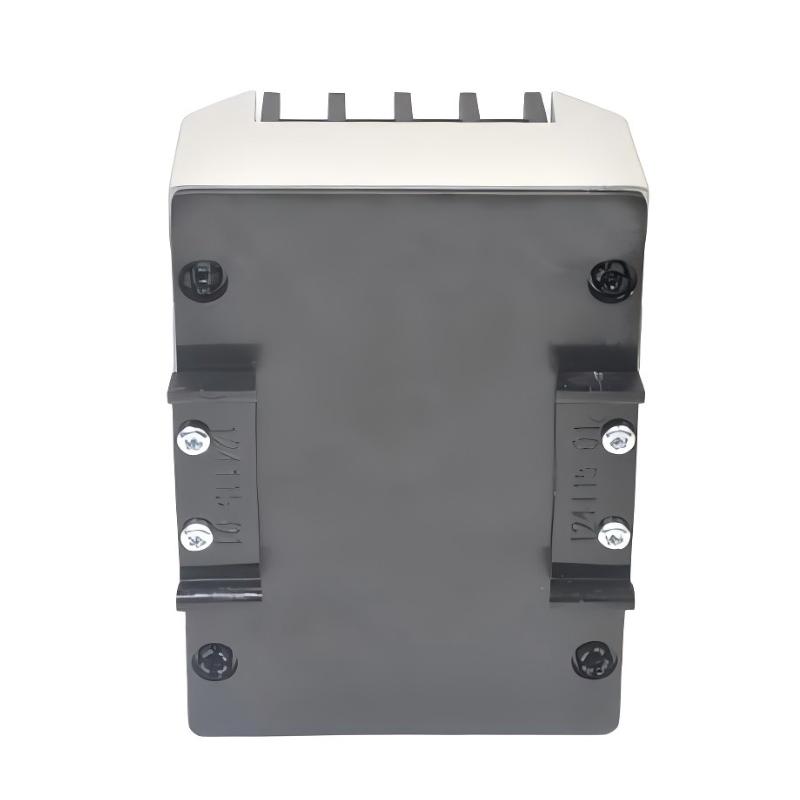

The Bently Nevada 990-10-50-03-00 combines vibration signal conditioning and transmitter functionality into a compact industrial device. This helps simplify the measurement chain by reducing the requirement for separate external signal-conditioning equipment in applications designed around the 990 architecture.

Its 4–20 mA output is one of its most practical advantages. Standard industrial control equipment can readily process this signal, allowing vibration measurements to be incorporated into PLC and DCS systems alongside temperature, pressure, flow, and other process variables.

The 0–10 mils peak-to-peak full-scale range provides a useful measurement span for a wide range of rotating machinery. Combined with the 5-meter system configuration, it offers installation flexibility for packaged equipment and machinery skids.

The transmitter also provides diagnostic access to the proximity signal, which can be valuable when commissioning equipment or investigating unexpected vibration readings.

Key advantages include:

• Integrated Proximitor functionality
• 0–10 mils peak-to-peak measurement range
• Standard 4–20 mA vibration output
• Two-wire loop-powered operation
• 5-meter system configuration
• Compatible 3300 NSv proximity measurement system
• DIN mounting capability
• External zero and span adjustment
• PROX OUT diagnostic connection
• Not OK/Signal Defeat functionality
• Compact industrial construction
• Easy integration with PLC and DCS systems

For equipment manufacturers, system integrators, and industrial maintenance teams, the 990-10-50-03-00 offers a convenient balance between reliable vibration monitoring and uncomplicated system integration.

Technical FAQs

1. What is the primary purpose of the 990-10-50-03-00?

The transmitter measures vibration using a compatible proximity probe system and converts the resulting measurement into a proportional 4–20 mA output for industrial monitoring and control applications.

2. What is the full-scale measurement range?

This configuration provides a 0–10 mils peak-to-peak full-scale range, equivalent to approximately 0–250 μm peak-to-peak.

3. Which proximity probe system is used with this transmitter?

The 990 transmitter is designed for use with the Bently Nevada 3300 NSv proximity probe system and its compatible extension cable.

4. Can the 4–20 mA output be connected directly to a PLC?

Yes. The output is intended for connection to a suitable 4–20 mA analog input. The PLC input configuration should match the transmitter's current-loop requirements.

5. Does the transmitter require a separate Proximitor Sensor?

The 990 transmitter incorporates the Proximitor functionality required for its intended proximity measurement configuration, so a separate external Proximitor unit is generally not required.

6. What does the 5-meter system configuration mean?

The 5-meter designation refers to the overall compatible probe and extension-cable system length. It provides additional flexibility when the sensing location and transmitter installation point are separated.

7. What is the purpose of the PROX OUT connection?

PROX OUT provides access to the conditioned transducer signal for testing and diagnostic purposes. It can assist technicians in determining whether an abnormal reading originates from the probe system, wiring, or transmitter.

8. What should be checked if the vibration reading is unstable?

Technicians should inspect the probe installation, probe gap, target condition, extension-cable connections, DC supply, loop wiring, and grounding arrangement. The PROX OUT signal can also be examined during troubleshooting.

9. Can the 990-10-50-03-00 provide advanced vibration spectrum analysis?

The transmitter is primarily intended to provide a proportional vibration amplitude output. Detailed spectrum, waveform, phase, orbit, and other advanced vibration analysis functions generally require a dedicated machinery monitoring and analysis system.

10. How should the transmitter be commissioned with a control system?

Commissioning should verify the supply voltage, probe wiring, probe gap, target material, current-loop polarity, PLC/DCS scaling, and alarm thresholds. The 4–20 mA output should be checked against the expected vibration range before the machinery is placed into normal operation.
