Brand:ABB PLC Item No.:PFTL 101A Product Origin:Sweden (SE) Product Dimensions:230 × 84 × 125 mm Product Weight:10.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

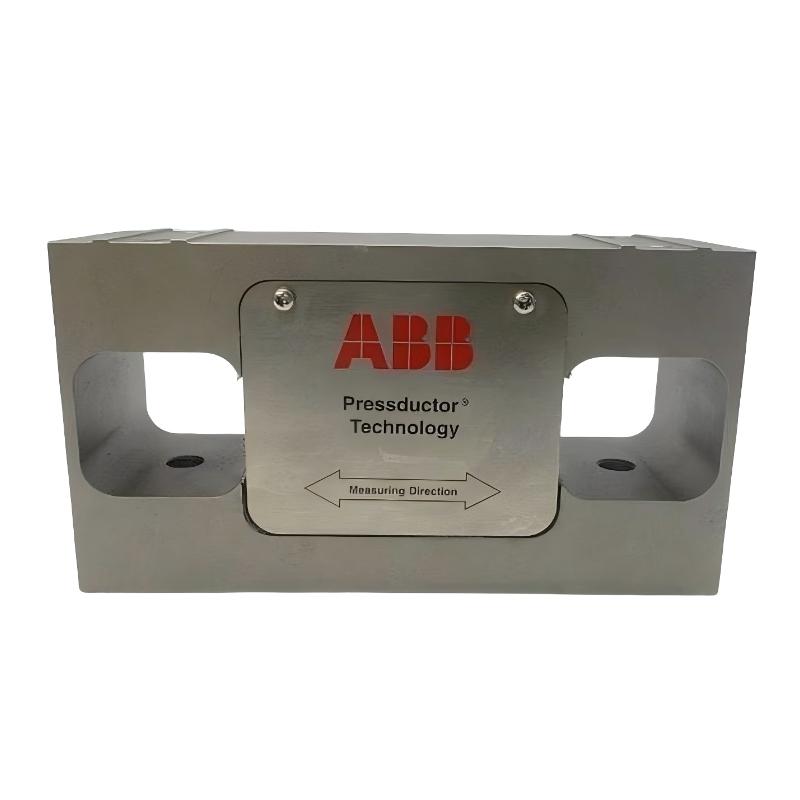

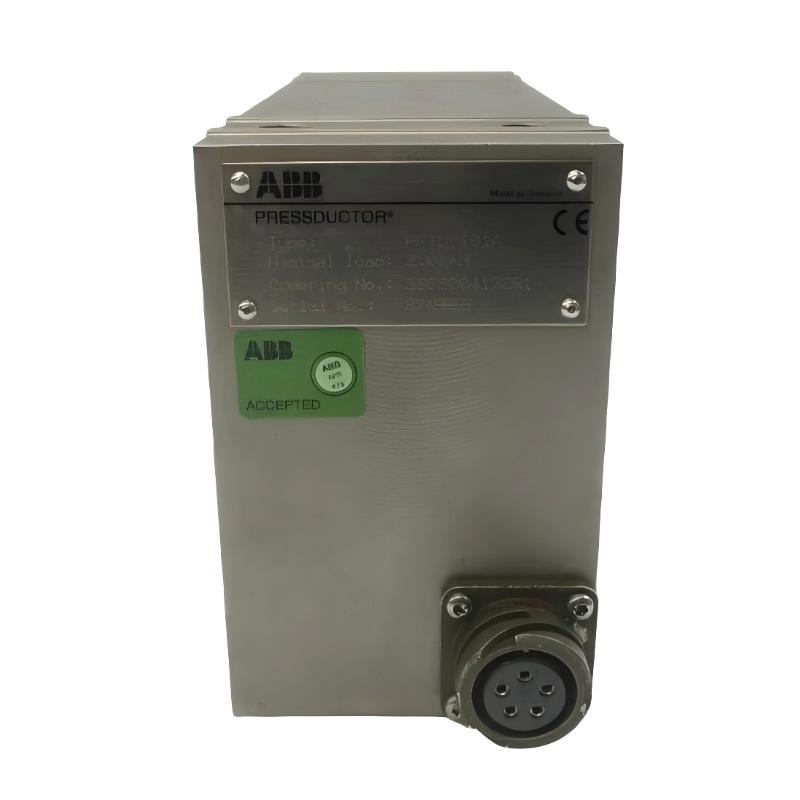

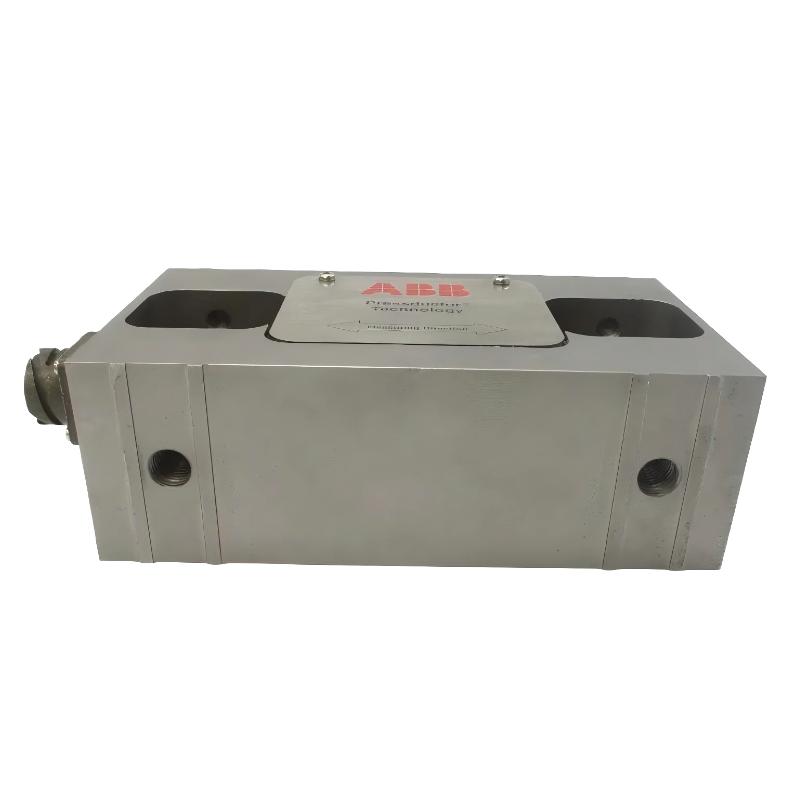

The ABB PFTL 101A 3BSE004172R1 Load Cell is a specialized industrial measurement component developed for applications where dependable force and weighing feedback is an important part of the production process.
In automated manufacturing and material-handling systems, the quality of measurement data can have a direct effect on process performance. A load cell does more than simply measure weight; it provides information that can be used by the control system to regulate material flow, monitor production conditions, detect abnormal loading, and maintain consistent operating parameters.
The PFTL 101A is particularly relevant to industrial facilities that rely on continuous weighing or load monitoring. These environments can place considerable demands on measurement hardware because equipment may operate continuously while being exposed to vibration, mechanical forces, temperature variations, and other industrial conditions.
For maintenance engineers, identifying the exact ABB model and part number is essential when replacing an installed load cell. The PFTL 101A 3BSE004172R1 should be matched against the existing equipment configuration rather than selected solely according to physical appearance.
Its substantial mechanical construction and dedicated industrial application make it a valuable component for professional automation maintenance and weighing-system projects. For plants seeking to maintain existing ABB equipment with minimal disruption, an accurately identified PFTL 101A replacement can be an effective choice.
Technical Specifications
Parameter
Description
Brand
ABB
Model
PFTL 101A
Part Number
3BSE004172R1
Product Type
Load Cell
Application
Industrial Weighing and Force Measurement
System Application
Material Handling / Process Automation
Measurement Function
Load / Force Measurement
Installation
Industrial Equipment / Weighing System
Dimensions
230 × 84 × 125 mm
Weight
10.50 kg (23.15 lb)
Recommended Related Models
Model
Product Type
ABB PFTL 101A 3BSE004172R1
Load Cell
ABB PFTL 101B
Load Cell
ABB PFTL 101C
Load Cell
ABB PFTL 201
Load Cell
ABB PFTL 301
Load Cell
Popular Related Models
Model
Product Type
ABB PFTL 101A
Load Cell
ABB PFTL 101B
Load Cell
ABB PFTL 201
Load Cell
ABB PFTL 301
Load Cell
ABB PFTL 501
Load Cell
Applications
The ABB PFTL 101A 3BSE004172R1 Load Cell is an industrial weighing and force-measurement component designed for demanding material-handling and process-control applications. Load cells of this type are commonly used where accurate force measurement is required to monitor material flow, tension, weight, or mechanical loading within automated production equipment.
In industrial processing lines, reliable weighing information can directly influence product quality, throughput, and process stability. The PFTL 101A is therefore well suited to applications where measurement signals are integrated into a larger ABB automation or control system.
Typical application areas include conveyor weighing, continuous material handling, industrial weighing equipment, paper and pulp machinery, steel processing, bulk-material systems, and other production lines where controlled material movement must be monitored.
The unit can also be valuable in maintenance and replacement projects. When an existing weighing system experiences a load-cell fault or degraded measurement performance, using a correctly matched ABB replacement can help restore the original measurement architecture without unnecessary modifications to the surrounding equipment.
For system integrators and industrial maintenance teams, the PFTL 101A provides a practical solution for applications that depend on consistent mechanical measurement and dependable process feedback.
Advantages
Stable Force Measurement
The PFTL 101A is designed for industrial weighing applications where repeatable measurement is important for process monitoring and automatic control.
Built for Continuous Industrial Processes
Load cells used in production environments must tolerate repeated mechanical loading and continuous operation. The PFTL 101A is suited to applications where measurement equipment forms part of an automated production process.
Excellent Fit for Material Handling
Accurate load measurement can help automation systems monitor material movement and maintain more consistent production parameters, particularly in continuous conveying applications.
ABB Engineering Compatibility
As an ABB measurement component, the PFTL 101A is a useful choice when maintaining an existing ABB-based weighing or automation installation.
Suitable for Replacement and Retrofit Work
The complete identification number, 3BSE004172R1, makes it easier for maintenance personnel and purchasing teams to match the required component with existing equipment documentation.
Robust Mechanical Design
With a substantial 10.5 kg unit weight, the PFTL 101A is intended as a dedicated industrial measurement component rather than a lightweight general-purpose sensor.
Supports Process Optimization
Reliable weighing feedback can help improve material control, production consistency, inventory management, and overall automation performance.
Technical FAQs
1. What is the ABB PFTL 101A 3BSE004172R1 used for?
The PFTL 101A is a load-cell component used for industrial force and weighing measurement. It can be incorporated into automated material-handling and process-control systems.
2. What type of industrial applications can use the PFTL 101A?
It is suitable for applications involving continuous material movement, conveyor-based weighing, process measurement, and other industrial systems where mechanical load must be converted into an electrical measurement signal.
3. Can the PFTL 101A be used as a replacement for an existing load cell?
Yes, provided the replacement has the same required specifications and mechanical/electrical interfaces as the original installation. The complete ABB part number should be checked before replacement.
4. What should be inspected when troubleshooting unstable load-cell readings?
Engineers should inspect mechanical mounting, cable connections, signal wiring, grounding, environmental conditions, and the associated measurement electronics. Mechanical vibration or installation problems can also affect measurement stability.
5. Can mechanical installation affect load-cell accuracy?
Yes. Incorrect mounting, uneven loading, mechanical interference, excessive vibration, or unintended side forces can cause inaccurate or unstable measurements.
6. How should a suspected load-cell wiring problem be diagnosed?
Start with a visual inspection of the cable and terminals, then verify the electrical connections against the system wiring documentation. Measurements should be performed using appropriate test procedures and equipment.
7. Why can a load-cell signal gradually become inaccurate?
Long-term mechanical stress, environmental exposure, cable deterioration, installation changes, or problems in the connected measurement system can contribute to measurement drift.
8. Can the PFTL 101A be integrated into an automated control system?
Yes. A load-cell signal can be processed by suitable weighing or measurement electronics and then used by a PLC, DCS, or other control system for monitoring and process regulation.
9. What precautions should be taken when replacing the load cell?
The equipment should be safely isolated before maintenance. The replacement should be mechanically aligned correctly, connected according to the applicable wiring configuration, and checked under controlled operating conditions.
10. How can measurement performance be verified after installation?
After installation, technicians should check the signal under a known operating condition, verify stable zero behavior, apply controlled loads where appropriate, and compare the resulting measurements with the expected system values.
