Product Overview

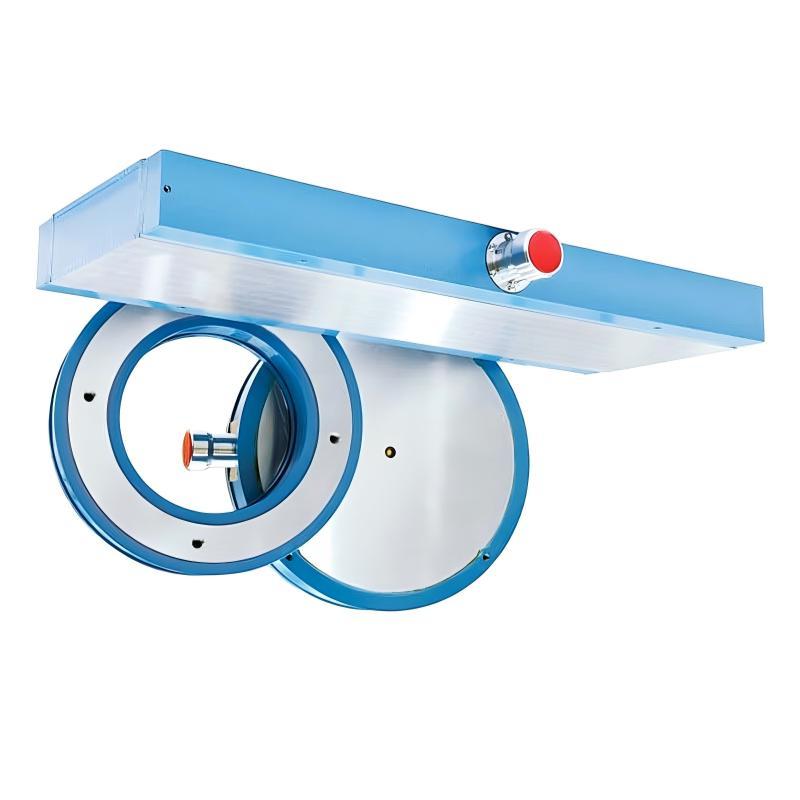

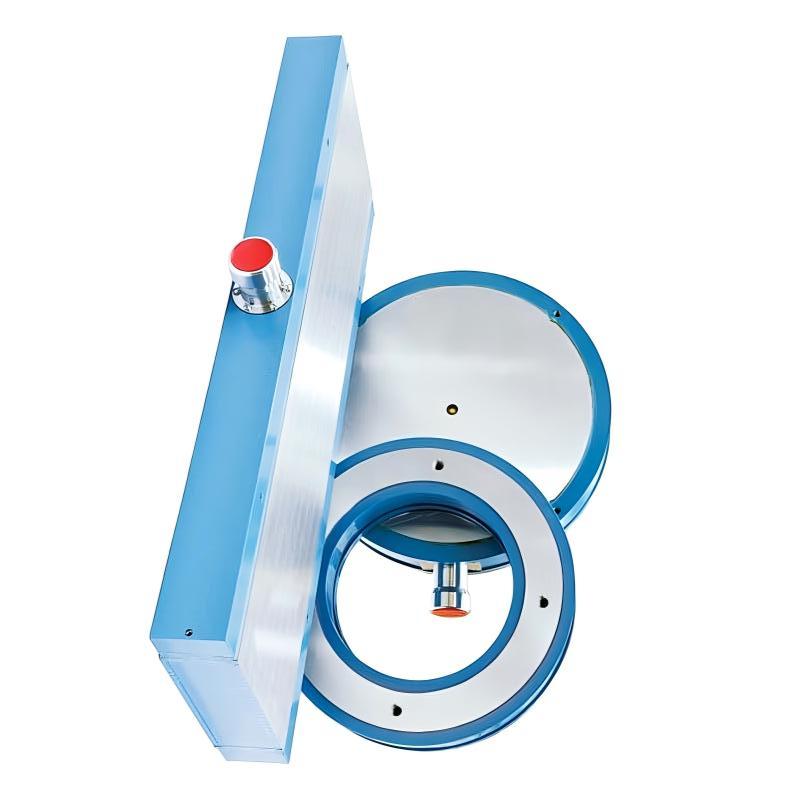

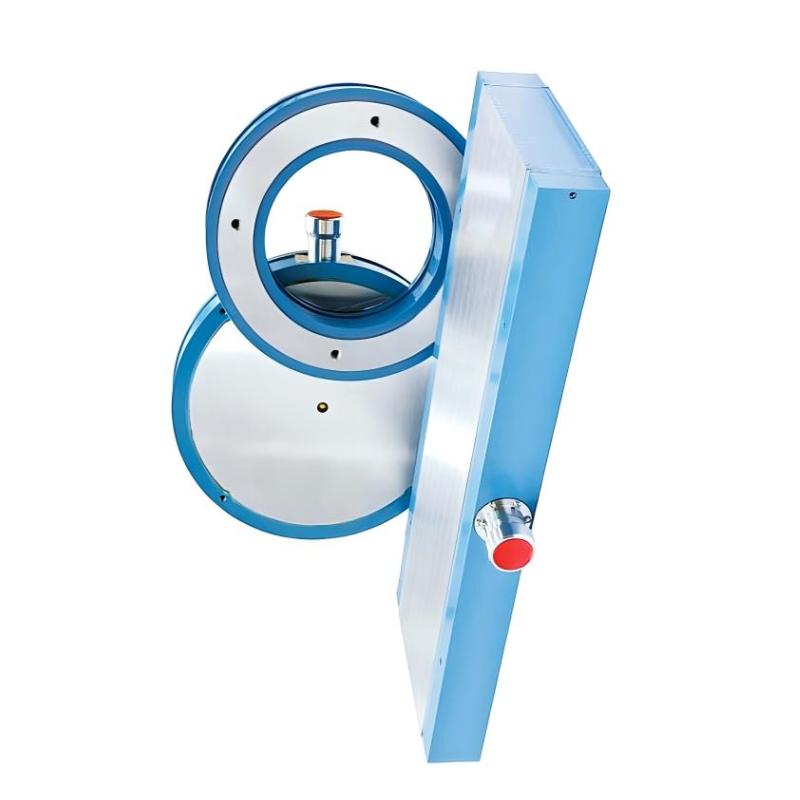

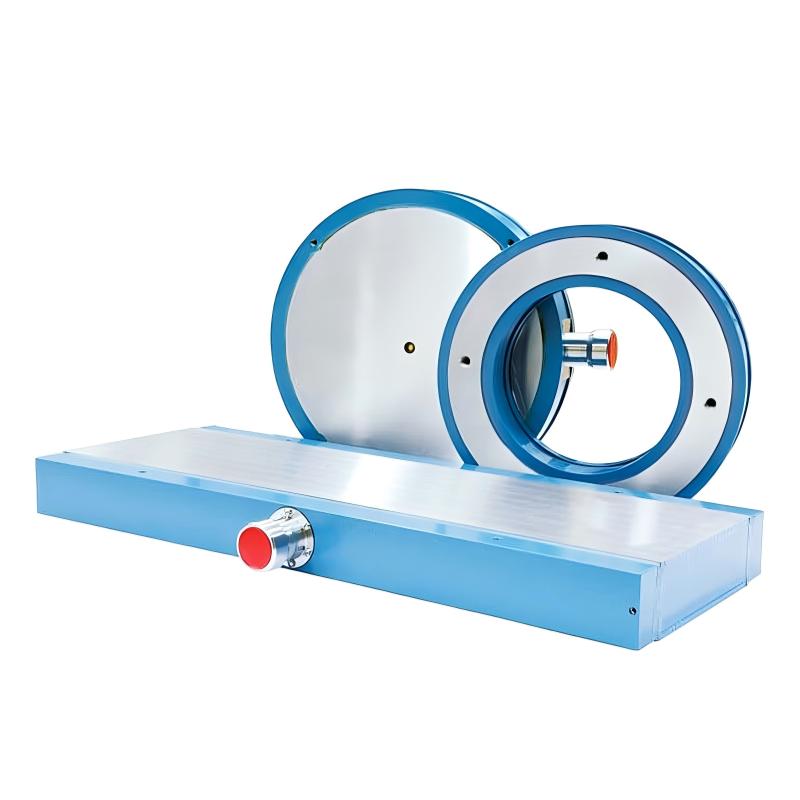

The ABB PFVL 141V 3BSE025094R2500 Millmate Load Cell is a specialized industrial measurement component intended for applications in which reliable force information is an important part of the production-control process.

In heavy industrial machinery, the load-measurement system often operates under conditions that would be unsuitable for conventional general-purpose sensors. Rolling mills and metal-processing lines can generate substantial mechanical forces, vibration, shock loading, and rapidly changing process conditions. The measurement hardware must therefore be selected with the mechanical characteristics of the complete installation in mind.

The PFVL 141V forms part of the ABB Millmate approach to industrial measurement and is suited to applications where load information is used for monitoring, process regulation, and quality control. Accurate force feedback can help operators and automation systems identify changes in process conditions and maintain production closer to the required operating parameters.

For maintenance and retrofit projects, model identification is particularly important. The designation PFVL 141V identifies the product family and configuration, while 3BSE025094R2500 provides the specific ABB ordering reference supplied for this component. Engineers should use the complete reference when checking replacement compatibility rather than relying only on the product-family name.

The unit's substantial 165 kg weight reflects its heavy industrial construction and intended application environment. This is not a lightweight instrumentation component; it is a dedicated machine-integrated measurement device designed for industrial force-measurement duties.

For steel producers, rolling-mill operators, system integrators, and industrial maintenance teams, the PFVL 141V can be a valuable replacement or spare component when maintaining compatible Millmate measurement systems. Correct mechanical positioning and system calibration remain essential for achieving dependable measurement results.

Technical Specifications

Parameter	Description
Brand	ABB
Model	PFVL 141V
Part Number	3BSE025094R2500
Product Family	Millmate
Product Type	Millmate Load Cell
Application	Industrial Force Measurement
Typical Industry	Steel / Metal Processing
Typical System	Rolling Mill / Strip Processing
Installation	Heavy-Duty Industrial Machinery
Dimensions	350 × 50 × 120 mm
Weight	165.00 kg (363.76 lb)

Recommended Related Models

Model	Product Type
ABB PFVL 141V 3BSE025094R2500	Millmate Load Cell
ABB PFVL 141V	Millmate Load Cell
ABB PFVL 141	Millmate Load Cell
ABB PFTL 101A 3BSE004172R1	Load Cell
ABB PFTL 201C 3BSE007913R0050	Pillow-Type Load Cell

Popular Related Models

Model	Product Type
ABB PFVL 141V 3BSE025094R2500	Millmate Load Cell
ABB PFTL 201C 3BSE007913R0050	Pillow-Type Load Cell
ABB PFTL 201C 3BSE007913R0010	Pillow-Type Load Cell
ABB PFTL 101A 3BSE004172R1	Load Cell
ABB PFTL 101B	Load Cell

Applications

The ABB PFVL 141V 3BSE025094R2500 Millmate Load Cell is an industrial force-measurement component developed for demanding rolling, strip-processing, and material-handling applications. As part of the Millmate measurement family, it is intended for installations where accurate force feedback is important for process stability, product quality, and automated control.

Load cells used in rolling and strip-processing equipment must cope with substantial mechanical forces while delivering dependable measurement signals to the associated control system. The PFVL 141V is therefore well suited to industrial environments where load monitoring forms part of a larger automation and process-control solution.

Typical applications include:

Steel rolling mills
Aluminum rolling lines
Strip-processing equipment
Metal processing plants
Continuous rolling systems
Material tension and force monitoring
Industrial roll-force measurement
Automated production lines
Process monitoring systems
Millmate-based measurement systems

The PFVL 141V can be particularly valuable in heavy-duty applications where the measurement component needs to work reliably alongside large mechanical structures and high process loads. For maintenance departments, the 3BSE025094R2500 part number provides an important reference when identifying a replacement for an installed Millmate load-cell assembly.

Correct mechanical installation is critical for this type of equipment. The load cell should be integrated into the machine according to the original mechanical design so that the intended force is transferred correctly to the sensing element without introducing unwanted mechanical interference.

Key Benefits

Heavy-Duty Industrial Measurement
The PFVL 141V is designed for demanding industrial measurement applications where the sensor must operate as part of robust production machinery.

Millmate System Compatibility
As a Millmate load-cell component, it is particularly relevant to ABB-based force and process-measurement installations used in industrial mills and strip-processing equipment.

High Mechanical Load Capability
The substantial construction of the PFVL 141V makes it appropriate for applications involving significant mechanical forces and heavy industrial equipment.

Stable Process Feedback
Reliable force feedback can help a control system monitor changing process conditions and maintain more consistent production parameters.

Suitable for Continuous Production
Rolling and strip-processing lines frequently operate continuously. A dedicated industrial load cell can provide the measurement foundation required for long-running automated processes.

Strong Replacement Value
For plants maintaining established ABB Millmate equipment, using the correct PFVL 141V replacement can help avoid unnecessary changes to the existing mechanical and control architecture.

Professional Maintenance Choice
The complete part number, 3BSE025094R2500, helps purchasing and maintenance teams distinguish the required component when managing industrial spare parts.

Technical FAQs

1. What is the ABB PFVL 141V 3BSE025094R2500 used for?
The PFVL 141V is a Millmate load-cell component intended for industrial force measurement, particularly in demanding metal-processing and rolling applications.

2. What industries commonly use Millmate load cells?
Millmate load-cell technology is commonly associated with metal-processing equipment, rolling mills, strip-processing machinery, and other industrial systems requiring controlled force measurement.

3. Why is mechanical installation important for the PFVL 141V?
The accuracy of a load cell depends heavily on how the process force is transferred into the sensing element. Incorrect mounting, misalignment, friction, or unintended mechanical loads can affect the measurement.

4. Can the PFVL 141V be used as a replacement component?
It can be considered for replacement when the existing installation specifically requires the PFVL 141V 3BSE025094R2500 configuration. The complete part number and system requirements should be verified before ordering.

5. What can cause abnormal readings from a Millmate load-cell system?
Potential causes include mechanical misalignment, excessive vibration, damaged cables, incorrect electrical connections, signal-conditioning problems, environmental conditions, or faults elsewhere in the measurement chain.

6. How should a suspected sensor fault be isolated?
A systematic inspection should begin with the mechanical installation and wiring, followed by examination of the measurement electronics and diagnostic information. Comparing operating behavior with known process conditions can help identify the source of the problem.

7. Can excessive mechanical force permanently affect a load cell?
Yes. Although industrial load cells are designed to withstand demanding loads, severe overloads, impact loading, or repeated operation outside the intended range can potentially affect measurement performance.

8. Can vibration interfere with load-cell measurements?
Yes. Mechanical vibration can introduce fluctuations into the measurement signal. The roll assembly, bearings, mounting structure, and surrounding machinery should be inspected when unexpected signal oscillation occurs.

9. What should be checked before commissioning a replacement PFVL 141V?
Verify the complete part number, mechanical mounting arrangement, electrical connections, signal-processing equipment, and control-system configuration before placing the machine back into service.

10. How can a newly installed PFVL 141V be validated?
After installation, engineers should verify mechanical seating and connections, check the measurement signal under controlled conditions, confirm stable operation, and compare the response with expected process values before normal production begins.
