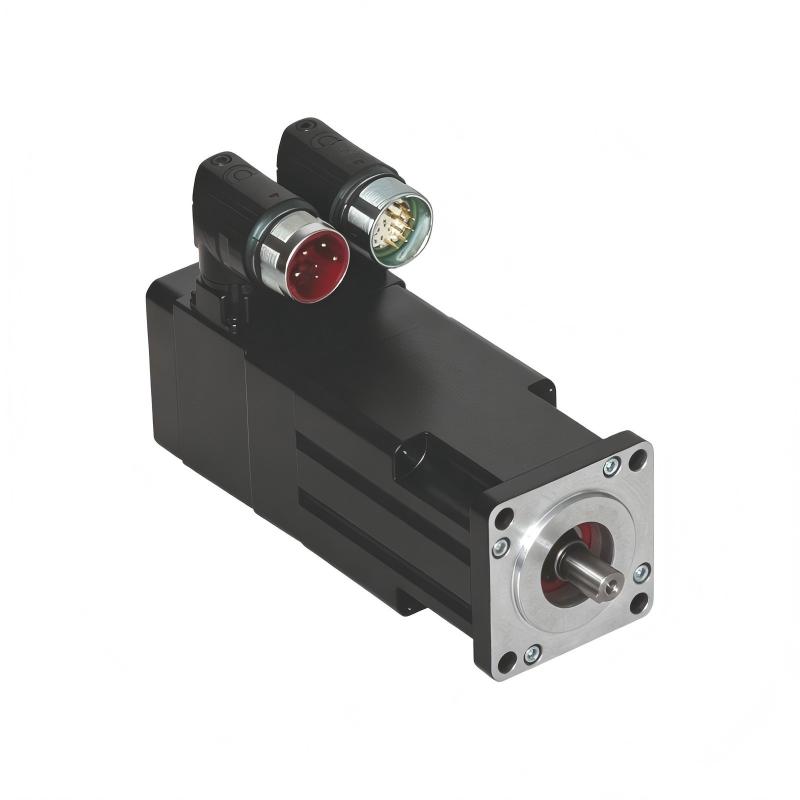

Allen Bradley MPL-A1520U-HJ72AA Servo Motor

Industrial Applications

The Allen Bradley MPL-A1520U-HJ72AA is a compact Allen Bradley servo motor designed for motion-control applications where accurate positioning, repeatable movement, and responsive dynamic performance are required. With a 63 mm frame size and a lightweight 1.20 kg construction, it is well suited to machines where installation space and moving mass are important considerations.

This servo motor can be used in automated assembly equipment, packaging machinery, indexing systems, conveyors, pick-and-place mechanisms, material-handling equipment, and other precision motion applications. It can also be incorporated into multi-axis motion systems where several servo motors operate under coordinated control.

The MPL-A1520U-HJ72AA is particularly suitable for applications requiring controlled acceleration and deceleration rather than simple constant-speed motor operation. When correctly matched with the appropriate Allen Bradley servo drive, feedback system, and motion controller, the motor can provide the controlled movement needed for automated machine sequences.

Key Performance Advantages

Compact 63 mm frame
The 63 mm frame size makes the MPL-A1520U-HJ72AA suitable for machinery where cabinet space, mechanical clearance, and actuator size are important design considerations.

Lightweight construction
With a weight of only 1.20 kg, the motor can help reduce the mechanical load associated with moving assemblies and is practical for compact automated mechanisms.

Precision motion capability
Servo motors are designed for applications where accurate speed, position, and torque control are required. The MPL-A1520U-HJ72AA can therefore be used in machine axes that require repeatable movement.

Suitable for coordinated motion
When integrated with a compatible Allen Bradley motion-control system, the motor can participate in synchronized multi-axis applications.

Good choice for automated machinery
Its compact form factor makes it appropriate for packaging, assembly, indexing, positioning, and material-handling equipment.

Practical for replacement applications
For existing Allen Bradley motion systems, the MPL-A1520U-HJ72AA can be considered when maintaining or replacing a compatible servo motor. The complete model number and system configuration should always be checked before replacement.

Technical FAQs

1. What type of motor is the Allen Bradley MPL-A1520U-HJ72AA?
The MPL-A1520U-HJ72AA is an Allen Bradley MPL series servo motor designed for industrial motion-control applications requiring controlled and repeatable motor movement.

2. What applications are suitable for this servo motor?
Typical applications include automated assembly machines, packaging equipment, indexing mechanisms, pick-and-place systems, conveyors, and other machinery requiring controlled positioning and dynamic motor response.

3. Why is servo feedback important for this type of motor?
Feedback allows the motion-control system to monitor the motor's actual operating condition and compare it with the commanded motion. This enables closed-loop control of parameters such as position and speed.

4. Can the MPL-A1520U-HJ72AA be used in a multi-axis machine?
Yes. Servo motors are commonly used as individual axes within coordinated motion systems. The suitability of a particular motor depends on the required load, speed, torque, feedback configuration, and motion profile.

5. What should be checked when selecting a replacement servo motor?
The complete catalog number, motor electrical characteristics, required torque, operating speed, feedback arrangement, mechanical mounting, shaft configuration, and compatibility with the existing servo drive should be checked before replacement.

6. What can cause a servo motor to generate excessive heat?
Possible causes include excessive mechanical load, prolonged operation near the motor's limits, inadequate acceleration settings, insufficient cooling, incorrect motor parameters, or a mechanical condition that increases the required torque.

7. What should be checked if the servo axis does not move?
Check the servo enable condition, drive status, motion command, feedback connection, motor wiring, control signals, active faults, and mechanical restrictions. The servo drive's diagnostic information should be reviewed before replacing the motor.

8. What can cause positioning errors in a servo system?
Positioning errors can result from incorrect motion parameters, excessive mechanical load, coupling problems, feedback issues, unsuitable acceleration or deceleration settings, or incorrect drive and controller configuration.

9. Why is correct motor-to-drive matching important?
The servo drive must be compatible with the motor's electrical and feedback characteristics. Correct matching allows the drive to apply appropriate control parameters and helps ensure stable torque, speed, and position control.

10. What is important when commissioning an MPL series servo motor?
