Product Overview

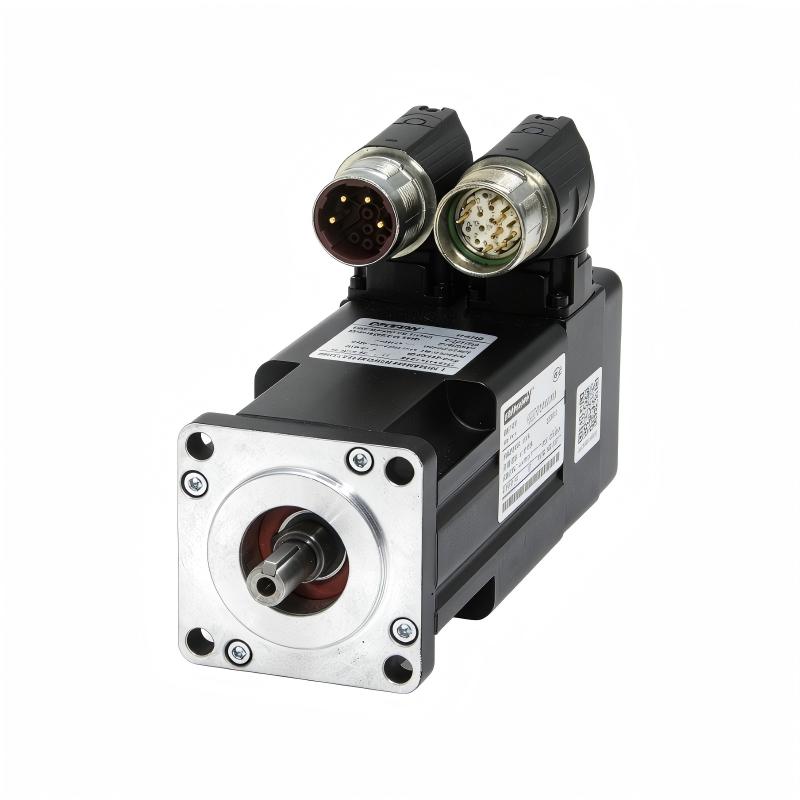

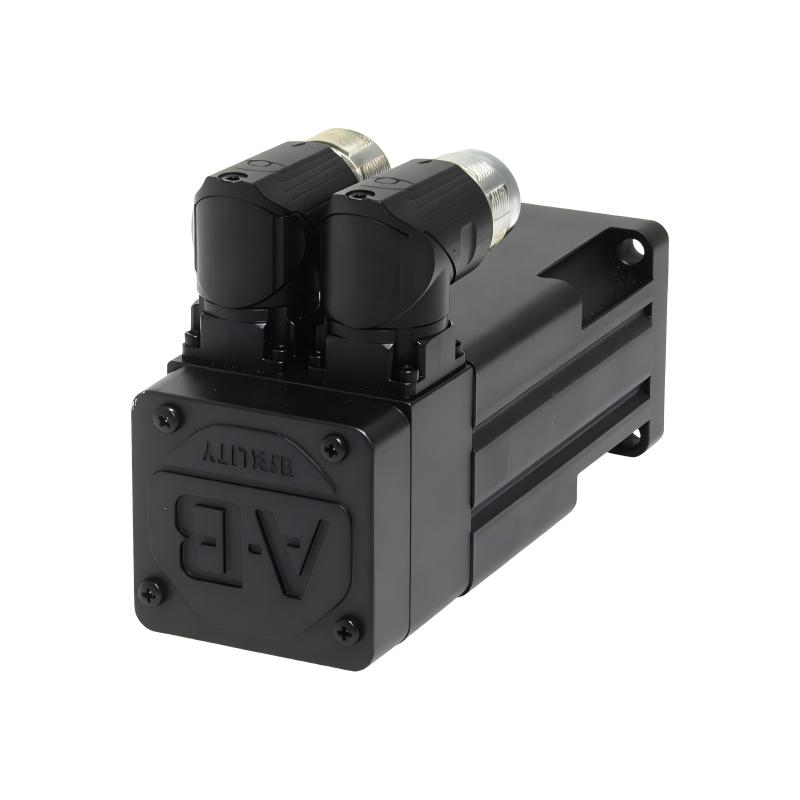

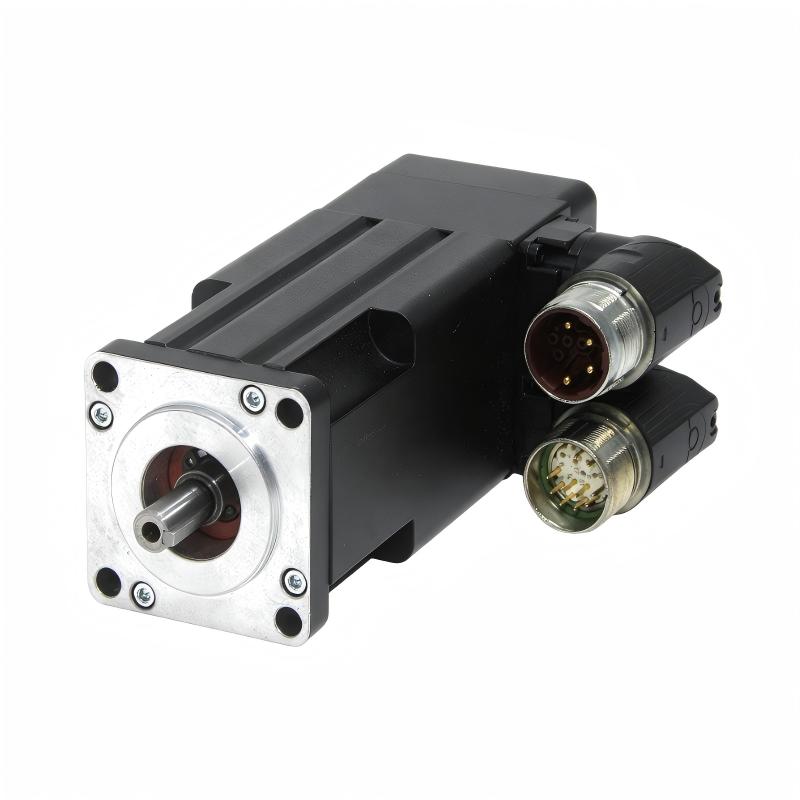

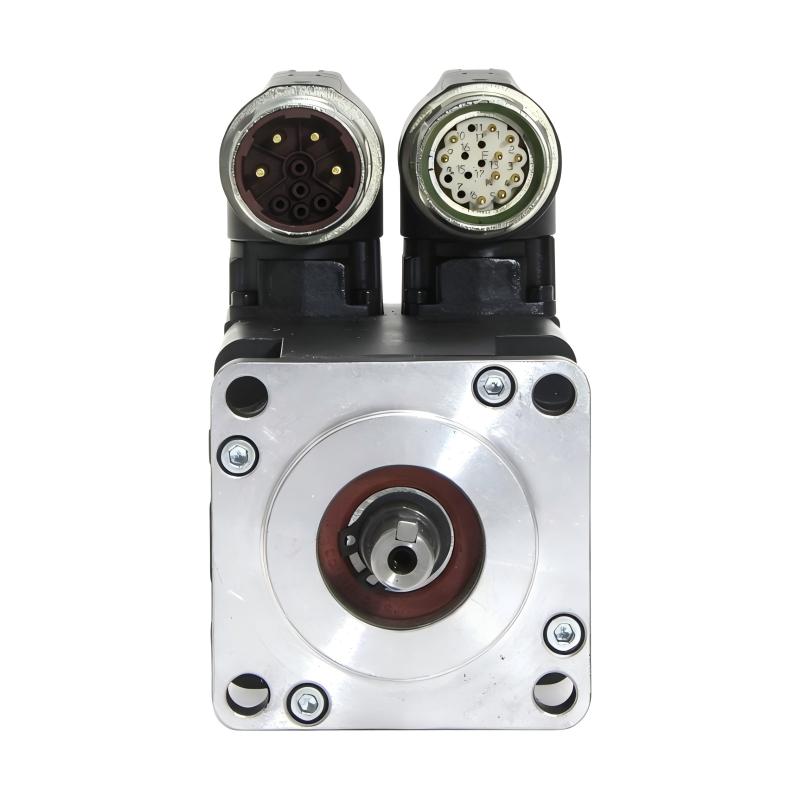

The Allen Bradley MPL-A1530U-HJ72AA belongs to the MP-Series MPL family of rotary servo motors. It was designed for industrial motion applications that require a combination of compact dimensions, high rotational speed, and responsive closed-loop control.

Its 63 mm frame and 76.2 mm stack length provide a compact motor structure, while the 7000 RPM capability supports high-speed machine operation. The 2000-line incremental encoder provides feedback for servo positioning and speed regulation.

The keyed shaft and IEC metric mounting arrangement make the motor practical for integration into automated machinery. The right-angle SpeedTEC DIN connector also helps maintain a clean cable path when the motor is installed in space-constrained machine assemblies.

The MPL-A1530U-HJ72AA is particularly relevant as a replacement or maintenance component for existing Allen Bradley MP-Series installations. Because this specific model has been discontinued, users maintaining legacy equipment should carefully verify the electrical, mechanical, feedback, and connector configuration before selecting an alternative model.

Technical Specifications

Specification	MPL-A1530U-HJ72AA
Brand	Allen Bradley
Product Family	MP-Series MPL
Product Type	Rotary Servo Motor
Model	MPL-A1530U-HJ72AA
Motor Voltage	230 V AC
AC Class	240 V AC
Motor Type	Low-Inertia Brushless Servo Motor
Frame Size	63 mm
MP-Series Frame	Frame 15
Stack Length	76.2 mm
Stack Designation	30
Maximum Speed	7000 RPM
Feedback	2000-Line Incremental Encoder
Shaft Type	Keyed Shaft Extension
Brake	No Brake
Connector	SpeedTEC DIN Connector
Connector Position	Right Angle
Connector Rotation	180° Rotatable
Mounting Standard	IEC Metric
Mounting Holes	Free Mounting Holes, Type FF
Approx. Dimensions	190 × 60 × 100 mm
Weight	1.60 kg / 3.53 lb

The compact frame and low-inertia construction make the MPL-A1530U-HJ72AA suitable for equipment where both machine footprint and dynamic response are important considerations.

Recommended Related Models

For replacement planning, application matching, and MP-Series maintenance, the following models are worth considering:

Model	Product Type	Key Difference / Relationship
MPL-A1530U-EJ72AA	Servo Motor	Active replacement configuration with single-turn high-resolution feedback
MPL-A1530U-EJ74AA	Servo Motor	Similar 1530U configuration with brake-equipped design
MPL-A1530U-VJ72AA	Servo Motor	Multi-turn high-resolution encoder configuration
MPL-A1530U-VJ74AA	Servo Motor	Multi-turn feedback and brake configuration
MPL-A1530U-HJ74AA	Servo Motor	Related HJ configuration with brake

When replacing the HJ72AA, feedback type and brake configuration should be checked carefully because motors with similar frame and stack designations may not be electrically interchangeable.

Popular Related Models

For customers maintaining Allen Bradley MP-Series motion systems, these models are also commonly associated with the same product family:

MPL-A1520U-HJ72AA — MP-Series MPL 240 V AC Rotary Servo Motor
MPL-A1530U-EJ72AA — MP-Series MPL 240 V AC Rotary Servo Motor
MPL-A1530U-EJ74AA — MP-Series MPL 240 V AC Rotary Servo Motor
MPL-A1530U-VJ72AA — MP-Series MPL 240 V AC Rotary Servo Motor
MPL-A1530U-VJ74AA — MP-Series MPL 240 V AC Rotary Servo Motor
MPL-B1530U-HJ72AA — MP-Series MPL 480 V AC Rotary Servo Motor

For legacy machine maintenance, the exact part number should always be checked against the existing drive, encoder feedback requirements, shaft arrangement, connector configuration, and brake requirements before ordering a replacement.

Industrial Automation Applications

The MPL-A1530U-HJ72AA can be integrated into a wide range of automated machinery where precise motor control is required. Its low-inertia construction is particularly useful for systems that frequently accelerate, decelerate, reverse direction, or perform repeated positioning cycles.

Typical applications include:

Packaging and filling machinery
Material handling systems
Conveyor positioning equipment
Pick-and-place machines
Printing and converting equipment
Assembly and production machines
Labeling and dispensing systems
Machine tools and auxiliary axes
Semiconductor and electronics manufacturing equipment
Automated inspection machinery
High-speed indexing mechanisms
Industrial robotic positioning systems

The motor can be paired with compatible Allen Bradley servo drives and motion controllers to form a coordinated motion-control system.

Key Performance Advantages

Low-Inertia Servo Construction
The MPL-A1530U-HJ72AA uses a low-inertia motor design that supports rapid dynamic response. This is valuable in applications involving frequent speed changes and short positioning cycles.

7000 RPM High-Speed Operation
The motor is designed for high-speed motion applications, with a rated speed capability of up to 7000 RPM. This allows machinery designers to achieve fast mechanical movement while maintaining controlled servo operation.

2000-Line Incremental Encoder
The integrated incremental encoder provides feedback to the servo control system for monitoring motor position and speed. Proper encoder feedback is essential for closed-loop motion control.

63 mm Compact Frame
With a 63 mm frame size, the motor provides a relatively compact solution for machines where installation space is limited.

Keyed Shaft Design
The keyed shaft extension provides a practical mechanical connection for compatible couplings, pulleys, gears, and other transmission components.

Right-Angle SpeedTEC DIN Connector
The right-angle connector arrangement can help simplify cable routing and reduce interference with surrounding machine components.

IEC Metric Mounting
The IEC metric configuration makes the motor suitable for equipment designed around metric mechanical standards.

No Integrated Brake
This particular model is configured without an integrated holding brake. Where a brake is required, the application should be evaluated for an appropriate motor configuration or external mechanical braking solution.

Technical FAQs

1. What type of motor is the MPL-A1530U-HJ72AA?
It is an Allen Bradley MP-Series MPL 240 V AC rotary servo motor using a low-inertia brushless motor design for closed-loop industrial motion control.

2. What is the frame size of this servo motor?
The motor has a 63 mm frame size, corresponding to the MP-Series frame size 15 configuration.

3. What is the maximum motor speed?
The MPL-A1530U-HJ72AA is designed for operation up to 7000 RPM, making it suitable for high-speed positioning and motion applications.

4. What type of feedback does the MPL-A1530U-HJ72AA use?
This model uses a 2000-line incremental encoder for motor feedback. The encoder provides position and speed information to the associated servo control system.

5. Does the MPL-A1530U-HJ72AA include a holding brake?
No. The HJ72AA configuration is a no-brake version. A brake-equipped motor should be selected when the application requires motor shaft holding during power-off conditions.

6. What voltage is used by this servo motor?
The MPL-A1530U-HJ72AA belongs to the MP-Series 240 V AC servo motor family and uses a nominal 230 V motor voltage configuration.

7. What type of shaft does this servo motor have?
The motor uses a keyed shaft extension. The keyway allows suitable mechanical transmission components to be securely coupled to the motor shaft.

8. What connector is used on the MPL-A1530U-HJ72AA?
The motor uses a SpeedTEC DIN connector in a right-angle configuration. The connector arrangement supports practical cable routing within compact machine layouts.

9. Can this motor be used for repeated acceleration and deceleration?
Yes. Its low-inertia design is well suited to applications involving frequent acceleration, deceleration, reversing, and positioning cycles. The final suitability depends on the servo drive configuration, load inertia, duty cycle, and mechanical transmission.

10. What should be checked when replacing an MPL-A1530U-HJ72AA?
The replacement motor should be matched for voltage, feedback type, frame and stack configuration, shaft arrangement, connector configuration, brake requirements, and servo-drive compatibility. The mechanical load and required motion performance should also be checked before commissioning.
