Brand:Allen Bradley PLC Item No.:MPL-B330P-HJ74AA Product Origin:USA Product Dimensions:Frame Size: 100 mm Product Weight:4.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

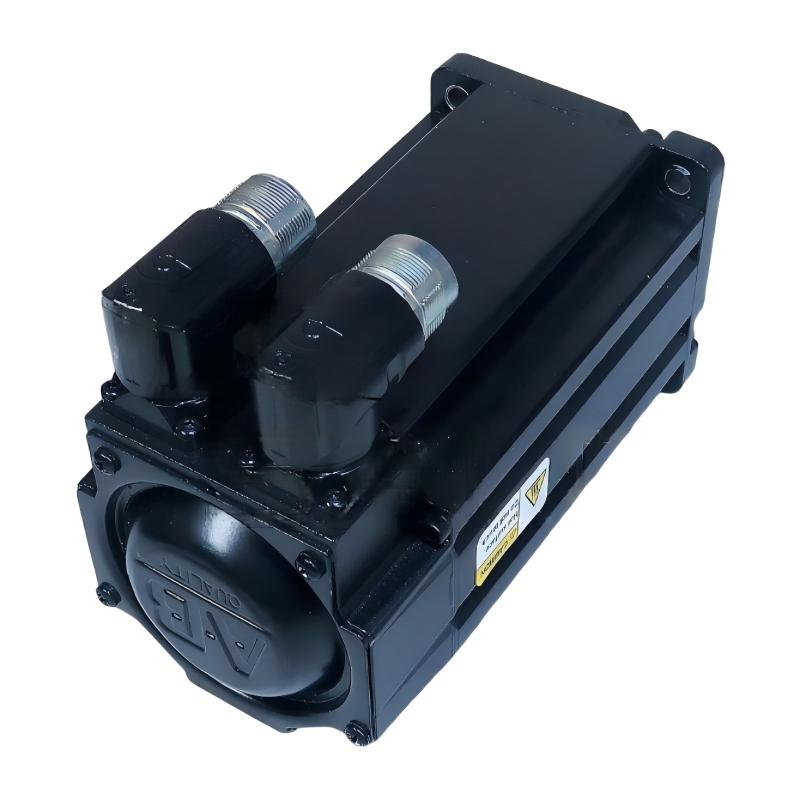

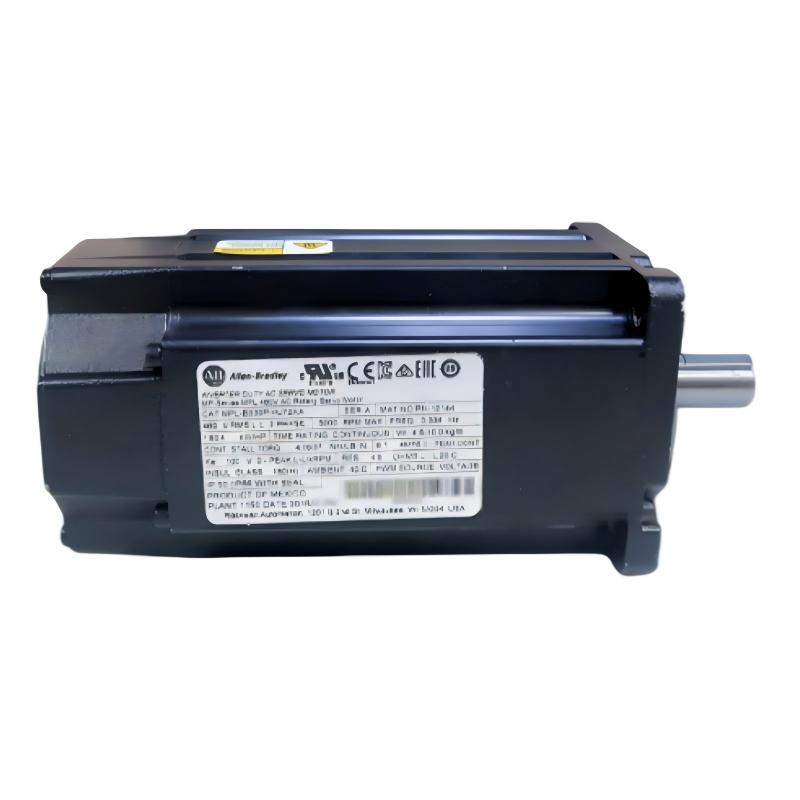

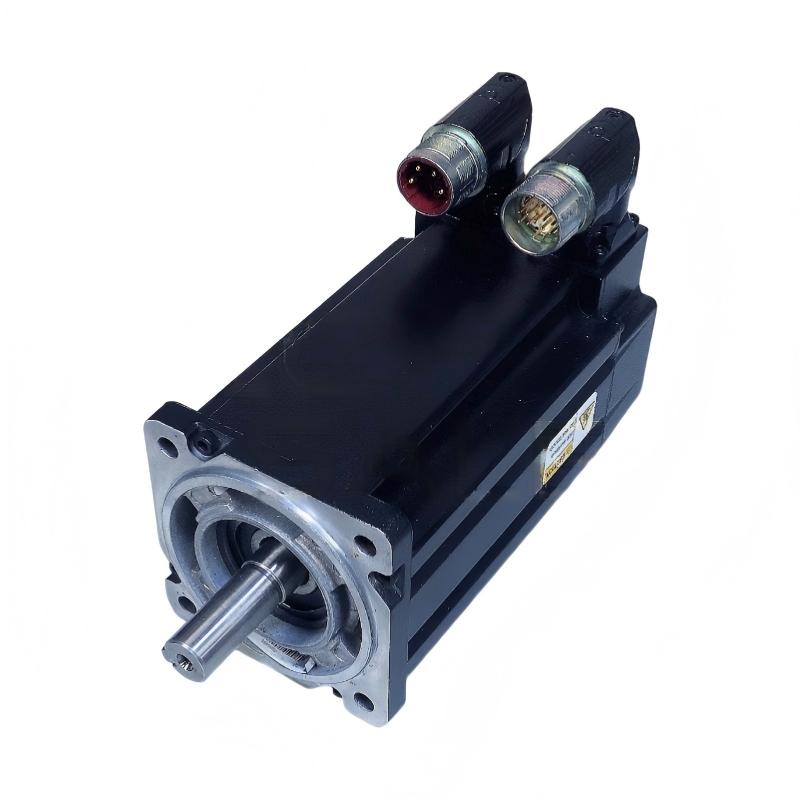

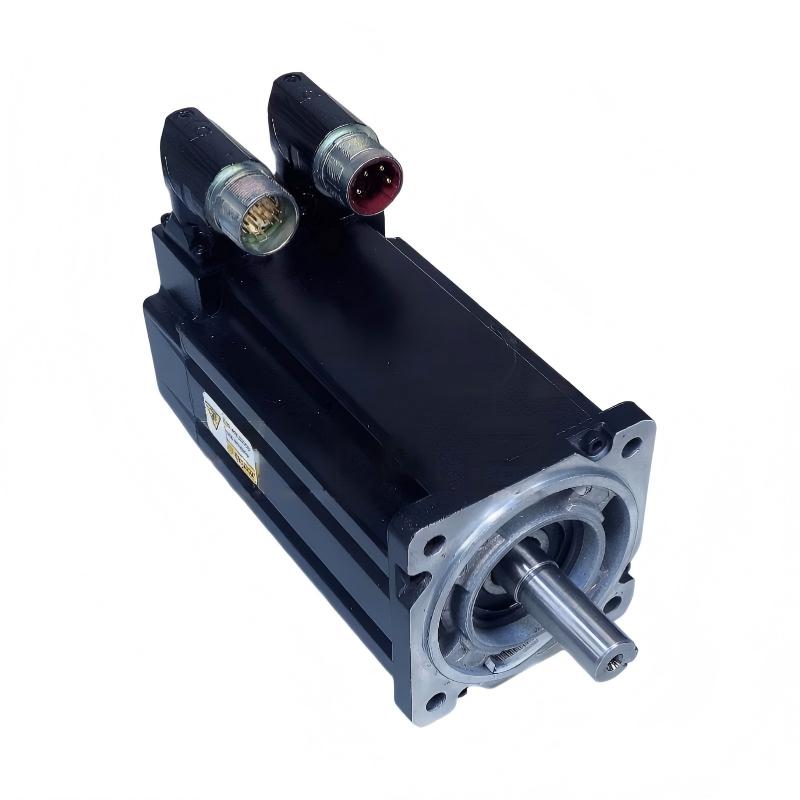

The Allen Bradley MPL-B330P-HJ74AA belongs to the MP-Series MPL family of low-inertia brushless servo motors. Its 100 mm frame and 76.2 mm magnet stack provide a substantial motor configuration for industrial motion applications requiring reliable closed-loop control.
The motor operates in the 460 V AC class and provides a 5000 RPM rated speed. Its 2000-line incremental encoder supplies position and speed feedback to the associated servo drive, allowing the control system to regulate motor movement accurately.
A major feature of the HJ74AA configuration is its 24 V DC holding brake. Compared with the brake-free HJ72AA version, this configuration is better suited to applications where the motor must hold its shaft against movement while the servo is stopped.
The keyed shaft extension, IEC metric mounting, and right-angle SpeedTEC DIN connector provide practical mechanical and electrical integration options for compatible machine designs.
For maintenance and retrofit projects involving legacy MP-Series equipment, the MPL-B330P-HJ74AA should be matched carefully with the existing drive, feedback system, mechanical load, and brake requirements.
Technical Specifications
Specification
MPL-B330P-HJ74AA
Brand
Allen Bradley
Product Family
MP-Series MPL
Product Type
Rotary Servo Motor
Model
MPL-B330P-HJ74AA
Armature Voltage
460 V AC
Voltage Class
400 V
Motor Type
Low-Inertia Brushless Servo Motor
Frame Size
100 mm
MP-Series Frame
Frame 3
Magnet Stack Length
76.2 mm
Stack Designation
30
Rated Speed
5000 RPM
Feedback
2000-Line Incremental Encoder
Continuous Output Torque
4.18 Nm
Peak Output Torque
11.1 Nm
Continuous Rated Power
1.8 kW
Shaft Type
Keyed Shaft Extension
Brake
24 V DC
Connector
SpeedTEC DIN Connector
Connector Position
Right Angle
Connector Rotation
180° Rotatable
Mounting
IEC Metric Flange Mount
Approx. Dimensions
245 × 125 × 125 mm
Weight
4.60 kg / 10.14 lb
Recommended Related Models
Model
Product Type
Relationship
MPL-B330P-HJ72AA
Servo Motor
Same basic motor configuration without holding brake
MPL-B330P-SJ72AA
Servo Motor
Related replacement configuration
MPL-B330P-SJ74AA
Servo Motor
Related replacement configuration with brake
MPL-B330P-HK72AA
Servo Motor
Related MP-Series configuration with different feedback
MPL-B330P-HK74AA
Servo Motor
Related configuration with feedback and brake differences
Popular Related Models
MPL-B330P-HJ72AA — MP-Series MPL Rotary Servo Motor
MPL-B330P-SJ72AA — MP-Series MPL Rotary Servo Motor
MPL-B330P-SJ74AA — MP-Series MPL Rotary Servo Motor
MPL-B330P-HK72AA — MP-Series MPL Rotary Servo Motor
MPL-B330P-HK74AA — MP-Series MPL Rotary Servo Motor
MPL-B320P-SJ72AA — MP-Series MPL Rotary Servo Motor
MPL-B320P-SJ74AA — MP-Series MPL Rotary Servo Motor
When selecting a replacement for the MPL-B330P-HJ74AA, verify the 460 V AC voltage class, 100 mm frame, 76.2 mm stack, 5000 RPM rated speed, 2000-line incremental encoder, and 24 V DC holding brake. These parameters are essential for maintaining electrical, mechanical, and motion-control compatibility.
Industrial Motion Control Applications
The MPL-B330P-HJ74AA is suitable for automated equipment where precise rotary motion, repeatable positioning, and controlled acceleration are required.
Common applications include:
Packaging and filling machinery
Automated assembly equipment
Material handling systems
Conveyor positioning
Printing and converting machinery
Machine tools
Pick-and-place equipment
Automated inspection systems
Production machinery
Robotics and auxiliary motion axes
High-speed indexing equipment
Industrial machine upgrades and maintenance
The integrated holding brake also makes this configuration useful for applications where the motor shaft needs to remain mechanically held when the servo is stopped.
Key Performance Advantages
Low-Inertia Brushless Design
The low-inertia brushless construction provides responsive acceleration and deceleration, helping the motor handle repetitive positioning and speed-change cycles.
5000 RPM Rated Speed
The motor provides a rated speed of 5000 RPM, offering a balance between high-speed operation and controlled servo performance for industrial machinery.
2000-Line Incremental Encoder
The integrated incremental encoder supplies position and speed feedback to the servo drive, supporting closed-loop motion control.
100 mm Frame Size
The 100 mm frame provides a larger motor configuration for machinery requiring greater mechanical capacity than smaller MPL servo motor frames.
24 V DC Holding Brake
The HJ74AA version includes an integrated 24 V DC brake. The brake can help hold the motor shaft when active servo torque is unavailable.
Keyed Shaft Extension
The keyed shaft provides a secure connection for compatible couplings, pulleys, gears, and other mechanical transmission components.
Right-Angle SpeedTEC DIN Connector
The right-angle connector arrangement provides flexibility when routing motor cables through compact machine assemblies and can be rotated to suit installation requirements.
Technical FAQs
1. What type of motor is the MPL-B330P-HJ74AA?
It is an Allen Bradley MP-Series MPL low-inertia brushless rotary servo motor designed for closed-loop industrial motion control.
2. What is the frame size of this servo motor?
The MPL-B330P-HJ74AA uses a 100 mm frame size.
3. What is the magnet stack length?
The motor uses a 76.2 mm magnet stack, corresponding to the MP-Series 30 stack configuration.
4. What is the rated speed of the MPL-B330P-HJ74AA?
The motor has a rated speed of 5000 RPM.
5. What type of encoder does the HJ74AA use?
It uses a 2000-line incremental encoder for closed-loop motor feedback.
6. Does the MPL-B330P-HJ74AA include a brake?
Yes. The HJ74AA configuration includes a 24 V DC holding brake.
7. What is the difference between the HJ72AA and HJ74AA versions?
The HJ72AA is the no-brake configuration, while the HJ74AA includes a 24 V DC holding brake.
8. What type of shaft does this motor have?
The motor uses a keyed shaft extension for connection to compatible mechanical transmission components.
9. What connector is used by the MPL-B330P-HJ74AA?
The motor uses a SpeedTEC DIN connector in a right-angle configuration with rotational adjustment for installation flexibility.
10. What should be checked before replacing this motor?
Check the voltage class, frame size, stack length, encoder type, brake configuration, shaft arrangement, mounting dimensions, connector configuration, and servo-drive compatibility before installation.
