Brand:Siemens Item No.:6ES7211-1AE40-0XB0 Product Origin:Germany Product Dimensions:90 x 100 x 75 mm Product Weight:0.37 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

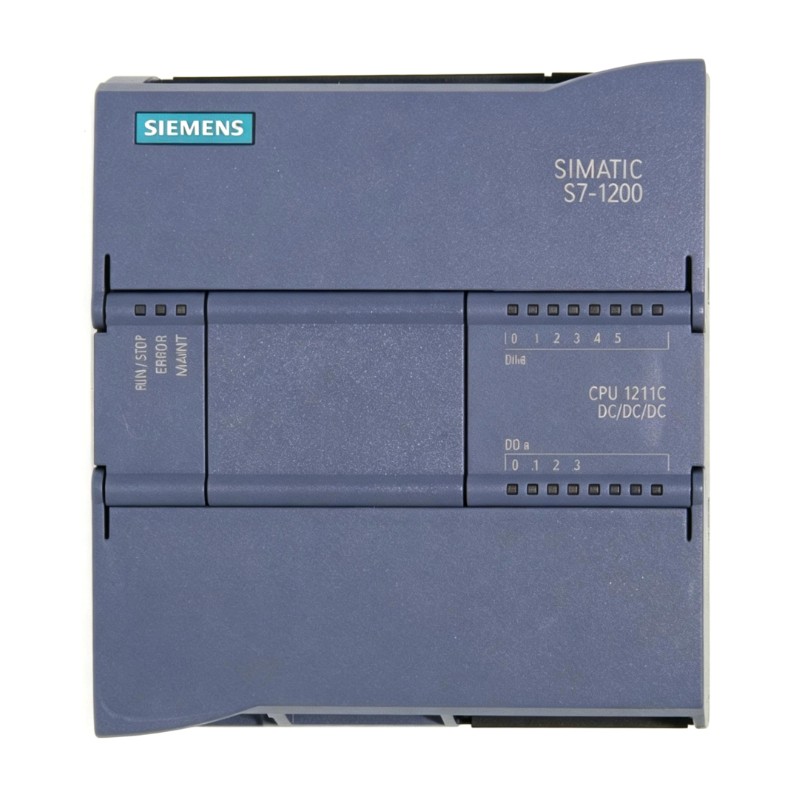

The Siemens 6ES7211-1AE40-0XB0 Compact CPU provides a compact control solution for automation applications where reliable PLC functionality needs to fit into a relatively small electrical enclosure. As a SIMATIC S7-1200 controller, it is positioned for machine-level automation and other applications that benefit from a compact but expandable PLC architecture.
For OEMs and automation integrators, controller selection is often a balance between processing requirements, available cabinet space, I/O capacity, communication needs, and long-term serviceability. The 6ES7211-1AE40-0XB0 addresses the space-efficiency side of this equation while remaining within the established S7-1200 ecosystem.
The CPU can act as the central logic controller for a machine, coordinating field signals and control functions through compatible system components. Its application range makes it relevant to both new equipment projects and maintenance or replacement work involving existing Siemens installations.
The supplied dimensions are 90 × 100 × 75 mm, with a specified weight of 0.37 kg (0.82 lb). This compact footprint is particularly beneficial for control panels where component density must be carefully managed.
For industrial automation professionals, the 6ES7211-1AE40-0XB0 is a practical choice when a compact Siemens PLC platform is required. Selecting the exact CPU variant remains important, however, because hardware capabilities, firmware compatibility, expansion requirements, and application performance must all match the intended control system.
The 90 × 100 × 75 mm dimensions give the controller a compact installation profile, while its 0.37 kg (0.82 lb) weight makes it convenient to handle during cabinet assembly, replacement, and service operations.
Recommended Related Models
When developing a compact S7-1200 automation system, the following related Siemens components may be considered according to the required I/O and control architecture:
Model
Product Type
Typical Role
Siemens 6ES7211-1AE40-0XB0
Compact CPU
Central machine control
Siemens 6ES7212-1AE40-0XB0
Compact CPU
Expanded compact PLC control
Siemens 6ES7214-1AG40-0XB0
Compact CPU
Higher-capacity machine control
Siemens 6ES7221-1BF32-0XB0
Digital Input Module
Digital signal acquisition
Siemens 6ES7231-4HD32-0XB0
Analog Input Module
Analog signal processing
Popular Related Models
For spare-parts planning, system upgrades, and new machine development, these S7-1200 models can also be evaluated alongside the 6ES7211-1AE40-0XB0:
Model
Product Type
Application
Siemens 6ES7211-1AE40-0XB0
Compact CPU
Compact machine automation
Siemens 6ES7211-1BE40-0XB0
Compact CPU
S7-1200 machine control
Siemens 6ES7212-1AE40-0XB0
Compact CPU
Small and medium automation
Siemens 6ES7221-1BF32-0XB0
Digital Input Module
Digital field interfaces
Siemens 6ES7231-4HD32-0XB0
Analog Input Module
Process and machine signals
Applications
The Siemens 6ES7211-1AE40-0XB0 Compact CPU is intended for compact automation systems that require dependable programmable control in a limited installation space. As part of the SIMATIC S7-1200 platform, it is well suited to machine builders, OEM equipment, small production systems, and standalone control applications.
This CPU can serve as the central controller for applications involving sequence control, machine logic, interlocking, monitoring, and coordination with compatible I/O and automation devices. Its compact construction makes it a practical option for electrical cabinets where efficient use of panel space is a priority.
Typical applications include packaging equipment, conveyor systems, material-handling machinery, assembly equipment, small manufacturing lines, and general-purpose industrial control panels. For integrators seeking a compact Siemens controller with a mature engineering ecosystem, the 6ES7211-1AE40-0XB0 offers a practical foundation for building reliable machine-control solutions.
Advantages
Space-efficient controller
The compact housing helps reduce the amount of control-panel space required, making the CPU particularly attractive for smaller machines and OEM systems.
Reliable machine automation
The controller provides a dedicated PLC platform for executing application logic, machine sequences, interlocks, and monitoring functions.
Flexible system architecture
The S7-1200 platform can be configured with compatible signal and communication modules when the application requires additional I/O or connectivity.
Straightforward engineering
Integration with Siemens engineering tools provides a consistent environment for hardware configuration, PLC programming, diagnostics, and commissioning.
Suitable for OEM equipment
Its compact architecture and scalable platform make the CPU a useful choice for machine builders developing standardized equipment or customized automation solutions.
Practical replacement option
For maintenance teams supporting existing S7-1200 installations, an exact-match CPU can help maintain the original system architecture and simplify spare-parts planning.
Technical FAQs
1. What is the main function of the Siemens 6ES7211-1AE40-0XB0?
The 6ES7211-1AE40-0XB0 is a compact programmable CPU used as the central control element in compatible SIMATIC S7-1200 automation systems.
2. Which PLC platform uses this CPU?
The CPU belongs to the Siemens SIMATIC S7-1200 family, which is designed for compact and scalable industrial automation applications.
3. What types of applications are suitable for this CPU?
It is suitable for machine control, sequence logic, monitoring, interlocking, material handling, packaging, assembly, and other compact industrial automation applications.
4. Can the CPU work with additional I/O modules?
Yes. The S7-1200 architecture supports compatible expansion modules. The exact expansion capability must be evaluated against the CPU variant and the requirements of the complete system.
5. Which software is normally used to configure and program the CPU?
Siemens TIA Portal is the primary engineering environment for S7-1200 controllers. The applicable TIA Portal version should be selected according to the CPU and firmware requirements.
6. What should be checked before replacing an existing CPU?
Verify the complete Siemens article number, hardware configuration, firmware compatibility, PLC program, I/O arrangement, communication parameters, and connected modules before replacement.
7. Can the original PLC program be loaded into a replacement CPU?
A compatible project can generally be downloaded to a replacement CPU after the hardware configuration and firmware requirements have been verified. Retentive data and communication settings should also be considered during commissioning.
8. What could cause communication problems after CPU replacement?
Incorrect network parameters, incompatible firmware, incorrect hardware configuration, addressing errors, or improperly configured communication devices can cause communication problems. System diagnostics should be checked systematically.
9. Does the CPU itself replace a dedicated safety controller?
A standard PLC CPU should not automatically be treated as a safety controller. Safety functions require hardware, software, and architecture specifically approved for the intended safety application.
10. What commissioning checks are recommended after installation?
Engineers should verify the power supply, hardware configuration, I/O operation, PLC program, addressing, communication settings, diagnostic status, and machine interlocks before placing the equipment into normal operation.
