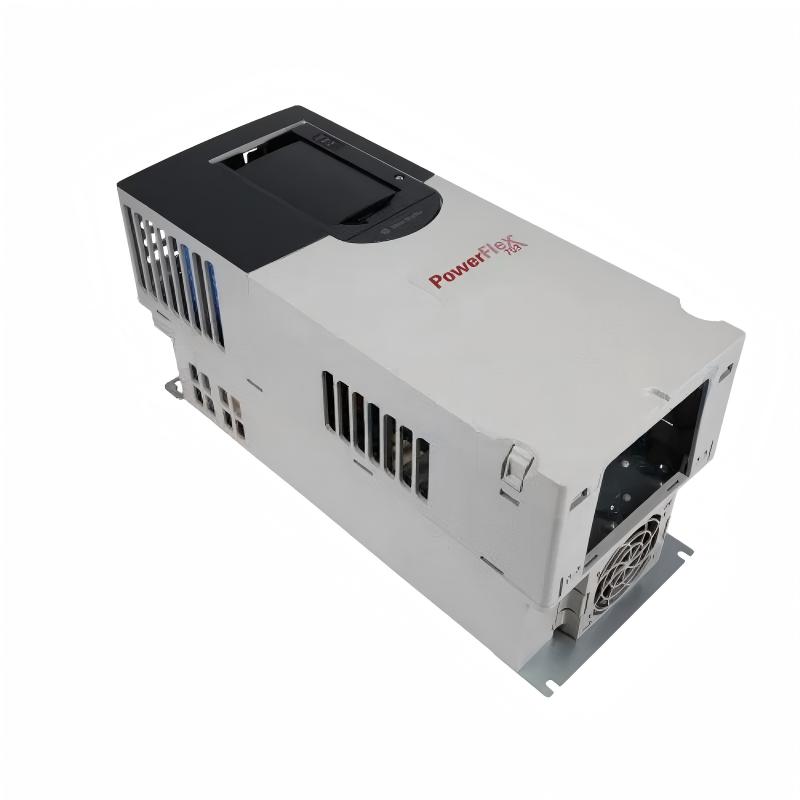

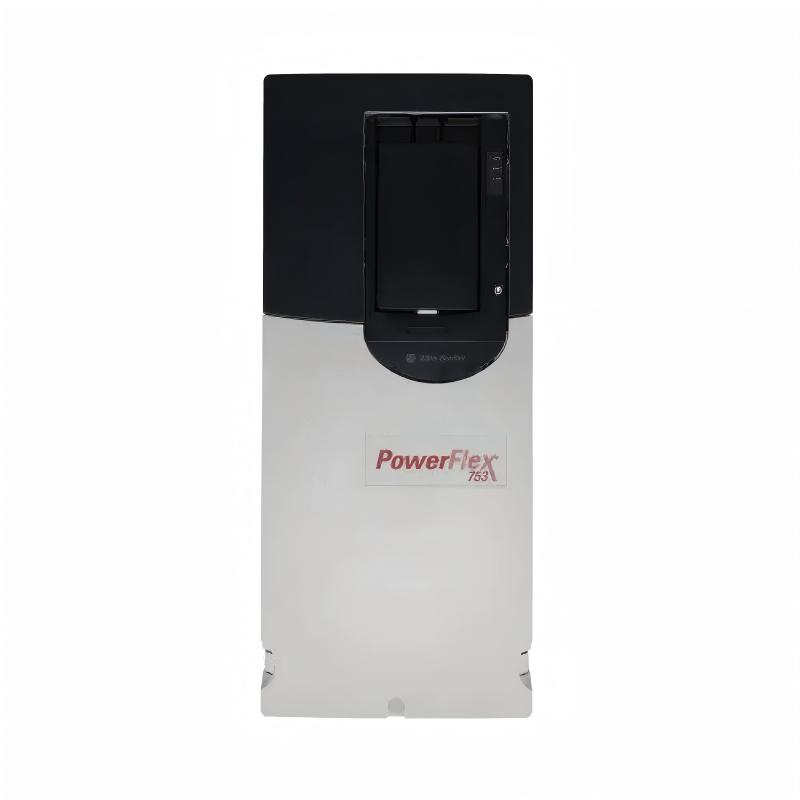

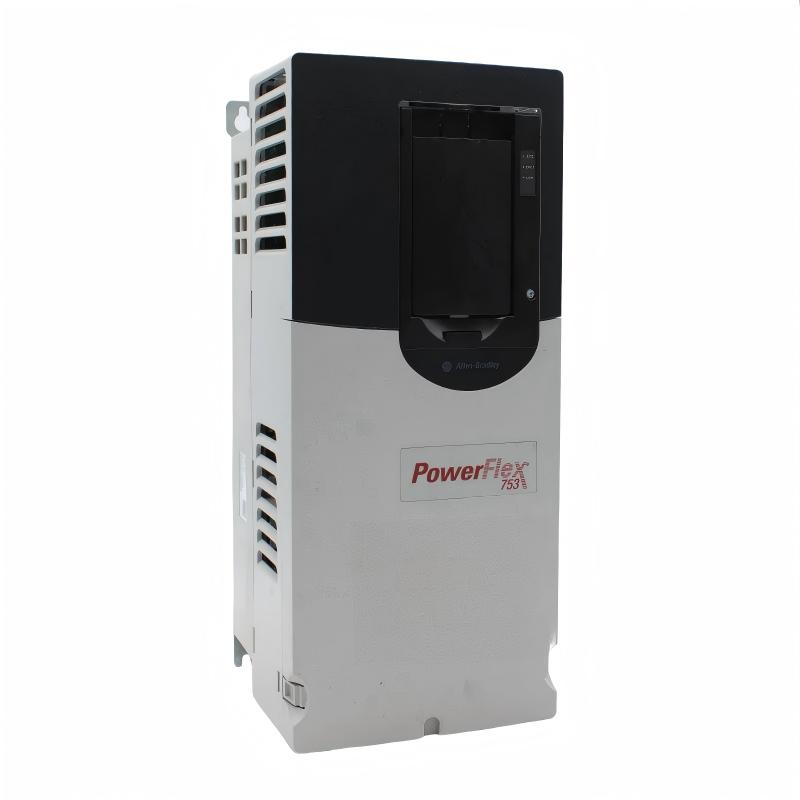

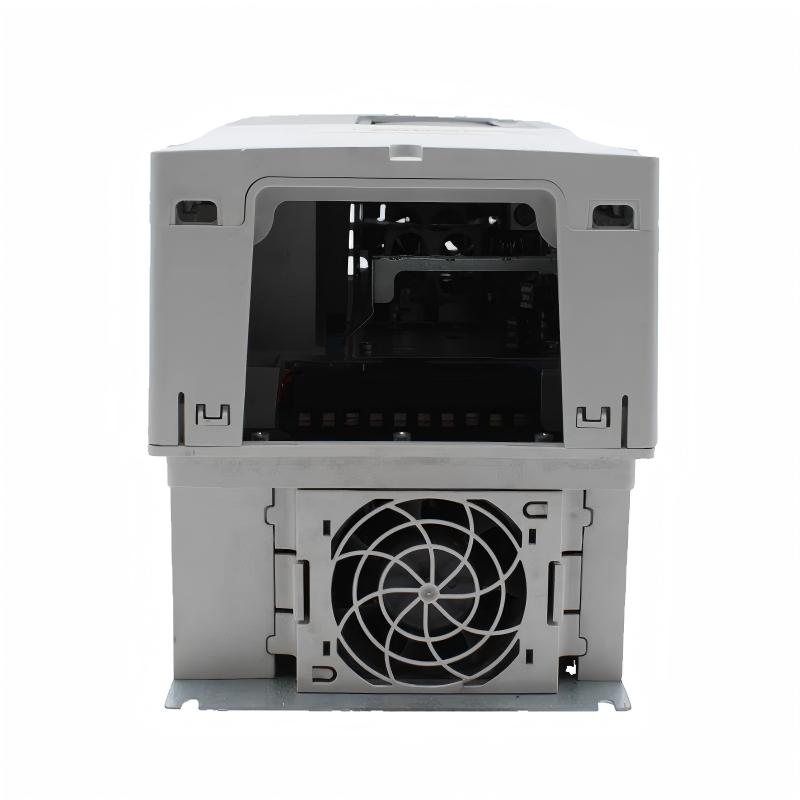

Allen Bradley 20F11NE1P7AA0NNNNN PowerFlex 753 AC Drive

Applications

The Allen Bradley 20F11NE1P7AA0NNNNN PowerFlex 753 AC Drive is an industrial AC drive designed for adjustable-speed motor control in automation and process equipment. It provides a practical solution for applications where motor speed, acceleration, deceleration, and operating performance need to be controlled from an industrial automation system.

The drive can be applied to a variety of machinery and process loads, including conveyors, pumps, fans, compressors, material-handling systems, and production equipment. Its PowerFlex 753 architecture also makes it suitable for applications requiring flexible configuration and integration with a broader Allen Bradley control platform.

Typical applications include:

• Industrial conveyor systems
• Pumps and fluid-handling equipment
• Fans and ventilation systems
• Compressors
• Material-handling machinery
• Packaging equipment
• Production machinery
• Process automation systems
• OEM machine applications
• Motor replacement and modernization projects

Advantages

The 20F11NE1P7AA0NNNNN combines variable-speed motor control with the flexible configuration capabilities of the PowerFlex 753 family. Its compact mechanical dimensions make it suitable for control cabinets where available installation space needs to be used efficiently.

Key advantages include:

• Adjustable-speed motor control for industrial applications
• PowerFlex 753 architecture for flexible automation integration
• Controlled acceleration and deceleration
• Suitable for a broad range of motor-driven machinery
• Compact physical design for appropriate cabinet installations
• Flexible configuration for different application requirements
• Useful for both new equipment and modernization projects
• Suitable for industrial machine and process control
• Practical for OEM and system-integrator applications

Technical FAQs

1. What is the Allen Bradley 20F11NE1P7AA0NNNNN used for?
The 20F11NE1P7AA0NNNNN is a PowerFlex 753 AC drive used for adjustable-speed control of compatible industrial motors.

2. What does a PowerFlex 753 AC drive control?
The drive controls motor operation by regulating electrical output to the motor, allowing the motor's operating speed and related control characteristics to be adjusted according to application requirements.

3. What applications are suitable for this drive?
Typical applications include conveyors, pumps, fans, compressors, material-handling equipment, packaging machinery, and other industrial motor-driven systems.

4. Can the drive be connected to an Allen Bradley automation system?
Yes. The PowerFlex 753 family is designed for integration with industrial automation architectures and can be configured according to the requirements of the control system.

5. Why is motor parameter configuration important?
Correct motor data helps the drive establish appropriate control and protection characteristics. Motor nameplate information and application parameters should be entered according to the actual motor and system requirements.

6. What should be checked before commissioning the drive?
Verify the incoming power, motor rating, motor wiring, grounding, protection equipment, command source, speed reference, motor parameters, acceleration/deceleration settings, and applicable safety conditions.

7. What should an engineer check if the motor does not start?
Check the drive status, active faults, incoming power, start and enable signals, speed reference, motor connections, programmed parameters, and external safety or interlock conditions.

8. What can cause an overcurrent fault?
Potential causes include excessive mechanical load, incorrect motor data, short circuits, motor cable problems, insufficient acceleration time, or an unsuitable application configuration.

9. How can drive overheating be investigated?
Check cabinet ventilation, ambient temperature, cooling airflow, installation clearance, drive loading, heat accumulation, and cooling components. Excessive load can also contribute to elevated operating temperature.

10. Can the 20F11NE1P7AA0NNNNN be used as a replacement drive?
It can be considered for replacement applications when its electrical ratings, motor requirements, control configuration, enclosure arrangement, and application characteristics are properly matched to the existing installation.
