Ingersoll Rand 47578999001 23661168 Air-Cooled Hose Service Configuration
Ingersoll Rand 47578999001 23661168 Air-Cooled Hose Service Configuration
0.0
Points
Brand:Ingersoll Rand Item No.:47578999001 23661168 Product Origin:USA Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.11 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

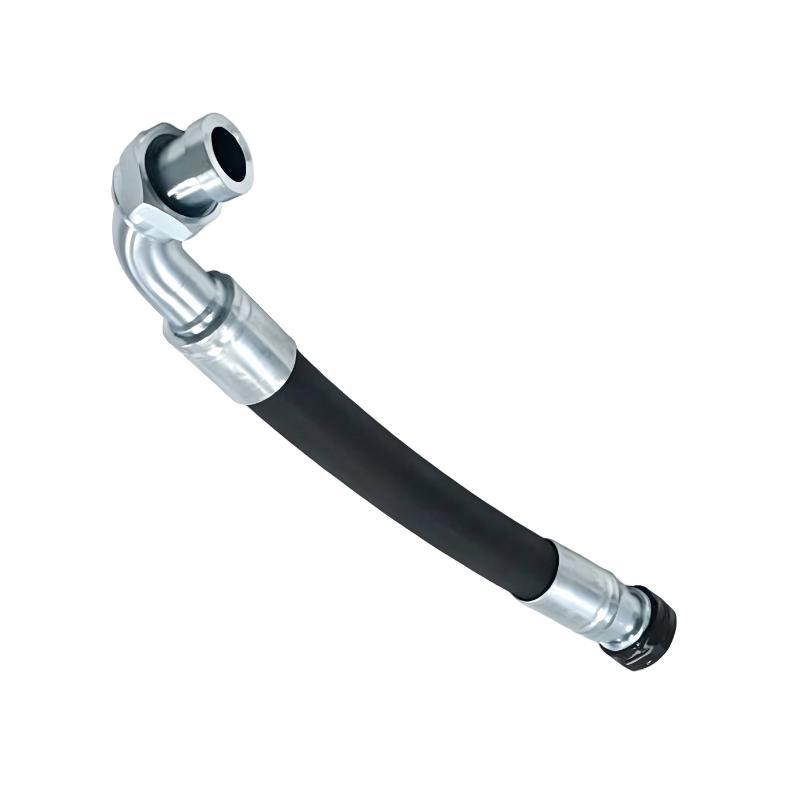

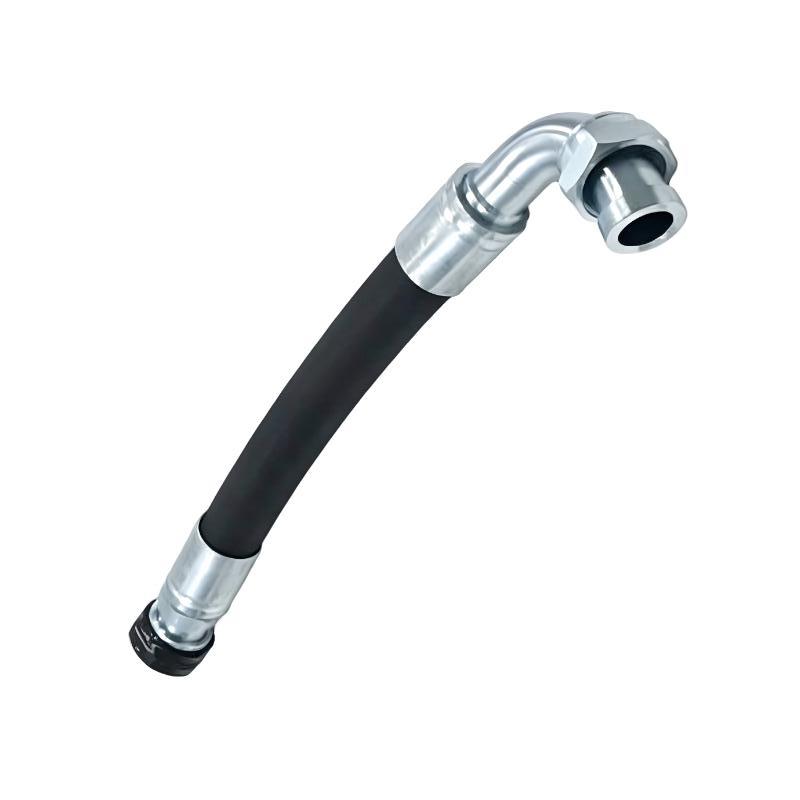

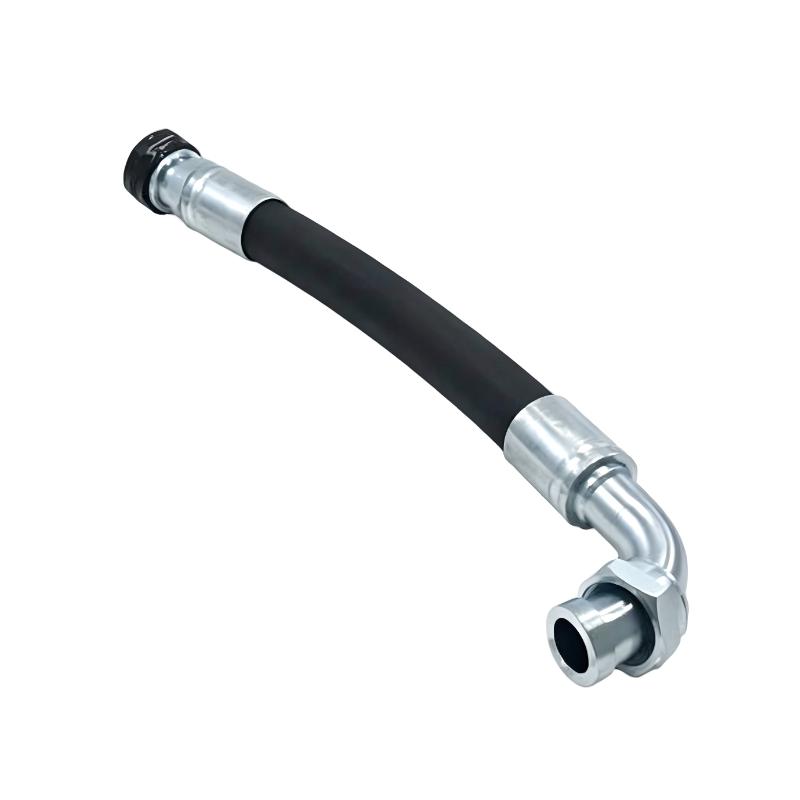

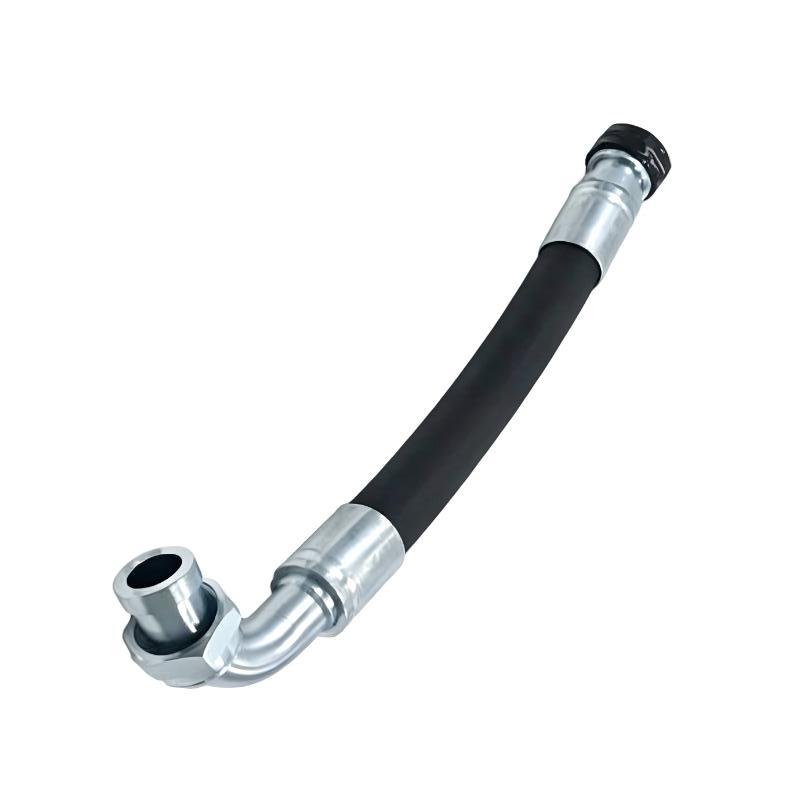

The Ingersoll Rand 47578999001 23661168 Air-Cooled Hose Service Configuration combines the 47578999001 air-cooled hose package reference with the specified 23661168 hose assembly. The primary package is identified for Sierra 90–150 applications, while 23661168 is documented as a Teflon hose measuring 0.50 × 14.50 inches.
Hose assemblies are critical service components because they provide flexible connections between fixed compressor components while accommodating vibration and installation movement. The 23661168 configuration uses a straight ORFS connection at one end and a short 90-degree ORFS connection at the other, giving the assembly a defined installation orientation.
This complete configuration should be treated as a consolidated procurement and maintenance reference rather than assuming universal compatibility. Before installation, maintenance personnel should verify the compressor model, serial number, hose location, connection arrangement, pressure and temperature requirements, and latest Ingersoll Rand parts documentation.
Technical Specifications
Specification
Details
Brand
Ingersoll Rand
Complete Configuration
47578999001 23661168
Primary Reference
47578999001
Primary Product Type
Air-cooled hose package
Primary Application
Sierra 90–150
Associated Component
23661168
Component Type
Teflon hose assembly
Nominal Hose Size
0.50 in.
Hose Length
14.50 in. / approximately 368 mm
Connection Configuration
ORFS straight × ORFS 90-degree short
Primary Function
Flexible connection and service-circuit routing
Service Application
Compressor hose replacement and maintenance
Installation
Compressor-specific hose circuit
Operating Environment
Industrial compressed-air systems
Dimensions
0.50 × 14.50 in.; verify fitting envelope and installation dimensions against current parts documentation
Weight
Not separately specified; verify current supplier or OEM documentation
Compatibility
Verify compressor model, serial number, hose location, and connection arrangement before installation
Recommended Companion Models
Model
Product Name
S90
Ingersoll Rand Sierra oil-free rotary screw compressor configuration
S110
Ingersoll Rand Sierra oil-free rotary screw compressor configuration
S132
Ingersoll Rand Sierra oil-free rotary screw compressor configuration
S150
Ingersoll Rand Sierra oil-free rotary screw compressor configuration
Frequently Selected Alternatives
Model / Part Number
Typical Use
47578998001
Air-cooled hose package for Sierra 37–75 applications
47579003001
Water-cooled hose package for IRN160K-of applications
23661150
0.38 × 37.00 Teflon hose assembly with straight ORFS connections
23661143
0.38 × 23.50 hose for applicable compressor configurations
Where It Excels in Industrial Use
• Designed as a consolidated service configuration combining the Ingersoll Rand 47578999001 air-cooled hose package for Sierra 90–150 applications with the specified 23661168 hose assembly.
• Supports planned maintenance where replacement of a dedicated flexible hose is required within the compressor's air-cooled service arrangement.
• Suitable for industrial compressed-air installations where reliable hose routing and secure ORFS connections are important to maintaining the intended service circuit.
• The 23661168 component is identified as a 0.50 × 14.50 Teflon hose assembly with a straight ORFS connection and a short 90-degree ORFS connection.
• Provides maintenance teams with a consolidated procurement reference for the requested hose package and individual replacement hose.
Key Strengths at a Glance
• Air-cooled service package: 47578999001 is identified as an air-cooled hose package for Ingersoll Rand Sierra 90–150 applications.
• Teflon hose construction: 23661168 is an original Ingersoll Rand Teflon hose assembly designed for compatible compressed-air equipment.
• Specialized connection geometry: The hose uses a straight ORFS connection at one end and a short 90-degree ORFS connection at the other.
• Compact routing: The 14.50-inch hose length and angled connection can support installations where connection geometry requires a controlled change in direction.
• Application-specific replacement: Proper selection depends on the compressor model, installed hose location, connection arrangement, and current parts documentation.
Technical FAQs
1. What does the 47578999001 23661168 configuration represent?
It represents a complete requested service configuration combining the 47578999001 air-cooled hose package reference with the specified 23661168 hose assembly.
2. What is 47578999001?
47578999001 is identified as an air-cooled hose package for Ingersoll Rand Sierra 90–150 applications.
3. What is 23661168?
23661168 is an Ingersoll Rand Teflon hose assembly with a nominal 0.50-inch diameter and 14.50-inch length.
4. What type of connections does 23661168 use?
The documented assembly uses a straight ORFS connection on one end and a short 90-degree ORFS connection on the other end.
5. Why is the 90-degree connection important?
The angled connection provides a defined change in hose direction, which can help achieve the required routing geometry without forcing the flexible hose into an unsuitable bend.
6. Can 23661168 be substituted with a hose having the same diameter and length?
No. The connection type, fitting orientation, hose construction, pressure rating, temperature capability, and equipment-specific routing must also match the original application.
7. What should be checked before installing 23661168?
The technician should verify the 0.50-inch nominal size, 14.50-inch length, straight-to-90-degree ORFS configuration, hose routing, bend requirements, and compressor-specific installation location.
8. What conditions can shorten the service life of a Teflon hose assembly?
Excessive vibration, repeated flexing, abrasion, elevated temperature, pressure cycling, improper routing, and mechanical loading at the fittings can contribute to premature deterioration.
9. What signs indicate that the hose assembly requires inspection?
Visible abrasion, cracking or deterioration, deformation, leakage, damaged fittings, excessive movement, or evidence of contact with surrounding components should prompt inspection.
10. What should be checked after installing the hose assembly?
The technician should confirm correct fitting orientation and seating, ensure the hose is not twisted or subjected to excessive bending, maintain adequate clearance, and check the circuit for leakage during the applicable operational test.
