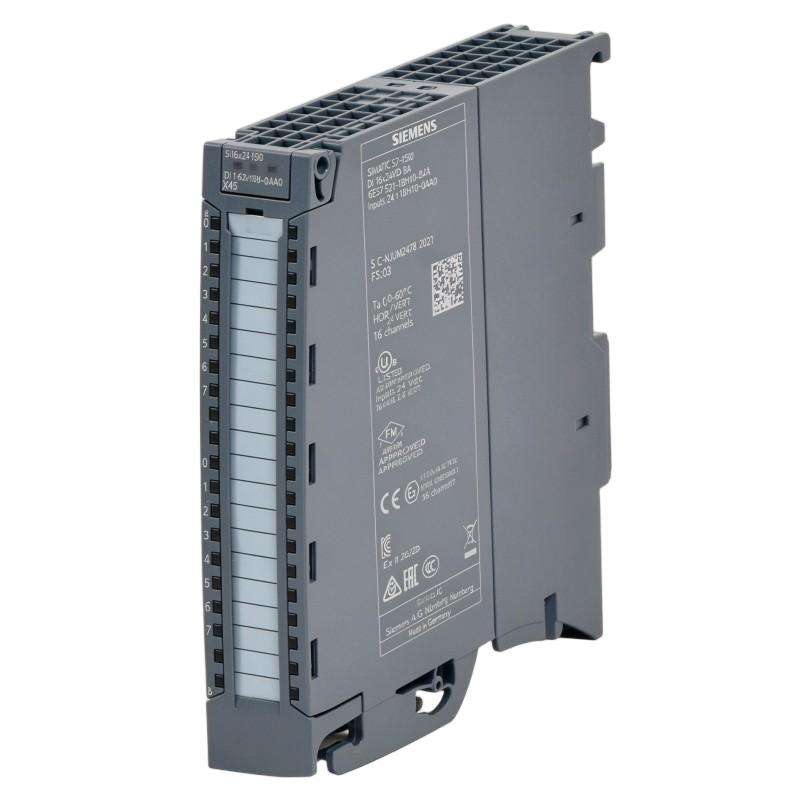

Siemens 6ES7521-1BH10-0AA0 Digital Input Module Troubleshooting for PLC Input Signal Problems

Siemens 6ES7521-1BH10-0AA0 Digital Input Module troubleshooting should begin with signal-path analysis instead of immediate module replacement. When a PLC input does not respond, the fault may come from the field sensor, wiring, power supply, terminal connection, PLC configuration, or the input module itself.

The correct Fault Diagnosis approach follows:

Sensor → Cable → Terminal → Input Channel → PLC Program → Machine Logic

This method allows engineers to locate the actual failure point quickly.

Siemens 6ES7521-1BH10-0AA0 Digital Input Module Fault Symptoms

Common Siemens 6ES7521-1BH10-0AA0 input faults include:

• Input LED does not turn on
• PLC program does not detect sensor status
• Intermittent input signals
• Incorrect machine sequence
• Sensor appears active but PLC remains OFF
• Multiple input channels show abnormal behavior

The first diagnostic step is determining whether the problem affects:

• One input channel
• Multiple channels
• All sensors
• Only one type of field device

This classification helps separate local wiring problems from system-level issues.

Siemens 6ES7521-1BH10-0AA0 Input Signal Fault Diagnosis

When troubleshooting a digital input, compare three points:

1. Field device output
2. Module input terminal
3. PLC software status

Example:

Sensor Output
      ↓
Measure Voltage
      ↓
Input Terminal
      ↓
Check Input LED
      ↓
Monitor PLC Address

If voltage is present at the module terminal but the PLC does not detect the signal, investigate:

• Module configuration
• Terminal connection
• Input channel condition

If voltage is missing at the terminal, investigate:

• Sensor power
• Field wiring
• Sensor output

Siemens 6ES7521-1BH10-0AA0 Sensor Wiring Fault Case Study

A production machine using a Siemens S7-1500 system experienced an intermittent position detection failure.

The operator reported:

• Machine stopped randomly
• Reset restored operation temporarily
• No obvious PLC hardware alarm

The troubleshooting process measured the input signal.

Observed data:

Normal condition:

• Sensor supply: 24.2 VDC
• Sensor output: Stable
• PLC input: ON

During fault:

• Sensor supply: 24.2 VDC
• Sensor output: 24.0 VDC
• PLC input: OFF

The investigation moved toward the wiring path.

A loose terminal connection was found between the sensor cable and the PLC cabinet terminal block.

After tightening the connection:

• Input signal remained stable
• Machine completed repeated cycles
• No further input loss occurred

The digital input module was not defective.

Siemens 6ES7521-1BH10-0AA0 Intermittent Input Troubleshooting

Intermittent PLC inputs are often caused by mechanical connections rather than electronic failure.

Possible causes include:

• Loose terminals
• Damaged sensor cables
• Connector vibration
• Poor grounding
• Unstable sensor output

A useful diagnostic method is monitoring the input during the actual failure condition.

Check:

• Input LED behavior
• PLC online monitoring
• Sensor output voltage
• Cable movement

Avoid replacing components before reproducing the fault. Intermittent problems often disappear after a reset, making evidence collection extremely important.

Siemens 6ES7521-1BH10-0AA0 Incorrect Configuration Fault Diagnosis

A correctly wired sensor may still appear faulty if the PLC configuration does not match the physical hardware.

Check:

• Module position in hardware configuration
• Input address assignment
• PLC program references
• Downloaded hardware configuration

A common maintenance mistake is modifying PLC logic before confirming the physical I/O mapping.

The correct sequence is:

Verify Hardware
       ↓
Verify Address
       ↓
Verify Program Logic
       ↓
Test Field Signal

This prevents software changes from hiding the real problem.

Siemens 6ES7521-1BH10-0AA0 Multiple Channel Input Fault Analysis

If several input channels fail simultaneously, investigate common causes.

Possible reasons:

• Sensor supply failure
• Missing 0V reference
• Common terminal problem
• Incorrect power distribution
• Cabinet wiring issue

For example, if ten sensors connected to the same supply disappear at the same time, the probability of ten individual sensor failures is extremely low.

The diagnostic focus should move toward the shared power or wiring section.

Siemens 6ES7521-1BH10-0AA0 Module Replacement Decision Process

Before replacing the Siemens 6ES7521-1BH10-0AA0 Digital Input Module, confirm:

• Field signal reaches the terminal
• Wiring is correct
• Hardware configuration is correct
• Other input channels behave normally
• Diagnostic information supports module failure

A controlled test using a known-good signal source can help determine whether the input channel is processing signals correctly.

Replacing a PLC module without confirming the cause may result in unnecessary downtime and repeat failures.

Siemens 6ES7521-1BH10-0AA0 Repair Verification After Troubleshooting

After completing repairs, verify the system under normal operating conditions.

The final test should include:

• Sensor activation testing
• PLC input monitoring
• Automatic machine operation
• Repeated production cycles

Record:

• Original fault symptom
• Root cause
• Corrective action
• Test results

This maintenance record improves future troubleshooting efficiency.

Siemens 6ES7521-1BH10-0AA0 Digital Input Module Troubleshooting Best Practices

Reliable Siemens 6ES7521-1BH10-0AA0 Fault Diagnosis depends on systematic signal analysis.

The most effective approach is:

• Confirm field signal
• Check wiring path
• Verify PLC configuration
• Analyze input behavior
• Replace hardware only when evidence supports it

By following an engineering-based Troubleshooting process, technicians can reduce PLC downtime, avoid unnecessary module replacement, and maintain stable Siemens S7-1500 automation systems.
