Introduction

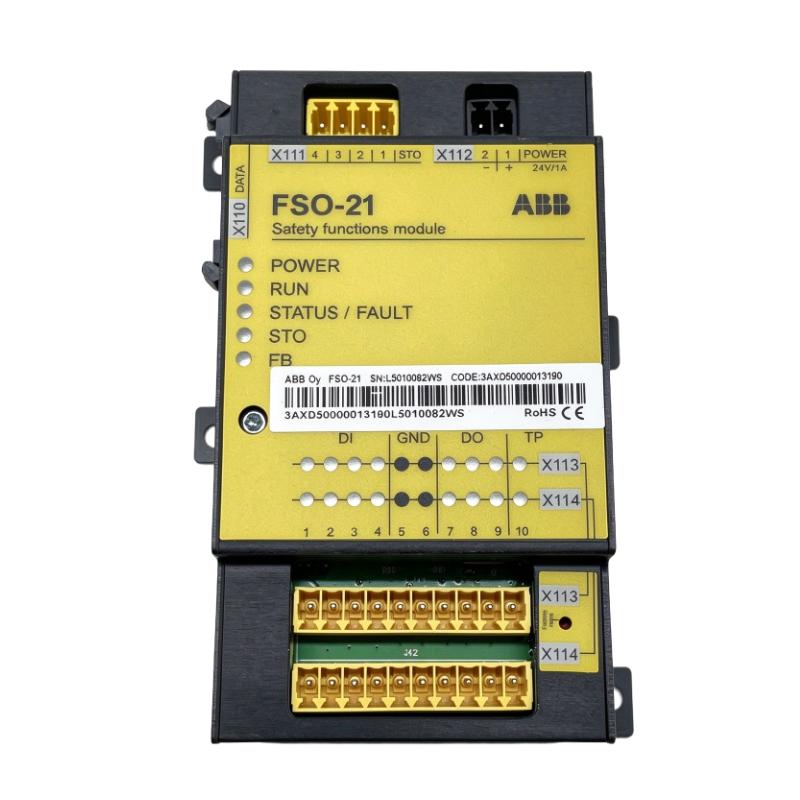

The ABB FSO-21 3AXD50000013190 Safety Function Module is specified as a functional safety component for compatible ABB industrial drive systems. It is intended for applications in which standard motor control must be supplemented by additional safety-related stopping and motion monitoring capabilities.

Industrial machinery often requires more than a basic stop command. Depending on the risk assessment, a system may need to monitor motor speed, supervise direction, control stopping sequences, or prevent an unexpected restart. The FSO-21 supports these types of drive safety applications through its available functional safety features.

For machine builders, system integrators, and maintenance teams, the module offers a way to incorporate drive-level safety into a broader machine protection strategy. Its suitability depends on the target drive, control hardware, firmware, feedback interfaces, and required safety functions.

When purchasing the FSO-21, confirming the complete ordering code is particularly important. The product identification should be checked against the existing installation and the manufacturer's compatibility information to avoid component mismatches and unnecessary commissioning delays.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	FSO-21
Ordering Code	3AXD50000013190
Product Type	Safety Function Module
Product Category	Functional Safety Module
Intended Platform	Compatible ABB drive systems
Drive Compatibility	Selected ACS880 configurations, subject to verification
Supported Safety Functions	SS1, SSE, SBC, SLS, SMS, POUS, SDI, SSM
Encoder Interface	Required for applicable encoder-dependent functions
Configuration	Compatible ABB engineering tools
Installation Type	Drive-integrated module, subject to compatibility
Dimensions	111 × 38 × 76 mm
Weight	0.98 kg / 2.16 lb

Confirm the exact ordering code, hardware revision, drive compatibility, and supported functions before placing an order. Final safety performance depends on the complete safety-related control system and its validated configuration.

Recommended Related Models

The following ABB components may be relevant to drive safety, feedback integration, or industrial communication projects. Each model serves a different purpose and must be checked for compatibility with the intended drive.

Model	Product Type	Application
ABB FSO-12	Safety Functions Module	Drive-level functional safety
ABB FSE-31	Pulse Encoder Interface Module	Encoder feedback for supported safety functions
ABB FSPS-21	PROFIsafe Safety Functions Module	Safety communication in compatible configurations
ABB FENA-21	Ethernet Adapter Module	Ethernet-based drive communication
ABB FPNO-21	PROFINET Adapter Module	PROFINET connectivity for supported drives
ABB FPTC-01	Thermistor Protection Module	Motor temperature protection in compatible installations

Popular Related Models

For maintenance sourcing and industrial automation upgrades, the following ABB drive and safety products may also be worth evaluating.

Model	Product Name	Primary Application
ABB ACS880-01	Wall-Mounted Drive	General industrial motor control
ABB ACS880-04	Drive Module	Cabinet-integrated drive applications
ABB ACS880-07	Cabinet-Built Drive	Industrial drive installations
ABB FSO-12	Safety Functions Module	Functional safety for compatible drive systems
ABB FSE-31	Pulse Encoder Interface Module	Encoder feedback integration
ABB FSPS-21	PROFIsafe Safety Functions Module	Safety communication in supported configurations

Choosing the appropriate ABB safety component starts with identifying the installed drive and the functions required by the machine risk assessment. Verify the ordering code and system compatibility before purchase to support a smoother replacement process and reliable commissioning.

Applications

The ABB FSO-21 Safety Function Module is designed to enhance functional safety in compatible ABB drive systems. By providing additional safety-related motion monitoring and stopping functions, it helps engineers develop machine protection strategies for demanding industrial environments.

Industrial Production Lines: Supports safety-related motor control in automated manufacturing systems where predictable stopping and controlled motion are essential.
Conveyor and Material Handling Equipment: Helps implement drive safety functions for machinery transporting products, components, and bulk materials.
Packaging Machinery: Supports safety strategies for equipment with moving mechanisms, automated feeding systems, and operator access points.
Process Automation: Can be integrated into suitable drive installations requiring additional monitoring of motor speed and direction.
Machine Building: Offers machine manufacturers additional options for implementing drive-level functional safety within their control architecture.
Maintenance and Equipment Upgrades: Provides a potential replacement or upgrade option for compatible drive systems requiring the specified safety functionality.

The FSO-21 is intended for applications where functional safety must be coordinated with the drive, control system, and machine-level protective measures. Appropriate engineering, configuration, and validation are necessary before the equipment enters service.

Advantages

Comprehensive Drive Safety Functions

The FSO-21 supports a range of safety functions, including Safe Stop 1 (SS1), Safe Stop Emergency (SSE), Safe Brake Control (SBC), Safely-Limited Speed (SLS), Safe Maximum Speed (SMS), Prevention of Unexpected Start-up (POUS), Safe Direction (SDI), and Safe Speed Monitor (SSM).

Enhanced Control of Hazardous Motion

Speed and direction monitoring capabilities help engineers implement safety responses suited to applications where unintended movement or excessive motor speed presents a risk.

Integration with Compatible ABB Drive Platforms

The module is designed for supported ABB drive configurations, allowing safety functionality to be incorporated into an established drive architecture without unnecessary changes to the wider automation system.

Flexible Engineering Options

Depending on the selected safety function, the system can use compatible feedback interfaces and other supported drive options to meet application-specific requirements.

Improved Equipment Protection

When correctly configured as part of a validated safety system, the FSO-21 can contribute to reducing risks associated with unexpected starting, unsafe movement, and inappropriate operating conditions.

Practical Sourcing for Industrial Maintenance

For equipment owners and automation specialists, identifying the correct module and ordering code helps streamline replacement planning and reduce the risk of purchasing an incompatible component.

Technical FAQs

Q1: What does the ABB FSO-21 Safety Function Module do?

The FSO-21 extends the functional safety capabilities of compatible ABB drives. It supports safety-related stopping, speed monitoring, direction supervision, and prevention of unexpected start-up, depending on the drive configuration.

Q2: Which drive systems can use the FSO-21?

The module is intended for compatible ABB ACS880 drive configurations. Engineers should verify the drive model, control unit, firmware, hardware revision, and available option interfaces before installation.

Q3: Which safety functions are available?

The FSO-21 supports SS1, SSE, SBC, SLS, SMS, POUS, SDI, and SSM. The specific implementation depends on the supported hardware configuration and the safety requirements of the application.

Q4: Does every FSO-21 application require an encoder?

No. Encoder feedback is not required for every supported safety function. However, encoder-dependent functions, including SDI, require the appropriate compatible feedback interface and configuration.

Q5: Can the FSO-21 replace a machine safety PLC?

It should not automatically be considered a replacement for a safety PLC. The module provides drive-level safety functionality, while the overall machine safety architecture must address all identified hazards, safety inputs, interlocks, and required system-level functions.

Q6: How are safety functions commissioned?

Commissioning involves configuring the supported safety parameters with compatible engineering tools, verifying wiring and interfaces, testing the intended safety responses, and documenting the validation results according to the applicable procedures.

Q7: How do SS1 and SLS differ?

SS1 initiates a controlled stopping sequence before the applicable torque-removal action. SLS monitors whether the motor remains within a configured safe speed limit and triggers the defined safety response if the limit is violated.

Q8: What could cause a safety function to become unavailable?

Potential causes include incorrect parameter settings, missing or invalid feedback, wiring problems, incompatible hardware, drive faults, or unmet safety input conditions. Diagnosis should follow the approved troubleshooting procedure for the complete drive system.

Q9: Can the module be reused after replacement or transfer?

Reuse depends on hardware compatibility and the requirements of the destination drive. The configuration, firmware, connected options, and application-specific safety settings must be checked, followed by the required commissioning and validation.

Q10: What must be verified before returning the drive to service?

Verify module recognition, safety parameter settings, feedback and communication interfaces, fault status, and the response of every implemented safety function. The complete safety system must be validated before normal operation resumes.
