Brand:Schneider PLC Item No.:MT32N2 Product Origin:France Product Dimensions:301 x 196 x 276 mm Product Weight:14 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

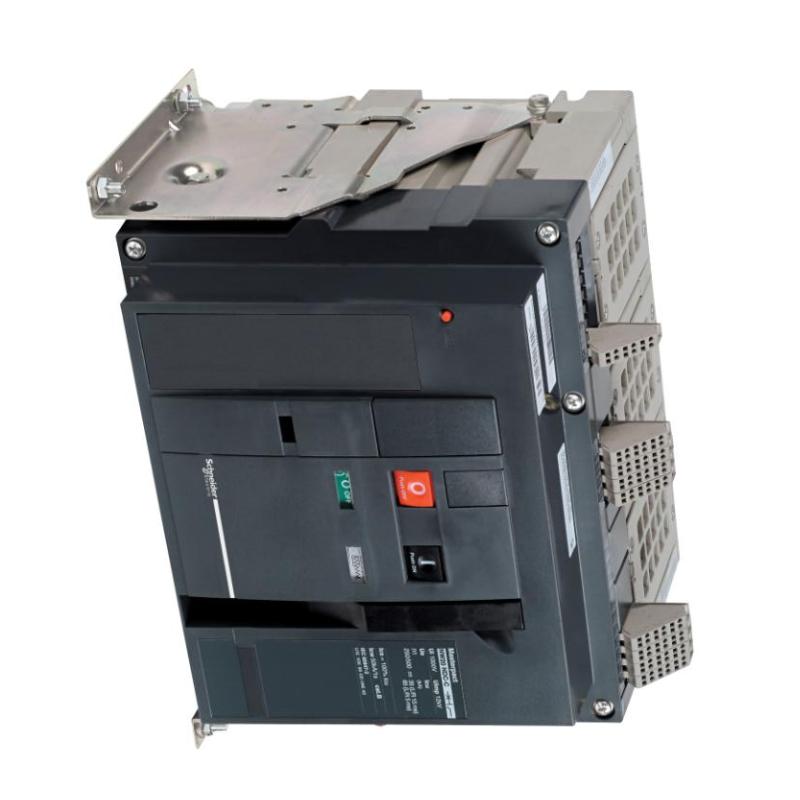

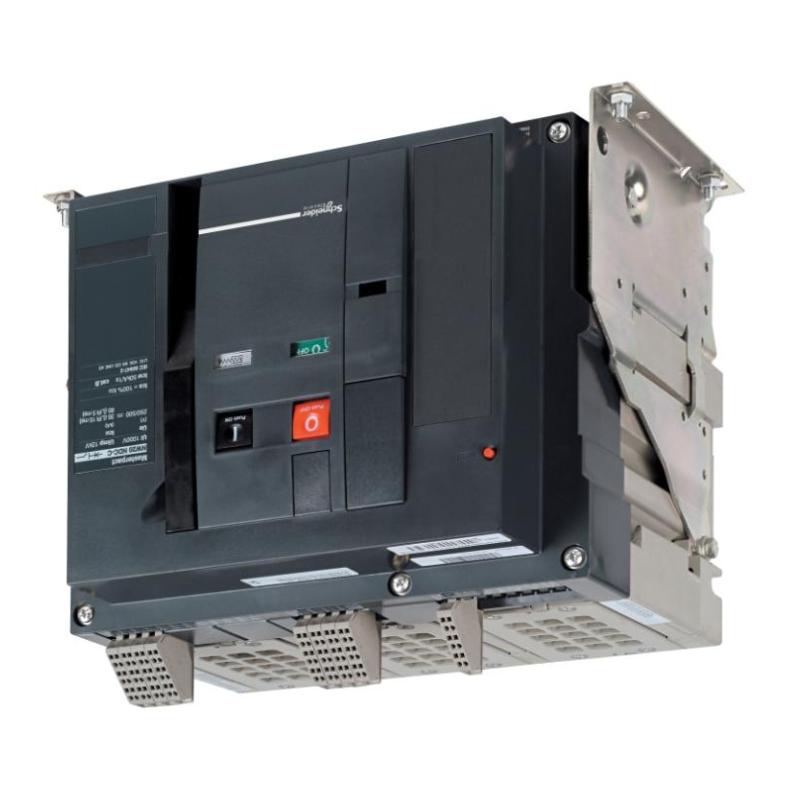

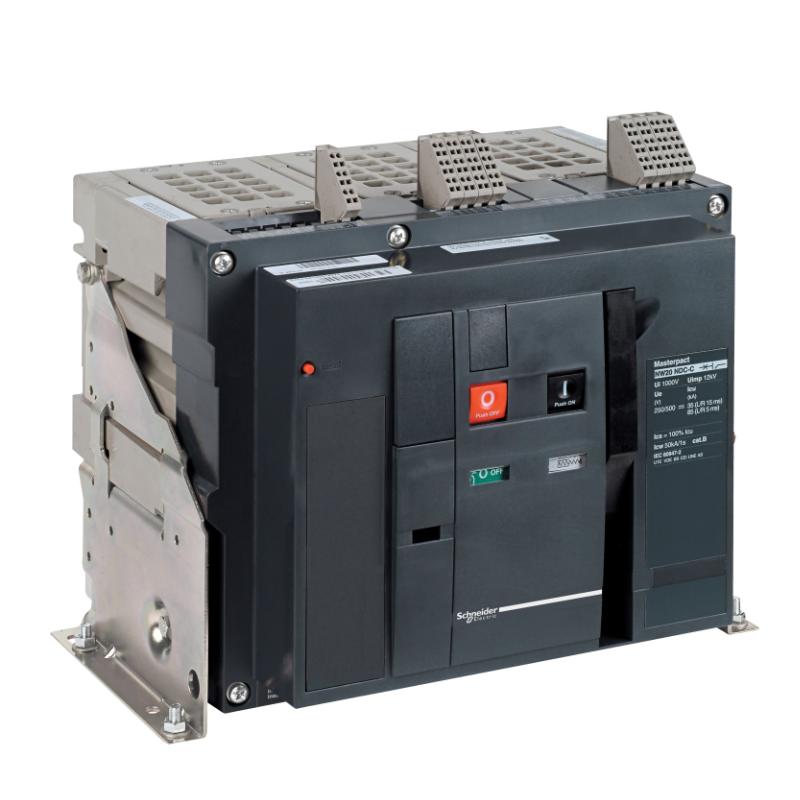

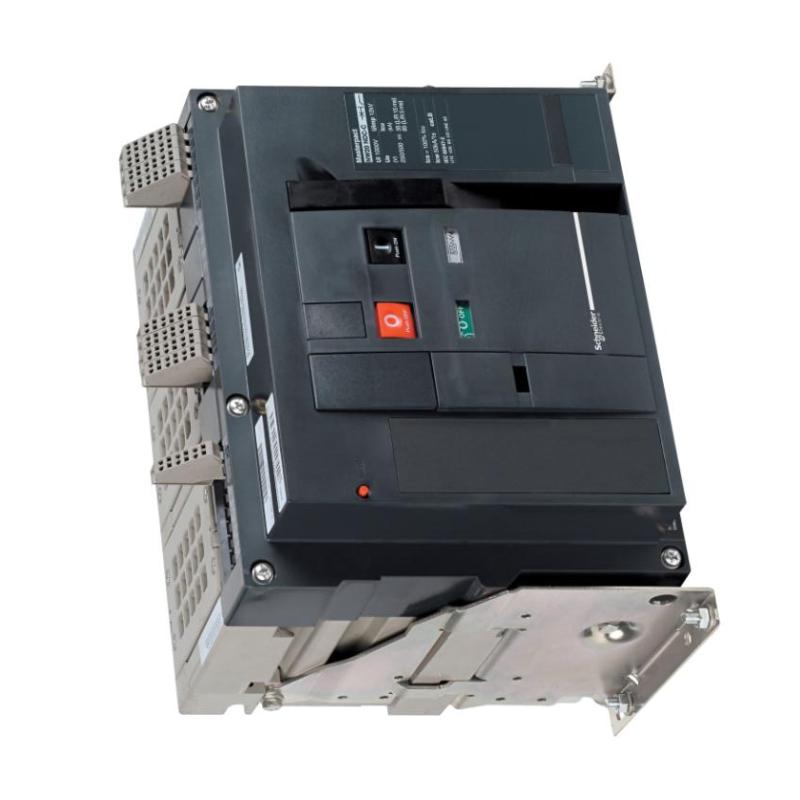

The Schneider MT32N2 Circuit Breaker is an industrial electrical protection component intended for compatible low-voltage power distribution applications. In industrial facilities, circuit breakers are essential elements of electrical safety systems because they help isolate faulty circuits and limit the potential consequences of abnormal current conditions.
Electrical distribution equipment operates under changing load conditions. Motors, production machinery, automation systems, and auxiliary equipment can create different current demands throughout the operating cycle. A suitable circuit breaker helps manage these electrical conditions while providing protection against specified overload and short-circuit events.
The MT32N2 model is relevant to industrial equipment maintenance, electrical panel servicing, and replacement component procurement. Selecting the correct breaker requires careful verification of its complete electrical configuration rather than relying solely on its model family or physical appearance.
For maintenance engineers, system integrators, and industrial spare parts distributors, accurate product identification is particularly important when maintaining existing Schneider Electric installations. A correctly matched replacement helps reduce installation complications and supports the long-term reliability of the electrical distribution system.
When purchasing the Schneider MT32N2, buyers should confirm the nameplate information, electrical ratings, connection arrangement, and compatibility with the target switchgear assembly.
Technical Specifications and Product Data
Parameter
Specification
Brand
Schneider Electric
Model Number
MT32N2
Product Name
Circuit Breaker
Product Type
Low-Voltage Circuit Protection
Product Series
MT Series
Dimensions
301 × 196 × 276 mm
Weight
14 kg
Weight in Pounds
30.86 lb
Application
Industrial Power Distribution
Installation
Compatible Electrical Switchgear
Main Function
Overload and Short-Circuit Protection
Selection Reminder: The exact rated current, operational voltage, breaking capacity, number of poles, and trip-unit configuration should be confirmed using the original nameplate and applicable technical documentation. The model designation alone is insufficient to establish these electrical ratings.
Recommended Related Schneider Electric Models
For maintenance projects involving Schneider Electric industrial circuit breakers, the following models may also be considered for product comparison and spare parts sourcing:
Schneider MT25N2 Circuit Breaker
Schneider MT20N2 Circuit Breaker
Schneider MT16N2 Circuit Breaker
Schneider MT12N2 Circuit Breaker
Schneider MT25H2 Circuit Breaker
Schneider MT32H2 Circuit Breaker
Other Popular Schneider Electric Circuit Breakers
Schneider Electric provides circuit protection solutions for different industrial power distribution requirements. The following models are additional product references for procurement planning:
Schneider MT40H2 Circuit Breaker
Schneider MT50H2 Circuit Breaker
Schneider MT63H2 Circuit Breaker
Schneider MT08H2 Circuit Breaker
Schneider MVS06N Circuit Breaker
Schneider MVS08N Circuit Breaker
Schneider MVS10N Circuit Breaker
Schneider MVS12N Circuit Breaker
Industrial Spare Parts Supply
For industrial buyers, maintaining an accurate spare parts inventory is essential to reducing equipment downtime. When sourcing the Schneider MT32N2 Circuit Breaker, verify the complete model information and electrical specifications before placing an order. Proper product matching helps streamline maintenance operations and supports dependable power distribution across industrial facilities.
Industrial Applications and Operating Environments
The Schneider MT32N2 Circuit Breaker is intended for industrial electrical distribution systems where dependable circuit protection and stable power management are essential. It can be considered for compatible low-voltage switchgear installations, helping protect electrical circuits and connected equipment against abnormal current conditions.
Its potential application areas include:
Factory Power Distribution: Used in industrial electrical distribution assemblies supplying production lines and manufacturing equipment.
Industrial Control Cabinets: Integrated into compatible electrical panels to provide protection for power distribution branches.
Motor Power Circuits: Applied in suitable motor supply arrangements when the breaker's protection characteristics meet the motor circuit requirements.
Commercial Electrical Infrastructure: Supports power distribution and circuit protection in large commercial facilities.
Process Automation Systems: Helps protect electrical supply circuits serving automation equipment and industrial control infrastructure.
Equipment Maintenance Projects: Suitable for consideration as a replacement component in compatible Schneider Electric installations.
Core Advantages and Functional Characteristics
1. Dependable Electrical Protection
The MT32N2 is designed for circuit protection applications, helping interrupt abnormal current conditions when the electrical system exceeds the device's specified operating limits.
2. Industrial Distribution Compatibility
It is intended for integration into suitable electrical distribution arrangements, supporting organized power management in industrial installations.
3. Equipment Safety Support
Appropriate circuit breaker selection helps protect cables, electrical assemblies, and connected equipment from the effects of overloads and short circuits.
4. Simplified Spare Parts Identification
The complete MT32N2 model designation provides maintenance and procurement teams with a clear identification reference when sourcing replacement components.
5. Support for Planned Maintenance
Replacing aging or defective protection equipment with a verified compatible component helps maintenance teams restore electrical system functionality.
6. Flexible Industrial Applications
The breaker can be evaluated for different power distribution requirements, provided that its rated electrical characteristics and protection configuration match the application.
Technical FAQs – Engineering and Maintenance Guide
Q1: What is the purpose of the Schneider MT32N2 Circuit Breaker?
A: It is intended to provide electrical circuit protection by interrupting current under abnormal operating conditions, helping reduce the risk of damage to connected equipment and electrical installations.
Q2: How does a circuit breaker respond to an overload?
A: The overload protection mechanism responds when current remains above the specified operating threshold for a sufficient period. Depending on the protection design, a thermal or electronic trip mechanism may initiate circuit interruption.
Q3: What is the difference between a circuit breaker and an isolator?
A: A circuit breaker is designed to interrupt normal operating current and specified fault currents. An isolator primarily provides electrical isolation and is not necessarily designed to interrupt fault current.
Q4: Can the MT32N2 replace another Schneider circuit breaker?
A: Replacement should not be based on model appearance alone. Rated current, voltage, breaking capacity, pole configuration, mounting arrangement, and electrical connections must be checked for compatibility.
Q5: What causes a circuit breaker to trip immediately after closing?
A: Possible causes include a short circuit, ground fault, incorrect wiring, damaged insulation, or a defective connected load. The fault should be investigated before attempting to re-energize the circuit.
Q6: Why is proper protection coordination important?
A: Protection coordination helps ensure that the protective device closest to an electrical fault operates first. This reduces unnecessary power interruptions across unaffected sections of the installation.
Q7: How can electrical contact deterioration affect breaker performance?
A: Worn or damaged contacts may increase electrical resistance, generate excessive heat, and affect the breaker's ability to operate reliably. Inspection and servicing should follow the manufacturer's procedures.
Q8: Is it necessary to test a circuit breaker after installation?
A: Yes. Appropriate commissioning checks should verify mechanical operation, electrical connections, protection settings where applicable, and compliance with the installation's safety requirements.
Q9: Can environmental conditions influence circuit breaker performance?
A: Yes. High ambient temperatures, humidity, dust accumulation, vibration, and inadequate ventilation can affect electrical equipment performance and service life. Installation conditions should remain within the specified operating limits.
Q10: What information should be provided when ordering an MT32N2 replacement?
A: Provide the complete model designation, product identification information, electrical ratings, photographs of the nameplate, and the existing installation details. This helps confirm the correct replacement configuration.
