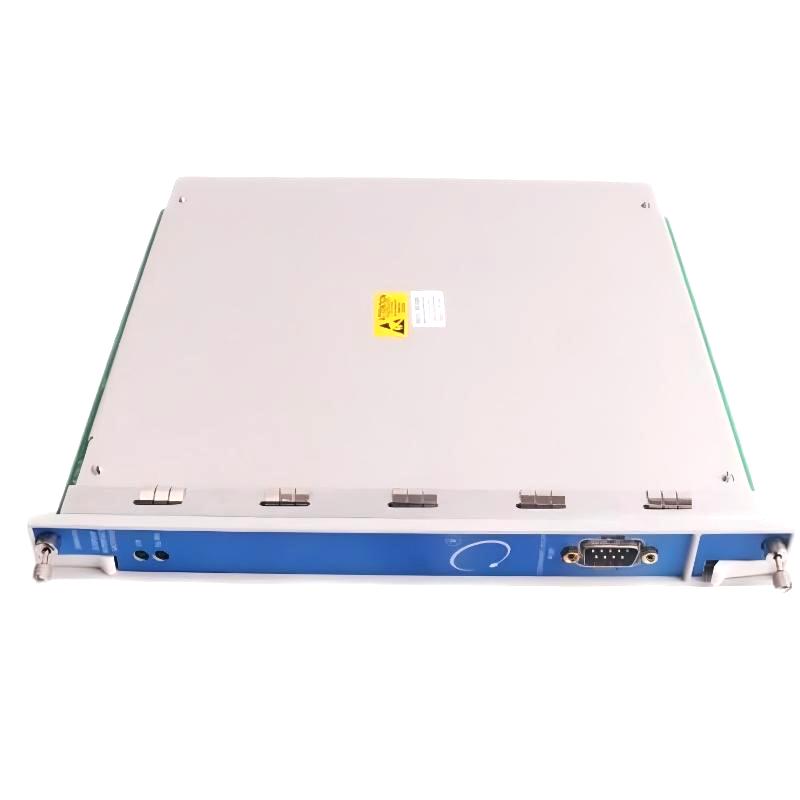

Bently Nevada 3500/94M 145988-01 VGA Display Module

Applications

The Bently Nevada 3500/94M 145988‑01 VGA Display Module provides high‑quality visual output for machinery protection and diagnostic data from the 3500 Series monitoring system. It is commonly deployed in power plants, petrochemical refineries, gas compression stations, turbine and generator monitoring, and other industrial control environments where operators and maintenance personnel require immediate, clear insight into equipment status, alarms, and trends. The module converts data from the 3500 rack into VGA signals for operator displays or control room workstations.

Advantages

• High-Resolution Visual Output: Provides precise and reliable VGA display for monitoring alarms, machine status, and diagnostic information.

• Seamless Integration: Designed for full compatibility with Bently Nevada 3500 Series racks and communication modules.

• Improved Situational Awareness: Enables operators to quickly interpret machinery health, alarms, and trend data for faster decision-making.

• Industrial-Grade Reliability: Supports continuous 24/7 operation in environments with vibration, temperature changes, and heavy-duty use.

• Simplified Display Management: Reduces complexity by providing centralized VGA output from multiple monitoring channels.

Technical FAQs

1. What is the primary function of the 3500/94M module?
   It converts and outputs rack data into VGA signals for operator and control room displays.

2. Where is this module installed?
   In a Bently Nevada 3500 Series rack or associated display enclosure.

3. Is it compatible with other 3500 modules?
   Yes — fully compatible with the 3500 system’s communication and protection modules.

4. Can it handle multiple alarms and machine statuses?
   Yes — provides real-time visualization for alarms, diagnostics, and trending data.

5. Does it operate reliably in industrial environments?
   Yes — engineered for 24/7 continuous operation with vibration and temperature tolerance.

6. Can it improve operator response times?
   Yes — timely visualization of machine status and alarms enhances decision-making.

7. Is specialized training required for installation?
   Installation should be performed by personnel familiar with 3500 Series rack wiring and display configuration.

8. Does it support high-resolution displays?
   Yes — delivers VGA output suitable for detailed operator screens and diagnostic interfaces.

9. Can it simplify control room design?
   Yes — centralizes visual output, reducing the need for multiple point-to-point display connections.

10. Is it suitable for large-scale monitoring systems?
    Yes — designed for systems where multiple operator stations need synchronized and reliable VGA output.
