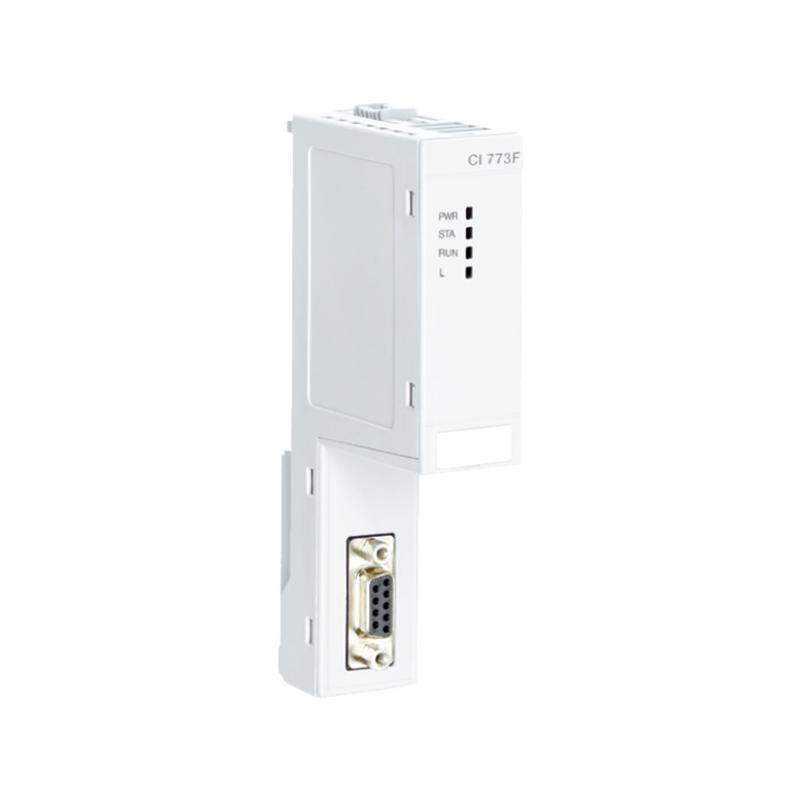

The ABB CI 773F Communication Interface Module is an advanced, highly reliable communication interface designed for seamless integration into industrial automation systems. Supporting both Profibus DP and Ethernet/IP protocols, the CI 773F enhances connectivity, data transfer, and interoperability across a wide range of ABB and third-party devices. Whether you're automating a production line or managing complex machinery, the CI 773F ensures smooth and efficient communication between control systems and field devices, improving system reliability and performance.

With its robust design and wide range of compatible protocols, the ABB CI 773F is an ideal solution for industries that require fast, reliable, and secure data transfer. This module supports real-time communication, providing the backbone for modern industrial systems to operate smoothly and efficiently. Furthermore, its easy configuration and high flexibility make it an excellent choice for projects of various sizes, from simple applications to large, complex automation systems.

Technical Specifications

Parameter	Details
Model	CI 773F
Type	Communication Interface Module
Supported Protocols	Profibus DP, Ethernet/IP
Data Transmission Speed	12 Mbps (Profibus DP)
Communication Ports	1 x Profibus DP, 1 x Ethernet/IP
Power Supply	24V DC
Dimensions	144mm x 118mm x 35mm
Weight	0.4 kg (0.88 lbs)
Operating Temperature	-20°C to +60°C
Mounting	DIN Rail, Panel Mount
Environment Protection	IP20
Indicators	LED for status, diagnostic, and error
Certifications	CE, UL, IEC, RoHS
Max Current	300mA
Operating Voltage Range	19.2V DC to 30V DC

Recommended Related Models

ABB CI 777F Ethernet Communication Interface
ABB CP-777 Profibus Master
ABB AC 800M Controller
ABB I/O System 800xA
ABB S500 I/O Modules

Popular ABB Models

ABB AC 800M Controller
ABB CI 701 Communication Interface
ABB 800xA Distributed Control System
ABB S500 I/O Modules
ABB PM554 Programmable Logic Controller
ABB Frequency Converter ACS580

Applications

Industrial Automation: Used for reliable communication between programmable logic controllers (PLCs), sensors, and actuators in manufacturing processes.
Building Automation: Facilitates communication between different control systems in smart buildings, such as HVAC, lighting, and security.
Energy Management Systems: Ensures efficient communication between energy meters, control systems, and energy management software.
Process Control: Ideal for controlling and monitoring continuous processes such as in chemical plants, oil refineries, and paper mills.
Factory Automation: Facilitates real-time data transfer and control between robots, machinery, and central controllers for optimized production.
Power Distribution Systems: Ensures smooth and reliable communication within substations or distributed power networks, improving control and monitoring.

Advantages

Dual-Protocol Support: Supports both Profibus DP and Ethernet/IP, ensuring compatibility with a wide variety of devices and control systems.
Fast Data Transfer: Profibus DP allows for high-speed communication at up to 12 Mbps, ensuring rapid data exchange between devices.
Flexible Mounting Options: Can be mounted on DIN rails or directly onto panels, offering flexibility for different installations.
Real-Time Communication: Supports real-time data transfer, ensuring that your system can respond to changes instantly, reducing downtime and improving performance.
Easy Configuration: Quick and straightforward configuration for seamless integration into existing automation setups, even in large systems.
Reliable & Robust: Designed to operate in demanding industrial environments with an operating temperature range of -20°C to +60°C.
LED Status Indicators: Visual indicators make diagnostics easy, helping operators quickly identify and resolve issues.
Compact Design: Its small size allows installation in tight spaces, optimizing use of available panel space.
High Compatibility: Can be used with a wide range of ABB and third-party devices, offering a high level of flexibility in system design.
Energy-Efficient: Low power consumption of just 300mA ensures that the unit contributes to overall energy efficiency in your system.

Technical FAQs

What protocols are supported by the ABB CI 773F module?
The CI 773F supports Profibus DP and Ethernet/IP protocols, ensuring compatibility with a wide range of automation devices.
What is the data transmission speed of the CI 773F?
The Profibus DP communication speed is 12 Mbps, allowing for high-speed data transfer between devices.
What is the power requirement for the CI 773F?
The module requires a 24V DC power supply with a current consumption of 300mA.
Can the CI 773F be used with other ABB devices?
Yes, the CI 773F is designed for seamless integration with other ABB automation products such as PLCs, controllers, and I/O systems.
What are the mounting options for the CI 773F?
The module can be mounted either on DIN rails or directly onto a panel, providing flexible installation options.
Does the CI 773F support real-time communication?
Yes, the CI 773F supports real-time communication, making it ideal for time-sensitive applications in industrial automation.
What is the environmental protection rating of the CI 773F?
The module has an IP20 protection rating, meaning it is protected against solid objects larger than 12mm but is not rated for protection against water.
What is the operating temperature range for the CI 773F?
The CI 773F operates within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.
Is remote diagnostics supported by the CI 773F?
Yes, the LED status indicators on the module provide diagnostic information, helping operators quickly identify and address any issues.
Can the CI 773F be used in both industrial and commercial environments?
Yes, the CI 773F is suitable for a wide range of environments, including industrial automation, building management, energy systems, and commercial control applications.
