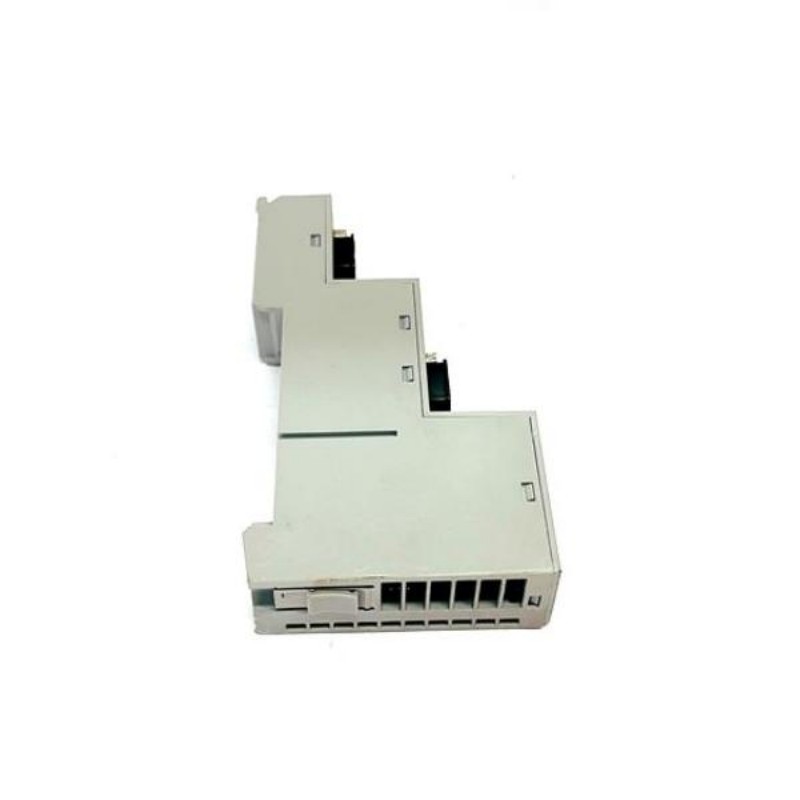

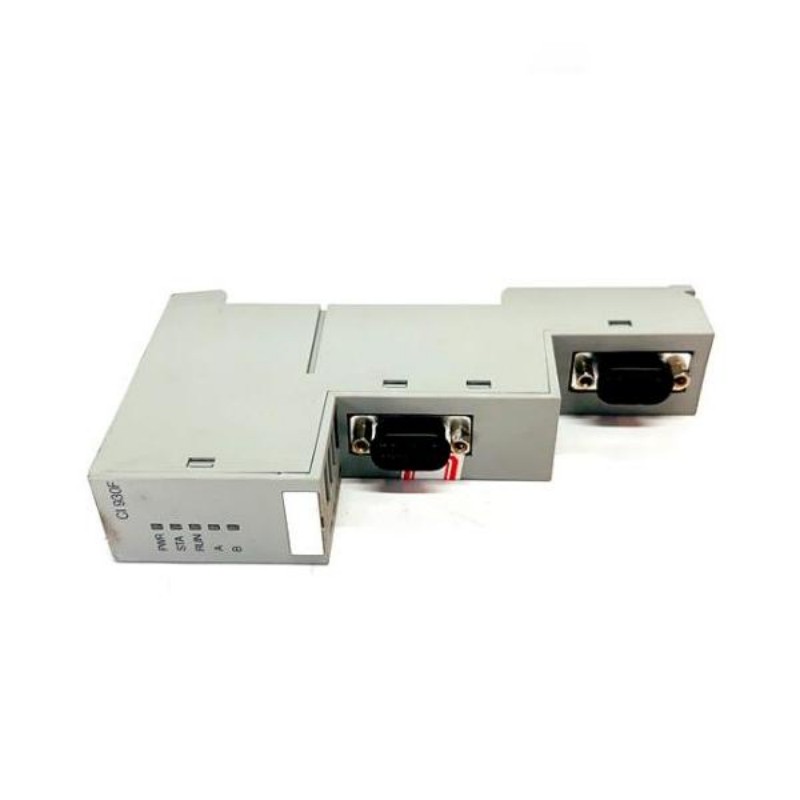

ABB CI 930F Communication Interface Module for Industrial Automation with Modbus TCP and Profibus DP Connectivity

Applications

• Industrial Automation: Ideal for connecting multiple devices in factory automation, ensuring seamless communication between PLCs, sensors, actuators, and other automation components.

• Process Control: Supports real-time data communication in process control environments such as chemical plants, power stations, and oil refineries.

• Building Automation: Can be used for managing HVAC, lighting, and security systems in commercial buildings through reliable communication with control systems.

• Energy Management: Enables efficient communication between energy meters, control systems, and energy management platforms in smart grids and power distribution networks.

• Factory Equipment Control: Ensures smooth integration and control of machinery and robots in production lines, optimizing operational workflows.

• Renewable Energy Systems: Facilitates communication in solar, wind, or hybrid systems for real-time monitoring and control of energy production and distribution.

Advantages

1. Dual-Protocol Support: The CI 930F supports both Modbus TCP and Profibus DP, allowing it to connect with a wide variety of devices and systems across different industrial networks.

2. High-Speed Communication: With data transmission speeds of 100 Mbps for Modbus TCP and 10 Mbps for Profibus DP, the module ensures fast, real-time data exchange.

3. Flexible Mounting Options: The CI 930F can be easily mounted on a DIN rail or directly on a panel, offering flexibility for different installation scenarios.

4. Reliable Operation: Designed to operate in harsh industrial environments, with an operating temperature range of -20°C to +60°C.

5. Easy Diagnostics: LED indicators provide real-time status updates and diagnostics, allowing for quick troubleshooting and minimal downtime.

6. Compact Design: The module’s compact size allows for easy integration into systems with limited space.

7. Robust Construction: Built to withstand industrial conditions, offering long-lasting reliability and protection against dust and debris (IP20 rated).

8. Efficient Power Usage: The unit consumes only 300mA, making it energy-efficient while delivering high performance.

9. Wide Compatibility: It is fully compatible with ABB automation systems and a wide range of third-party equipment, allowing for easy system upgrades or expansions.

10. Global Certification: Meets international safety and environmental standards with CE, UL, IEC, and RoHS certifications.

Technical FAQs

1. What communication protocols does the CI 930F support?
   The CI 930F supports both Modbus TCP and Profibus DP, enabling flexible and reliable communication in industrial systems.

2. What is the maximum data transmission speed of the CI 930F?
   The module offers 100 Mbps for Modbus TCP and 10 Mbps for Profibus DP communication.

3. What is the power requirement for the CI 930F?
   The module operates with a 24V DC power supply and consumes 300mA.

4. Can I mount the CI 930F in tight spaces?
   Yes, the CI 930F has a compact design (160mm x 120mm x 40mm) and can be mounted on DIN rails or directly onto panels for flexible installation.

5. Does the CI 930F support real-time communication?
   Yes, the module supports real-time data transfer, ensuring your industrial system remains responsive and optimized.

6. What is the temperature range for operating the CI 930F?
   The CI 930F can operate in environments with temperatures ranging from -20°C to +60°C, making it suitable for diverse industrial environments.

7. Can I use the CI 930F with third-party devices?
   Yes, the module is designed to work with ABB devices as well as a wide range of third-party devices that support Modbus TCP or Profibus DP.

8. What type of protection does the CI 930F provide?
   The CI 930F has an IP20 protection class, meaning it is protected from solid objects greater than 12mm in size but not from water.

9. What certifications does the CI 930F have?
   The module meets international standards including CE, UL, IEC, and RoHS, ensuring its safety and environmental compatibility.

10. How do I perform diagnostics on the CI 930F?
    The module has LED status indicators that display real-time operational data, making it easy to identify issues and perform quick troubleshooting.
