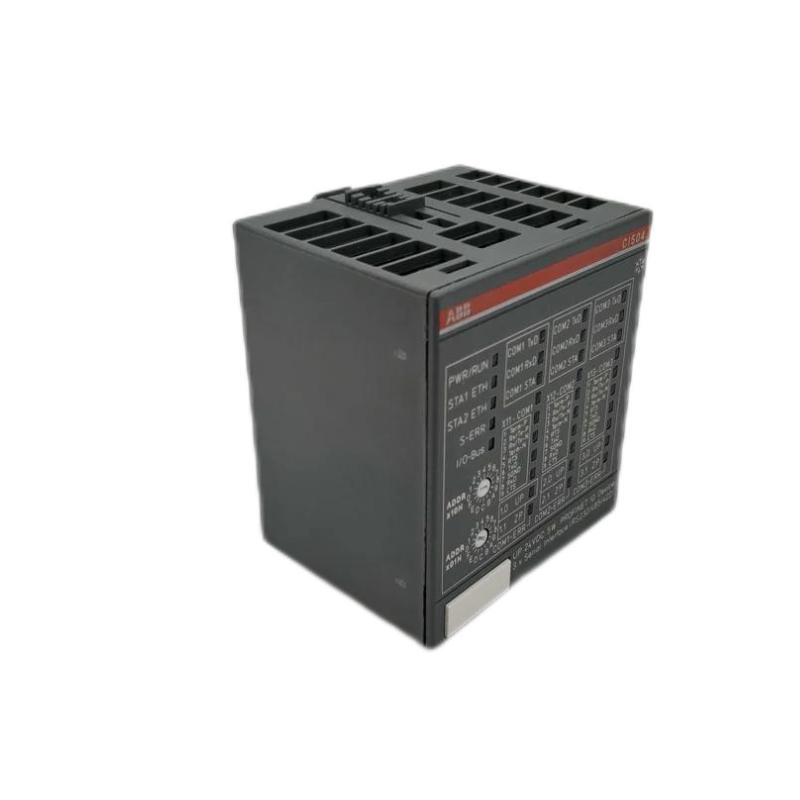

ABB CI504-PNIO Communication Interface Module for PROFINET and Ethernet Connectivity in Industrial Automation

Applications

• Industrial Automation: The CI504-PNIO is essential for connecting various devices like PLCs, sensors, and actuators in automated systems, ensuring smooth data flow across different networks.

• Process Control: Provides reliable, high-speed communication in industries that require continuous monitoring and control, such as chemical, pharmaceutical, and food & beverage production.

• Building Automation: Supports seamless integration between various building control systems (e.g., HVAC, lighting, security) for optimal energy usage and performance.

• Energy Management: Enables communication between smart meters, energy management systems, and control units, contributing to efficient energy monitoring and grid management.

• Factory Equipment Control: Ensures quick and reliable communication between machines, robots, and central controllers, optimizing production efficiency and minimizing downtime.

• Renewable Energy Systems: Supports the integration of renewable energy sources, such as solar and wind power, providing real-time communication for monitoring and control.

Advantages

1. Dual-Protocol Support: The CI504-PNIO supports both PROFINET and Ethernet protocols, allowing compatibility with a wide range of devices and systems.

2. High-Speed Communication: With 100 Mbps for both Ethernet and PROFINET, the module ensures fast and efficient data transfer across the network.

3. Compact Design: The CI504-PNIO’s compact form factor (180mm x 140mm x 45mm) allows it to be easily installed in spaces with limited panel space, without sacrificing performance.

4. Real-Time Communication: Optimized for real-time data transfer, the CI504-PNIO ensures minimal delay, making it ideal for time-sensitive applications like factory automation and process control.

5. Seamless Integration: The module is easy to integrate with existing systems, allowing for rapid deployment and quick configuration, even in complex systems.

6. Wide Operating Temperature Range: With an operating temperature range of -20°C to +60°C, the module is built to perform in a variety of industrial environments.

7. LED Diagnostic Indicators: Equipped with LED indicators, the module provides real-time diagnostic information, making maintenance and troubleshooting simple.

8. Energy-Efficient: The CI504-PNIO operates with a current consumption of just 250mA, helping to reduce overall power consumption in industrial systems.

9. Global Certifications: The module is certified with CE, UL, IEC, and RoHS, ensuring compliance with international safety and environmental standards.

10. Flexible Mounting Options: The module can be mounted on DIN rails or directly onto panels, offering flexibility for various installation configurations.

Technical FAQs

1. What communication protocols does the CI504-PNIO support?
   The CI504-PNIO supports both PROFINET and Ethernet protocols, allowing for wide compatibility with numerous automation systems and devices.

2. What is the data transmission speed of the CI504-PNIO?
   The CI504-PNIO offers 100 Mbps data transmission for both Ethernet and PROFINET, ensuring high-speed communication.

3. What is the power requirement for the CI504-PNIO?
   The module operates with a 24V DC power supply and has a current consumption of 250mA.

4. Can the CI504-PNIO be mounted in tight spaces?
   Yes, the compact design (180mm x 140mm x 45mm) of the CI504-PNIO makes it suitable for installation in limited spaces.

5. Does the CI504-PNIO support real-time communication?
   Yes, the CI504-PNIO is optimized for real-time data transfer, making it ideal for applications where quick response times are critical.

6. What is the operating temperature range for the CI504-PNIO?
   The CI504-PNIO can operate in environments with temperatures ranging from -20°C to +60°C, making it suitable for various industrial environments.

7. Can I use the CI504-PNIO with third-party devices?
   Yes, the CI504-PNIO is compatible with a variety of devices supporting PROFINET and Ethernet, providing flexibility in system integration.

8. What is the protection class of the CI504-PNIO?
   The CI504-PNIO has an IP20 protection class, meaning it is protected against solid objects larger than 12mm but not against water.

9. What certifications does the CI504-PNIO have?
   The module is certified with CE, UL, IEC, and RoHS, ensuring it meets global safety and environmental standards.

10. How do I diagnose issues with the CI504-PNIO?
    The LED indicators on the CI504-PNIO provide clear status updates and diagnostic information, helping you quickly identify and address any issues.
