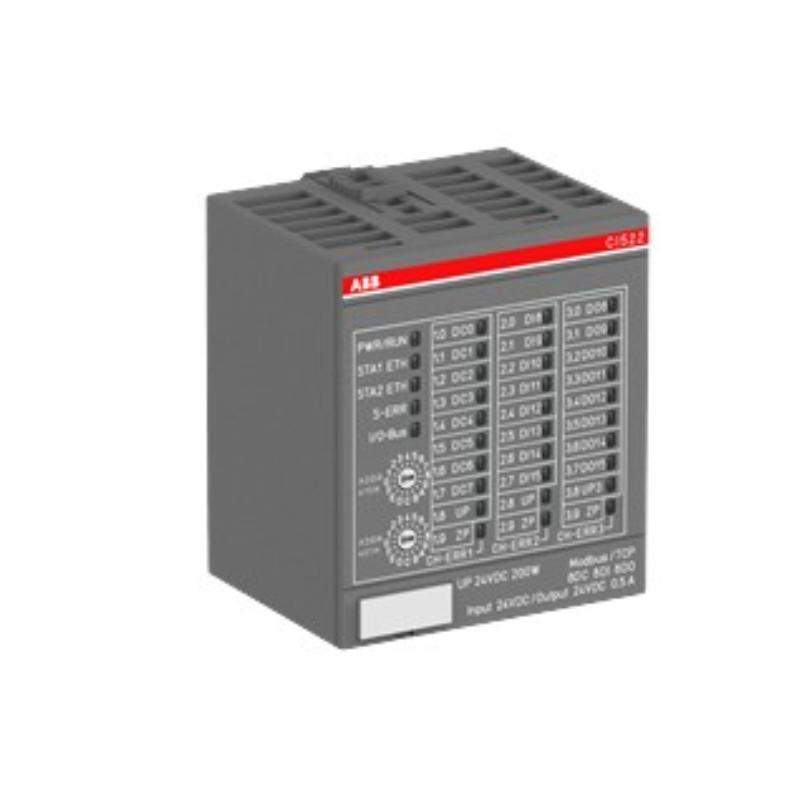

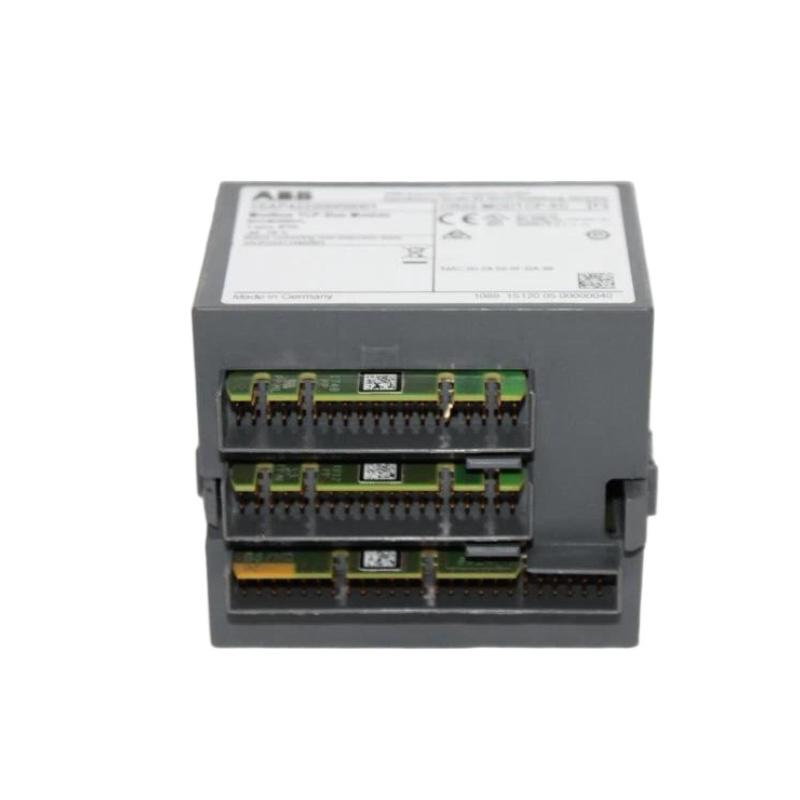

ABB CI522-MODTCP Communication Interface Module for Modbus TCP/IP Integration in Industrial Automation

Applications

• Industrial Automation: The CI522-MODTCP enables high-speed communication between PLCs, I/O devices, and control systems, facilitating seamless integration and automation in industrial environments.

• Factory Automation: Provides real-time communication between machinery, control systems, and remote I/O devices, optimizing factory operations and reducing downtime.

• Process Control: Perfect for industries such as chemicals, pharmaceuticals, and food & beverage, the module enables precise monitoring and control of automated processes.

• Building Automation: Integrates HVAC, lighting, and security systems into a unified communication network, allowing for centralized control and efficient energy management.

• Energy Management: The CI522-MODTCP facilitates the integration of energy monitoring and control systems, providing real-time insights into energy consumption and enabling smarter, more efficient power distribution.

• Remote Monitoring and Control: The module supports remote access via Modbus TCP/IP, allowing for centralized monitoring and control of industrial systems from remote locations.

• Renewable Energy Systems: Facilitates the integration of renewable energy sources like solar or wind power with industrial control systems for effective energy monitoring and distribution.

Advantages

1. Modbus TCP/IP Protocol: The CI522-MODTCP exclusively supports Modbus TCP/IP, ensuring seamless integration into existing Ethernet-based networks and enhancing interoperability with a wide range of industrial devices.

2. High-Speed Ethernet Communication: The module supports 100 Mbps Ethernet communication, offering fast and reliable data transfer for time-sensitive applications.

3. Compact and Flexible Design: With dimensions of 180mm x 140mm x 45mm, the CI522-MODTCP fits easily into tight spaces, and its DIN rail and panel mount options provide installation flexibility.

4. Real-Time Data Exchange: Designed for real-time communication, the module supports low-latency data transfer, ensuring quick response times and synchronized control of industrial systems.

5. Easy Integration: The CI522-MODTCP is easy to integrate into both new and existing automation systems, providing seamless communication for Modbus-compatible devices.

6. Energy-Efficient: Operating with a low current consumption of 300mA, the CI522-MODTCP minimizes power usage, contributing to overall energy savings in industrial systems.

7. Durable and Reliable: The module operates within a wide temperature range of -20°C to +60°C, making it ideal for use in harsh industrial environments where reliability is paramount.

8. LED Diagnostic Indicators: The LED indicators provide real-time status updates and diagnostic information, helping technicians monitor the device's operation and troubleshoot issues efficiently.

9. Global Certifications: The CI522-MODTCP meets international safety and environmental standards, including CE, UL, IEC, and RoHS, ensuring reliable operation in diverse global markets.

10. Scalability and Future-Proof: The module supports scalability for network expansions, allowing your system to grow alongside your automation needs, ensuring future-proof communication solutions.

Technical FAQs

1. What communication protocol does the CI522-MODTCP support?
   The CI522-MODTCP supports the Modbus TCP/IP protocol for Ethernet-based communication, enabling integration with a wide range of devices.

2. What is the data transmission speed of the CI522-MODTCP?
   The CI522-MODTCP supports 100 Mbps Ethernet communication, offering fast and reliable data transfer across the network.

3. What is the power requirement for the CI522-MODTCP?
   The CI522-MODTCP operates on a 24V DC power supply, with a current consumption of 300mA.

4. Can the CI522-MODTCP be installed in confined spaces?
   Yes, with its compact dimensions (180mm x 140mm x 45mm), the CI522-MODTCP is ideal for installation in tight spaces and offers flexible mounting options on DIN rails or directly onto panels.

5. Does the CI522-MODTCP support real-time communication?
   Yes, the CI522-MODTCP is designed for real-time communication, ensuring minimal latency for quick and efficient data exchange.

6. What is the operating temperature range for the CI522-MODTCP?
   The CI522-MODTCP can operate in environments with temperatures ranging from -20°C to +60°C, making it suitable for a wide range of industrial settings.

7. Can I integrate the CI522-MODTCP with third-party Modbus devices?
   Yes, the CI522-MODTCP is fully compatible with any device supporting the Modbus TCP/IP protocol, offering easy integration into existing systems.

8. What is the protection class of the CI522-MODTCP?
   The CI522-MODTCP has an IP20 protection class, providing protection against solid objects larger than 12mm, but it is not resistant to water or dust.

9. What certifications does the CI522-MODTCP have?
   The CI522-MODTCP complies with CE, UL, IEC, and RoHS certifications, ensuring it meets international safety and environmental standards.

10. How do I perform diagnostics on the CI522-MODTCP?
    The module features LED indicators that provide real-time status updates and diagnostic information, making it easy to identify and troubleshoot potential issues.
