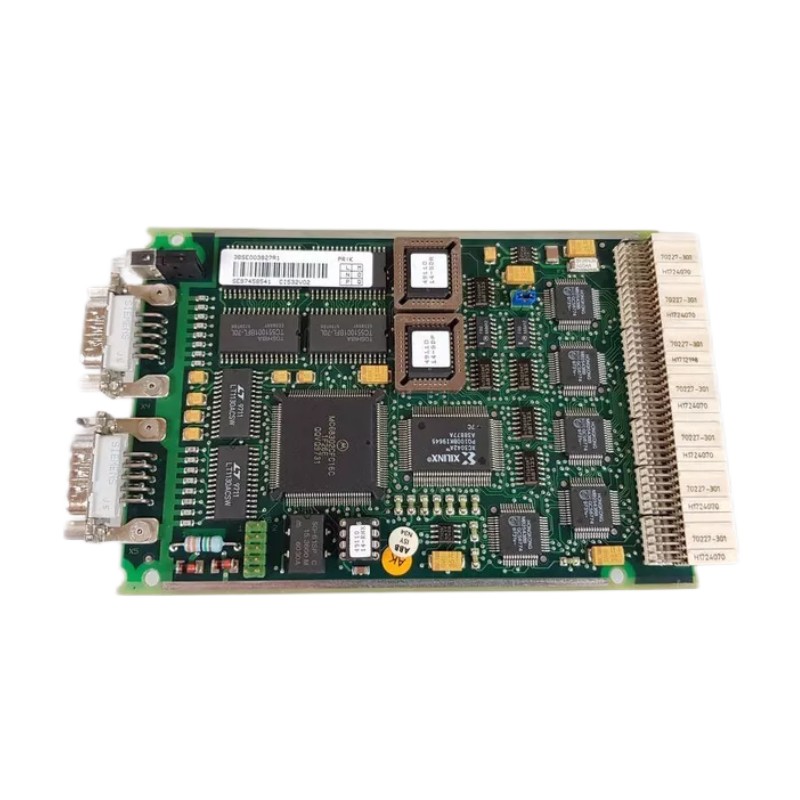

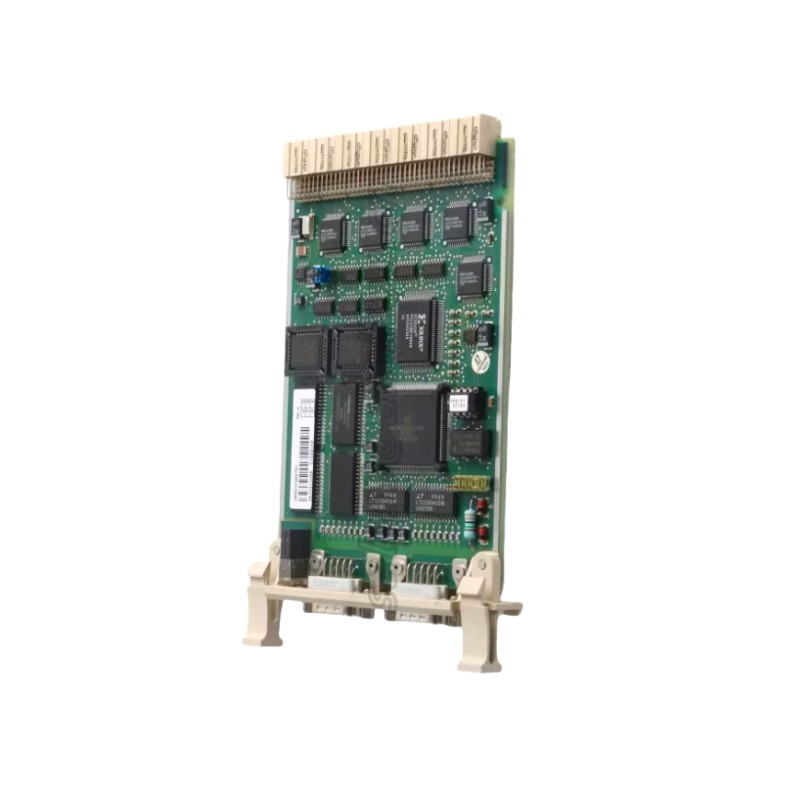

ABB CI532V02 Communication Interface Module for Industrial Automation and Network Integration

Applications

• Industrial Automation: The CI532V02 ensures real-time communication between PLCs, remote I/O, and control systems, enabling smooth and efficient automation of industrial processes.

• Factory Automation: With its ability to communicate seamlessly between machinery and control systems, the CI532V02 is ideal for automating production lines and improving factory performance.

• Process Control: Perfect for applications in industries like chemicals, pharmaceuticals, food & beverage, and energy, the CI532V02 allows continuous monitoring and precise control of automated processes.

• Energy Management: Used in energy management systems, this module provides real-time data exchange for monitoring and optimizing energy consumption across industrial systems.

• Building Automation: It integrates with building management systems for controlling HVAC, lighting, and security, enabling centralized monitoring and improved operational efficiency.

• Remote Monitoring: The CI532V02 offers remote access to industrial systems via Ethernet and Modbus TCP/IP, allowing centralized control and monitoring from remote locations.

• Renewable Energy Systems: Ideal for managing and monitoring renewable energy sources such as solar and wind by integrating them into automation networks for better system efficiency.

Advantages

1. Multi-Protocol Flexibility: The CI532V02 supports multiple protocols, including Ethernet, Modbus TCP/IP, OPC, and Profibus, making it compatible with a wide range of industrial devices and networks.

2. High-Speed Data Transfer: With 100 Mbps Ethernet and 115.2 kbps Modbus RTU support, the CI532V02 enables fast and efficient communication for real-time control and monitoring.

3. Compact Design: The CI532V02 has a compact form factor (180mm x 140mm x 45mm) that makes it easy to integrate into systems with space limitations. It can be mounted easily on DIN rails or in panels.

4. Real-Time Diagnostics: Equipped with LED indicators, the CI532V02 provides real-time status updates, helping operators to monitor the health of the device and perform quick troubleshooting.

5. Energy Efficient: The module operates with a low current consumption of 300mA, optimizing energy usage while ensuring high-performance communication.

6. Wide Operating Temperature Range: The CI532V02 operates in harsh environments with temperatures ranging from -20°C to +60°C, ensuring reliable operation in demanding conditions.

7. Durable and Robust: Designed for industrial environments, the module has an IP20 protection class, which protects it against solid objects but not liquids, ensuring durability and longevity.

8. Easy Integration: The CI532V02 integrates seamlessly into existing systems with Ethernet, Modbus TCP/IP, and Profibus, offering a flexible solution for both new installations and system upgrades.

9. Global Compliance: Certified with CE, UL, IEC, and RoHS, the CI532V02 meets international standards for safety, quality, and environmental impact.

10. Scalable: The module supports system expansion, allowing for scalability as your network grows, providing a flexible and future-proof solution.

Technical FAQs

1. What communication protocols does the CI532V02 support?
   The CI532V02 supports Ethernet, Modbus TCP/IP, OPC, and Profibus, offering versatile communication options for various industrial systems.

2. What is the data transmission speed of the CI532V02?
   The CI532V02 supports 100 Mbps Ethernet communication for fast data transfer, and 115.2 kbps Modbus RTU for reliable control system communication.

3. What power supply does the CI532V02 require?
   The CI532V02 requires a 24V DC power supply and consumes 300mA of current.

4. Can the CI532V02 be installed in tight spaces?
   Yes, the CI532V02 has a compact design (180mm x 140mm x 45mm) and can be easily mounted on DIN rails or panel mounts, making it ideal for installations in confined spaces.

5. Does the CI532V02 support real-time communication?
   Yes, the CI532V02 is designed for real-time communication, ensuring low-latency data transfer for critical industrial applications.

6. What is the operating temperature range for the CI532V02?
   The CI532V02 can operate in temperatures from -20°C to +60°C, ensuring reliable operation in a variety of industrial environments.

7. Is the CI532V02 compatible with third-party devices?
   Yes, the CI532V02 is compatible with any device that supports Ethernet, Modbus TCP/IP, OPC, or Profibus, providing easy integration with a wide range of devices.

8. What protection class does the CI532V02 have?
   The CI532V02 has an IP20 protection class, protecting it from solid objects larger than 12mm but not against water or dust.

9. What certifications does the CI532V02 have?
   The module complies with CE, UL, IEC, and RoHS certifications, ensuring it meets international safety and environmental standards.

10. How do I perform diagnostics on the CI532V02?
    The module is equipped with LED indicators for real-time status monitoring, enabling quick diagnostics and minimizing system downtime
