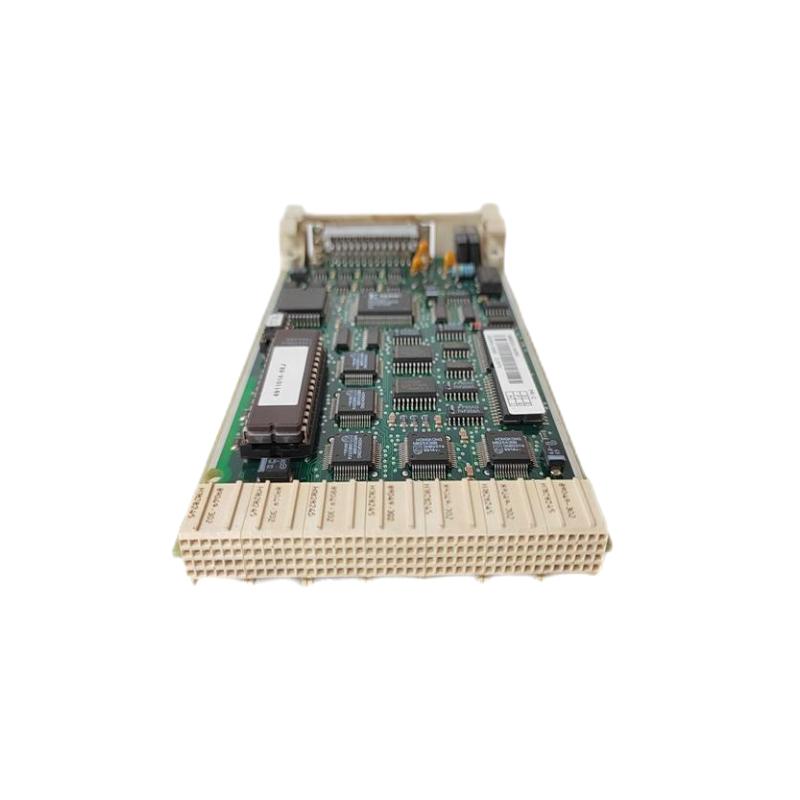

ABB CI532V03 Communication Interface Module for Industrial Automation Systems

Applications

• Industrial Automation: The CI532V03 enables communication between PLCs, sensors, actuators, and other devices, streamlining automated processes and ensuring high efficiency across the production line.

• Factory Automation: Ideal for production lines, the CI532V03 facilitates fast, reliable data transfer, improving automation processes and optimizing factory operations.

• Process Control: Suitable for use in industries like chemicals, pharmaceuticals, and food & beverage, this module ensures real-time monitoring and control of production processes.

• Energy Management: The CI532V03 integrates seamlessly into energy management systems, enabling real-time monitoring of energy consumption and optimizing power distribution.

• Building Automation: The module connects HVAC, lighting, and security systems, providing centralized control and enhancing operational efficiency in building management systems.

• Remote Monitoring: Thanks to support for Ethernet and Modbus TCP/IP, the CI532V03 enables remote access, allowing operators to monitor and control systems from offsite locations.

• Renewable Energy Systems: The CI532V03 is ideal for integrating renewable energy sources such as solar or wind into industrial systems for better energy management and monitoring.

Advantages

1. Multi-Protocol Support: The CI532V03 supports Ethernet, Modbus TCP/IP, OPC, and Profibus, providing maximum flexibility to integrate with various industrial networks and devices.

2. High-Speed Communication: The 100 Mbps Ethernet and 115.2 kbps Modbus RTU speeds enable fast, efficient data transfer, ensuring minimal delays in real-time applications.

3. Compact Design: With dimensions of 180mm x 140mm x 45mm, the CI532V03 is compact and easily installed in tight spaces, with flexible DIN rail or panel mount options.

4. Durability and Reliability: Designed to operate in demanding environments, the CI532V03 functions within a temperature range of -20°C to +60°C, offering consistent performance in industrial settings.

5. Real-Time Diagnostics: The LED indicators provide clear status updates, allowing operators to quickly diagnose and address any issues to minimize system downtime.

6. Energy-Efficient: With 300mA current consumption, the CI532V03 is designed to minimize energy usage while providing powerful communication capabilities.

7. Global Certifications: Certified with CE, UL, IEC, and RoHS, this module meets the highest international standards for safety, quality, and environmental impact.

8. Scalability: The CI532V03 supports network expansion, making it ideal for growing systems. It provides the flexibility needed to adapt to future changes and scalability requirements.

9. Easy Integration: The module integrates easily into both new installations and existing systems, ensuring a smooth setup process and reducing integration time.

10. Cost-Effective: Combining high performance and reliability, the CI532V03 provides an affordable solution for modernizing industrial communication systems without compromising on quality.

Technical FAQs

1. What communication protocols does the CI532V03 support?
   The CI532V03 supports Ethernet, Modbus TCP/IP, OPC, and Profibus, ensuring compatibility with a wide range of industrial networks and devices.

2. What is the data transmission speed of the CI532V03?
   The CI532V03 supports 100 Mbps Ethernet and 115.2 kbps Modbus RTU, enabling fast and efficient communication in real-time applications.

3. What is the power supply requirement for the CI532V03?
   The CI532V03 operates on a 24V DC power supply and consumes 300mA of current, making it energy-efficient for industrial applications.

4. Can the CI532V03 be mounted in confined spaces?
   Yes, the CI532V03 is designed with a compact form factor (180mm x 140mm x 45mm), allowing it to be easily installed in tight spaces using DIN rail or panel mount options.

5. Does the CI532V03 support real-time communication?
   Yes, the CI532V03 supports real-time communication with low-latency data transfer, making it suitable for critical applications requiring quick response times.

6. What is the operating temperature range for the CI532V03?
   The CI532V03 can operate in environments with temperatures ranging from -20°C to +60°C, ensuring reliability even in harsh industrial conditions.

7. Is the CI532V03 compatible with third-party devices?
   Yes, the CI532V03 is fully compatible with any devices supporting Ethernet, Modbus TCP/IP, OPC, or Profibus, offering great flexibility in system integration.

8. What protection class does the CI532V03 have?
   The CI532V03 has an IP20 protection class, providing protection against solid objects larger than 12mm, but it is not resistant to water or dust.

9. What certifications does the CI532V03 have?
   The CI532V03 is certified with CE, UL, IEC, and RoHS, ensuring it meets international safety, quality, and environmental standards.

10. How do I perform diagnostics on the CI532V03?
    The module features LED indicators for real-time status updates, helping you quickly identify and resolve any issues to minimize system downtime.
