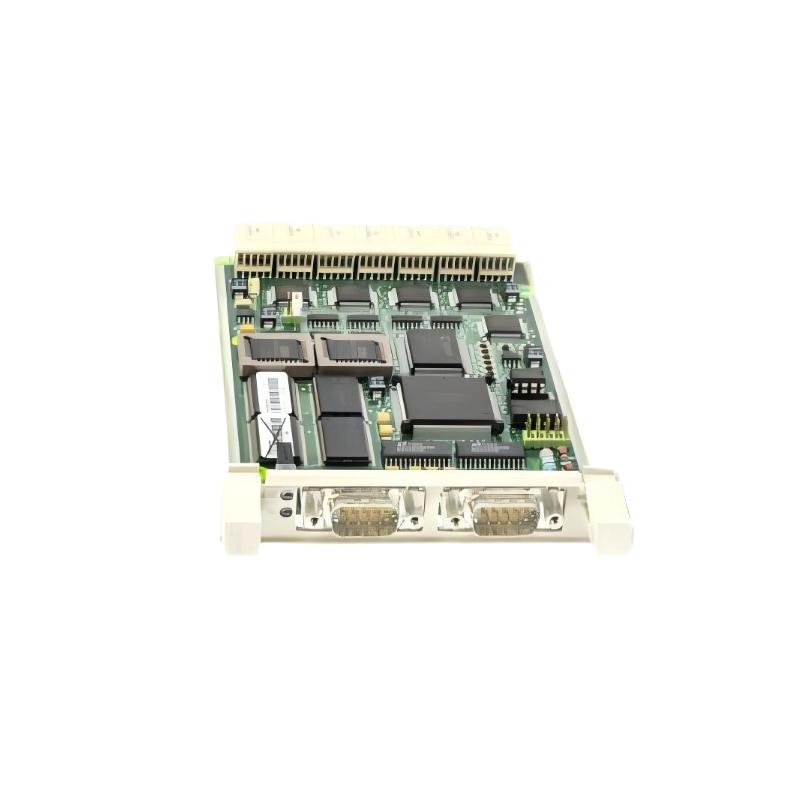

ABB CI532V04 Communication Interface Module for Industrial Networks and Automation

Applications

• Industrial Automation: The CI532V04 facilitates communication between PLCs, sensors, actuators, and other devices, streamlining industrial automation processes and ensuring high efficiency across the production floor.

• Factory Automation: In manufacturing, the CI532V04 optimizes production lines, providing fast and reliable communication between control systems and field devices to minimize downtime and enhance throughput.

• Process Control: The module supports process automation in industries such as chemicals, pharmaceuticals, and food & beverage, ensuring smooth and accurate control of production processes.

• Energy Management: The CI532V04 enables integration into energy management systems, offering real-time monitoring of energy usage, and helping to optimize energy distribution across industrial systems.

• Building Automation: Connects various building management systems, such as HVAC, lighting, and security, providing centralized control for improved operational efficiency and energy savings.

• Remote Monitoring: With its Ethernet and Modbus TCP/IP capabilities, the CI532V04 allows remote access for monitoring and controlling industrial processes from offsite locations, ensuring that operations are always under supervision.

• Renewable Energy Systems: The CI532V04 is ideal for integrating renewable energy sources such as solar or wind into industrial systems, allowing better energy management and real-time data exchange for enhanced performance.

Advantages

1. Multi-Protocol Compatibility: The CI532V04 supports Ethernet, Modbus TCP/IP, OPC, and Profibus, enabling easy integration with a variety of industrial communication standards.

2. High-Speed Communication: With 100 Mbps Ethernet and 115.2 kbps Modbus RTU, the CI532V04 provides quick and reliable data transfer, which is critical for applications requiring low-latency communication.

3. Compact and Flexible Design: The 180mm x 140mm x 45mm compact design makes the CI532V04 easy to install in confined spaces, with flexible mounting options available for DIN rails or panel mounting.

4. Wide Operating Temperature Range: With an operational temperature range of -20°C to +60°C, the CI532V04 is suitable for use in a variety of industrial environments, ensuring stable performance even in harsh conditions.

5. Energy Efficient: The module consumes 300mA, which ensures low energy consumption while maintaining high-performance communication, contributing to the overall energy efficiency of the system.

6. Real-Time Diagnostics: Equipped with LED indicators, the CI532V04 allows operators to monitor the device’s status and perform diagnostics in real-time, helping to troubleshoot issues quickly and reduce downtime.

7. Global Certifications: The CI532V04 meets international safety, quality, and environmental standards with CE, UL, IEC, and RoHS certifications.

8. Scalable Solution: The CI532V04 supports future scalability, allowing your system to grow alongside your automation needs without the need for major upgrades.

9. Durable and Reliable: Designed for industrial use, the module is built to last in tough environments, ensuring long-term reliability and low maintenance costs.

10. Cost-Effective: Combining performance, reliability, and low energy consumption, the CI532V04 provides an affordable solution for enhancing industrial communication networks.

Technical FAQs

1. What communication protocols does the CI532V04 support?
   The CI532V04 supports Ethernet, Modbus TCP/IP, OPC, and Profibus, allowing it to integrate with a wide range of industrial devices and systems.

2. What is the data transmission speed of the CI532V04?
   The CI532V04 supports 100 Mbps Ethernet and 115.2 kbps Modbus RTU, ensuring fast and reliable communication for real-time applications.

3. What is the power supply requirement for the CI532V04?
   The CI532V04 requires a 24V DC power supply and consumes 300mA of current, making it energy-efficient for industrial applications.

4. Can the CI532V04 be installed in tight spaces?
   Yes, the CI532V04 has a compact form factor (180mm x 140mm x 45mm), making it ideal for installation in confined spaces, with both DIN rail and panel mount options.

5. Does the CI532V04 support real-time communication?
   Yes, the CI532V04 is optimized for real-time communication, providing low-latency data transfer for critical industrial applications.

6. What is the operating temperature range for the CI532V04?
   The CI532V04 can operate in temperatures ranging from -20°C to +60°C, making it suitable for a wide range of industrial environments.

7. Is the CI532V04 compatible with third-party devices?
   Yes, the CI532V04 is compatible with any device supporting Ethernet, Modbus TCP/IP, OPC, or Profibus, offering flexible system integration.

8. What protection class does the CI532V04 have?
   The CI532V04 has an IP20 protection class, offering protection against solid objects larger than 12mm, but not against liquids or dust.

9. What certifications does the CI532V04 have?
   The CI532V04 is certified with CE, UL, IEC, and RoHS, meeting international safety and environmental standards.

10. How do I perform diagnostics on the CI532V04?
    The module features LED indicators for real-time status monitoring, helping you quickly identify and troubleshoot issues to minimize system downtime.
