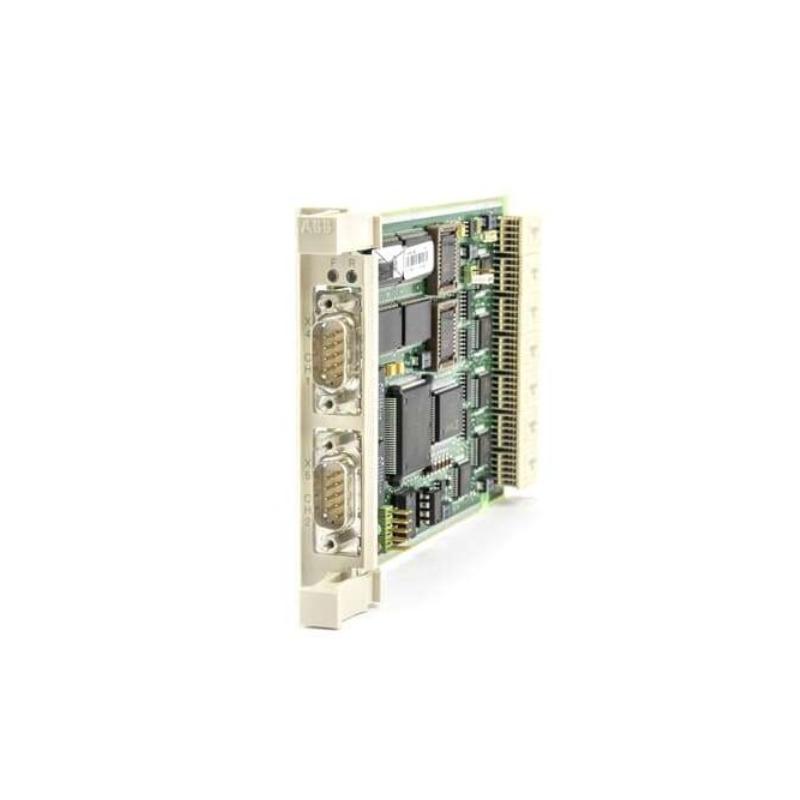

The ABB CI532V09 Communication Interface Module is a cutting-edge solution designed to provide robust, high-speed communication for industrial automation systems. With advanced capabilities for handling multiple communication protocols, including Ethernet, Modbus TCP/IP, OPC, and Profibus, the CI532V09 ensures seamless and efficient data transfer between a wide array of industrial devices such as PLCs, sensors, actuators, and remote I/O devices.

Optimized for a variety of industrial applications—ranging from factory automation and process control to energy management and building automation—the CI532V09 guarantees real-time data exchange and minimizes delays, enabling fast and accurate decision-making in mission-critical environments. Its reliable, secure, and scalable design makes it a powerful tool for enhancing the performance of your industrial network infrastructure.

Built to operate efficiently in demanding conditions, the CI532V09 is capable of ensuring that your communication systems are both high-performance and energy-efficient, making it an excellent solution for industries that require continuous, uninterrupted data exchange.

Technical Specifications

Parameter	Details
Model	CI532V09
Type	Communication Interface Module
Supported Protocols	Ethernet, Modbus TCP/IP, OPC, Profibus
Data Transmission Speed	100 Mbps (Ethernet), Up to 115.2 kbps (Modbus RTU)
Communication Ports	1 x Ethernet (Ethernet), 1 x RS485 (Modbus RTU)
Power Supply	24V DC
Dimensions	180mm x 140mm x 45mm
Weight	0.85 kg (1.87 lbs)
Operating Temperature	-20°C to +60°C
Mounting	DIN Rail, Panel Mount
Protection Class	IP20
Indicators	LED indicators for status and diagnostics
Certifications	CE, UL, IEC, RoHS
Current Consumption	300mA
Operating Voltage Range	19.2V DC to 30V DC

Recommended Related Models

ABB CI531V09 Communication Interface
ABB CI533V09 Communication Interface
ABB CP800 Communication Processor
ABB 800xA Distributed Control System
ABB AC 800M Controller

Popular ABB Models

ABB CI 701 Communication Interface Module
ABB PM554 Programmable Logic Controller
ABB 800xA Automation System
ABB ACS580 Variable Frequency Drive
ABB SACE Tmax T4 Circuit Breaker
ABB BORDO Power Distribution Panel

Applications

Industrial Automation: The CI532V09 facilitates the communication between PLCs, remote I/O devices, and actuators, streamlining industrial automation processes and enhancing efficiency across manufacturing environments.
Factory Automation: With its high-speed communication capabilities, the CI532V09 optimizes production lines, enabling real-time data exchange between equipment and control systems, reducing delays and improving productivity.
Process Control: Ideal for industries like chemicals, pharmaceuticals, and food & beverage, the CI532V09 ensures accurate monitoring and control, optimizing process performance and product quality.
Energy Management: The CI532V09 integrates seamlessly into energy management systems, enabling real-time monitoring of energy consumption and optimizing power distribution across various industrial sectors.
Building Automation: Connects various systems like HVAC, lighting, and security, providing centralized control for improved building operations and energy efficiency.
Remote Monitoring: Through its Ethernet and Modbus TCP/IP capabilities, the CI532V09 offers remote access to industrial systems, enabling operators to monitor and control processes from anywhere, enhancing operational oversight.
Renewable Energy Systems: The CI532V09 is designed for integration with solar and wind systems, providing real-time monitoring and data exchange to enhance energy efficiency in renewable energy applications.

Advantages

Versatile Protocol Support: The CI532V09 supports Ethernet, Modbus TCP/IP, OPC, and Profibus, ensuring compatibility with a broad range of industrial devices and systems for flexible integration.
Fast Data Transfer: With 100 Mbps Ethernet and 115.2 kbps Modbus RTU speeds, the module supports high-speed, low-latency data transmission, making it ideal for time-sensitive industrial applications.
Compact and Space-Efficient: The CI532V09’s compact design (180mm x 140mm x 45mm) makes it easy to install in space-constrained environments, while offering DIN rail and panel mount options for flexible installation.
Wide Operating Temperature Range: Designed to operate in extreme environments, the CI532V09 can function in temperatures ranging from -20°C to +60°C, ensuring reliability even in harsh industrial settings.
Energy-Efficient: The module operates with a current consumption of 300mA, offering high performance while minimizing energy usage and contributing to overall system energy efficiency.
Real-Time Diagnostics: The CI532V09 is equipped with LED indicators to provide real-time feedback on the status of the device, enabling quick troubleshooting and minimizing downtime.
Global Compliance: The CI532V09 meets international standards, including CE, UL, IEC, and RoHS, ensuring that it adheres to global safety, quality, and environmental regulations.
Scalable and Future-Proof: The CI532V09 is scalable, supporting network growth and expansion, making it a future-proof solution for evolving industrial systems.
Durable and Reliable: Designed for demanding industrial environments, the CI532V09 ensures long-term reliability and minimizes the need for maintenance or replacement.
Cost-Effective: Offering high performance, flexibility, and reliability at an affordable price point, the CI532V09 provides excellent value for modernizing industrial communication networks.

Technical FAQs

What communication protocols does the CI532V09 support?
The CI532V09 supports Ethernet, Modbus TCP/IP, OPC, and Profibus, providing maximum flexibility in system integration and compatibility.
What is the data transmission speed of the CI532V09?
The CI532V09 supports 100 Mbps Ethernet communication for fast data transfer and 115.2 kbps Modbus RTU for real-time control system data exchange.
What power supply is required for the CI532V09?
The CI532V09 operates on a 24V DC power supply and has a current consumption of 300mA, ensuring efficient energy usage.
Can the CI532V09 be installed in tight spaces?
Yes, the CI532V09 has a compact design (180mm x 140mm x 45mm) and can be easily installed in tight spaces using DIN rail or panel mount options.
Does the CI532V09 support real-time communication?
Yes, the CI532V09 provides real-time communication with low-latency data transfer, making it suitable for time-sensitive industrial applications.
What is the operating temperature range for the CI532V09?
The CI532V09 operates within a temperature range of -20°C to +60°C, ensuring reliable operation even in challenging industrial environments.
Is the CI532V09 compatible with third-party devices?
Yes, the CI532V09 is compatible with any devices that support Ethernet, Modbus TCP/IP, OPC, or Profibus, making it highly flexible for system integration.
What protection class does the CI532V09 have?
The CI532V09 has an IP20 protection class, which provides protection against solid objects larger than 12mm but is not resistant to water or dust.
What certifications does the CI532V09 have?
The module is certified with CE, UL, IEC, and RoHS, ensuring compliance with international safety, quality, and environmental standards.
How do I perform diagnostics on the CI532V09?
The CI532V09 is equipped with LED indicators that provide real-time feedback on device status, helping you perform quick diagnostics and troubleshoot any issues effectively.
