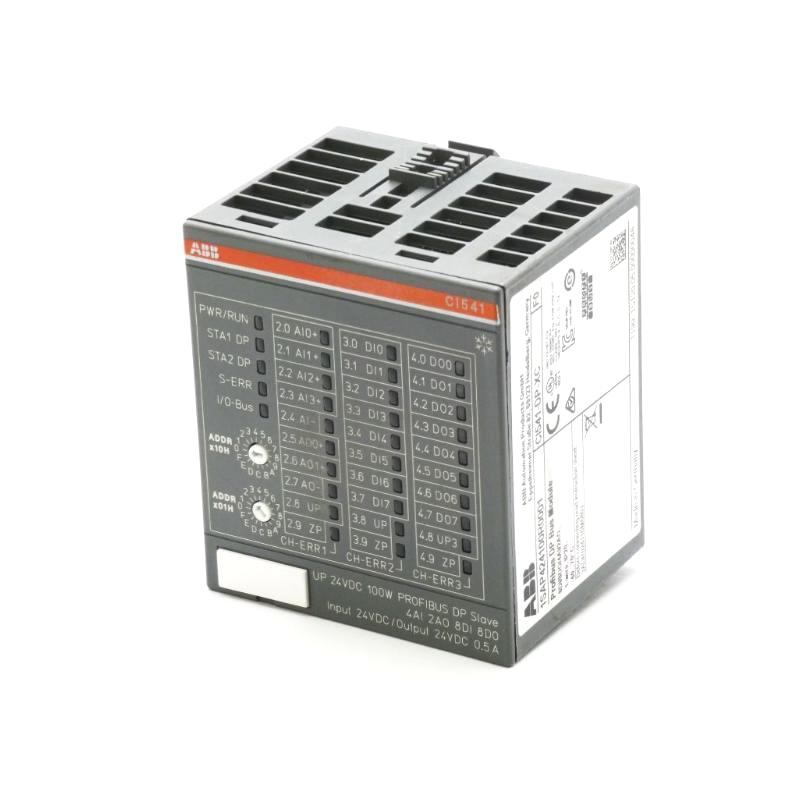

ABB CI541-DP Communication Interface Module for Profibus DP Connectivity

Applications

• Factory Automation: The CI541-DP facilitates communication between PLCs, sensors, actuators, and other devices on the Profibus DP network, enabling the seamless operation of automated manufacturing lines with reduced downtime and faster production cycles.

• Process Control: The module ensures fast and reliable communication in process industries like chemical, pharmaceutical, and food and beverage, where precision and real-time control are essential for operational efficiency.

• Energy Management: By integrating the CI541-DP into energy management systems, users can achieve real-time monitoring and control of energy consumption, improving power distribution and overall energy efficiency.

• Building Automation: The CI541-DP enables the connection of building management systems, such as HVAC and lighting, to Profibus DP networks, allowing centralized control of facilities for optimized energy use and enhanced comfort.

• Remote Monitoring and Diagnostics: The module supports remote monitoring over Profibus DP, allowing operators to access system data and perform diagnostics from a distance, improving operational oversight and troubleshooting.

• Renewable Energy Systems: The CI541-DP is well-suited for integrating renewable energy systems, such as solar and wind power, into industrial control networks, enabling efficient management of energy production and distribution.

Advantages

1. Profibus DP Protocol: The CI541-DP supports Profibus DP, one of the most widely used protocols for high-speed, deterministic communication in industrial environments, ensuring rapid and reliable data transfer.

2. Fast Data Transfer: With a transmission speed of up to 12 Mbps over Profibus DP, the CI541-DP is ideal for time-critical applications where low-latency communication is essential.

3. Compact and Space-Efficient: The 160mm x 120mm x 40mm size makes it easy to install in tight spaces, and its DIN rail and panel mount options provide flexibility during installation.

4. Wide Operating Temperature Range: With an operating temperature range of -20°C to +60°C, the CI541-DP can function in a variety of harsh industrial environments, ensuring consistent performance even in extreme conditions.

5. Energy Efficient: The CI541-DP consumes only 250mA of current, which contributes to energy savings and makes it a cost-effective solution for industrial networks.

6. Real-Time Diagnostics: Equipped with LED indicators, the CI541-DP provides clear status updates and real-time diagnostics, enabling quick identification of any issues and minimizing downtime.

7. Global Compliance: The module meets global safety and environmental standards, including CE, UL, IEC, and RoHS certifications, ensuring it adheres to the highest quality and safety standards.

8. Scalability: The CI541-DP is designed to scale with your network, allowing for future expansions without needing to overhaul your communication infrastructure.

9. Reliable and Durable: Built for industrial use, the CI541-DP provides high reliability and long-lasting performance, reducing the need for frequent maintenance or replacements.

10. Cost-Effective: The CI541-DP offers high performance and flexibility at an affordable price point, providing excellent value for enhancing industrial automation systems.

Technical FAQs

1. What communication protocol does the CI541-DP support?
   The CI541-DP supports Profibus DP, ensuring fast, deterministic communication between devices in industrial automation systems.

2. What is the data transmission speed of the CI541-DP?
   The CI541-DP offers a data transmission speed of up to 12 Mbps, making it suitable for high-speed communication needs in industrial applications.

3. What power supply is required for the CI541-DP?
   The CI541-DP requires a 24V DC power supply and consumes 250mA, providing efficient operation while minimizing energy consumption.

4. Can the CI541-DP be installed in confined spaces?
   Yes, with its compact design (160mm x 120mm x 40mm), the CI541-DP is ideal for installation in tight spaces and can be mounted on a DIN rail or panel.

5. Does the CI541-DP support real-time communication?
   Yes, the CI541-DP is designed for real-time communication with minimal latency, making it ideal for time-sensitive industrial processes.

6. What is the operating temperature range for the CI541-DP?
   The CI541-DP operates within a temperature range of -20°C to +60°C, ensuring reliable performance in a wide variety of industrial conditions.

7. Is the CI541-DP compatible with third-party devices?
   Yes, the CI541-DP is compatible with any device that supports Profibus DP, making it a flexible solution for integrating various industrial devices into the network.

8. What protection class does the CI541-DP have?
   The CI541-DP has an IP20 protection class, providing protection against solid objects larger than 12mm, but not against liquids or dust.

9. What certifications does the CI541-DP have?
   The CI541-DP complies with CE, UL, IEC, and RoHS standards, ensuring it meets global safety and environmental requirements.

10. How do I perform diagnostics on the CI541-DP?
    The CI541-DP features LED indicators that provide clear real-time feedback on device status, enabling quick troubleshooting and minimizing downtime.
