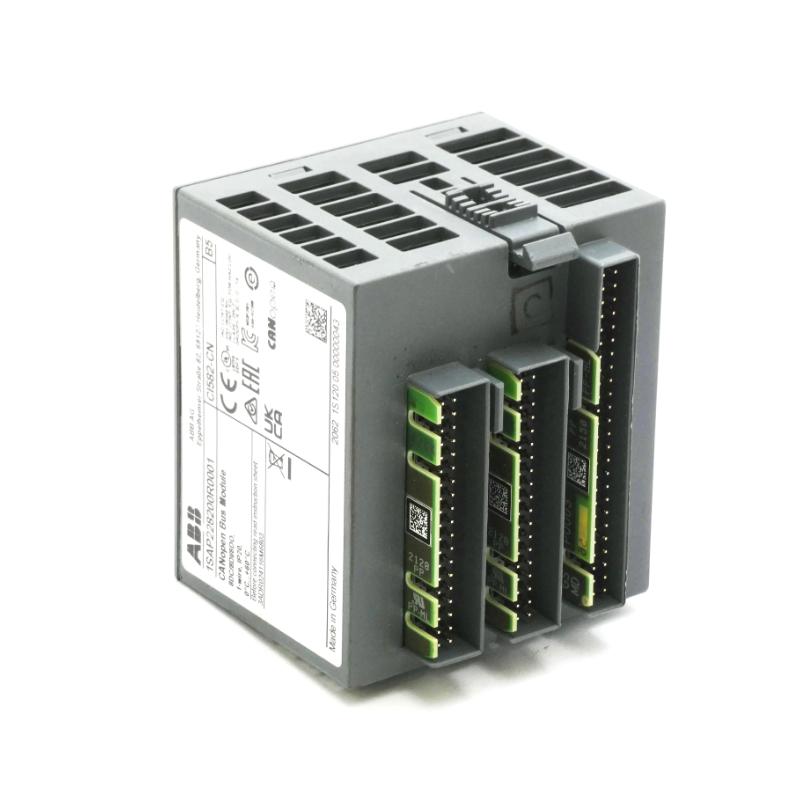

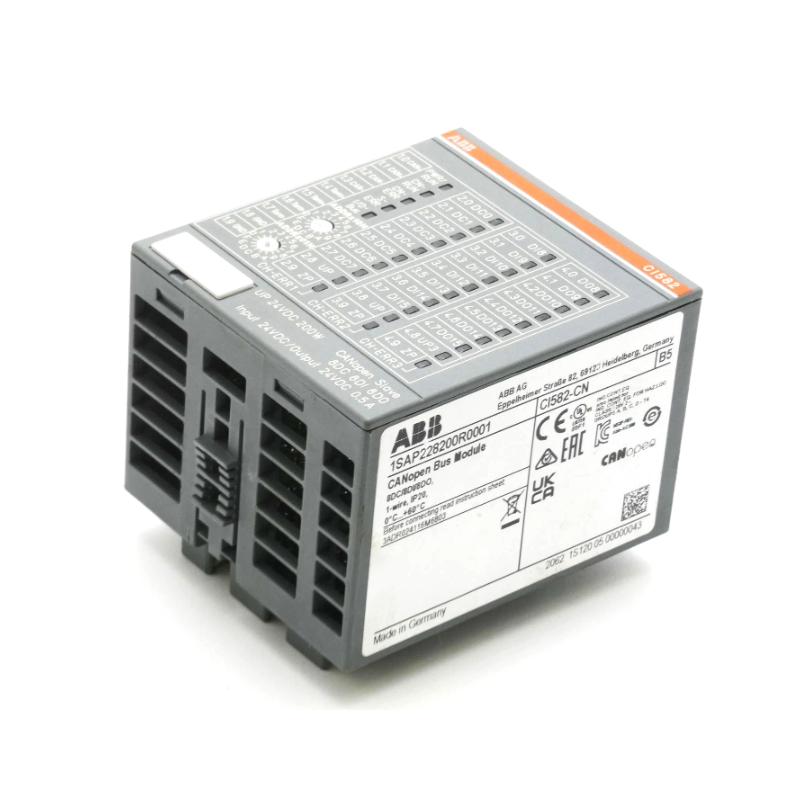

ABB CI582-CN Communication Interface Module for Industrial Ethernet Connectivity

Applications

• Factory Automation: The CI582-CN is ideal for integrating PLCs, sensors, and actuators over Ethernet networks, enabling real-time control and monitoring for optimized production processes.

• Process Control: Used in chemical, pharmaceutical, and food and beverage industries, the CI582-CN ensures seamless communication between critical process equipment, allowing for accurate control and monitoring in real time.

• Energy Management: The CI582-CN enables efficient integration of energy monitoring systems with Industrial Ethernet, providing real-time data and insights into energy consumption for optimized usage and cost savings.

• Building Automation: The CI582-CN connects HVAC, lighting, and other building management systems, offering centralized control and improving building operational efficiency.

• Remote Monitoring: With Ethernet and Modbus TCP/IP support, the CI582-CN enables remote diagnostics and management, improving operational flexibility and reducing system downtime.

• Industrial Networking: The CI582-CN allows for high-speed integration of diverse industrial devices, enabling the construction of scalable, high-performance industrial networks.

• Renewable Energy: The module supports communication with solar and wind power systems, allowing for real-time energy production and consumption monitoring and optimization.

Advantages

1. Industrial Ethernet Protocol Support: The CI582-CN supports Ethernet/IP and Modbus TCP/IP, ensuring broad compatibility with a wide range of industrial devices and systems.

2. High-Speed Data Transfer: The module supports 10/100 Mbps Ethernet speeds, ensuring reliable, low-latency communication for real-time data transfer in industrial applications.

3. Compact and Flexible Installation: With a compact design (160mm x 120mm x 45mm), the CI582-CN can be installed in limited space, offering DIN rail and panel mount options for easy integration into existing setups.

4. Wide Operating Temperature Range: The CI582-CN operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments with fluctuating temperatures.

5. Low Power Consumption: The CI582-CN operates with a 250mA current draw, making it energy-efficient and contributing to lower operational costs.

6. Real-Time Diagnostics: Equipped with LED indicators, the CI582-CN provides instant feedback on device status and network health, enabling quick troubleshooting and ensuring system reliability.

7. Global Certifications: The module meets global standards for quality and safety with certifications such as CE, UL, IEC, and RoHS, ensuring compliance with international regulations.

8. Scalability and Flexibility: The CI582-CN supports the expansion of industrial networks, offering flexibility to accommodate future growth without significant reconfiguration.

9. Robust and Durable Design: Built to withstand harsh industrial conditions, the CI582-CN is both durable and reliable, minimizing the need for maintenance and ensuring long-lasting performance.

10. Cost-Effective: The CI582-CN offers high performance and reliability at a competitive price point, delivering excellent value for enhancing industrial Ethernet networks.

Technical FAQs

1. What communication protocols does the CI582-CN support?
   The CI582-CN supports Industrial Ethernet protocols, including Ethernet/IP and Modbus TCP/IP, making it compatible with a wide range of industrial devices.

2. What is the data transmission speed of the CI582-CN?
   The CI582-CN supports 10/100 Mbps Ethernet speeds, ensuring reliable and fast data transfer for real-time industrial applications.

3. What power supply is required for the CI582-CN?
   The CI582-CN requires a 24V DC power supply with a 250mA current consumption, ensuring energy-efficient operation.

4. Can the CI582-CN be installed in tight spaces?
   Yes, with a compact size (160mm x 120mm x 45mm), the CI582-CN can easily fit in confined spaces, offering both DIN rail and panel mount installation options.

5. Does the CI582-CN support real-time communication?
   Yes, the CI582-CN supports real-time communication for applications that require low-latency data transfer and rapid feedback, such as automated manufacturing and process control.

6. What is the operating temperature range for the CI582-CN?
   The CI582-CN operates within an environment temperature range of -20°C to +60°C, making it suitable for use in both hot and cold industrial settings.

7. Is the CI582-CN compatible with third-party devices?
   Yes, the CI582-CN is compatible with devices that support Ethernet/IP or Modbus TCP/IP, allowing for seamless integration with existing or future industrial equipment.

8. What protection class does the CI582-CN have?
   The CI582-CN has an IP20 protection class, which means it is protected against solid objects larger than 12mm, but it is not resistant to dust or water.

9. What certifications does the CI582-CN have?
   The CI582-CN is certified with CE, UL, IEC, and RoHS, ensuring compliance with international safety, environmental, and quality standards.

10. How do I perform diagnostics on the CI582-CN?
    The CI582-CN is equipped with LED indicators that provide real-time status feedback, enabling quick diagnostics and troubleshooting of communication and network issues.
