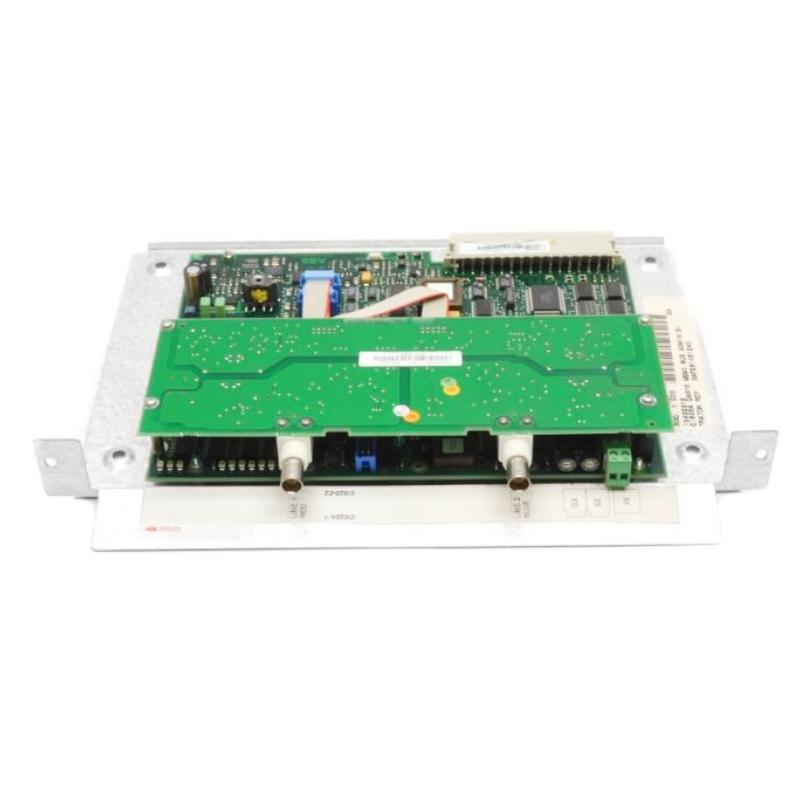

The ABB CI626A Communication Interface Module is an advanced and versatile communication solution that provides seamless data exchange between different automation devices. This module supports multiple industrial communication protocols, including PROFIBUS DP, Modbus RTU, and CANopen, ensuring reliable, high-speed connectivity for a wide range of industrial automation applications. Designed for demanding environments, the CI626A guarantees smooth and efficient communication, helping optimize system performance and reduce operational downtime.

Whether you are integrating new automation components into an existing network or designing a completely new system, the CI626A is built to provide robust and secure data transmission across your entire control network. With easy installation, high compatibility, and reliable diagnostic features, this communication interface module is an indispensable tool for modern industrial applications.

Technical Specifications

Specification	Details
Model	CI626A Communication Interface Module
Supported Protocols	PROFIBUS DP, Modbus RTU, CANopen
Interface	RS-232, RS-485
Operating Temperature Range	-20°C to 70°C
Storage Temperature Range	-40°C to 85°C
Dimensions (H x W x D)	6.5 x 3.0 x 1.5 in (165 x 75 x 38 mm)
Weight	0.4 kg (0.88 lbs)
Power Supply	24V DC ± 10%
Current Consumption	90 mA @ 24V DC
Communication Speed	Up to 12 Mbps
Mounting	DIN Rail Mountable
Diagnostic Features	LED indicators for status & communication

Recommended Related Models

CI518: ABB Communication Interface Module for Modbus TCP
CI540: ABB Communication Interface for EtherNet/IP
CI590: ABB Communication Interface for Profibus DP with Advanced Diagnostics

Popular ABB Models

AC500 PLC: Scalable modular PLC solution for various industrial applications.
S500 I/O Modules: Versatile I/O modules for the AC500 automation system.
PM554: Compact and cost-effective PLC for small and medium-sized control systems.

Applications

The ABB CI626A Communication Interface Module is ideal for various industrial and automation applications, including:

Industrial Automation Systems: Connecting various automation devices to a centralized controller for real-time monitoring and control.
Building Automation: Ensuring smooth communication between HVAC, lighting, and security systems.
Energy Management: Enabling reliable data transfer for power monitoring and control.
Process Control: Facilitating communication between process controllers and field devices.
Machine Integration: Enabling communication across different machines on a production line for synchronized operations.

Advantages

Multi-Protocol Support: The CI626A supports multiple industrial communication protocols, including PROFIBUS DP, Modbus RTU, and CANopen, making it highly versatile.
Wide Temperature Range: Operates in environments with temperatures ranging from -20°C to 70°C, ensuring reliable performance in harsh conditions.
Compact Design: Its small form factor makes it easy to integrate into space-constrained environments.
Easy Installation: Mountable on a DIN rail, making it convenient for panel installation.
Real-Time Diagnostics: The built-in LED indicators provide quick and easy diagnostics, reducing downtime and ensuring smooth operations.
Low Power Consumption: The module has a minimal current draw of 90mA, making it energy-efficient.

Technical FAQs

What communication protocols are supported by the CI626A?
- The CI626A supports PROFIBUS DP, Modbus RTU, and CANopen protocols.
What is the power requirement for the CI626A?
- The module operates with a 24V DC power supply and has a current consumption of 90mA.
Can the CI626A be used in outdoor environments?
- The module is designed to operate in temperatures ranging from -20°C to 70°C, making it suitable for most indoor and controlled outdoor environments.
How do I mount the CI626A?
- The module can be easily mounted on a DIN rail, which is a common method for industrial installations.
What are the communication speeds of the CI626A?
- The CI626A supports communication speeds of up to 12 Mbps, ensuring fast data transfer.
Does the CI626A have diagnostic indicators?
- Yes, it includes LED indicators that provide real-time status and diagnostic information, allowing for quick troubleshooting.
What is the weight of the CI626A?
- The CI626A weighs 0.4 kg (0.88 lbs).
Can I use this module with multiple devices?
- Yes, the CI626A can communicate with a wide variety of devices using the supported protocols, making it ideal for connecting multiple components in a network.
What is the storage temperature range of the CI626A?
- The storage temperature range is from -40°C to 85°C.
What is the physical size of the CI626A module?
- The module measures 6.5 x 3.0 x 1.5 in (165 x 75 x 38 mm).
