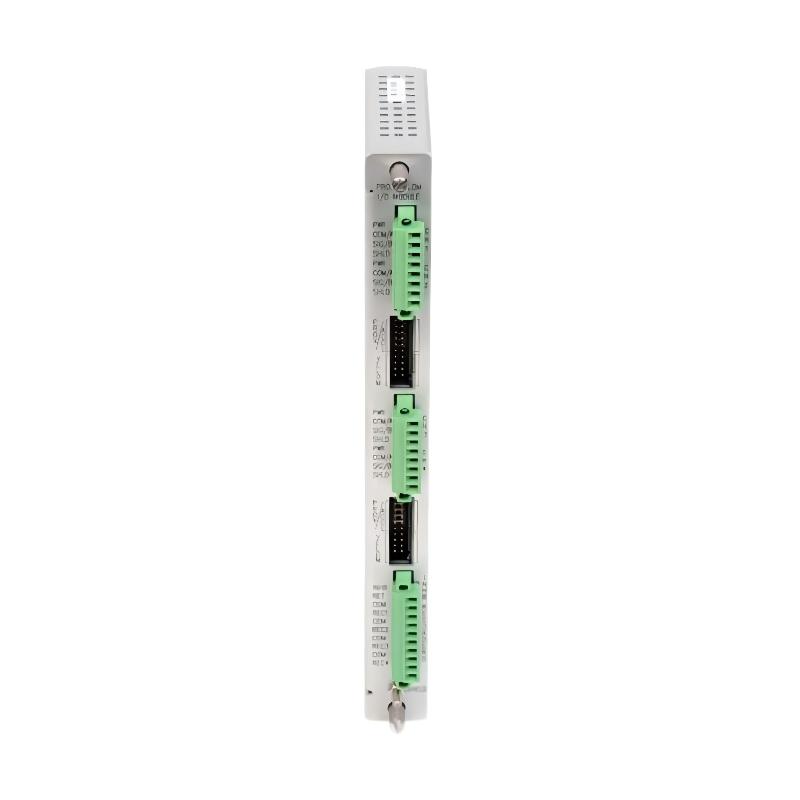

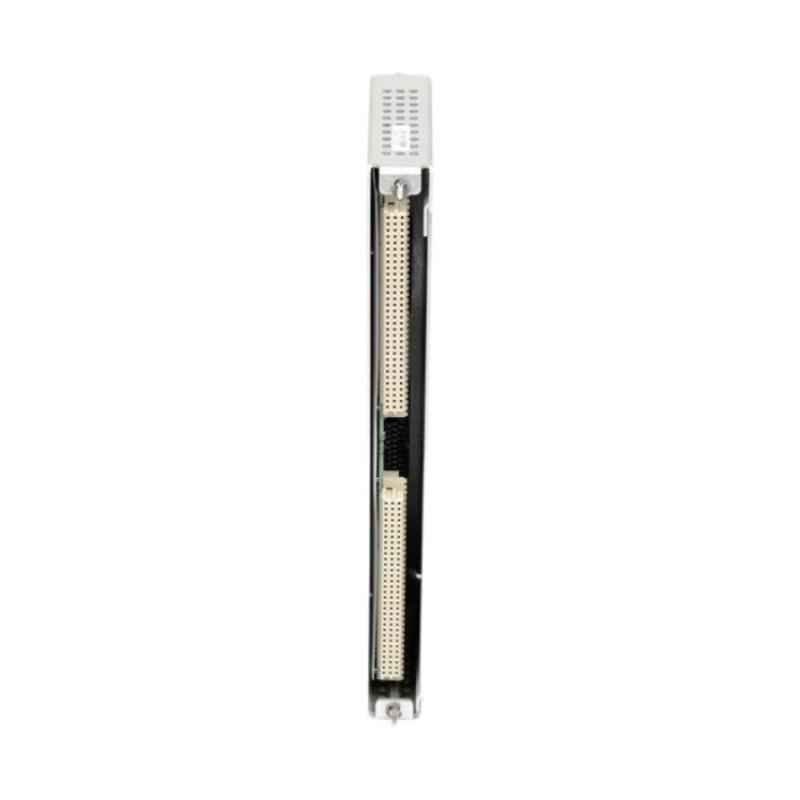

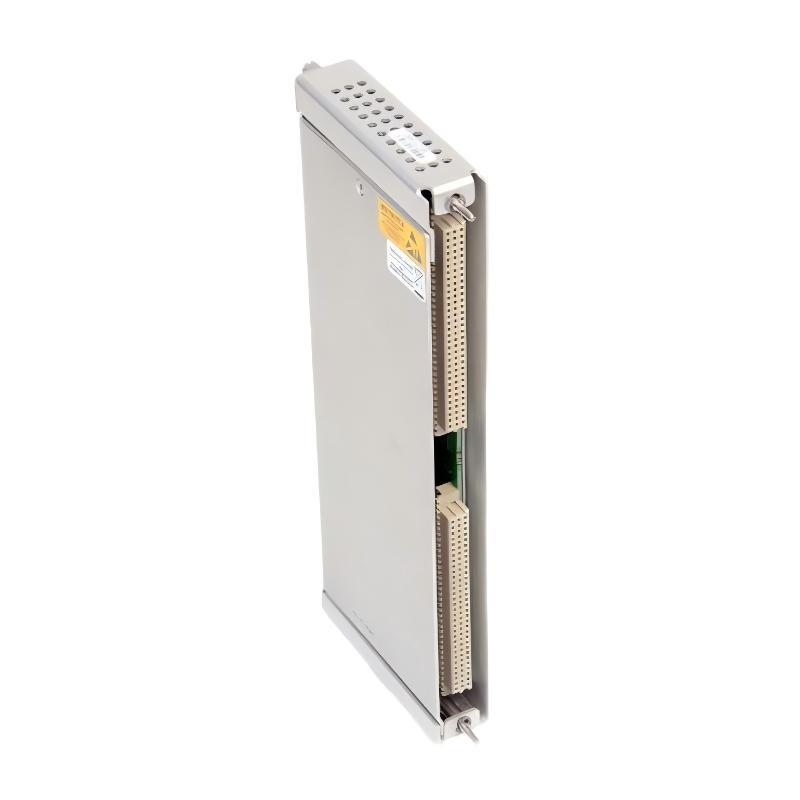

Bently Nevada 3500/42 138700-01 Axis Absolute I/O Module

Applications

The Bently Nevada 3500/42 Axis Absolute I/O Module is designed for precise machinery monitoring in safety-critical industrial environments. Typical applications include:

• Capturing absolute axis position and motion data in turbines, compressors, and generators

• Integrating with Bently Nevada 3500 series monitoring systems

• Supporting condition-based maintenance and fault diagnostics

• Facilitating precise speed and position monitoring for rotating machinery

• Enabling modular and redundant monitoring configurations

Advantages

• Industrial-grade construction for harsh environments

• Provides precise absolute axis position input and output

• Seamless integration with Bently Nevada 3500 monitoring systems

• Supports redundant and fail-safe system configurations

• Compact, modular design for easy installation

• Long operational life with minimal maintenance

• Enhances diagnostics and condition monitoring capabilities

Technical FAQs

1. What is the main function of this module?
   It provides absolute axis position input and output for critical machinery monitoring.

2. What are the physical dimensions?
   241.3 × 24.4 × 163.1 mm.

3. What is the weight?
   0.46 kg.

4. Is it suitable for industrial environments?
   Yes, built for rugged machinery monitoring applications.

5. Can it be used in redundant monitoring systems?
   Yes, supports fail-safe and redundant configurations.

6. Is it compatible with Bently Nevada 3500 modules?
   Yes, fully compatible with the 3500 series.

7. Does it support precise speed and position monitoring?
   Yes, designed for accurate axis absolute I/O measurements.

8. Does it simplify integration into system racks?
   Yes, its modular design allows easy installation in 3500/05 racks.

9. Is it suitable for continuous operation?
   Yes, engineered for long-term industrial use.

10. Can it enhance machinery diagnostics?
    Yes, it supports precise condition monitoring and fault detection.
